Charts Pt.1
Study these flashcardsFree · spaced repetition · iPhone, Android, Mac & web
All cards
1
What are Aeronautical Charts used for?
Used by pilots to navigate during VFR or IFR flights
Charts have aiprots, airspace, lanmarks, obsticals, etc
Charts have aiprots, airspace, lanmarks, obsticals, etc
2
For UAS operators, what are the 3 types of charts of interest?
Sectional
Terminal Area
World Area - not that important
Terminal Area
World Area - not that important
3
How long is a sectional chart valid for?
56 days
4
How long is a Terminal Area Chart valid for?
56 days
5
How long is a World Area Chart valid for?
1 year
6
What is the MEF?
Maximum Elevation Figure
Represents the highest elevation within a quadrant, including terrain and other obstacles
Arounded up to the nearest 100' valule and the last two digits of the number are not shown
Represents the highest elevation within a quadrant, including terrain and other obstacles
Arounded up to the nearest 100' valule and the last two digits of the number are not shown
7
What color are airports with a control tower?
Blue
8
What color are airports with OUT a control tower?
Magenta
9
What does this symbol mean?
Hard surfaced runway
1500ft to 8069ft
1500ft to 8069ft
10
What does this symbol mean?
Hard surface runway
greater than 8069ft
greater than 8069ft
11
What does this symbol mean?
Private (Pvt) Airprot
12
What does this symbol mean?
Unverified airport
13
What does this symbol mean?
Heliport
14
What does this symbol mean?
Seaplane Base
15
What does this symbol mean?
Ultralight airport
16
What does this symbol mean?
Abandoned airport
17
What does this symbol mean?
Other than hard surface runway ex. grass
18
These tick marks can be seen on any aiport depiction symbol, what does it mean?
There is fuel available
19
What does this symbol mean?
Has a beacon, tells if its civ or military
20

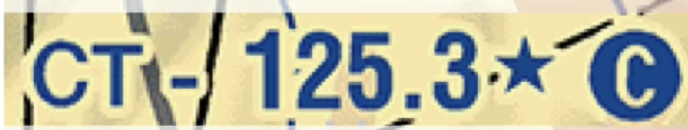

What does this mean?
CT - Control Tower
125.3 - Radio Frequency
(Star) - Part time operation
(C) - Has CTAF Frequency
125.3 - Radio Frequency
(Star) - Part time operation
(C) - Has CTAF Frequency
21

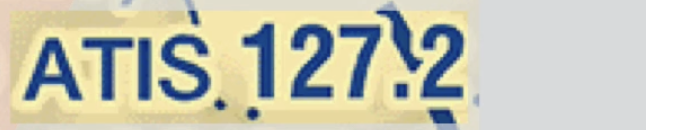

What does this mean?
ATIS frequency
22

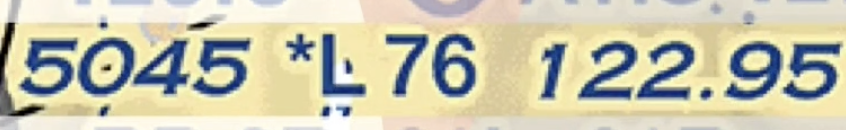

What does this mean?
5045 - Airport Elevation MSL
*L - Lighting in operation
* - The star mens limitations exist
76 - Length of the longest runway which in this case is 7,600ft
122.95 - Unicom Frequency
*L - Lighting in operation
* - The star mens limitations exist
76 - Length of the longest runway which in this case is 7,600ft
122.95 - Unicom Frequency
23

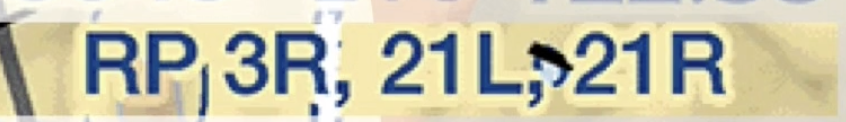

What does this mean?
RP: Right traffic pattern for.. Runways 3R, 21L and 21R
24

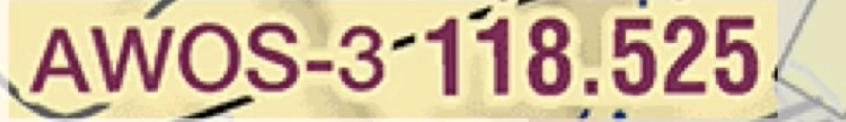

What does this mean?
AWOS-3 - Weather information available at frequency 118.525
25

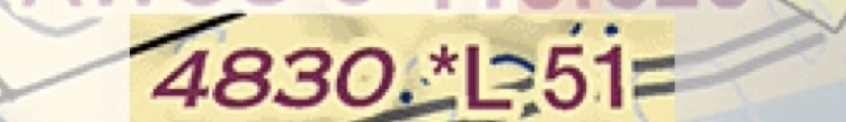

What does this mean?
4830 - Airport elevation in MSL
*L - Lighting available with limitations
51 - Longest runway available which is 5,100ft in this case
*L - Lighting available with limitations
51 - Longest runway available which is 5,100ft in this case
26

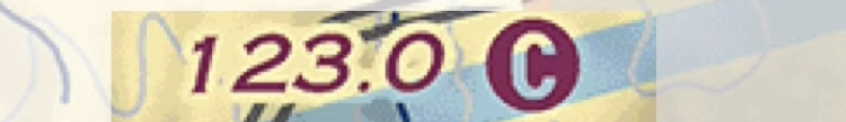

What does this mean?
CTAF available at frequency 123.0
27
What airspace is this?
Class B
28
What airpsace is this?
Class C
29
What airpace is this?
Class D
30
What does this mean?
The cieling of class d in MSL, this case is 4,000ft
31
What airpsace is this?
Class E WITH FLOOR 1,200ft OR GREATER
32
What airpsace is this?
Class E
33
What airspace is this?
Class E STARTING AT 700ft AGL
34
What does this mean?

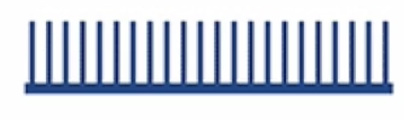

Prohibited, restricted, and warning areas
Look for letter clarifying which one
Look for letter clarifying which one
35

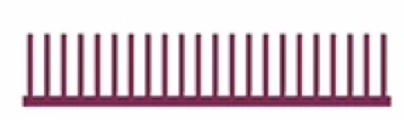

What does this mean?
Alert Area and MOA
Look for letter to clarify
Look for letter to clarify
36

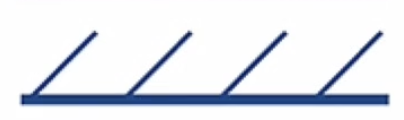

What does this mean?
Special airport traffic area
37

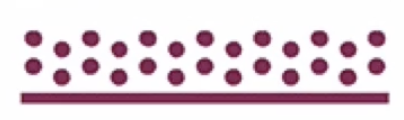

What does this mean?
ADIZ - Air defence identificaiton zone
38
What is VOR?
Navigatino aid
39

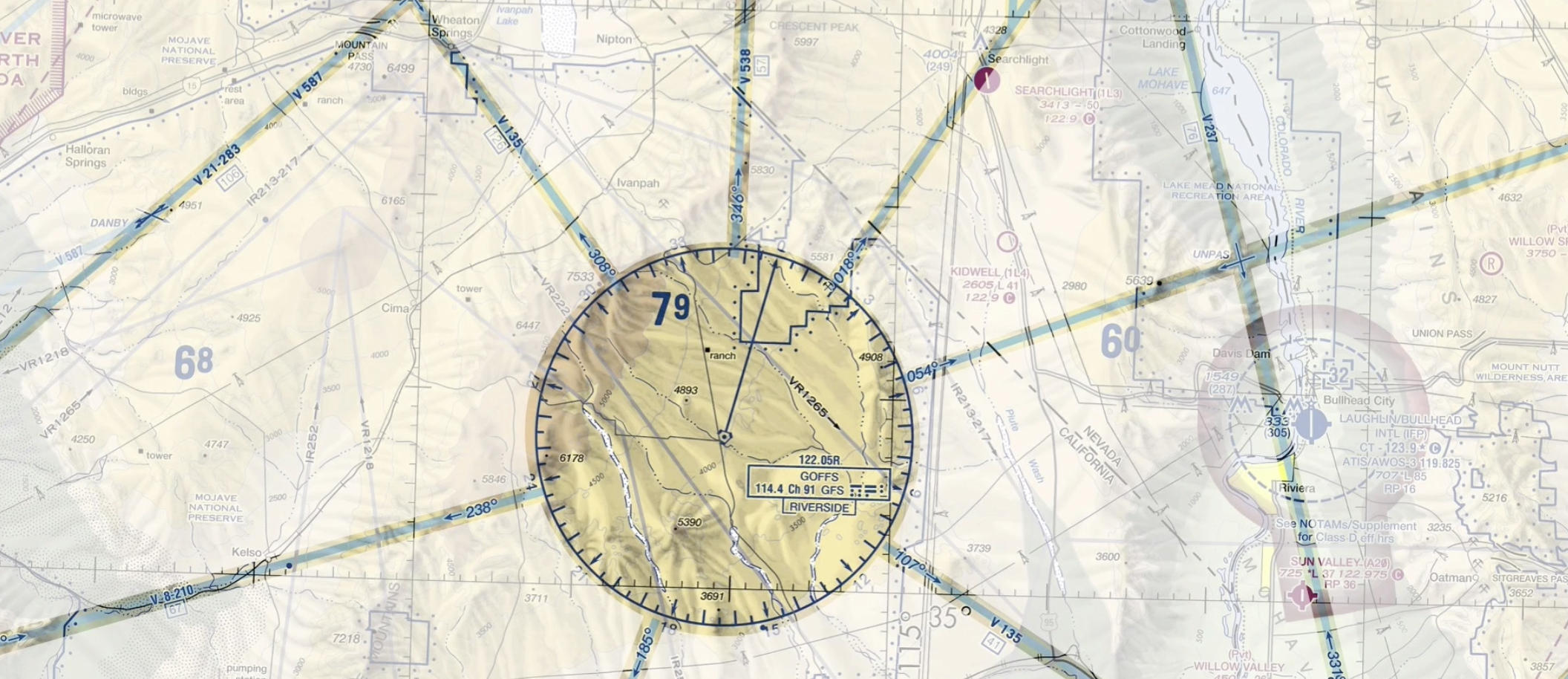

What is this showing you?
VOR
Blue lines with arrows are showing victor airways - all start at 1,200ft and go to 18,000ft AGL
Blue lines with arrows are showing victor airways - all start at 1,200ft and go to 18,000ft AGL
40
4NM on each side of the victor airways is what class airspace?
Class E starting at 1,200ft
41

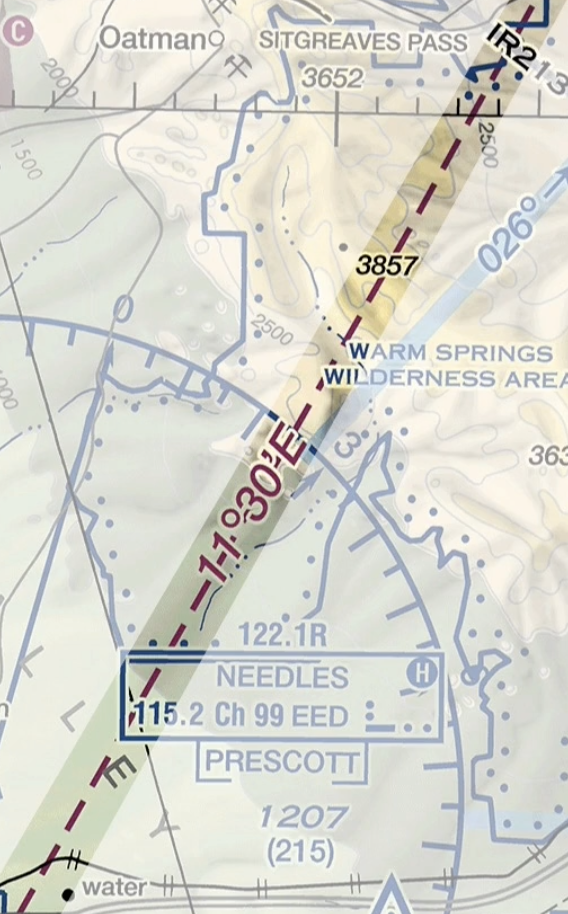

What is this highlighted section depicting?
Isogonic line
42
What does this mean?
Antenna tower ABOVE 200ft AGL (299ft in urban area) and below 1,000ft agl
43
What does this mean?
Antenna towr ABOVE 1,000ft AGL
44
What does this mean?
Wind Turbine
45

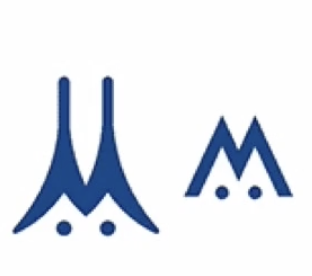

What does this mean?
Group obstruction
Either group of 1,000ft agl tall or less than 1,000ft agl
Either group of 1,000ft agl tall or less than 1,000ft agl
46

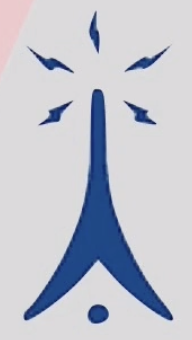

What does this mean?
High intensity light
may operate part time
may operate part time
47

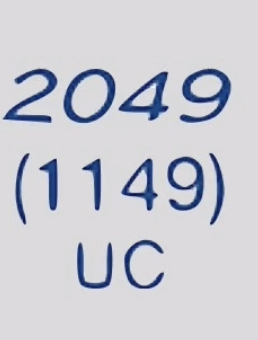

This will be under the symbol for an antenna tower or turbine, what does this mean?
Height MSL
(Height AGL)
UC: Under construction
(Height AGL)
UC: Under construction
48
What does this mean?
Parachute Location
49
What does this mean?
Special Activity
50
What does this mean?
Stadium
51

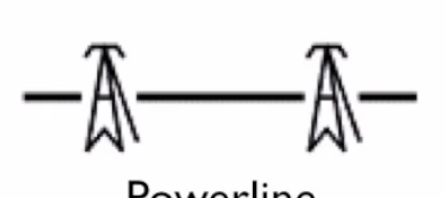

What does this mean?
Powerline
52

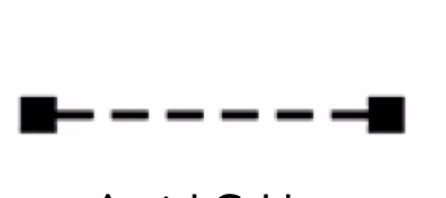

What does this mean?
Aerial Cable
53

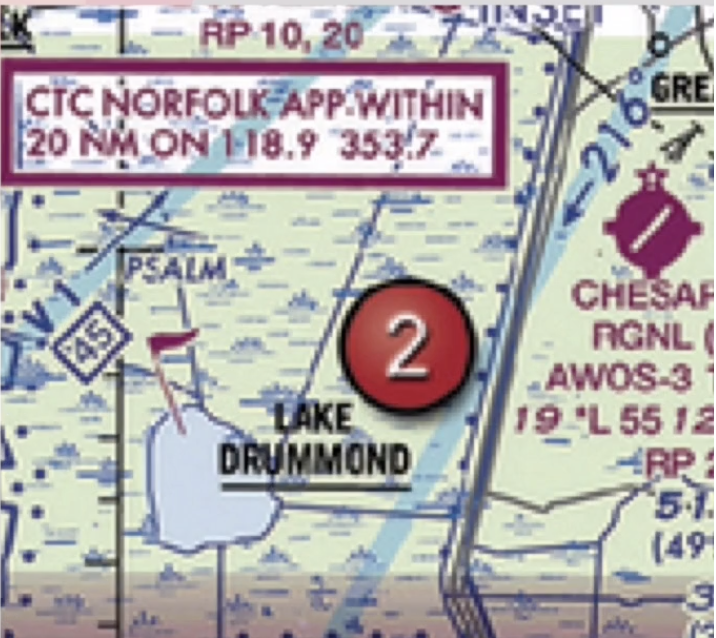

Why would the red flag be of importance to a remote PIC?
The red flag is a VFR checkpoint, which would indicate high traffic volume
54

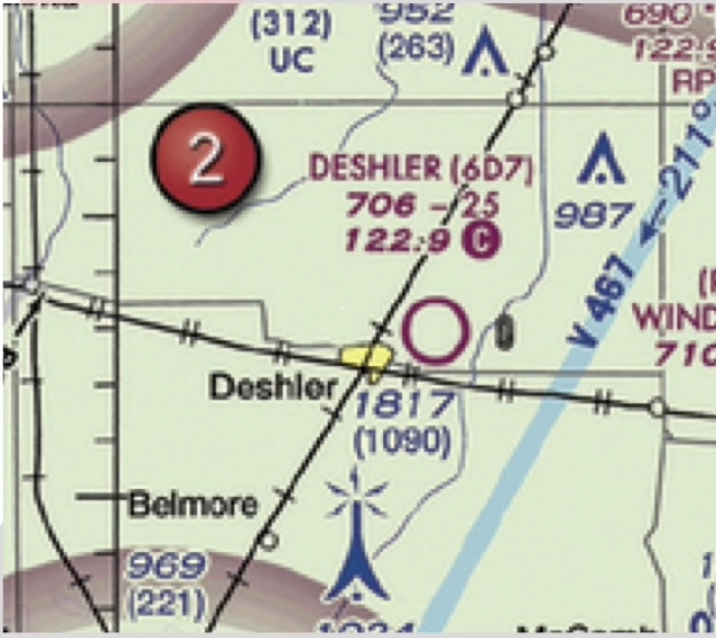

What kind of airport is deshler?
Public airport that is NOT a hard surface
55
Which is true concerning the blue and magenta colors used to depict airports on Sectional Aeronautical Charts?
A. Airports with control towers underlying Class A, B, and C airspace are
shown in blue; Class D and E airspace are magenta.
B. Airports with control towers underlying Class C, D, and E airspace are
shown in magenta.
C. Airports with control towers underlying Class B, C, D, and E airspace
are shown in blue.
A. Airports with control towers underlying Class A, B, and C airspace are
shown in blue; Class D and E airspace are magenta.
B. Airports with control towers underlying Class C, D, and E airspace are
shown in magenta.
C. Airports with control towers underlying Class B, C, D, and E airspace
are shown in blue.
C
