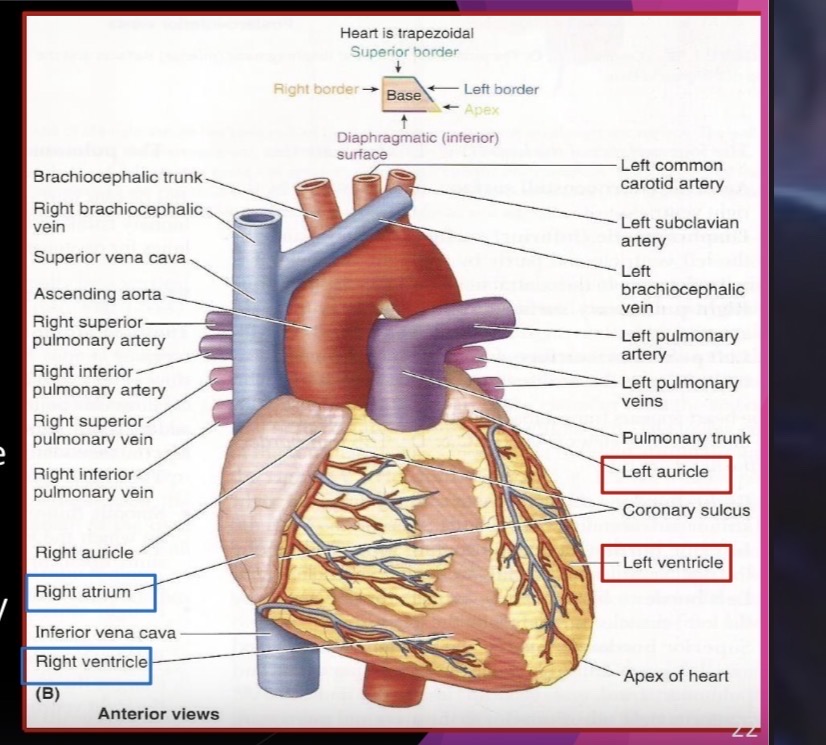

Surface anatomy of heart
Study these flashcardsFree · spaced repetition · iPhone, Android, Mac & web
All cards
1
Image occlusion: name the hidden labels
2
Image occlusion: name the hidden labels
3
Image occlusion: name the hidden labels
4
Image occlusion: name the hidden labels
5
Image occlusion: name the hidden labels
6
Image occlusion: name the hidden labels
7
Image occlusion: name the hidden labels
8
Image occlusion: name the hidden labels
9
Image occlusion: name the hidden labels
10
Image occlusion: name the hidden labels
11
Image occlusion: name the hidden labels
12
Image occlusion: name the hidden labels
13
Image occlusion: name the hidden labels
14
Image occlusion: name the hidden labels
15
Image occlusion: name the hidden labels
16
Image occlusion: name the hidden labels
17
Image occlusion: name the hidden labels
18
Image occlusion: name the hidden labels
19
Image occlusion: name the hidden labels
20
Image occlusion: name the hidden labels
21
Image occlusion: name the hidden labels
22
Image occlusion: name the hidden labels
23
Image occlusion: name the hidden labels
24
Image occlusion: name the hidden labels
25
Image occlusion: name the hidden labels
26
Image occlusion: name the hidden labels
27
Image occlusion: name the hidden labels
28
Image occlusion: name the hidden labels
29
Image occlusion: name the hidden labels
30
Image occlusion: name the hidden labels
31
Image occlusion: name the hidden labels
32
Image occlusion: name the hidden labels
33
Image occlusion: name the hidden labels
34
Image occlusion: name the hidden labels
35
Image occlusion: name the hidden labels
36
Image occlusion: name the hidden labels
37
Image occlusion: name the hidden labels
38
Image occlusion: name the hidden labels
39
Image occlusion: name the hidden labels
40
Image occlusion: name the hidden labels
41
Image occlusion: name the hidden labels
42
Image occlusion: name the hidden labels
43
Image occlusion: name the hidden labels
44
Image occlusion: name the hidden labels
45
Image occlusion: name the hidden labels
46
Image occlusion: name the hidden labels
47
Image occlusion: name the hidden labels
48
Image occlusion: name the hidden labels
49
Image occlusion: name the hidden labels
50
Image occlusion: name the hidden labels
51
Image occlusion: name the hidden labels
52
Image occlusion: name the hidden labels
53
Image occlusion: name the hidden labels
54
Image occlusion: name the hidden labels
55
Image occlusion: name the hidden labels
56
Image occlusion: name the hidden labels
57
Image occlusion: name the hidden labels
58
Image occlusion: name the hidden labels
59
Image occlusion: name the hidden labels
60
Image occlusion: name the hidden labels
61
Image occlusion: name the hidden labels
62
Image occlusion: name the hidden labels
63
Image occlusion: name the hidden labels
64
Image occlusion: name the hidden labels
65
Image occlusion: name the hidden labels
66
Image occlusion: name the hidden labels
67
Image occlusion: name the hidden labels
68
Image occlusion: name the hidden labels
69
Image occlusion: name the hidden labels
70
Image occlusion: name the hidden labels
71
Image occlusion: name the hidden labels
72
Image occlusion: name the hidden labels
73
Image occlusion: name the hidden labels
74
Image occlusion: name the hidden labels
75
Image occlusion: name the hidden labels
76
Image occlusion: name the hidden labels
77
Image occlusion: name the hidden labels
78
Image occlusion: name the hidden labels
79
Image occlusion: name the hidden labels
80
Image occlusion: name the hidden labels
81
Image occlusion: name the hidden labels
82
Image occlusion: name the hidden labels
83
Image occlusion: name the hidden labels
84
Image occlusion: name the hidden labels
85
Image occlusion: name the hidden labels
86
Image occlusion: name the hidden labels
87
Image occlusion: name the hidden labels
88
Image occlusion: name the hidden labels
89
Image occlusion: name the hidden labels
90
Image occlusion: name the hidden labels
91
Image occlusion: name the hidden labels
92
Image occlusion: name the hidden labels
93
Image occlusion: name the hidden labels
94
Image occlusion: name the hidden labels
95
Image occlusion: name the hidden labels
96
Image occlusion: name the hidden labels
97
Image occlusion: name the hidden labels
98
Image occlusion: name the hidden labels
99
Image occlusion: name the hidden labels
100
Image occlusion: name the hidden labels
101
Image occlusion: name the hidden labels
102
Image occlusion: name the hidden labels
103
Image occlusion: name the hidden labels
104
Image occlusion: name the hidden labels
105
Image occlusion: name the hidden labels
106
Image occlusion: name the hidden labels
107
Image occlusion: name the hidden labels
108
Image occlusion: name the hidden labels
109
Image occlusion: name the hidden labels
110
Image occlusion: name the hidden labels
111
Image occlusion: name the hidden labels
112
Image occlusion: name the hidden labels
113
Image occlusion: name the hidden labels
114
Image occlusion: name the hidden labels
115
Image occlusion: name the hidden labels
116
Image occlusion: name the hidden labels
117
Image occlusion: name the hidden labels
118
Image occlusion: name the hidden labels
119
Image occlusion: name the hidden labels
120
Image occlusion: name the hidden labels
121
Image occlusion: name the hidden labels
122
Image occlusion: name the hidden labels
123
Image occlusion: name the hidden labels
124
Image occlusion: name the hidden labels
125
Image occlusion: name the hidden labels
126
Image occlusion: name the hidden labels
127
Image occlusion: name the hidden labels
128
Image occlusion: name the hidden labels
129
Image occlusion: name the hidden labels
130
Image occlusion: name the hidden labels
131
Image occlusion: name the hidden labels
132

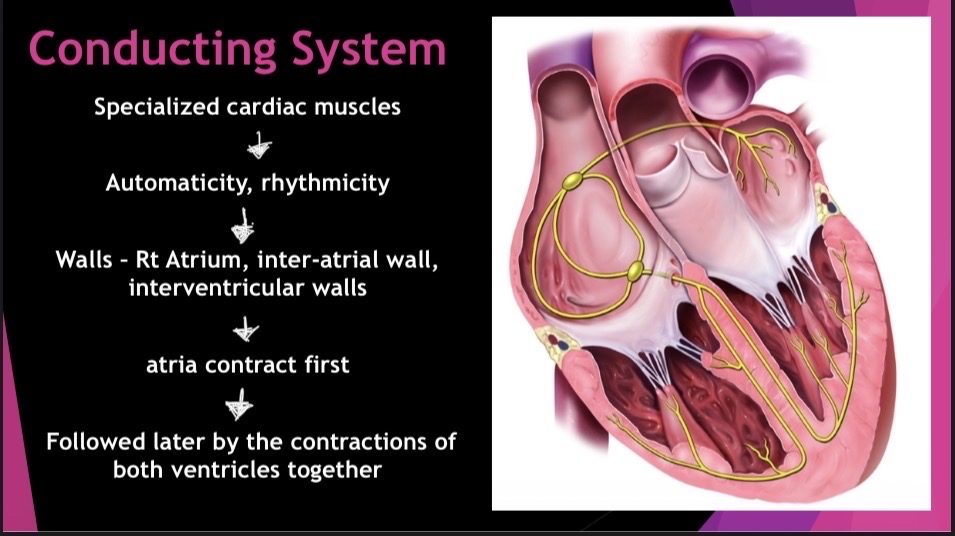

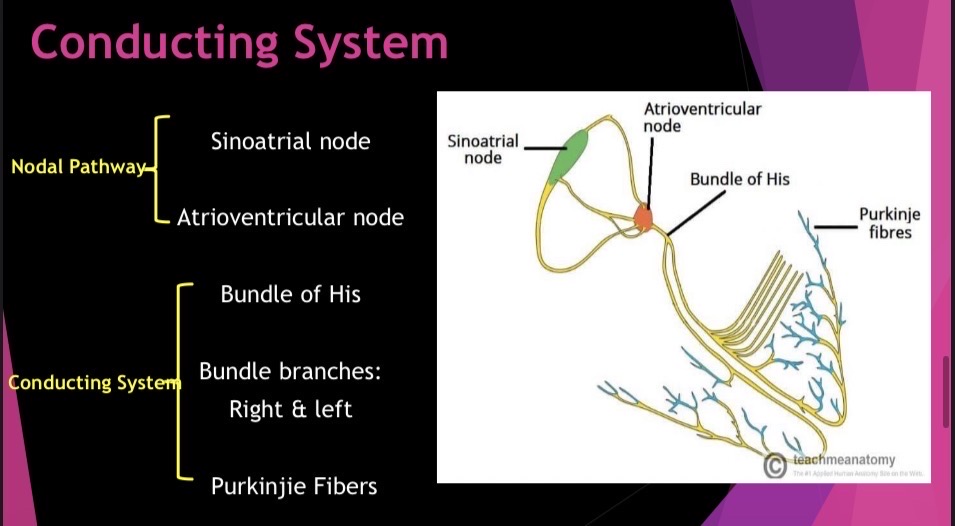

flow of cardiac conuducting system

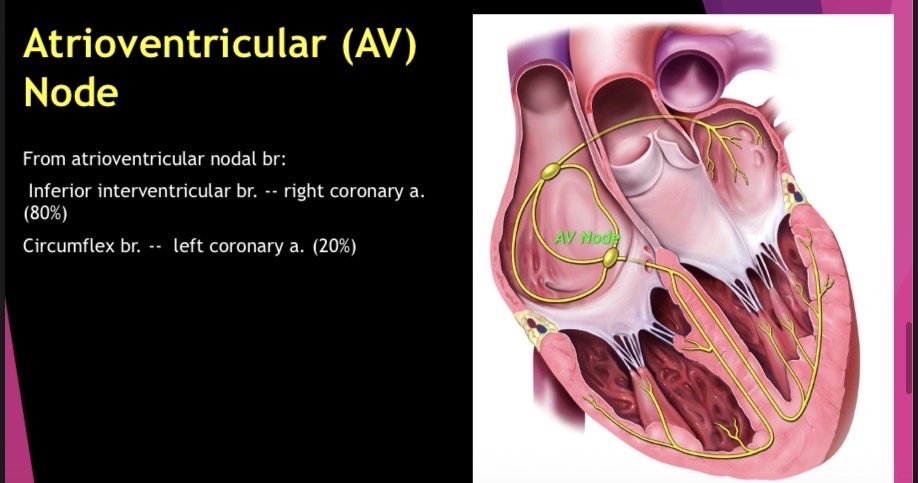

SA node → internodal pathways → AV node → Bundle of His → RBB & LBB → Purkinje fibres → ventricles
133
cardiac conducting system (internodal pathways)
• Location: Interatrial wall (between right & left atrium)
• Function: Rapid conduction from SA node (Sinoatrial node) to AV node (Atrioventricular node)
• Cells: Modified cardiac muscle cells + Purkinje-like fibres
Types
• Anterior internodal pathway
• Passes in front of SVC (Superior Vena Cava) opening
• Conducts to AV node
• Gives Bachmann bundle → conducts impulse to left atrium
• Middle internodal pathway (Wenckebach bundle)
• Passes behind SVC (Superior Vena Cava)
• Conducts to superior part of AV node
• Posterior internodal pathway (Thorel bundle)
• Passes behind SVC (Superior Vena Cava)
• Conducts to posterior part of AV node
• Function: Rapid conduction from SA node (Sinoatrial node) to AV node (Atrioventricular node)
• Cells: Modified cardiac muscle cells + Purkinje-like fibres
Types
• Anterior internodal pathway
• Passes in front of SVC (Superior Vena Cava) opening
• Conducts to AV node
• Gives Bachmann bundle → conducts impulse to left atrium
• Middle internodal pathway (Wenckebach bundle)
• Passes behind SVC (Superior Vena Cava)
• Conducts to superior part of AV node
• Posterior internodal pathway (Thorel bundle)
• Passes behind SVC (Superior Vena Cava)
• Conducts to posterior part of AV node
134
cardiac conducting system (AV bundle/ bundle of his)
• Site: Membranous IVS (Interventricular Septum)
• Function: Only electrical connection between atria and ventricles
• Divides into:
• RBB (Right Bundle Branch) → right ventricle
• LBB (Left Bundle Branch) → left ventricle
• Function: Only electrical connection between atria and ventricles
• Divides into:
• RBB (Right Bundle Branch) → right ventricle
• LBB (Left Bundle Branch) → left ventricle
135
cardiac conducting system (RBB= right bundle branch)
• Origin: AV bundle in membranous IVS (Interventricular Septum)
• Structure: Narrow fascicles
• Course:
• Runs within myocardium
• Moves to subendocardial layer
• Travels along right side of IVS
• Passes through moderator band (septomarginal trabecula)
• Supplies anterior papillary muscle & right ventricular wall
• Structure: Narrow fascicles
• Course:
• Runs within myocardium
• Moves to subendocardial layer
• Travels along right side of IVS
• Passes through moderator band (septomarginal trabecula)
• Supplies anterior papillary muscle & right ventricular wall
136
Cardiac conducting system (LBB/ left bundle branch)
• Origin: AV bundle in membranous IVS (Interventricular Septum)
• Structure: Flattened sheets of fascicles
• Course:
• Left half of muscular IVS
• Subendocardial space
• Toward ventricular apex
• Trifurcates into:
• Anterior division
• Septal division
• Posterior division
• Supplies left ventricular wall, IVS & papillary muscles
• Structure: Flattened sheets of fascicles
• Course:
• Left half of muscular IVS
• Subendocardial space
• Toward ventricular apex
• Trifurcates into:
• Anterior division
• Septal division
• Posterior division
• Supplies left ventricular wall, IVS & papillary muscles
137
cardiac conducting system (purkinje fibres)
• Location: Subendocardial layer of the ventricles (just beneath the endocardium)
• Cell size: Much larger than surrounding ventricular muscle cells
• Arrangement: Run as bundles and branches throughout the ventricular walls
• Course:
• Reach the cardiac apex
• Then curve upward and backward through ventricular walls
• Cell connections:
• Contain many more gap junctions than:
• Atrioventricular nodal cells
• Ordinary ventricular myocytes
• Conduction speed:
• 6× faster than ventricular muscle fibres
• 150× faster than atrioventricular nodal fibres
• Function:
• Rapid, synchronized activation of both ventricles
• Ensures coordinated ventricular contraction from apex → base
• Cell size: Much larger than surrounding ventricular muscle cells
• Arrangement: Run as bundles and branches throughout the ventricular walls
• Course:
• Reach the cardiac apex
• Then curve upward and backward through ventricular walls
• Cell connections:
• Contain many more gap junctions than:
• Atrioventricular nodal cells
• Ordinary ventricular myocytes
• Conduction speed:
• 6× faster than ventricular muscle fibres
• 150× faster than atrioventricular nodal fibres
• Function:
• Rapid, synchronized activation of both ventricles
• Ensures coordinated ventricular contraction from apex → base
138

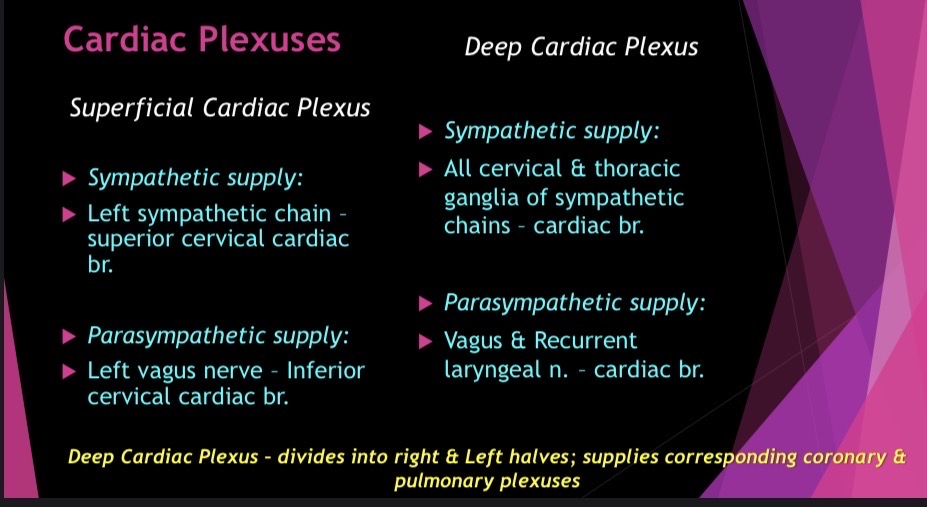

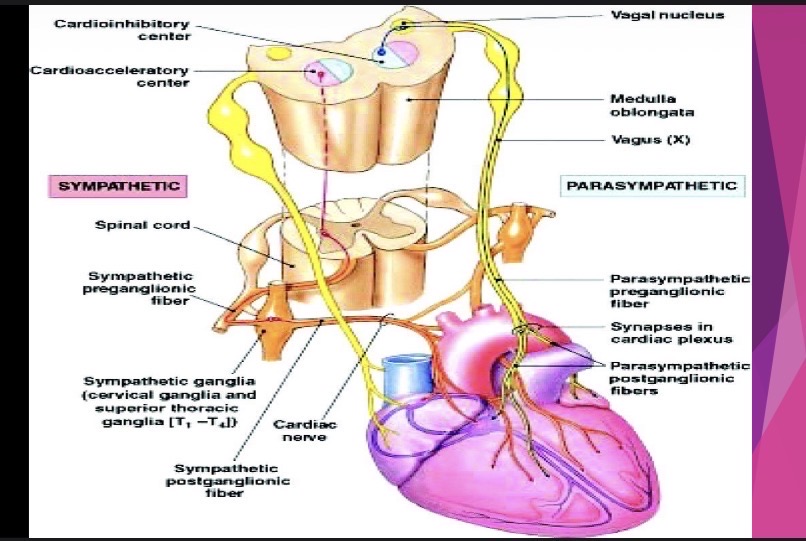

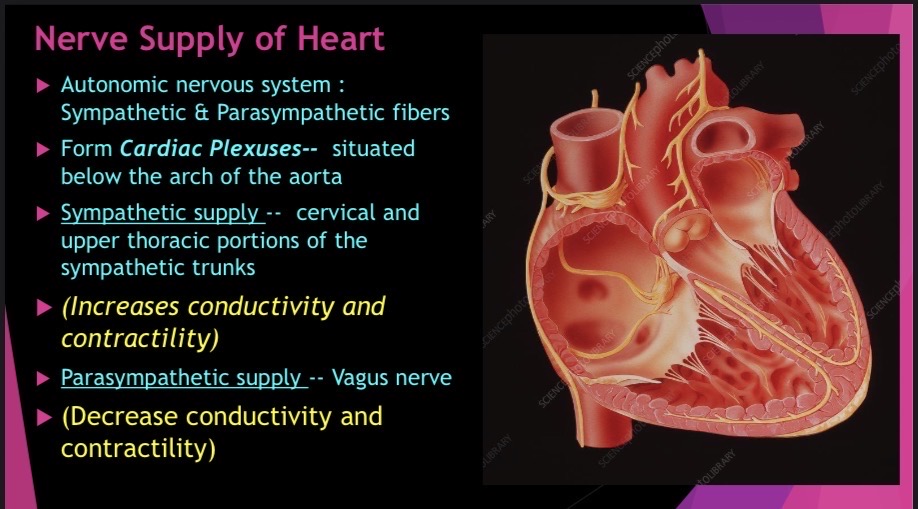

nerve supply of heart
• Supplied by Autonomic Nervous System
• Sympathetic fibres
• Parasympathetic fibres
• Nerves form cardiac plexuses
• Located below the arch of the aorta
• Sympathetic fibres
• Parasympathetic fibres
• Nerves form cardiac plexuses
• Located below the arch of the aorta
139
nerve supply of heart (sympathetic supply)
• Origin: Cervical and upper thoracic segments of the sympathetic trunks
• Effect:
• Increases heart rate
• Increases conductivity
• Increases contractility
• Effect:
• Increases heart rate
• Increases conductivity
• Increases contractility
140
nerve supply of heart (parasympathetic supply)
• Origin: Vagus nerve
• Effect:
• Decreases heart rate
• Decreases conductivity
• Decreases contractility
• Effect:
• Decreases heart rate
• Decreases conductivity
• Decreases contractility
141
cardiac plexus
network of autonomic nerves that supplies the heart.
Two cardiac plexuses
1. Superficial cardiac plexus
2. Deep cardiac plexus
Two cardiac plexuses
1. Superficial cardiac plexus
2. Deep cardiac plexus
142
superficiacl cardiac plexus
• Location:
• Below the arch of the aorta
• In front of the right pulmonary artery
• Sympathetic input:
• Left sympathetic chain
• Superior cervical cardiac branch
• Parasympathetic input:
• Left vagus nerve
• Inferior cervical cardiac branch
• Below the arch of the aorta
• In front of the right pulmonary artery
• Sympathetic input:
• Left sympathetic chain
• Superior cervical cardiac branch
• Parasympathetic input:
• Left vagus nerve
• Inferior cervical cardiac branch
143
Deep cardiac plexus
• Location:
• In front of the bifurcation of the trachea
• Behind the arch of the aorta
• Sympathetic input:
• All cervical and thoracic ganglia of sympathetic chains
• Cardiac branches
• Parasympathetic input:
• Vagus nerve
• Recurrent laryngeal nerve (branch of vagus nerve)
• Distribution:
• Divides into right and left halves
• Supplies:
• Corresponding coronary plexuses
• Pulmonary plexuses
• In front of the bifurcation of the trachea
• Behind the arch of the aorta
• Sympathetic input:
• All cervical and thoracic ganglia of sympathetic chains
• Cardiac branches
• Parasympathetic input:
• Vagus nerve
• Recurrent laryngeal nerve (branch of vagus nerve)
• Distribution:
• Divides into right and left halves
• Supplies:
• Corresponding coronary plexuses
• Pulmonary plexuses
144
Nerves flow
Autonomic nerves → cardiac plexuses (superficial & deep) → coronary vessels, myocardium & conducting system
