IR Spectrum
Study these flashcardsFree · spaced repetition · iPhone, Android, Mac & web
All cards
1

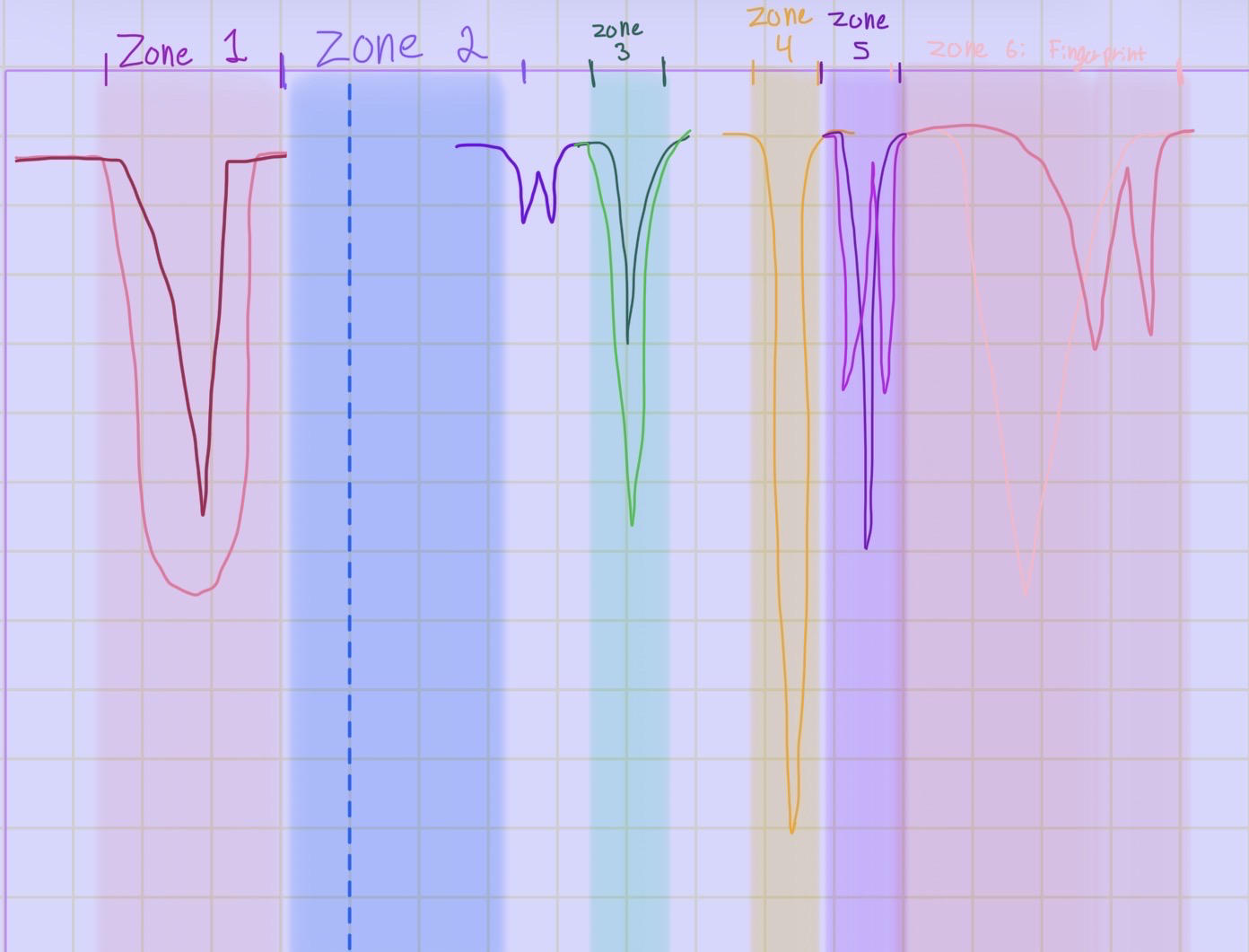

Where is Zone 1?
3700-3200
2
Where is zone 2
3200-2700
3
Where is zone 3
2300-2100
4
Where is zone 4
1850-1650
5
Where is zone 5
1650-1450
6
Where is zone 6
1500-600
7
What does the light pink in zone 1 show
a tounge: O-H bond
8
What does the red in zone 1 show
a sword: N-H bond (amine)
9
What does the purple next to zone 2 show?
little fangs: aldehyde
10
What is to the left of the 3000 mark
Sp2 and Sp C-H
11
What is to the right of 3000
Sp3 C-H
12
What is the light green in zone 3
triple bond between C and N
13
What is the dark green in zone 3
triple bond between C and C
14
What is the long and sharp yellow in zone 4
C=O
15
What does rhe magenta show in zone 5
hexagon ring w/ dbl bonds (aromatic ring)
16
What does the dark purple show in zone 5
C=C
17
What does the light pink show in zone 6
C-O-C (esters or ethers)
18
What does the pink show in zone 6
two medium fangs: aromatic ring
