Measuring Tools
Study these flashcardsFree · spaced repetition · iPhone, Android, Mac & web
All cards
1

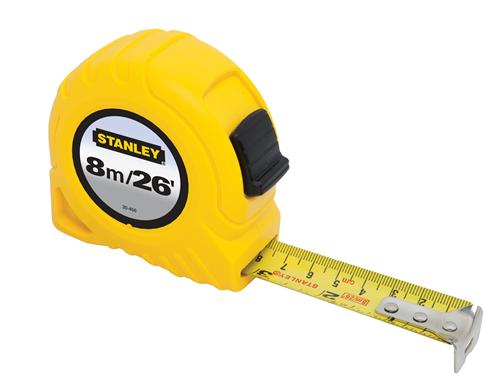

Tape rules
used to measure materials in shop.
2

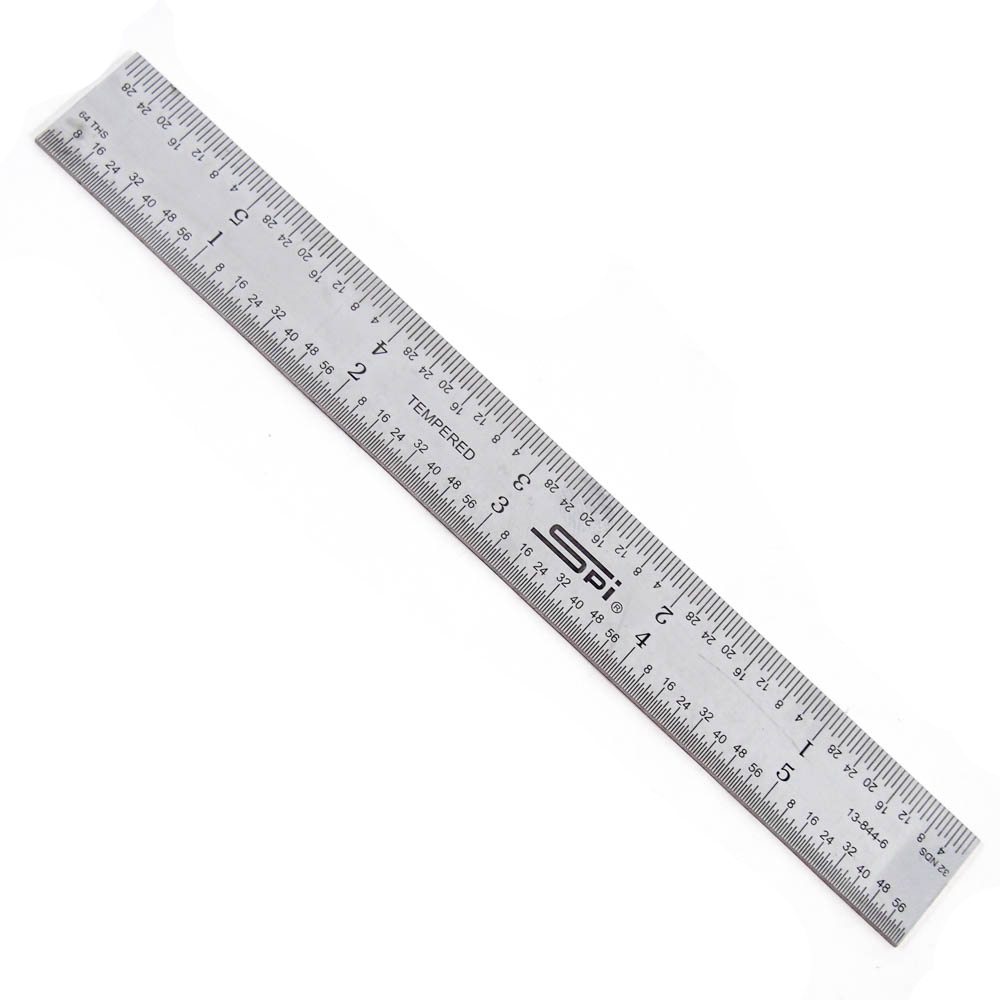

Rigid steel rules
used to measure materials in the shop
3
Steel (fiberglass) tape rules
used to measure materials in the shop.
4

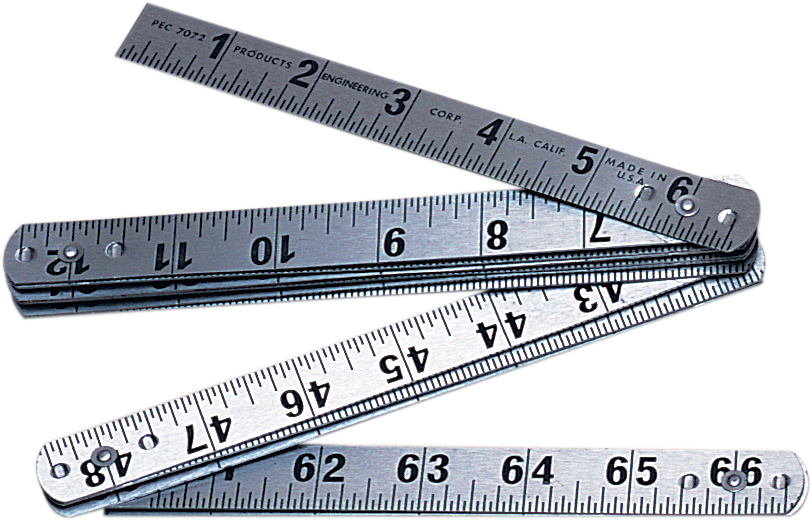

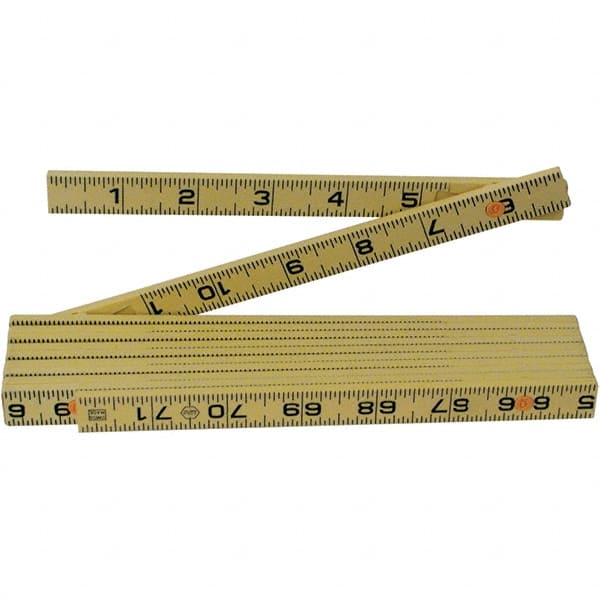

Folding rules
used to measured materials in the ship.
5

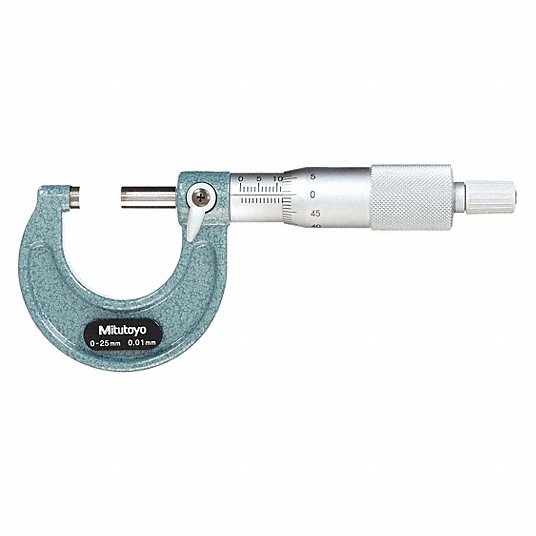

Micrometer
can measure down to thousandths of an inch, so you use them when you need to precisely measure the thickness of a flat object or the outside diameter of a cylinder.
6

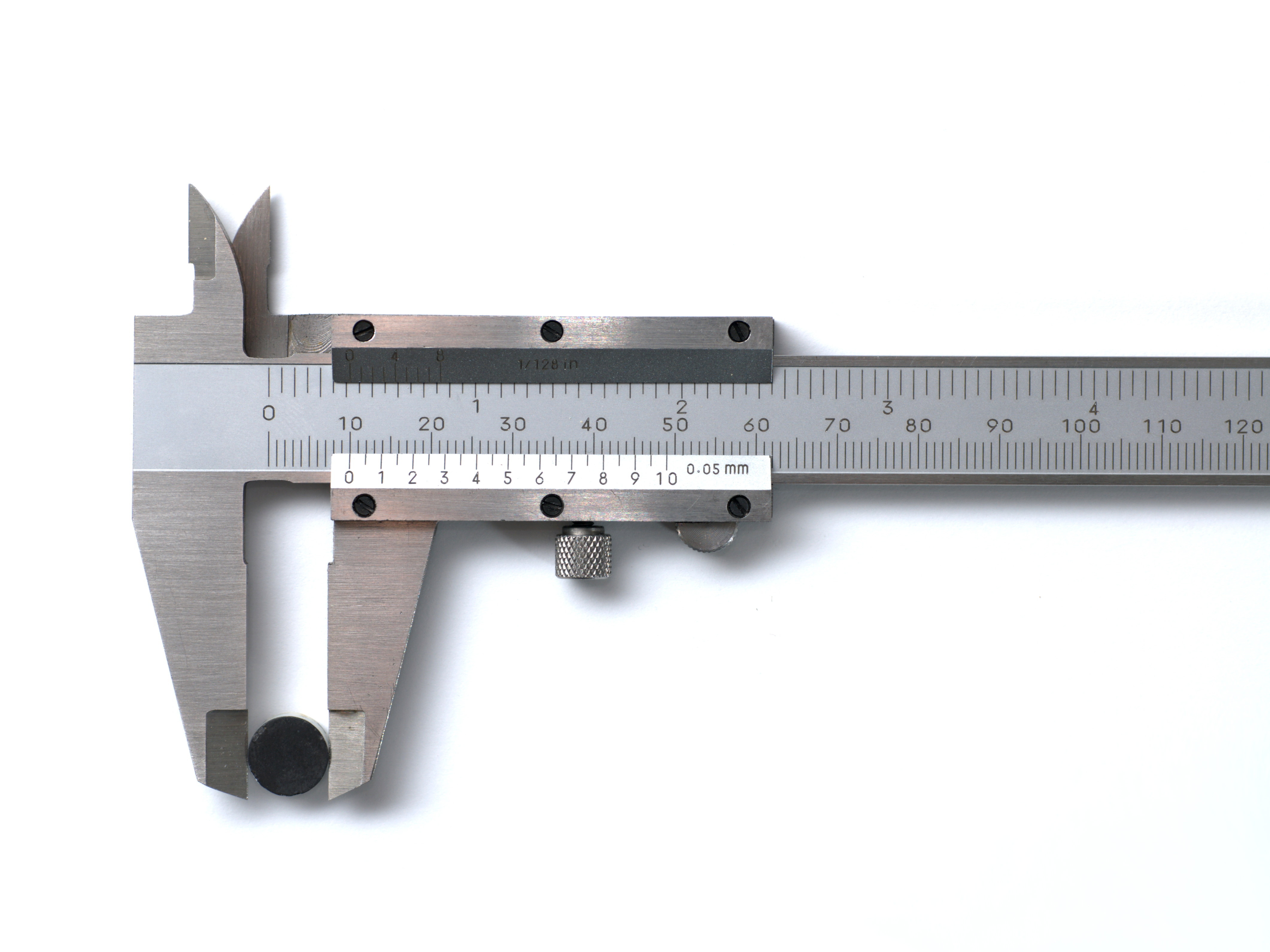

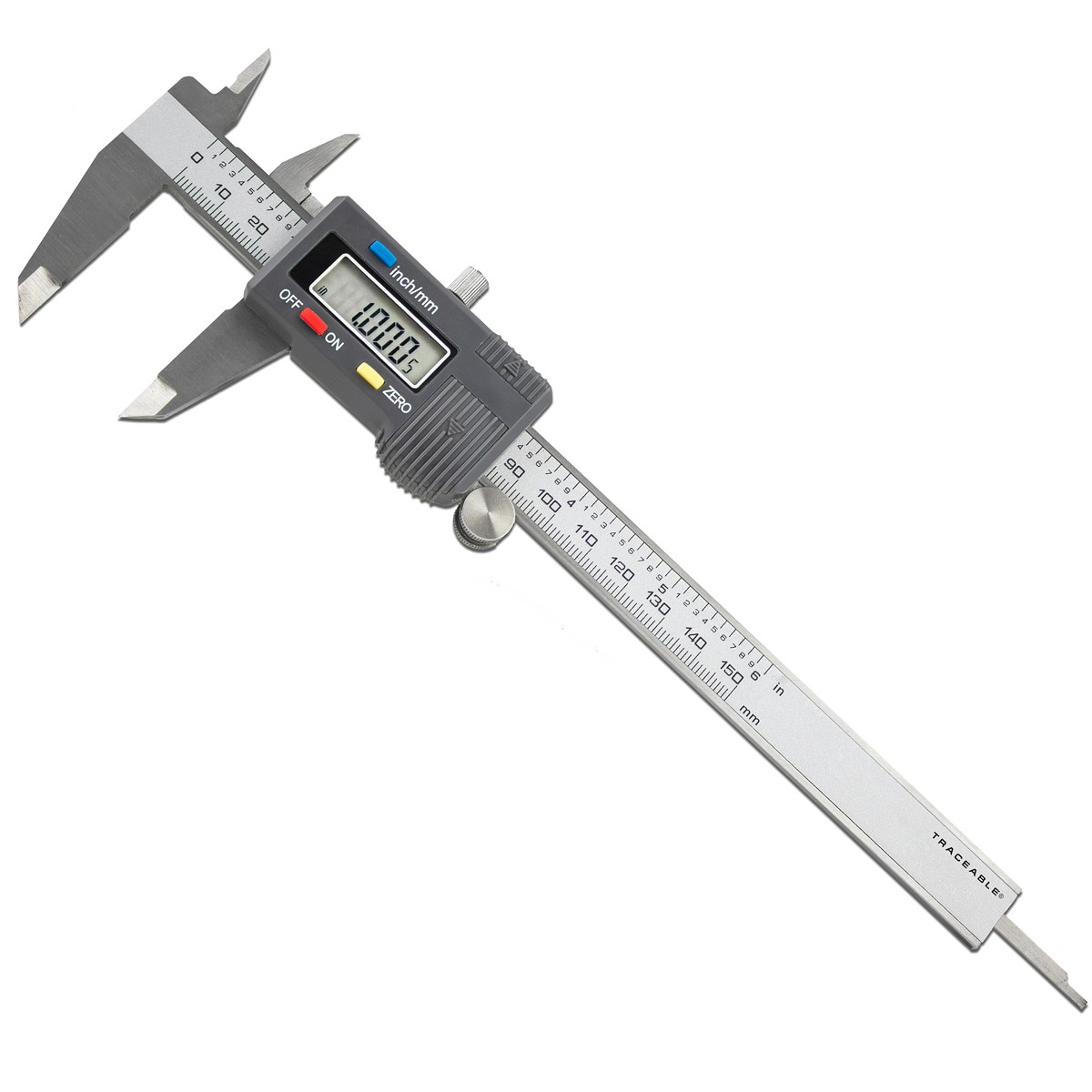

Caliper
work in the same way as micrometers.
7
Depot Gauges
measure the depth of holes.
8

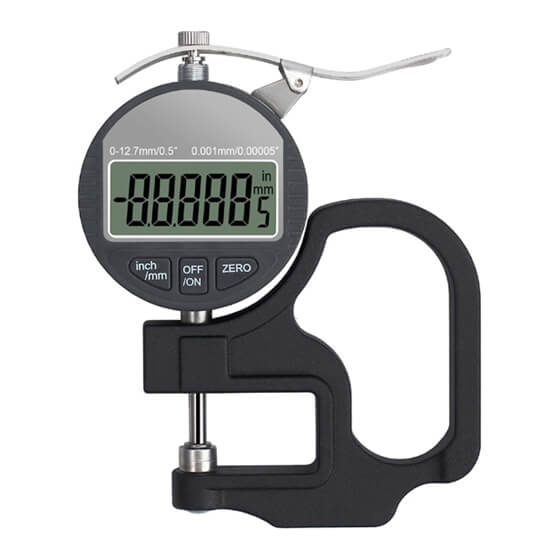

Thickness gauges
measure the thickness of small gaps.
9

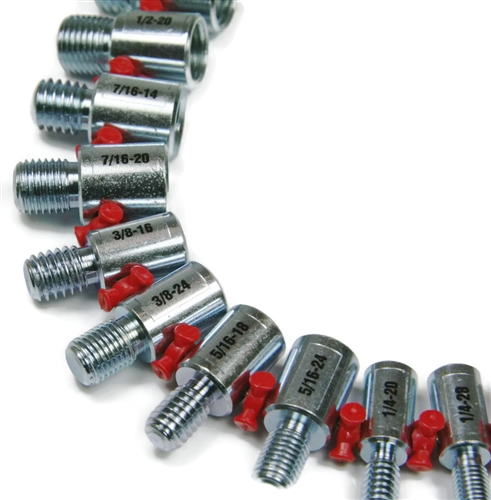

Thread gauges
measure the number of threads per inch in threaded fasterners.
10

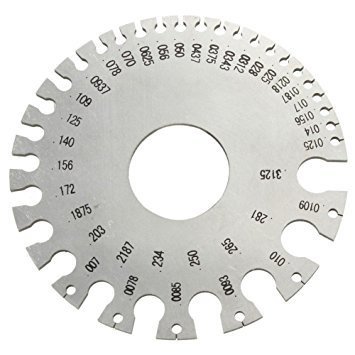

Wire gauges
measure the thickness of wire.
11

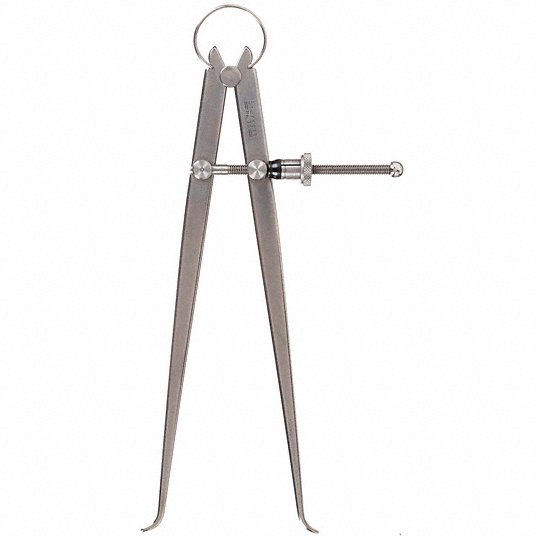

Inside calipers
measure the internal size.
12
Slide calipers
have a built-in rule.
