1Spigelian hernias, also known as lateral , are a type of
abdominal hernia along the , resulting in herniation
between the muscles of the abdominal wall
Spigelian hernias, also known as lateral ventral hernias, are a type of
abdominal hernia along the semilunar line, resulting in herniation
between the muscles of the abdominal wall
2The inguinal region is area of the
The inguinal region is area of the groin
3The represents an area of weakness in the anterior abdominal
wall, especially in males, owing to the prenatal penetration of the wall
by the and .
The inguinal region represents an area of weakness in the anterior abdominal
wall, especially in males, owing to the prenatal penetration of the wall
by the testis and spermatic cord.

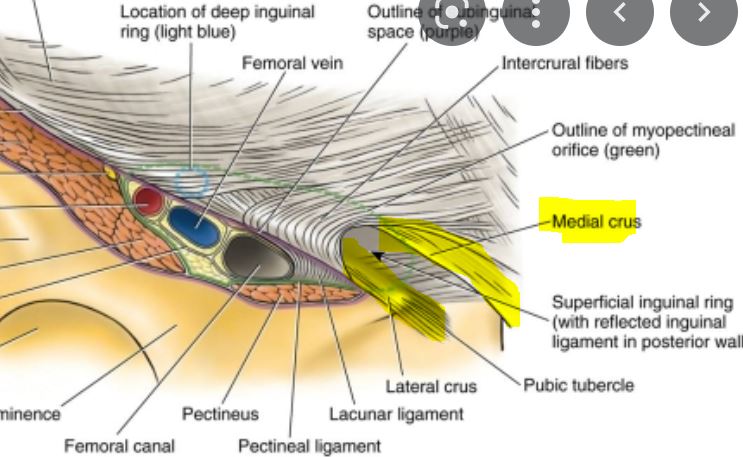

4The superficial inguinal ring is triangular in shape with its base located
at and formed by the , and its apex is .
The superficial inguinal ring is triangular in shape with its base located
at and formed by the pubic crest, and its apex is superolateral.
5• The sides of the ring are formed by the and
(“legs”) of the superficial ring.
• The sides of the ring are formed by the
medial and
lateral crura(“legs”) of the superficial ring.

6• The inserts on the pubic tubercle
• The inserts on the pubic symphysis
• The lateral crus inserts on the pubic tubercle
• The medial crus inserts on the pubic symphysis
7In the superifical inguinal ring
- in the male
- in the female
- nerve
In the superifical inguinal ring
-Spermatic cord (and its contents) in the male
-Round ligament in the female
-Ilioingunial nerve
8Ilioinguinal nerve [L1] (male and female) transits
through the ring to supply the skin over the
. Also the skin of the
, , , or
.
Ilioinguinal nerve [L1] (male and female) transits
through the ring to supply the skin over the
superomedial aspect of the thigh. Also the skin of the
lower inguinal region, mons pubis, anterior scrotum, or
labia majora.
9Boundaires of the inguinal canal
2 Malt
Roof: 2 mucles (internal oblique, transversus abdominis
Ant Wall: 2 aponeuroses (external and internal oblique)
Floor: 2 ligramanets (inguinal and lacunar)
Post. Wall: 2 T - Tranversalis fascia and conjoint tendon

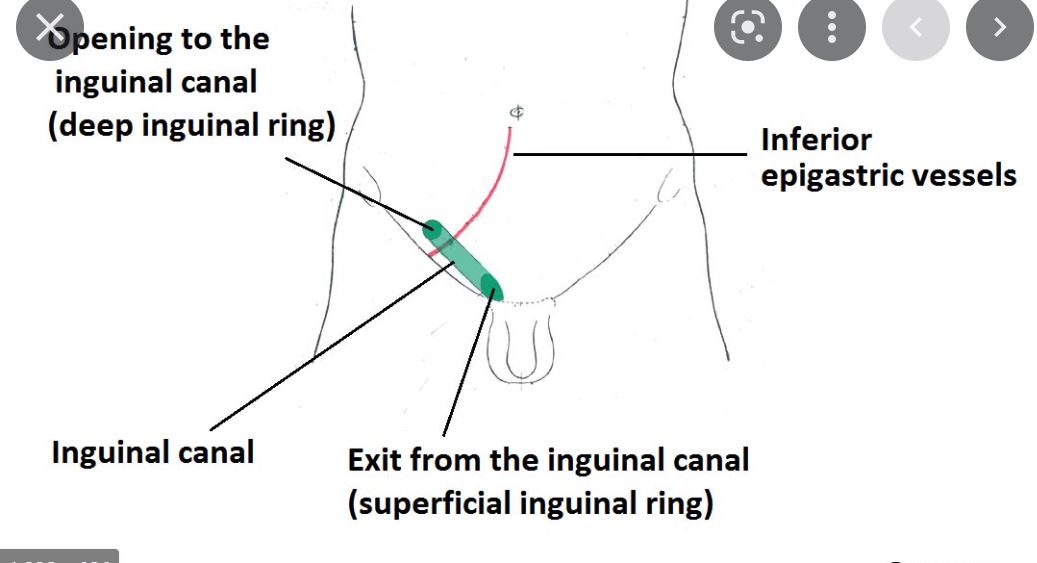

10The = slit-like opening in the fascia transversalis
The Deep Inguinal Ring = slit-like opening in the fascia transversalis
11The = a triangular opening in the EOM aponeurosis
The Superficial Inguinal Ring = a triangular opening in the EOM aponeurosis

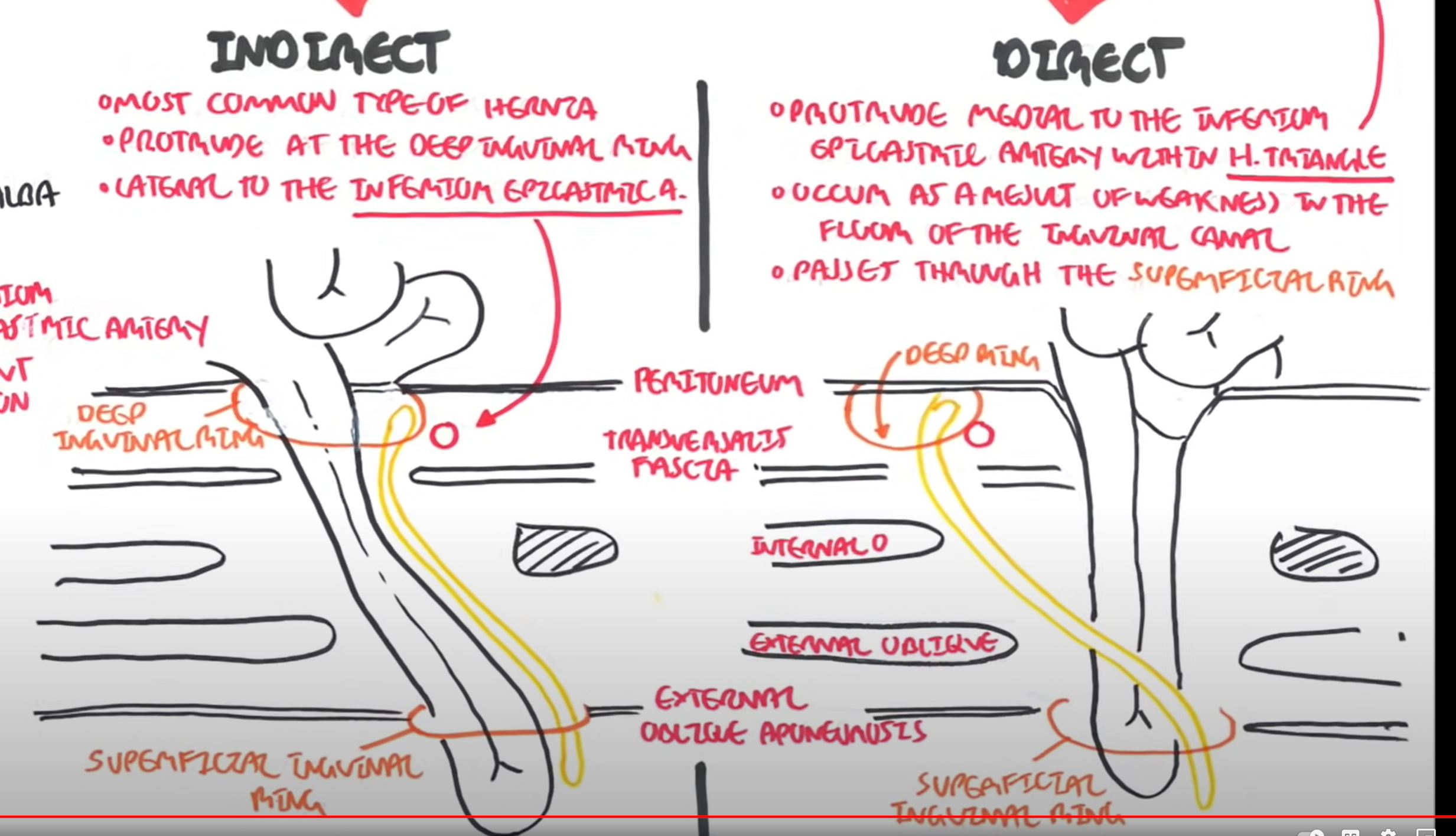

12Indirect inguinal hernia leave the abdominal cavity to the , traverse the deep inguinal ring, inguinal
canal, and superficial inguinal ring.
Indirect inguinal hernia leave the abdominal cavity
lateral to the
inferior
epigastric vessels, traverse the deep inguinal ring, inguinal
canal, and superficial inguinal ring.

13In indirect inguinal hernias, hernial sac is contained within the
because they follow the route taken by the testis, and it is
covered by the 3 layers ( ,
and ) of the spermatic
cord.
In indirect inguinal hernias, hernial sac is contained within the spermatic cord
because they follow the route taken by the testis, and it is
covered by the 3 layers (external spermatic fascia,
cremaster and internal spermatic fascia) of the spermatic
cord.
14Direct inguinal hernias protrude through the posterior wall of inguinal cavity and leave the abdominal cavity to inferior epigastric vessels
Direct inguinal hernias protrude
anteriorly through the posterior wall of inguinal cavity and leave the abdominal cavity
MEDIAL to inferior epigastric vessels

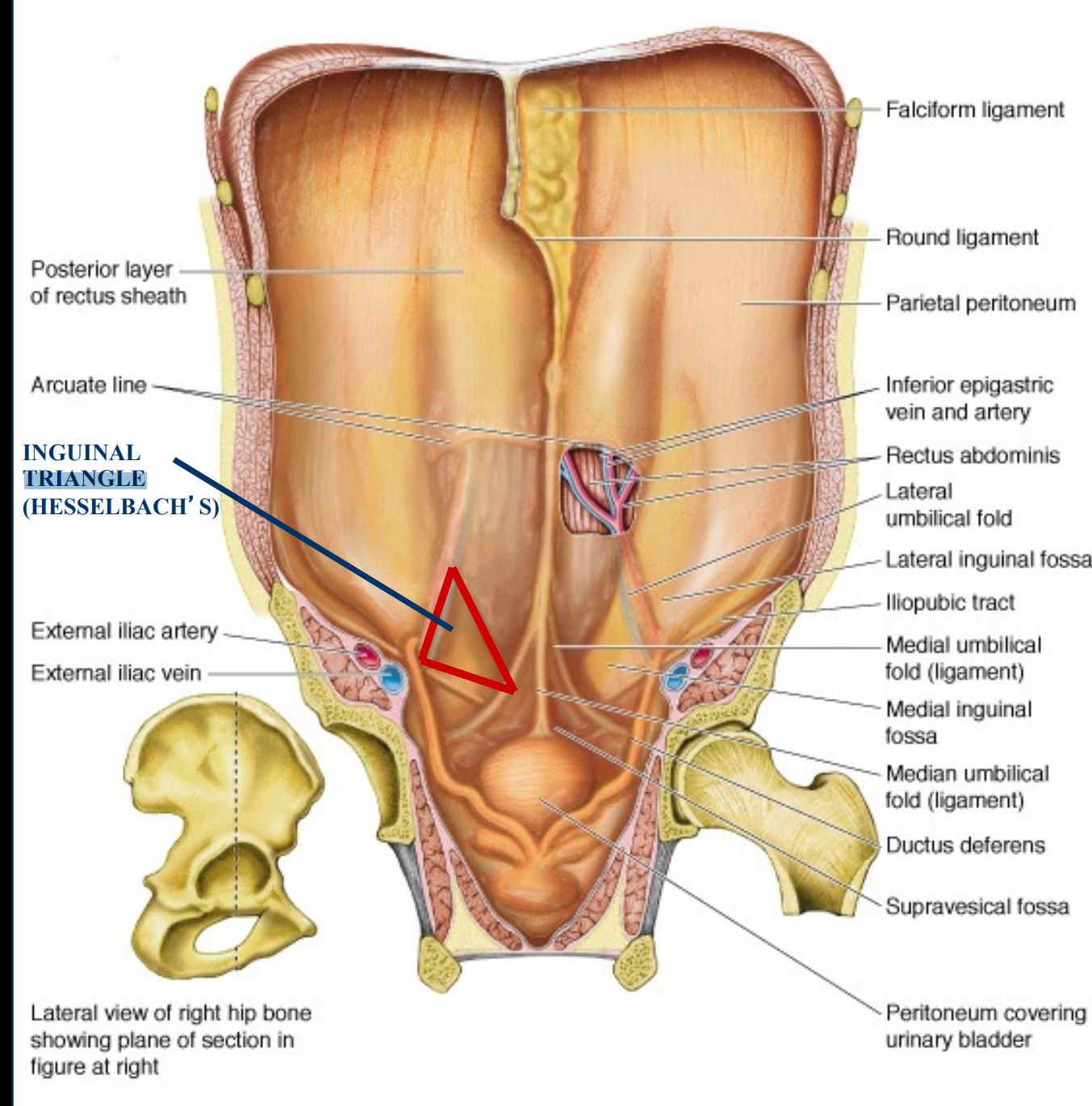

15Direct inguinal hernias pass through the
Direct inguinal hernias pass through the
inguinal triangle
16The hernial sac in direct hernias parallels the
The hernial sac in direct hernias parallels the
spermatic cord.
17The inguinal canal is an oblique passage measuring approximately 4-5 cm in the adult,
through the of the wall
The inguinal canal is an oblique passage measuring approximately 4-5 cm in the adult,
through the inferior part of the anterior abdominal wall
18Boundaires of the superifical inguinal ring
• (inferior)
• (lateral)
• (medial)
Boundaires of the superifical inguinal ring
•
Inguinal ligament (inferior)
•
Inferior epigastric vessels (lateral)
•
Lateral border of Rectus abdominis muscle (medial)

19TEST QUESTION
= slit-like opening in the fascia transversalis
= a triangular opening in the EOM aponeurosis
TEST QUESTION
Deep Inguinal Ring = slit-like opening in the fascia transversalis
Superficial Inguinal Ring = a triangular opening in the EOM aponeurosis

20Indirect Inguinal Hernias are congenital or aquired?
Congenital
21Direct Inguinal Hernias are congenital or aquire ?
Aquired
22Indirect hernias can be palpated lateral to the
Indirect hernias can be palpated lateral to the pubic tubercle
23Direct hernia goes through the by entering on the side and out the . Indirect will travel from deep ring to superifical.
Direct hernia goes through the deep ring by entering on the side and out the superifical ring. Indirect will travel staight through from deep ring to superifical.
24Direct Inguinal Hernia: Hernating bowel passes to the inferior epigastric vessels and push through the peritoneum and transversalis fascia in the inguina triangle to eneter canal.
Direct Inguinal Hernia: Hernating bowel passes medial to the inferior epigastric vessels and push through the peritoneum and transversalis fascia in the inguina triangle to eneter canal.
25Indirect Inguinal Hernia: Hernating bowel passes to inferior epigastric vessels to enter inguinal ring.
Indirect Inguinal Hernia: Hernating bowel passes lateral to inferior epigastric vessels to enter inguinal ring.
26The forms the cremaster muscle
The internal oblique forms the cremaster muscle
27What is NOT a content of the spermatic cord?
L1
28The vein drainage is more likely to be backed up
The left testicle vein drainage is more likely to be backed up

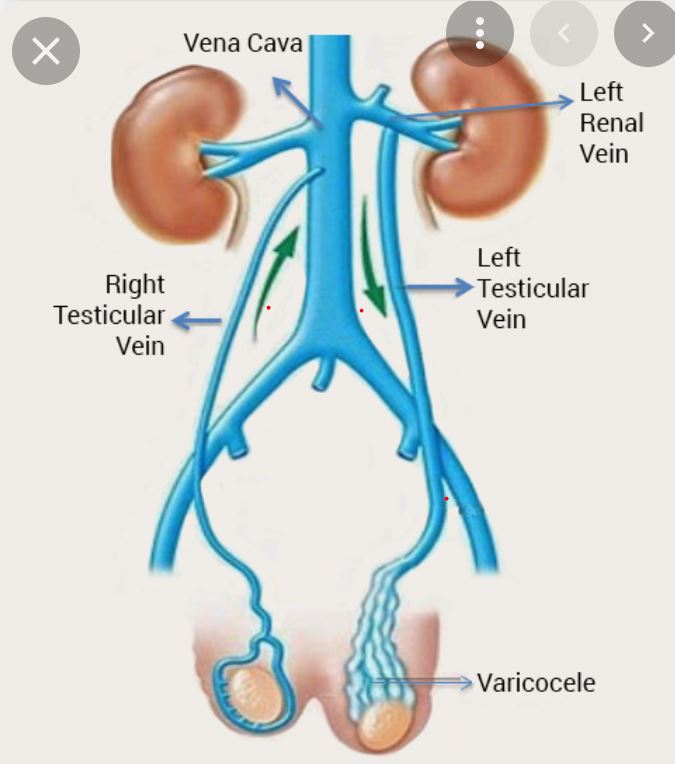

29Left testicular drains into at 90 angle the right testicular drians into the
Left testicular drains into
renal vein at 90 angle the right testicular drians into the
vena cava.
30Testicular veins = they begin in the testes as an extensive
venous plexus (pampiniform plexus)
•The right testicular vein leaves the plexus as a single vein and
drains directly into the
•The left testicular vein leaves the plexus as a single vein and
drains into the
Testicular veins = they begin in the testes as an extensive
venous plexus (pampiniform plexus)
•The right testicular vein leaves the plexus as a single vein and
drains directly into the IVC at L1
•The left testicular vein leaves the plexus as a single vein and
drains into the left renal vein at L1
31The is a content of the inguinal canal BUT NOT a content of the
spermatic cord.
The lioinguinal nerve is a content of the inguinal canal BUT NOT a content of the
spermatic cord.
32The cremasteric reflex is a superficial reflex that when absent indicates
The cremasteric reflex is a superficial reflex that when absent indicates corticospinal tract
injury.
33The arm of the reflex is the ilioinguinal nerve (L1) that
supplies the anterosuperior skin of the thigh.
The AFFERENT arm of the reflex is the ilioinguinal nerve (L1) that
supplies the anterosuperior skin of the thigh.
34The arm is the genital branch of the genitofemoral nerve
(L1-L2) through the superficial inguinal ring.
The EFFERENT arm is the genital branch of the genitofemoral nerve
(L1-L2) through the superficial inguinal ring.
35The of the
genitofemoral nerve supplies the cremaster muscle.
The genital branch of the
genitofemoral nerve supplies the cremaster muscle.
36Abdominal reflex is stimulated by scraping the
to or towards the .
Abdominal reflex is stimulated by scraping the
skin tangential to or towards the umbilicus.
