1Movements at the ST joint
elevation/depression -> SC movement
adduction/abduction -> SC and AC movement
upward/downward rotation -> AC movement
2What movements at the SC and AC make Abduction/Adduction?
SC - Protraction, retraction
AC - internal/external rotation
3what type of joint is the SC joint? How man Rotary DOF?
Saddle
3
4Movements at the SC joint - Osteokinematics and Arthrokinematics
Elevation/Depression: convex on concave
Protraction/Retraction: concave on convex
Posterior Rotation: spin
5SC joint elevation and depression results in ST
elevation and depression
6Spin at the SC contributes to what at the scapula?
upward rotation
7what motions at the SC and AC result in ST protraction/ retraction?
SC protraction/ retraction combined with AC IR/ER
8what type of joint is the AC joint?
planer
3 rotary DoF
9movements at the AC joint
upward/downward rotation
internal/external rotation
anterior/posterior tipping
10most important ligament at the AC joint
coracoclavicular ligament
11what type of joint is the glenohumeral joint?
Ball and socket
12movements at the GH joint
flexion/extension
abduction/adduction
internal/external rotation
13how many degrees does the GH contribute to elevation?
120
14how many degrees does the ST contribute to elevation?
the last 60

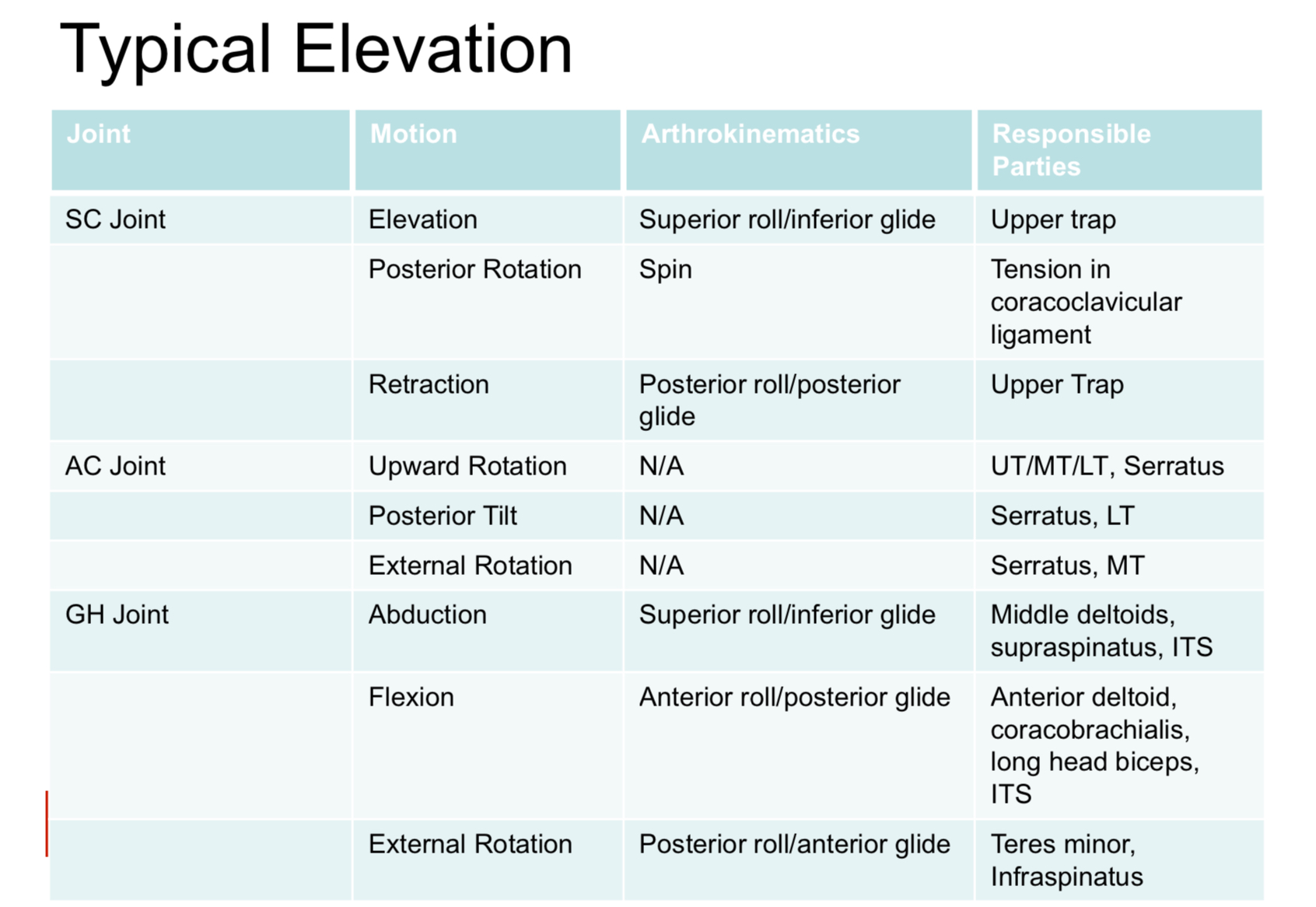

15what movements happen at the SC joint to lift the arm overhead?
elevation, posterior rotation, retraction
16what movements happen at the AC joint to lift the arm overhead?
upward rotation, external rotation, and posterior tip
17what movements happen at the GH joint to lift the arm overhead?
abduction, flexion, external rotation
18Image occlusion: name the hidden labels
19Image occlusion: name the hidden labels
20Image occlusion: name the hidden labels
21Image occlusion: name the hidden labels
22Image occlusion: name the hidden labels
23Image occlusion: name the hidden labels
24Image occlusion: name the hidden labels
25Image occlusion: name the hidden labels
26Image occlusion: name the hidden labels
27Image occlusion: name the hidden labels
28Image occlusion: name the hidden labels
29Image occlusion: name the hidden labels
30Image occlusion: name the hidden labels
31Image occlusion: name the hidden labels
32Image occlusion: name the hidden labels
33Shoulder Complex Extension - what are the motions at each joint
GH Extension:
AC - downward rotation
AC - anterior tip
SC - depression
34GH joint function (2)
mobility
stability to the digits
35dynamic stability of GH joint through
Rotator Cuff
-during all active movement of the arm the RTC is firing to pull the HH into the center of the glenoid
36Rotator Cuff muscles
Supraspinatus
Infraspinatus
Teres Minor
Subscapularis
37Supraspinatus pulls
HH into glenoid and superiorly
38ITS muscles pull
HH into the glenoid and inferiorly
39The RTC contributes to the ___________ of the GH joint
arthrokinematics
40In Abduction:
supraspinatus offsets the _____ force of ____ and asists in moving the humerus away from body
infraspinatus/teres minor will provide ____ to clear the _______ ______ as well as assist in moving the humerus away from body
Subscapularis contracts to _______ HH _____ and ______
superior Deltoid
external rotation, greater tubercle
centralize, posteriorly and inferiorly
41In Flexion:
long head of the biceps has perfect line of pull to offset the ____ pull of the _________ along with _______
infraspinatus/teres minor will provide ____ to clear greater tubercle
subscapularis will need to ____ HH _____ and _____
superior, anterior delt/coracobrachialis, supraspinatus
external rotation
centralize, anteriorly and inferiorly
42scapulothoracic muscle function
proximal stabilization of rotator cuff
movers of the scapula on thorax
43ST upward rotating scapula muscles
Upper trap
middle trap
lower trap
serratus anterior!!!!
all work together to create spin of the scapula
44functions of serratus anterior
protraction
upward rotation
posterior tip
external rotation
45what muscle is force coupled with serratus ant to produce protraction?
pec minor
-downward rotation, interal rotation, anterior tip
46the upper trap has the best MA for upward rotation in
early ROM
47upper trap function
elevates scapula at SC joint
retraction at SC joint
upward rotation
brings the medial border of the scapula closer to the spine
48Lower trap has the best MA for upward rotation in
late ROM
49lower trap function
depresses the scapula on the thorax - offsets elevation from upper trap
helps with posterior tip
50middle trap during raising arm?
small MA for upward rotation throughout ROM
helps serratus with External Rotation
mostly adducts scapula on thorax - with rhomboids
51rhomboids
downward rotation of the scapula
adduct the scapula - works with the middle trap, upward/downward rotation moments cancel
52what needs to be active for the deltoids to produce elevation of the GH joint?
serratus
delt - DR
serratus - UR
53what needs to be active for teres major to extend the GH joint?
teres - UR
Rhomboids - DR
54what needs to be active for the external rotators to produce ER at the humerus?
serratus - producs internal rotation, keeping the medial border of the scapula on the thorax
55Upward Rotation of Scapula
Deltoid (downward rotator of scapula), Upper Trap (early ROM), Middle Trap (Small MA throughout), Lower Trap (Late ROM) and Serratus (upward rotator of scapula)
56Posterior Tip
Lower Trap and Serratus
57External Rotation of Scapula
Middle Trap and Serratus
58GH extension
Teres major (upward rotation), Rhomboids (Downward Rotation)
59GH Abduction
Supraspinatus assists Delt, pulls it into the Glenoid offsetting superior force from delt (no translating up)
Infra and teres minor provide ER to clear Greater Tubercle
ITS pull HH into glenoid
60GH Flexion
LH of Biceps offsets superior pull of anterior delt + coracobrachialis with supraspinatus
IT - ER to clear greater tubercle
ITS - pull HH into glenoid
61GH Internal Rotation
Pec Major, Lats, and Subscapularis
SIT
62GH External Rotation - at the GH
Infraspinatus, Post Delt, Teres Minor
SST
63extending the arm against resistance
rhomboids, levator scapula, pec minor
64Horizontal Abduction
GH - post delt, teres major, lats, infra
ST - Middle trap, rhomboids, lower trap, (traps do ER)
Stabilized - SST
65Horizontal adduction
GH - Pec major, anterior delt, subscap
Scapula - Serratus (UR), Pec minor (DR) = protraction
stabilizer: SIT
