STRUCTURAL THEORY-FORMULA
Study these flashcardsFree · spaced repetition · iPhone, Android, Mac & web
All cards
1

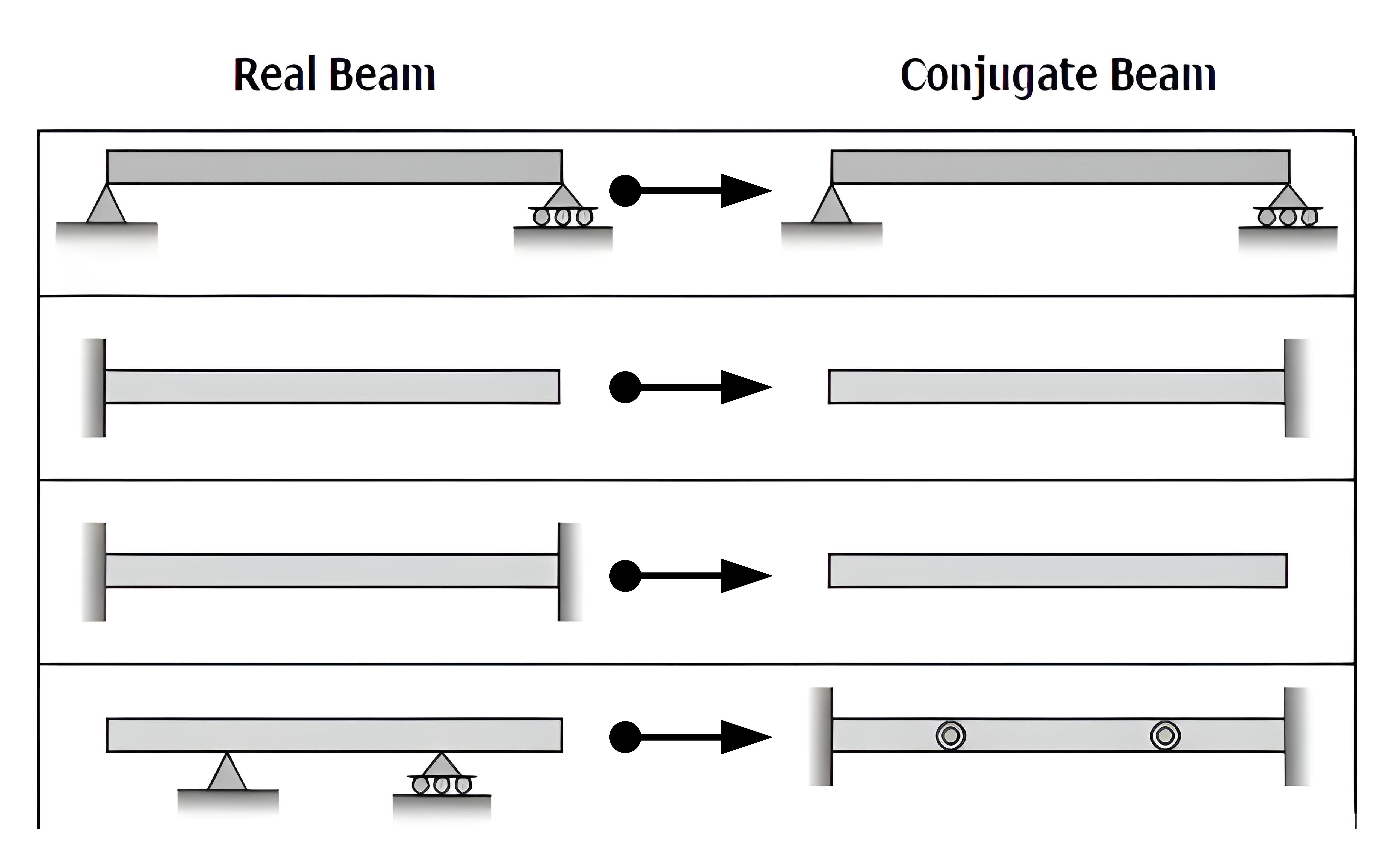

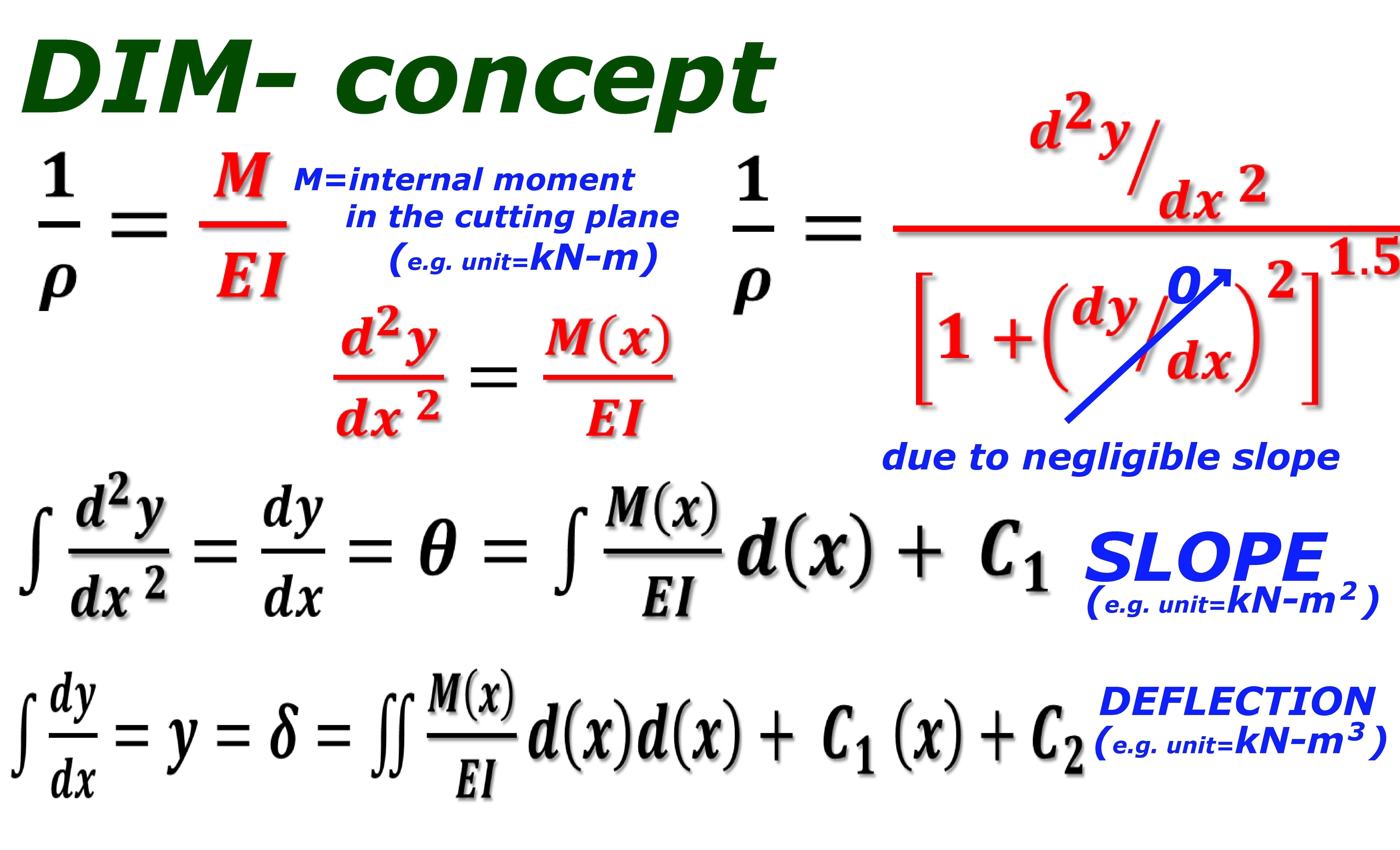

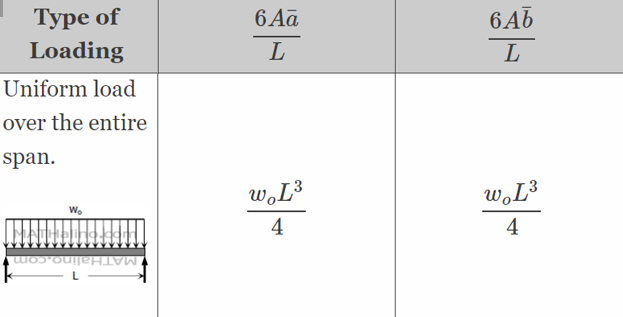

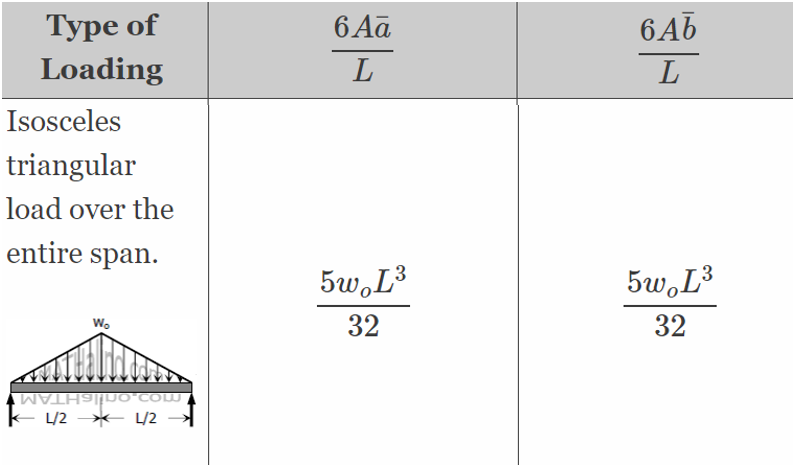

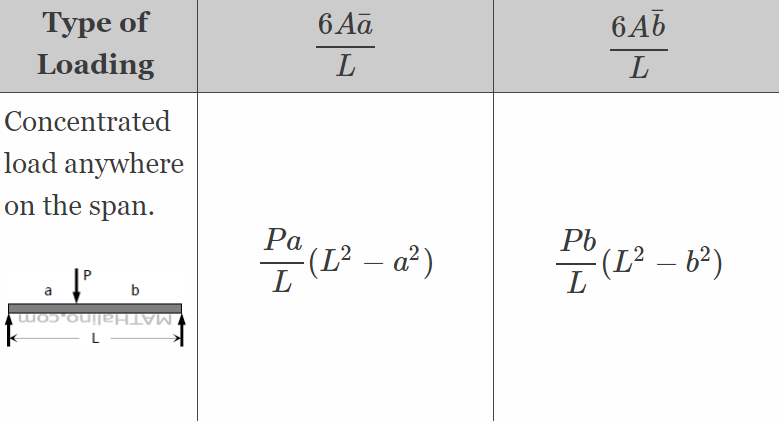

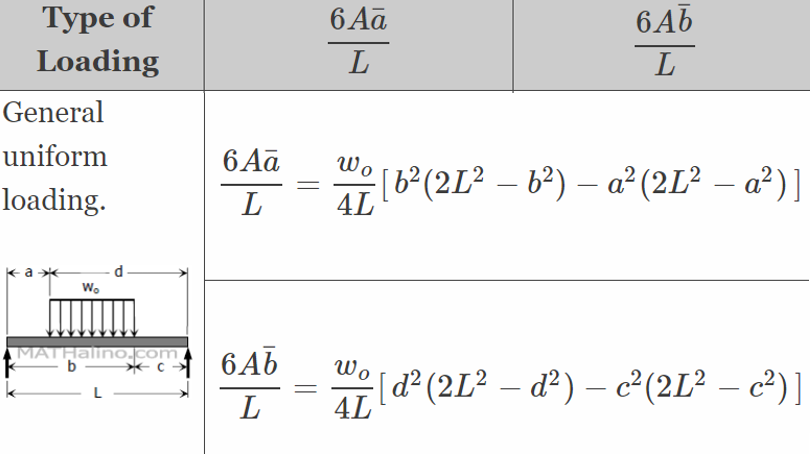

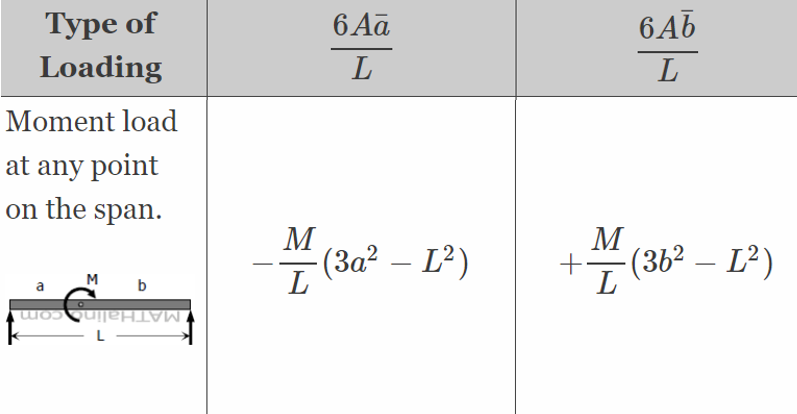

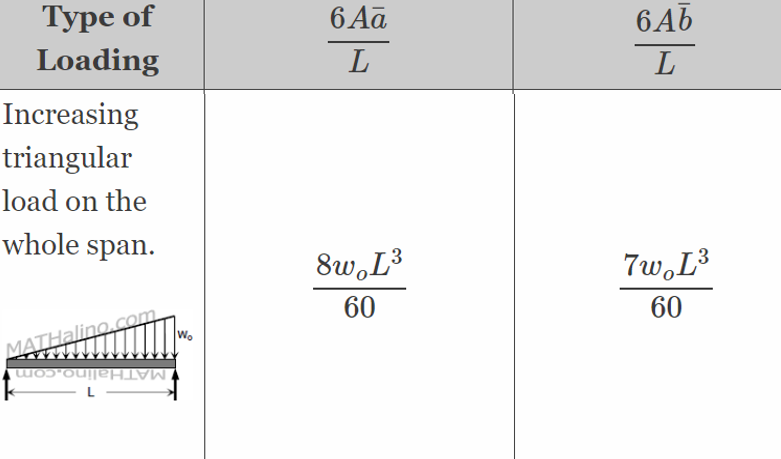

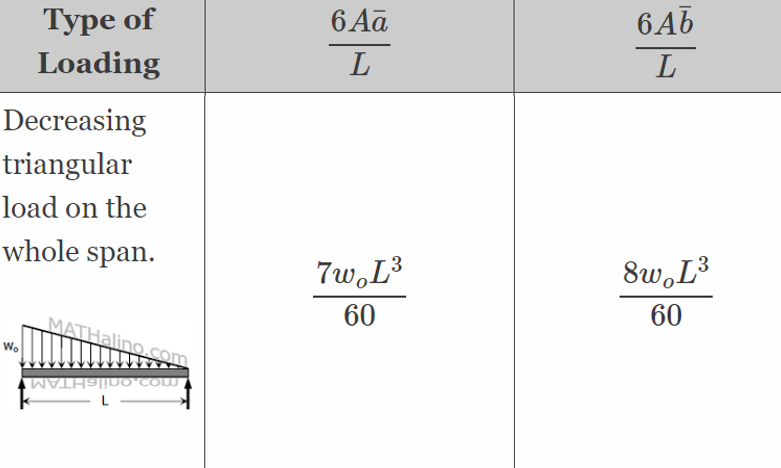

THREE MOMENT EQUATION
$M_1L_1 + 2M_2(L_1 + L_2) + M_3L_2 + \dfrac{6A_1\bar{a}_1}{L_1} + \dfrac{6A_2\bar{b}_2}{L_2} = 0
2

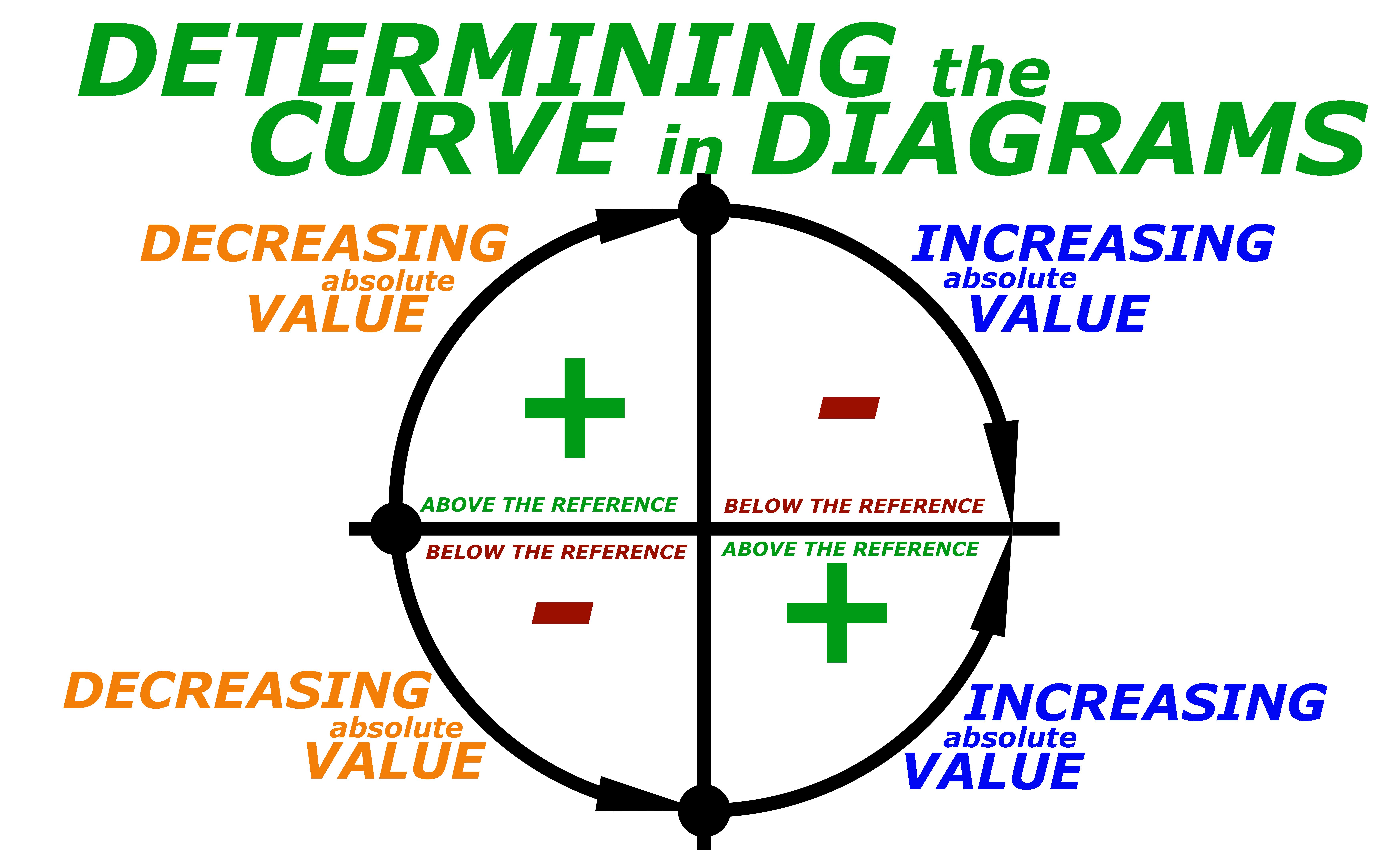

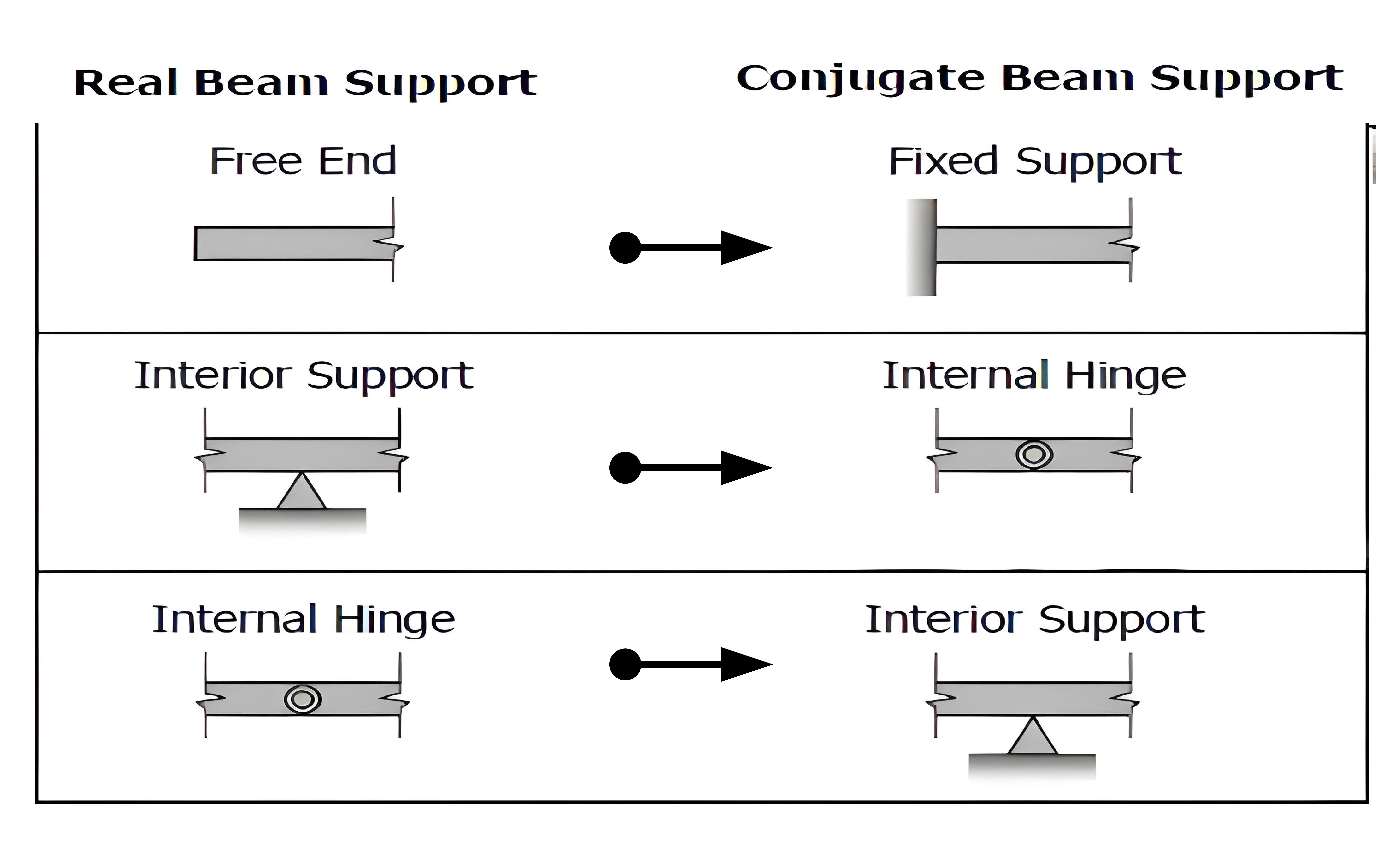

Image occlusion: name the hidden labels
3

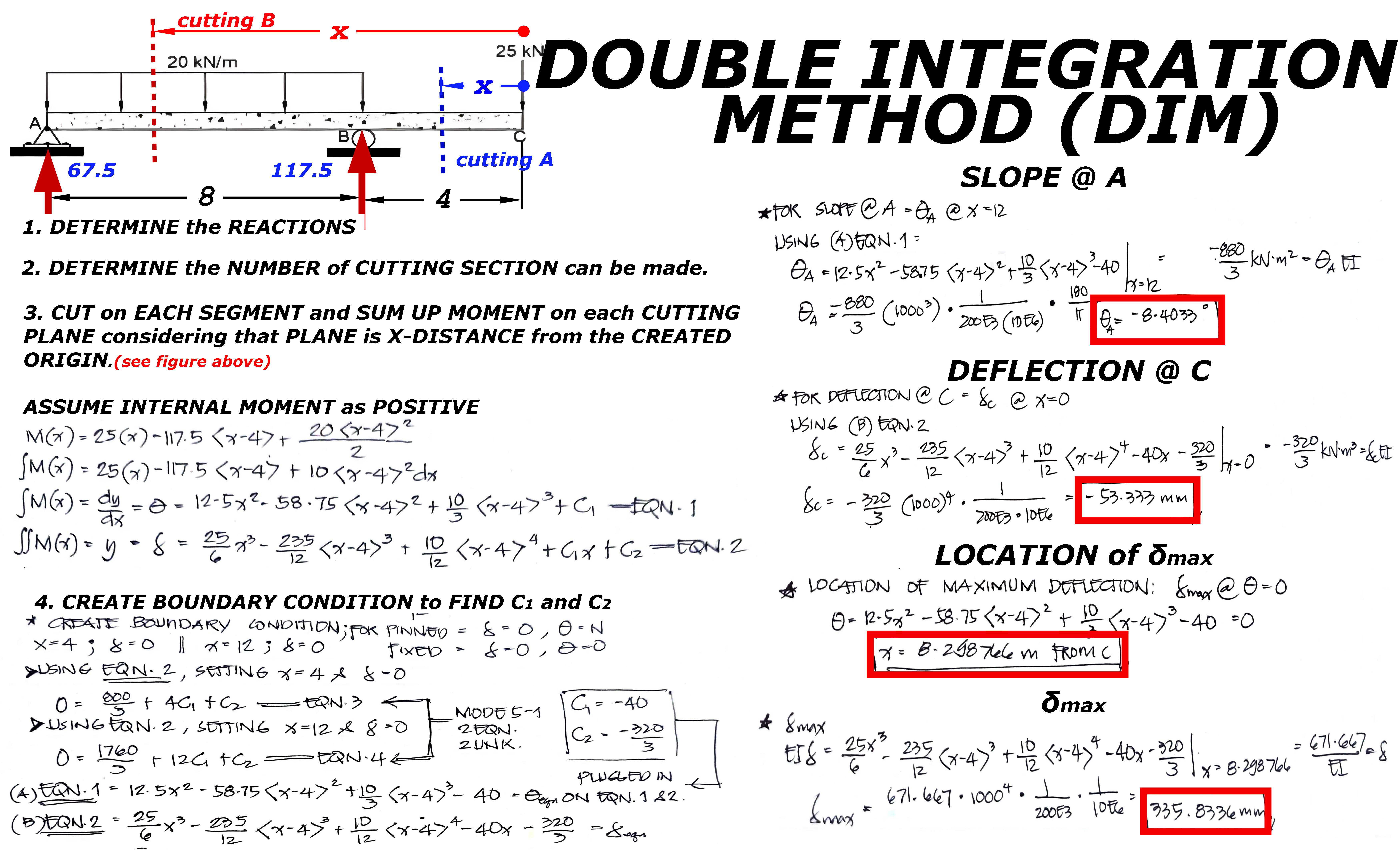

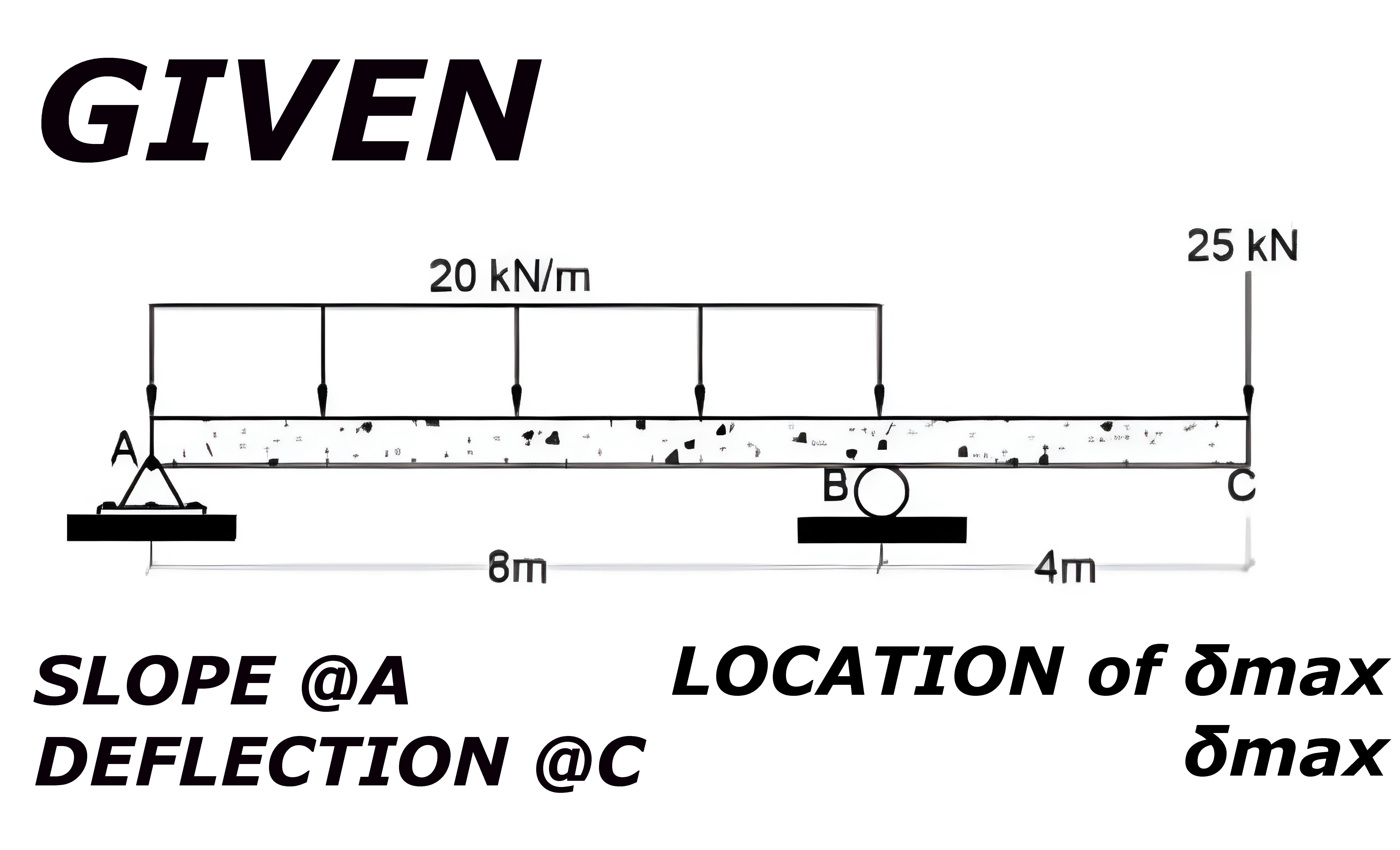

Image occlusion: name the hidden labels
4

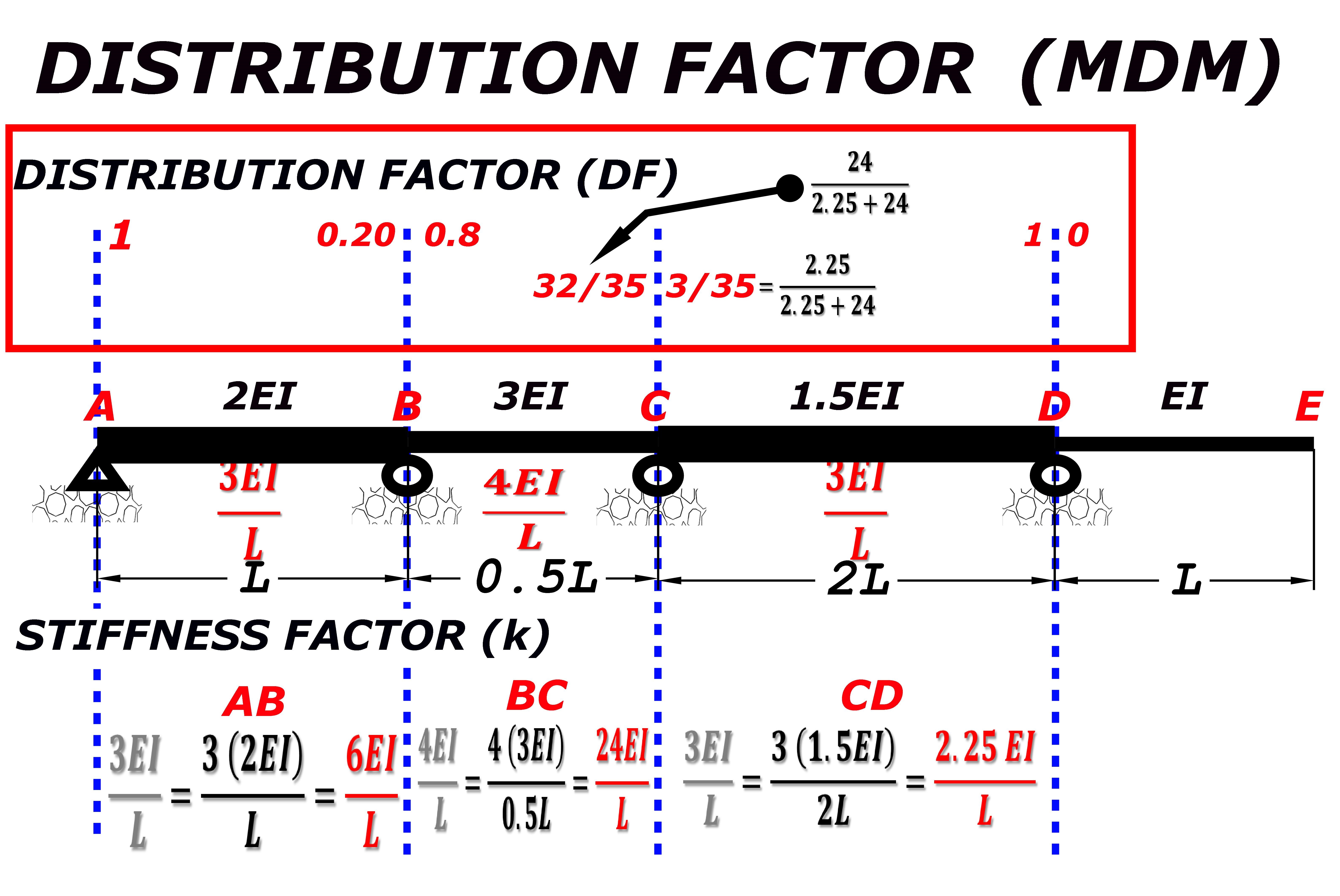

Image occlusion: name the hidden labels
5
Image occlusion: name the hidden labels
6
Image occlusion: name the hidden labels
7
Image occlusion: name the hidden labels
8
Image occlusion: name the hidden labels
9
Image occlusion: name the hidden labels
10
Image occlusion: name the hidden labels
11
Image occlusion: name the hidden labels
12
Image occlusion: name the hidden labels
13
Image occlusion: name the hidden labels
14
Image occlusion: name the hidden labels
15
Image occlusion: name the hidden labels
16
Image occlusion: name the hidden labels
17
Image occlusion: name the hidden labels
18
Image occlusion: name the hidden labels
19
Image occlusion: name the hidden labels
20
Image occlusion: name the hidden labels
21
Image occlusion: name the hidden labels
22
Image occlusion: name the hidden labels
23
Image occlusion: name the hidden labels
24
Image occlusion: name the hidden labels
25
BEAMS STATIC DETERMINACY
26
TRUSSES INTERNAL STABILITY
27
TRUSSES STATIC DETERMINACY
28
FRAMES STATIC DETERMINACY
29
Image occlusion: name the hidden labels
30
Image occlusion: name the hidden labels
31
Image occlusion: name the hidden labels
32
Deflection of Simply Supported Beam
directly below the Single Pointload
directly below the Single Pointload
$\delta\ =\ \frac{P\ a^{2\ }b^2}{3(a+b)\ EI}\ $
33

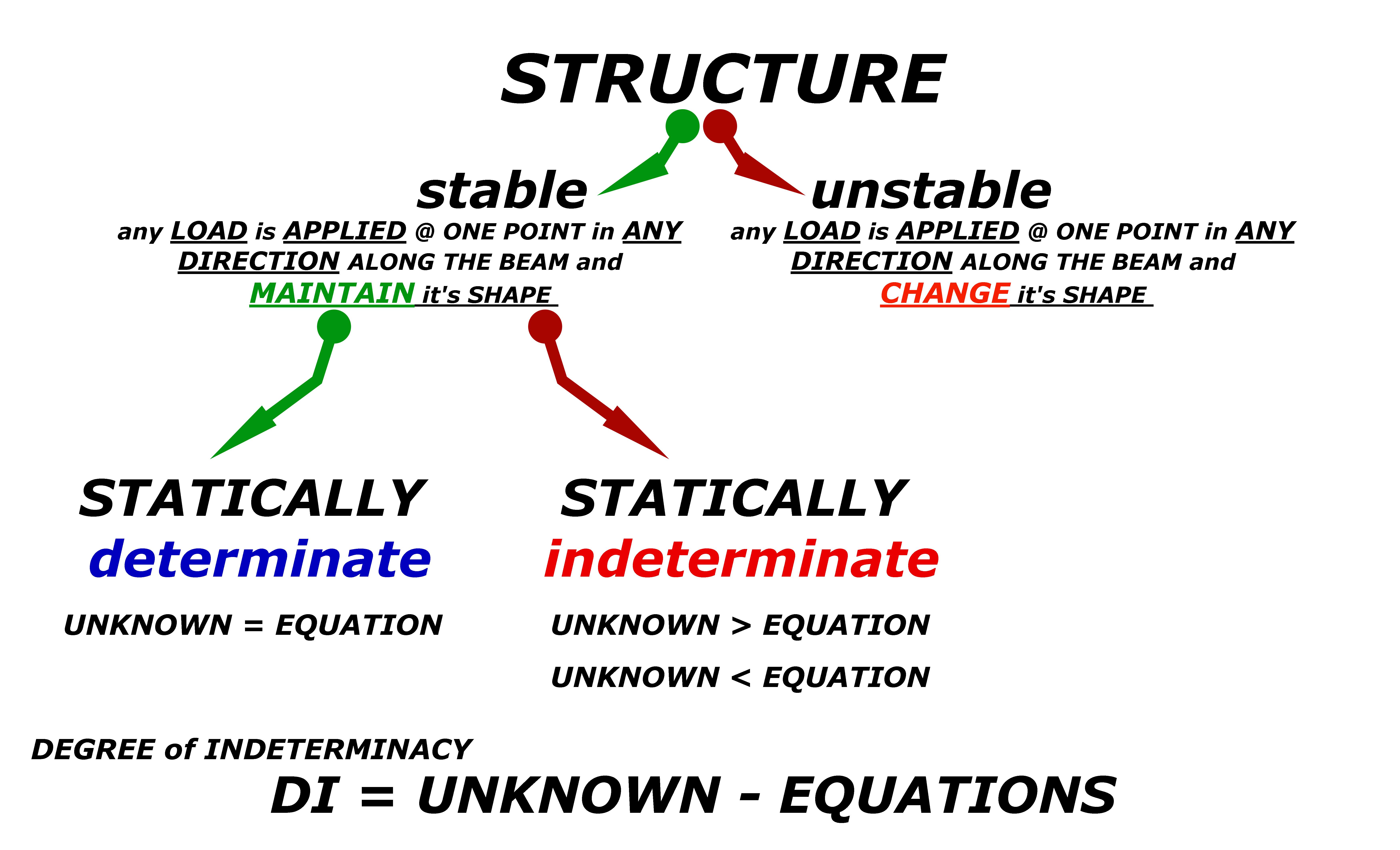

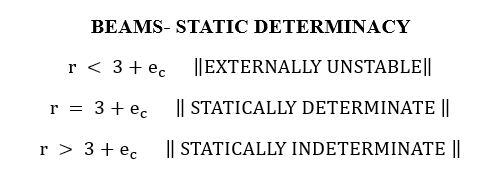

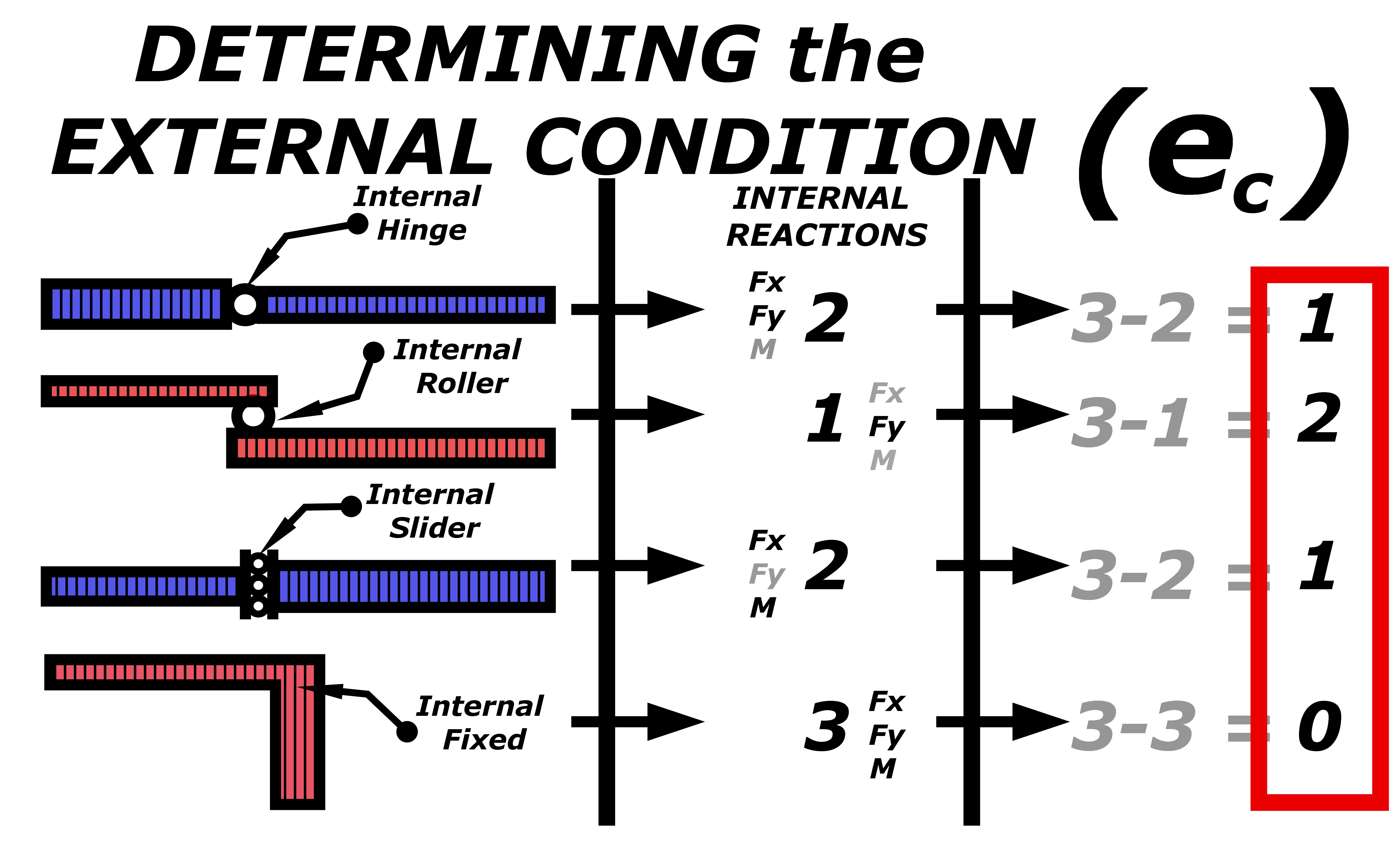

BEAMS STATIC DETERMINACY
$r\ \left[\begin{matrix}>\\=\\<\\\end{matrix}\right]\ \ 3+e_c\ $
34

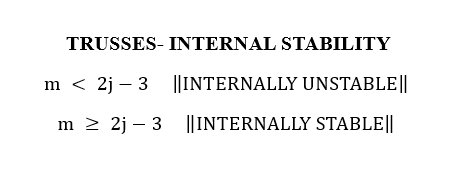

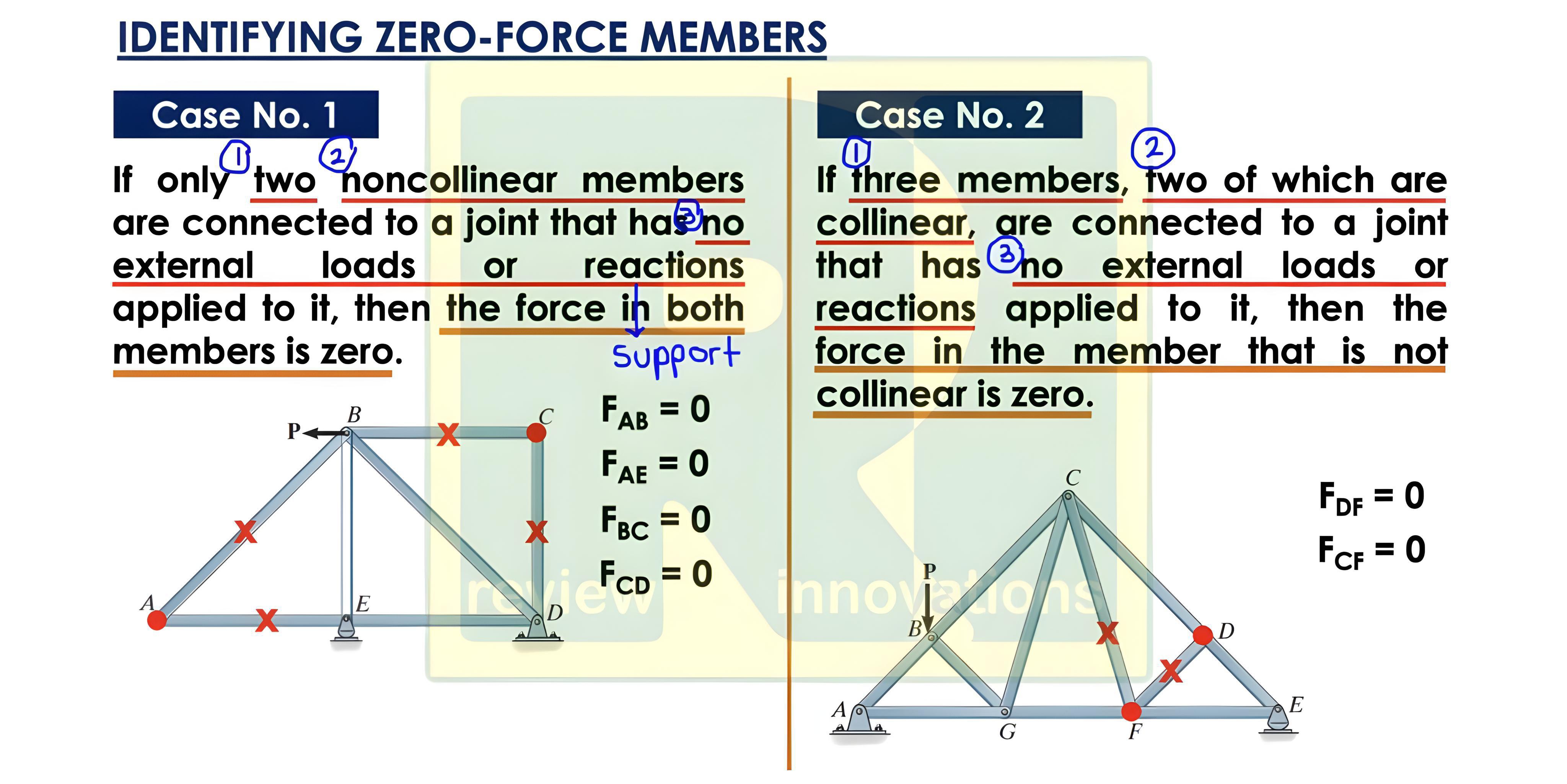

TRUSSES INTERNAL STABILITY
$m\ \left[{<\atop\geq}\right]\ 2j-3\ \ \ \ \ \ $
35

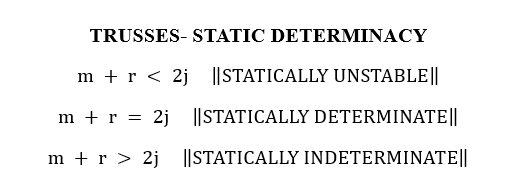

TRUSSES STATIC DETERMINACY
$m\ +\ r\ \left[\begin{matrix}<\\=\\>\\\end{matrix}\right]\ 2j$
36

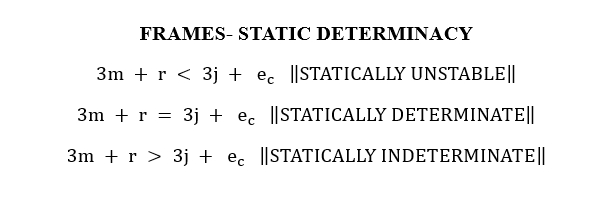

FRAMES STATIC DETERMINACY
$3m\ +\ r\ \left[\begin{matrix}<\\=\\>\\\end{matrix}\right]\ 3j\ +\ \ e_c\ \ \
37

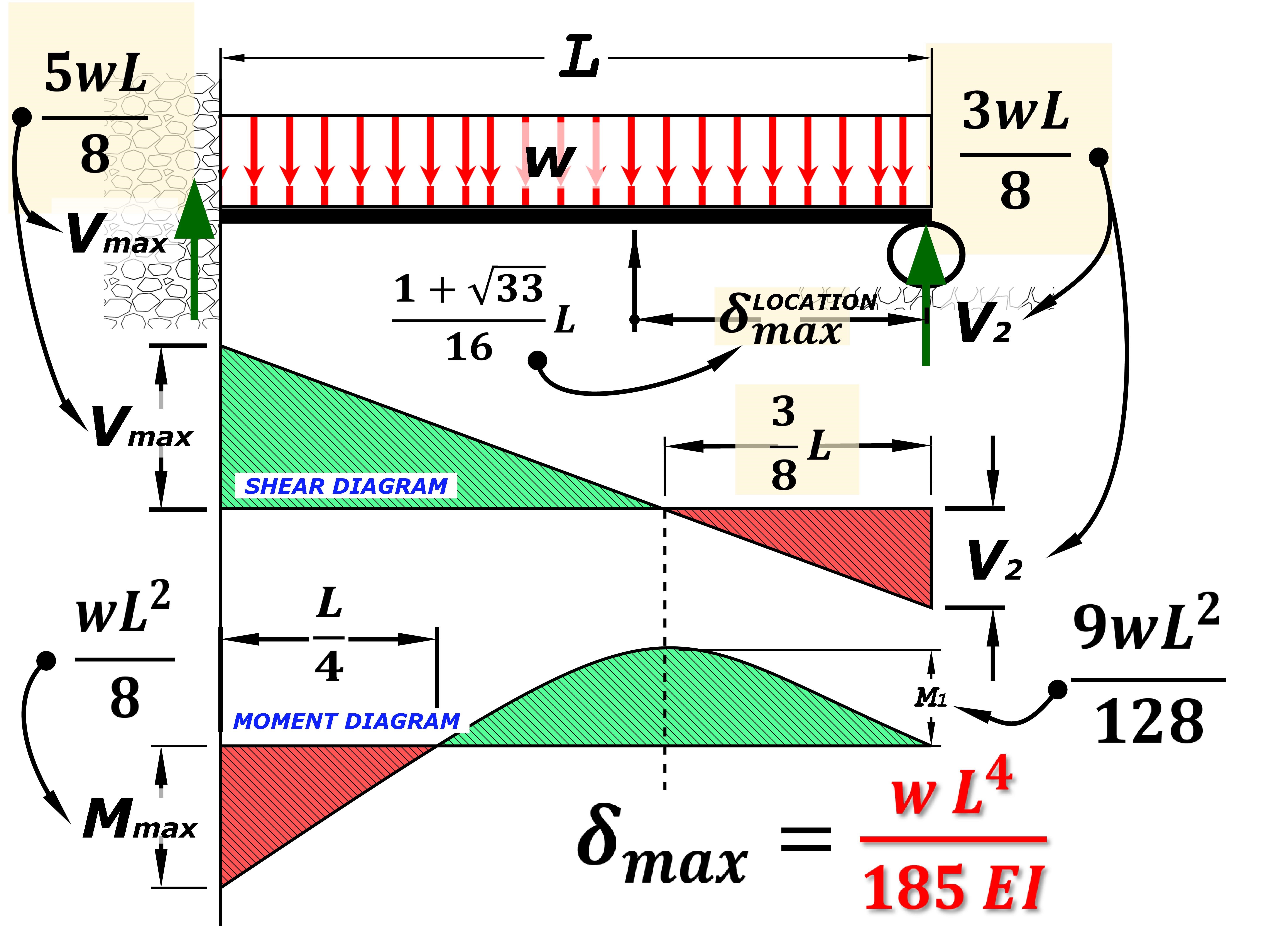

CANTILEVER HACKS
$\delta_{\ after\ the\ \ Con.\ Load}=\frac{Pa^2(3L-a)}{6EI}$
$\delta_{\ before\ the\ \ Con.\ Load}=\frac{Px^2(3a-x)}{6EI}$
$\delta_{\ before\ the\ \ Con.\ Load}=\frac{Px^2(3a-x)}{6EI}$
38

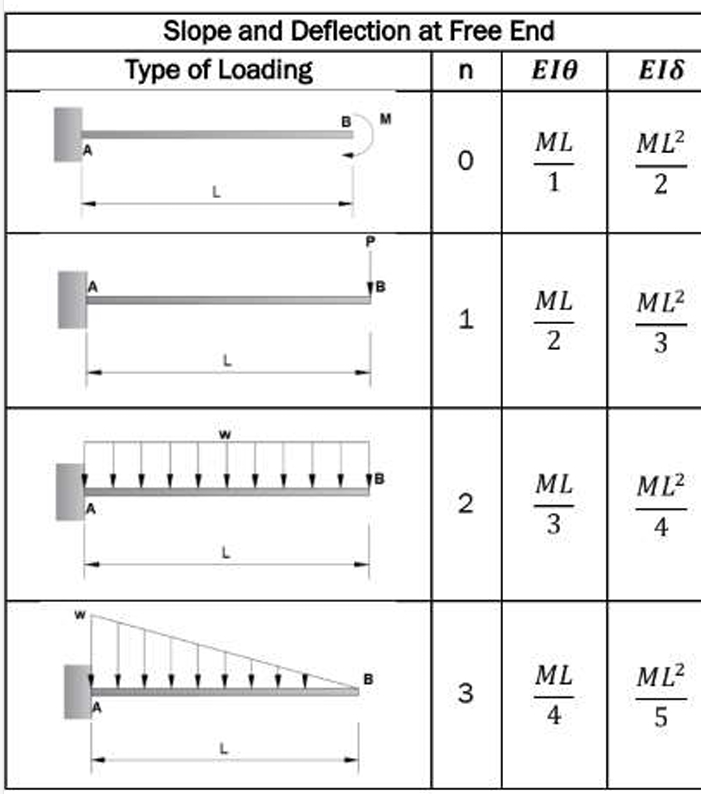

CANTILEVER HACKS
DEFLECTION FREE END
DEFLECTION FREE END
$\delta=\frac{M_R\ L^2}{\left(n+2\right)\ EI}$
39
CANTILEVER HACKS
ROTATION FREE END
ROTATION FREE END
$\theta=\frac{M_R\ L}{\left(n+1\right)\ EI}$
40

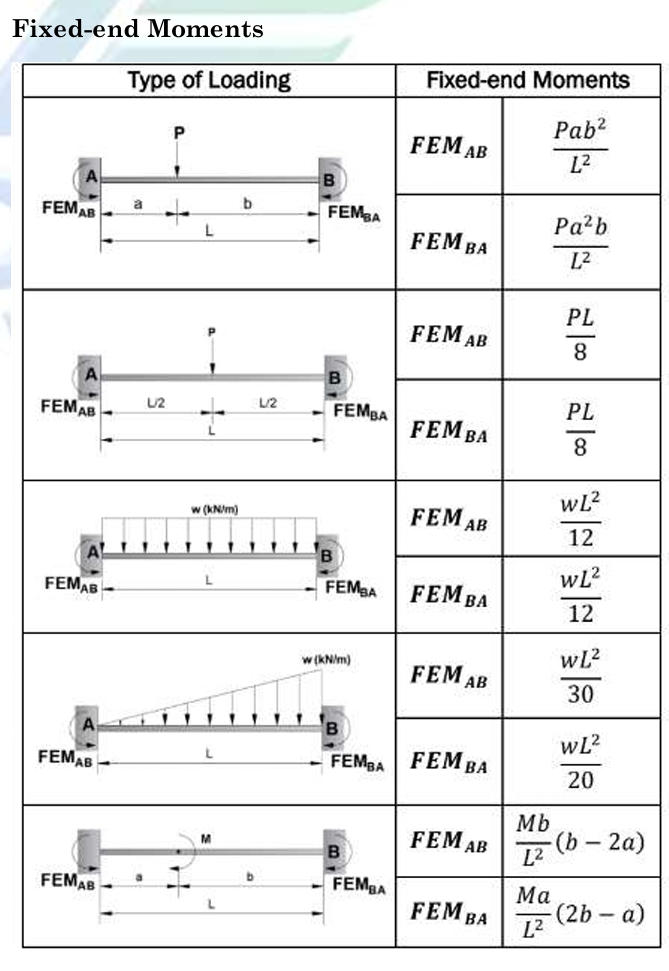

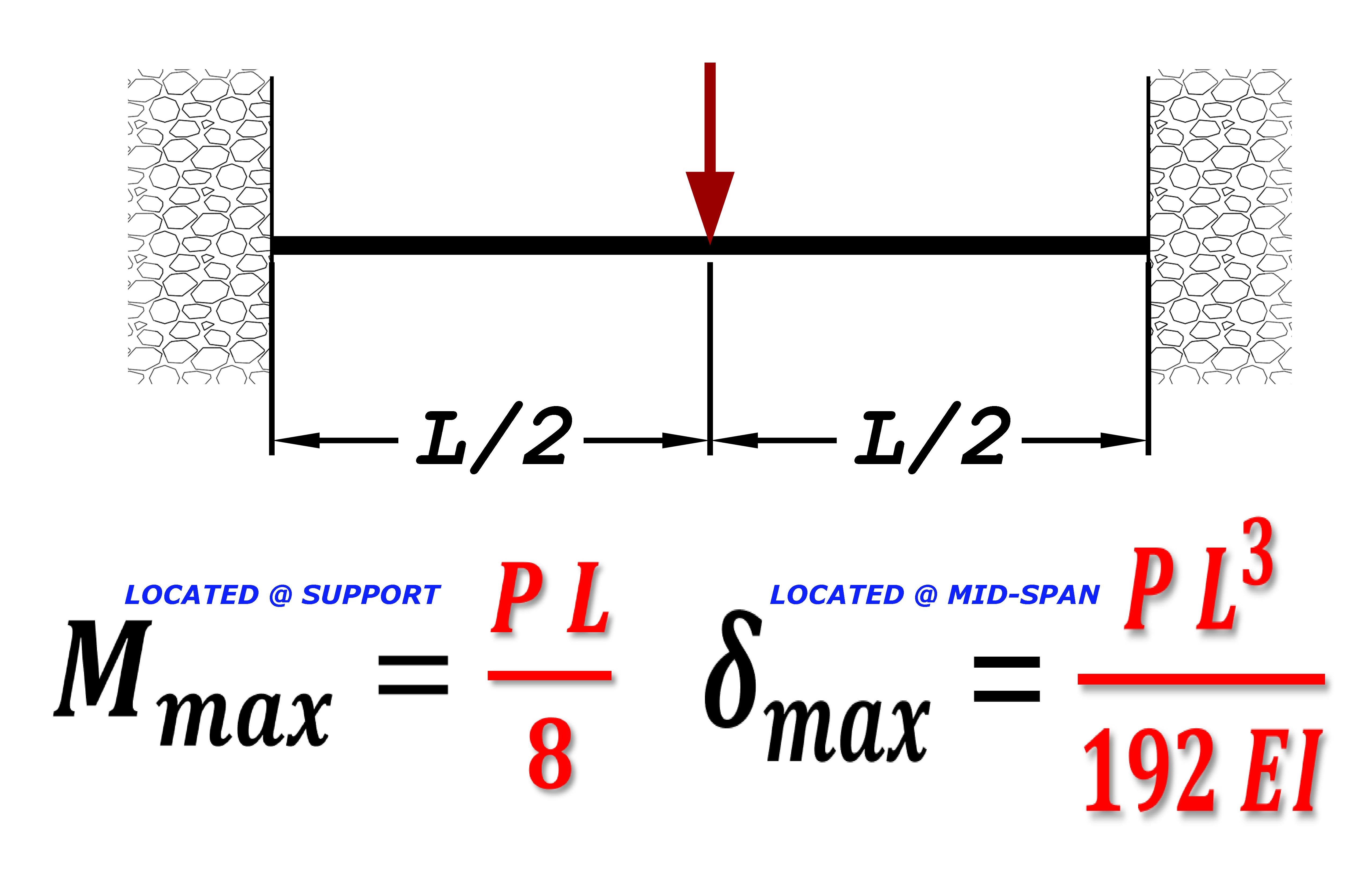

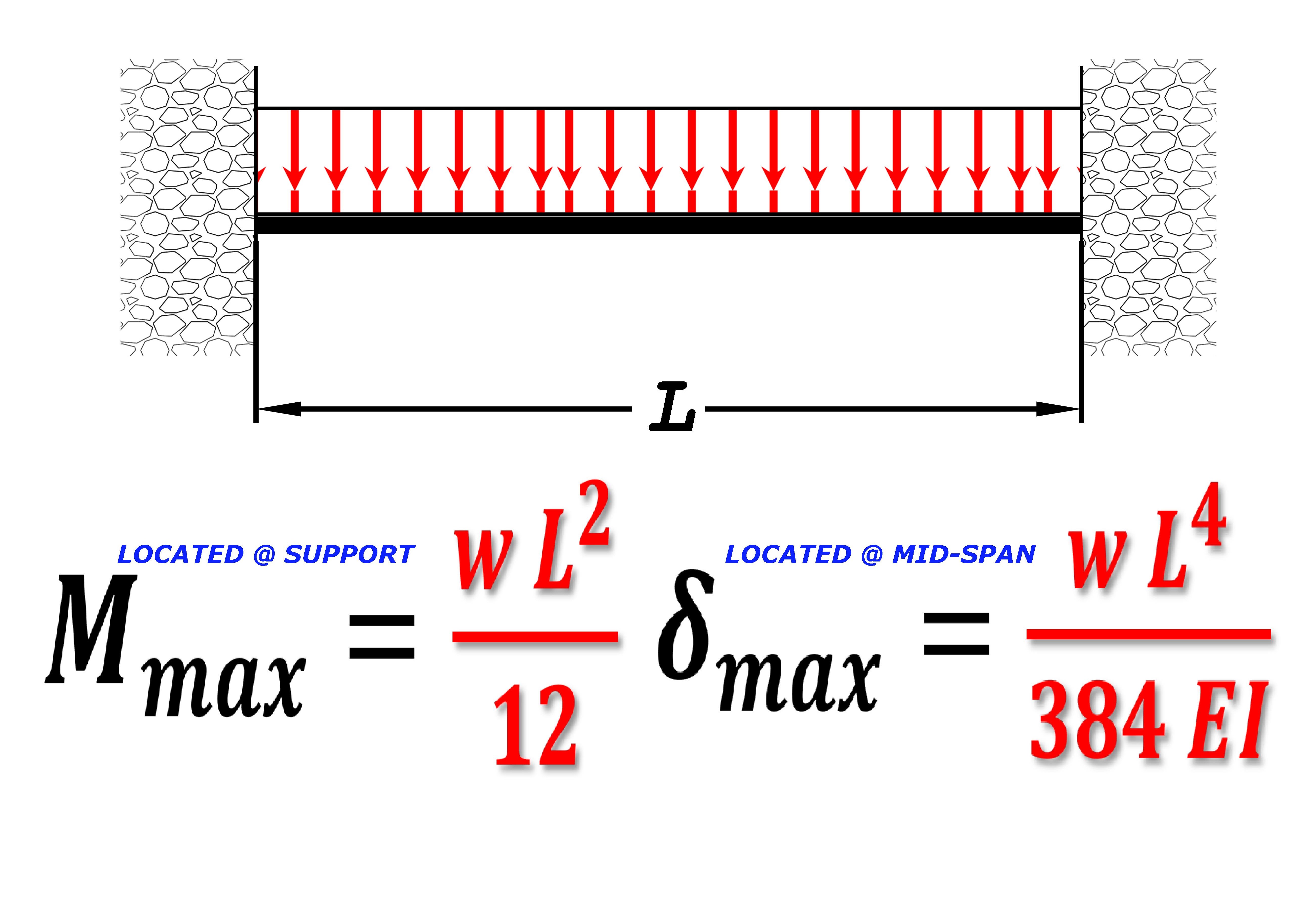

FIXED END MOMENTS
can point load analogous P=(A+Bx)
${\rm FEM}_{\ left}=\ \frac{P\ a\ b^2}{L^2}$
${FEM\ }_{ryt}=\ \frac{P\ a^2\ b}{L^2}$
${\rm FEM}_{\ left}=\ \frac{P\ a\ b^2}{L^2}$
${FEM\ }_{ryt}=\ \frac{P\ a^2\ b}{L^2}$
41

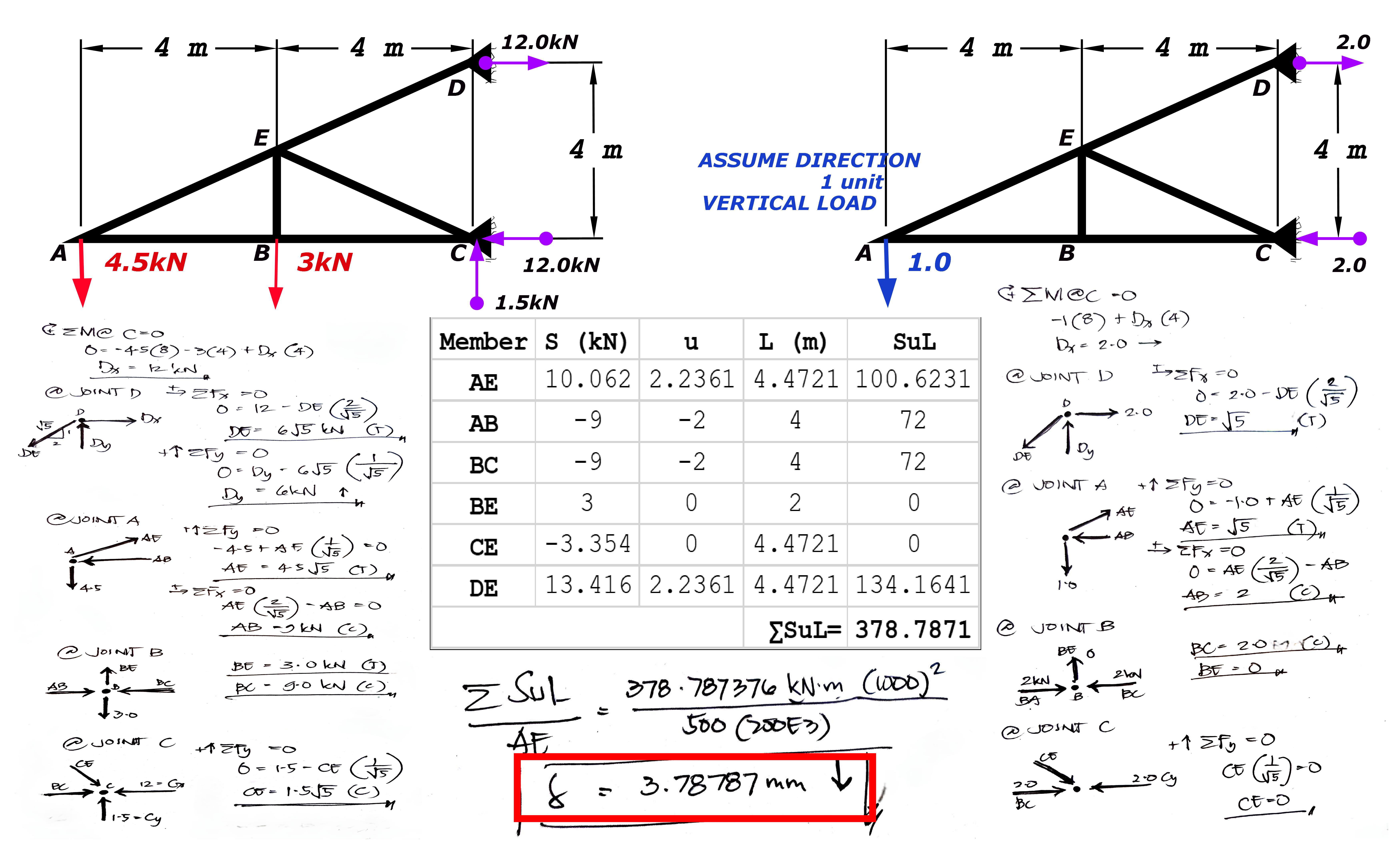

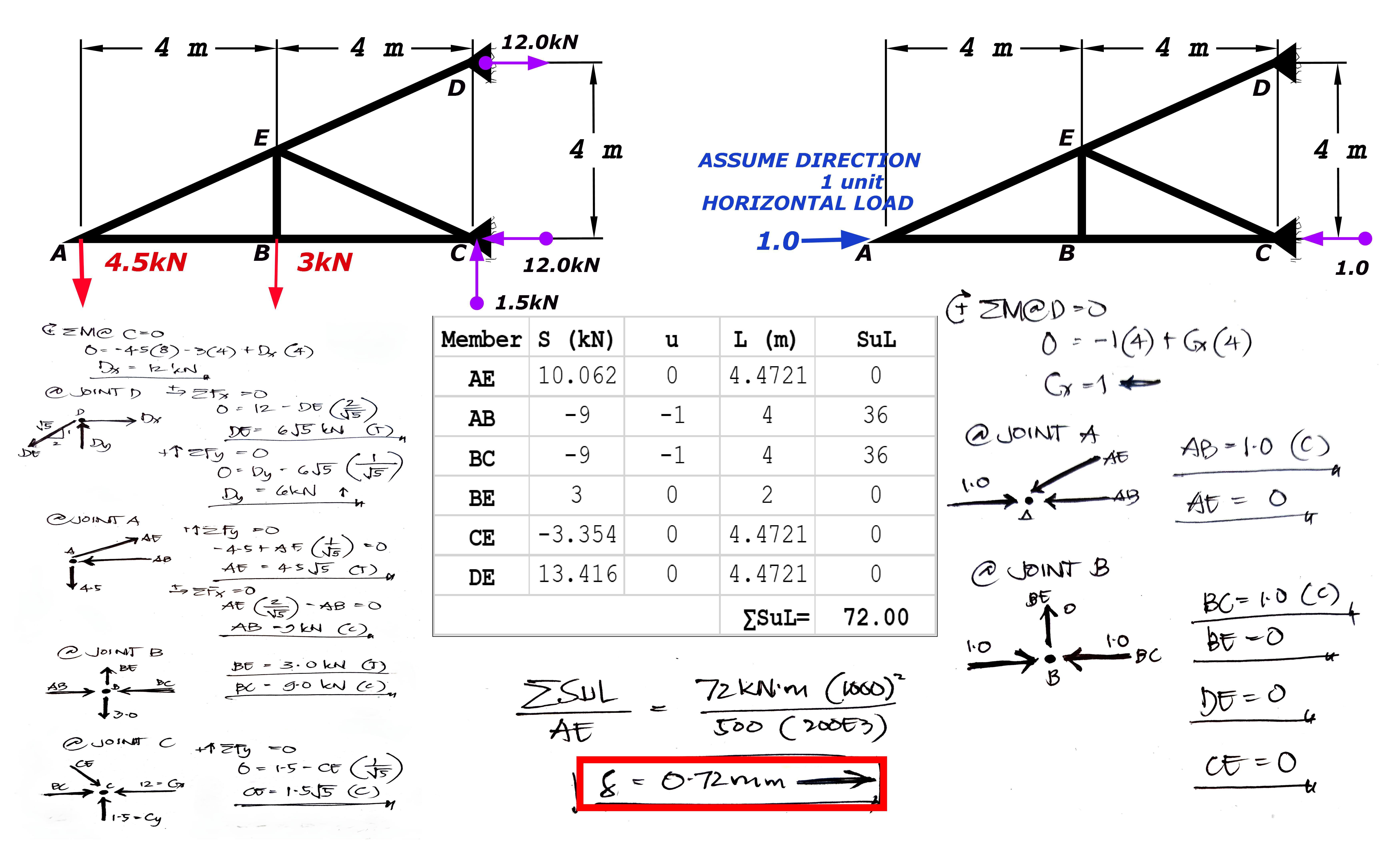

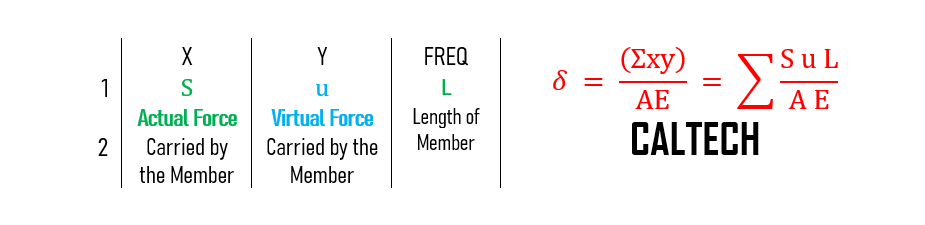

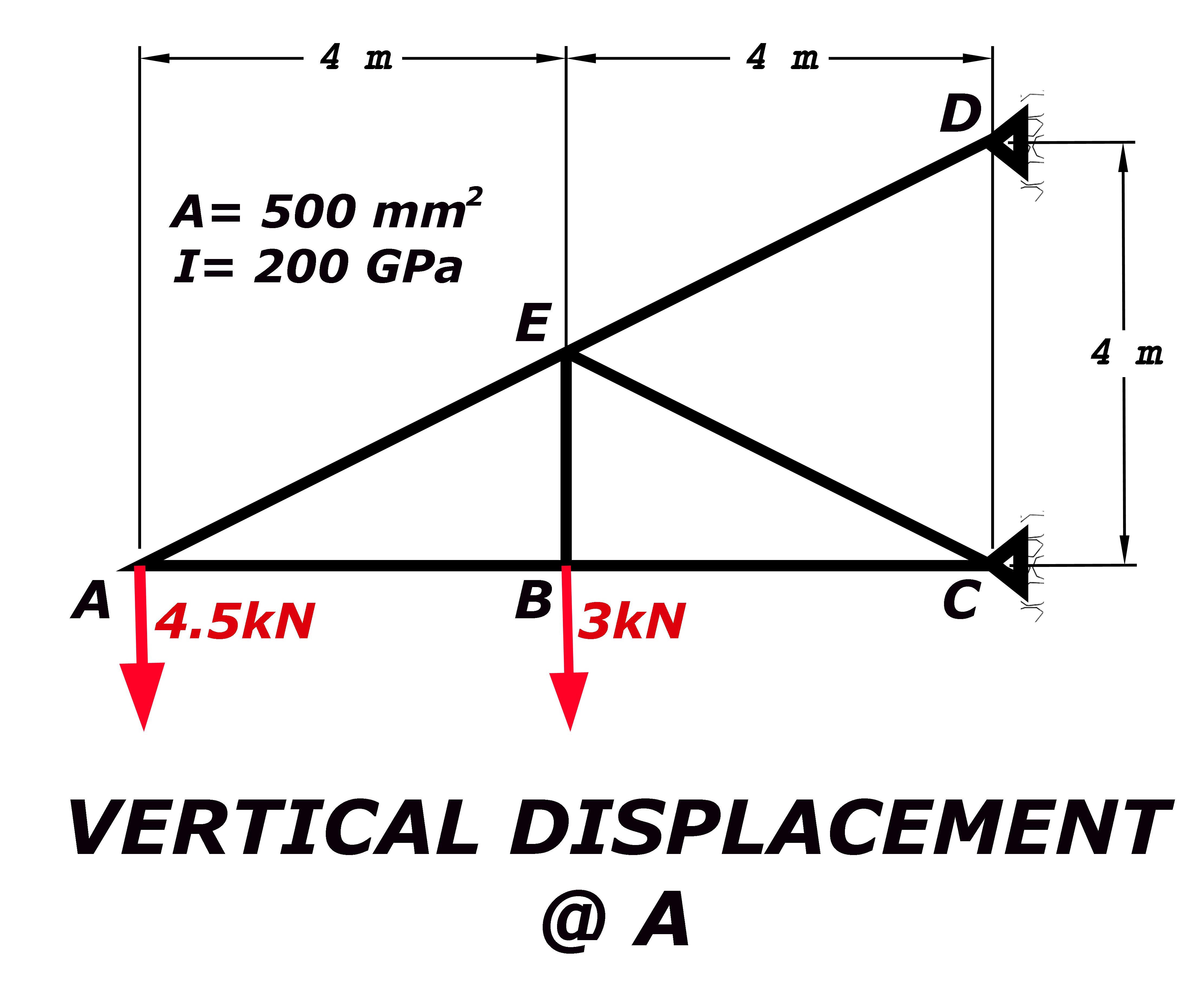

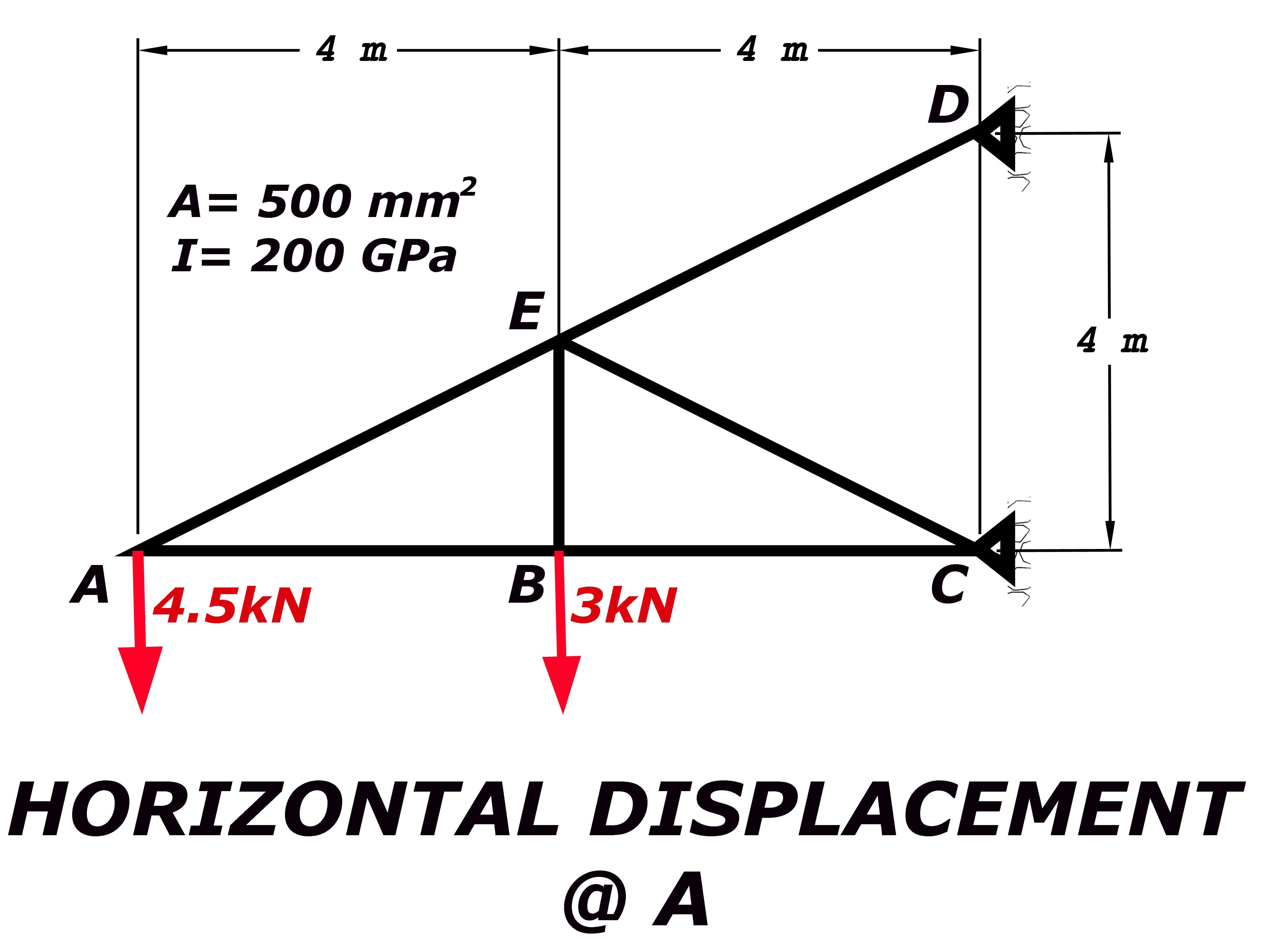

$Virtual\ Work\ Method$
Deflection of Trusses
due to EXTERNAL LOADINGS
Deflection of Trusses
due to EXTERNAL LOADINGS
$\delta\ =\ \sum\frac{S\ u\ L}{A\ E}$
42

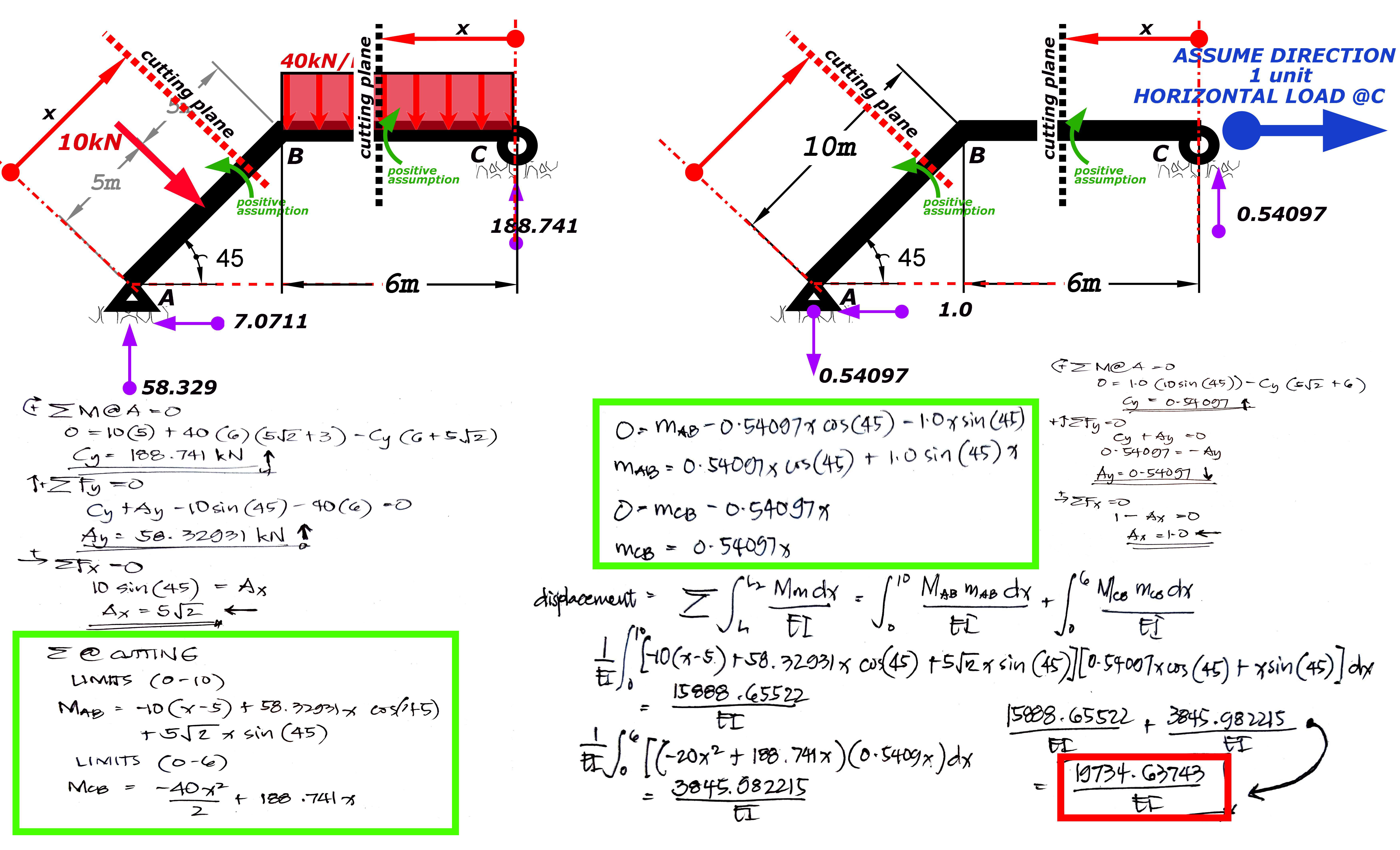

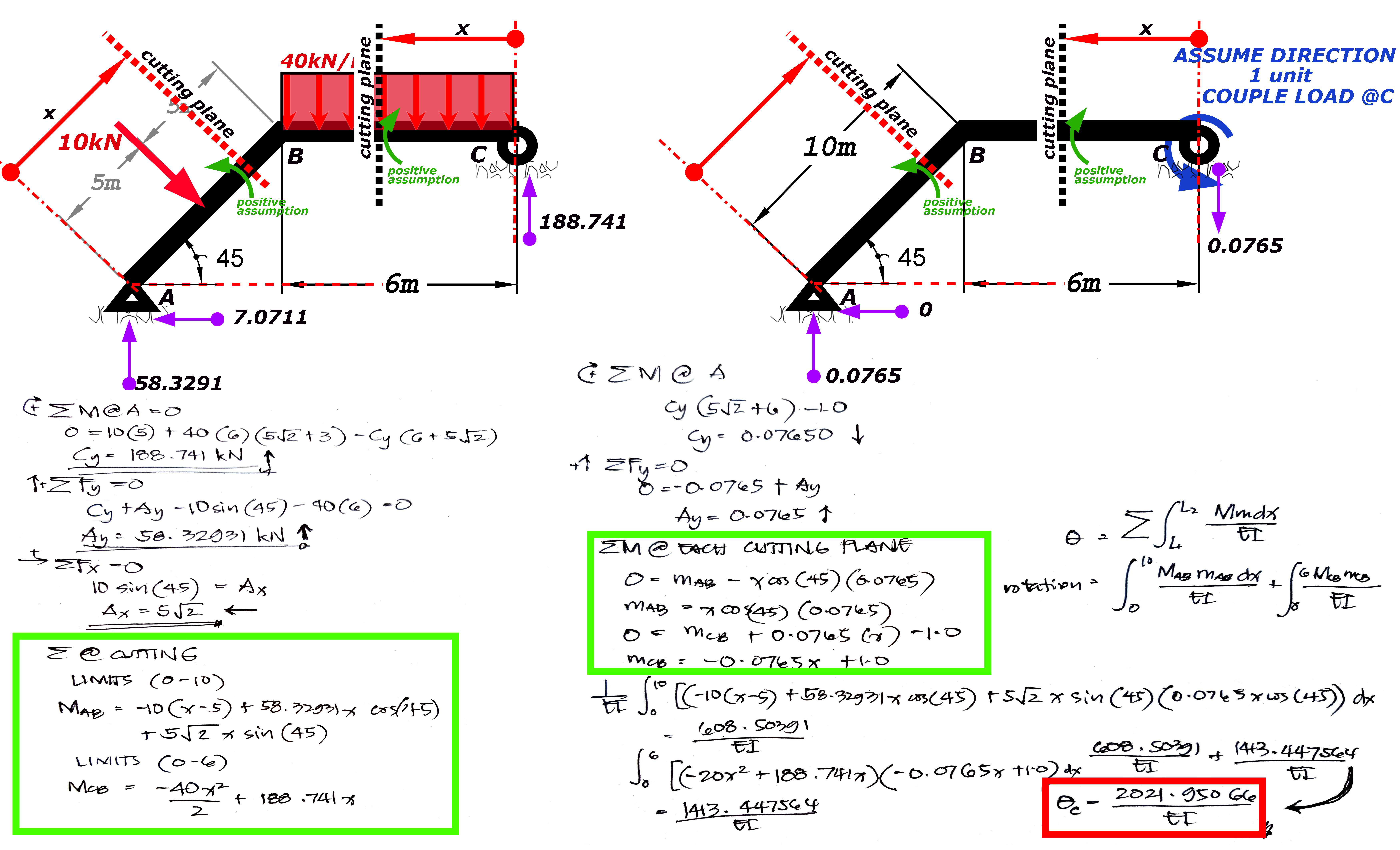

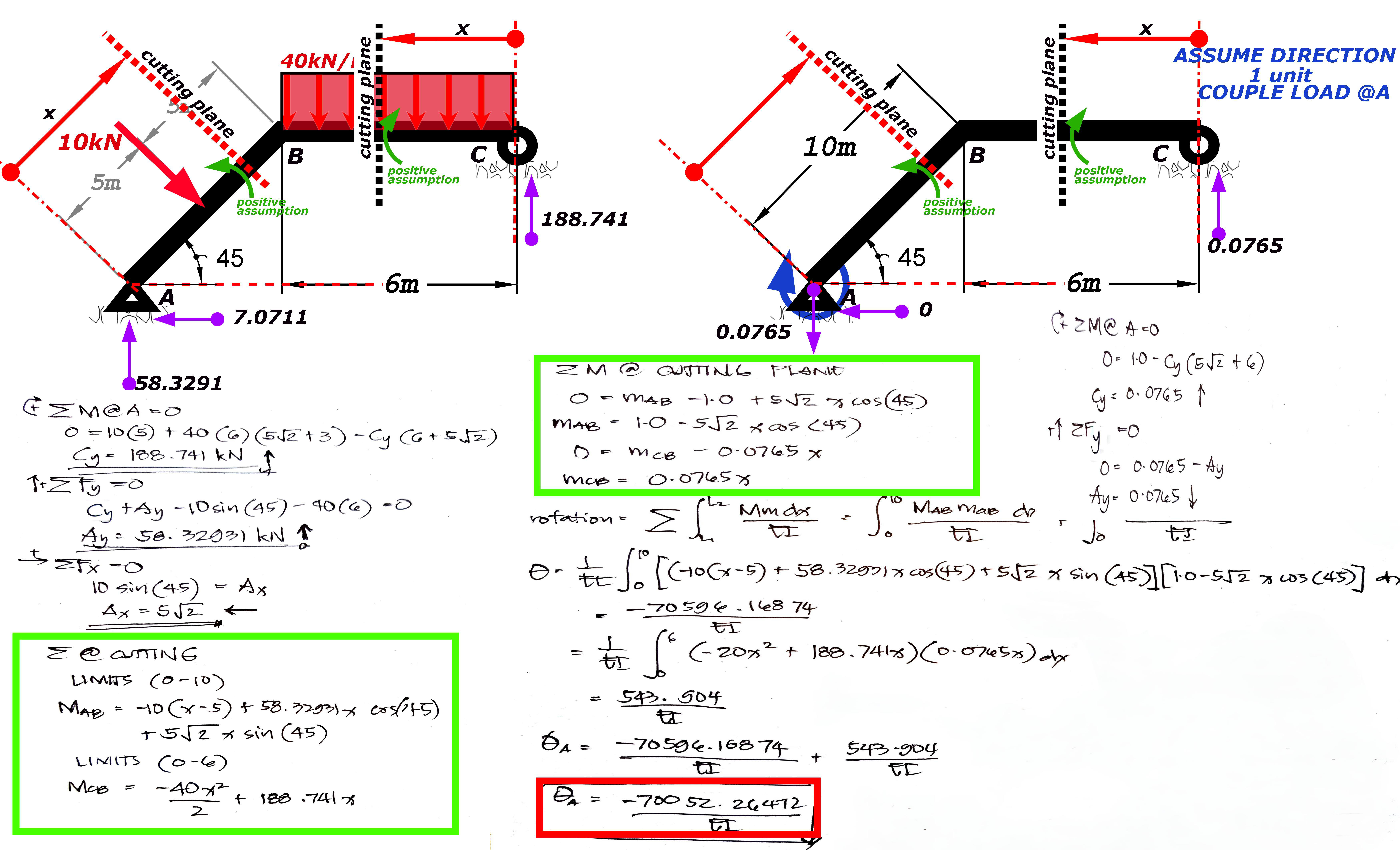

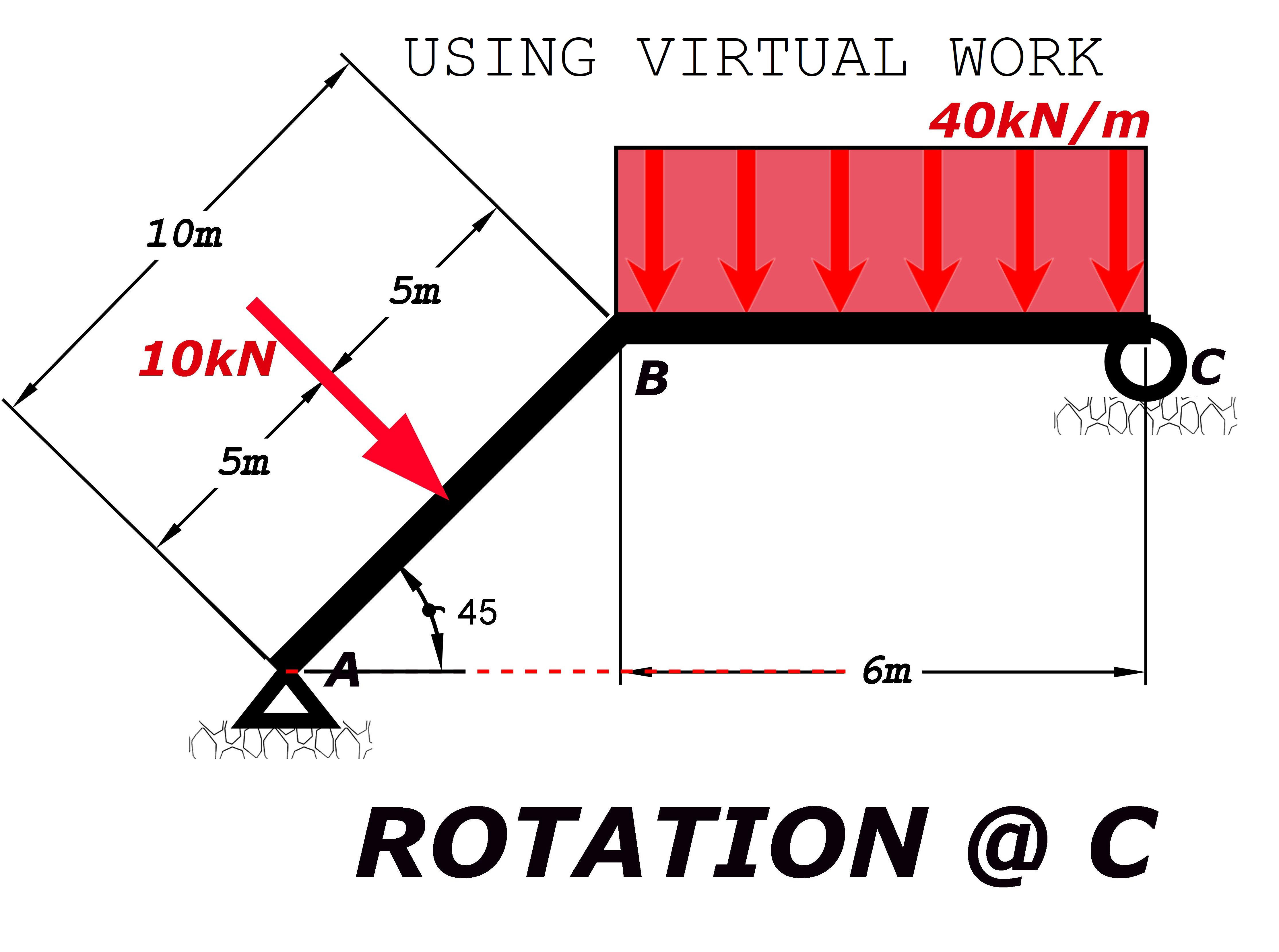

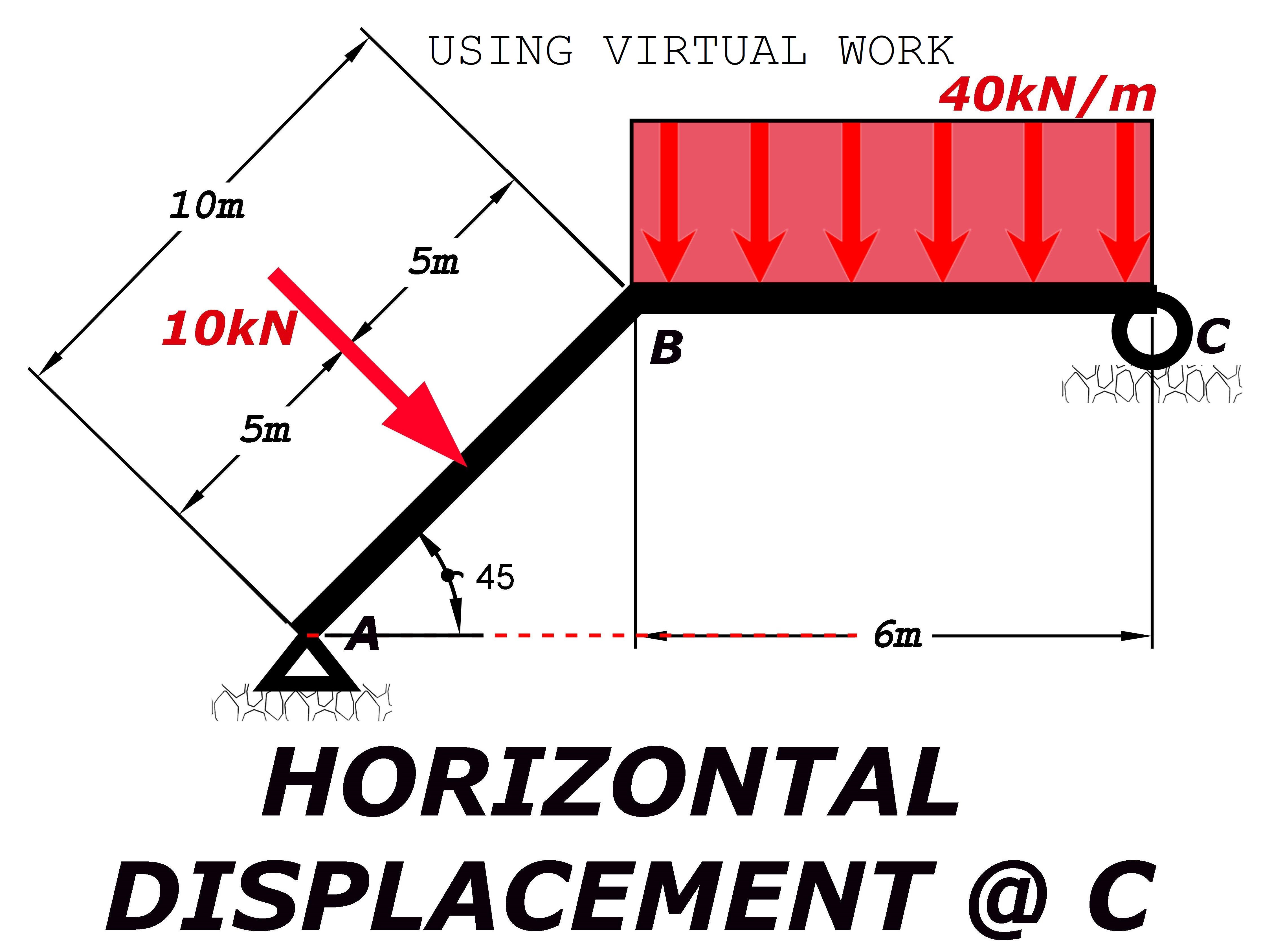

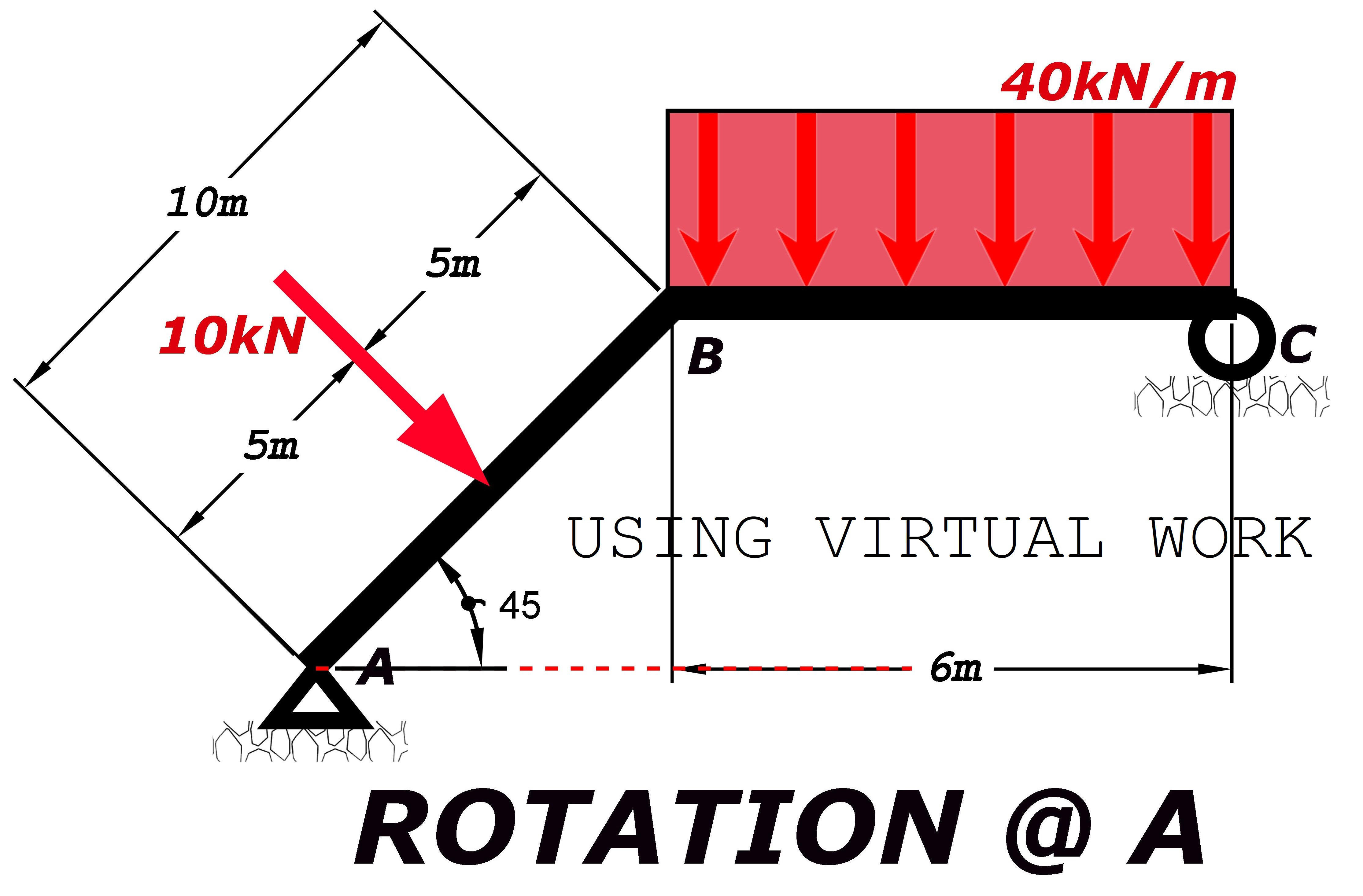

$Virtual\ Work\ Method$
Deflection and Slope of Beams
Deflection and Slope of Beams
$\delta\ or\ \theta\ =\ \sum\int{\frac{Mm}{EI}\ dx}$
43

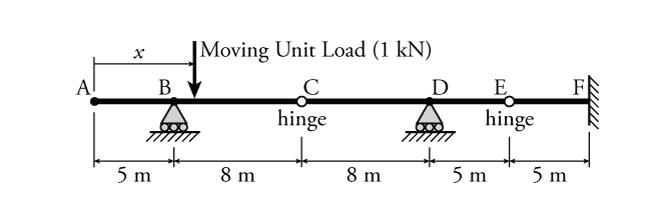

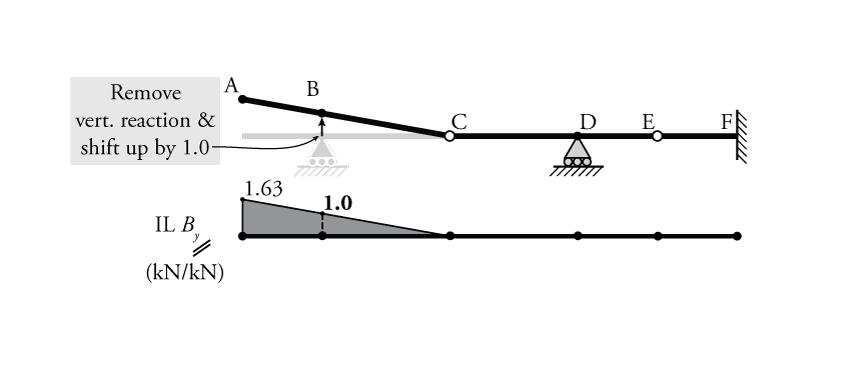

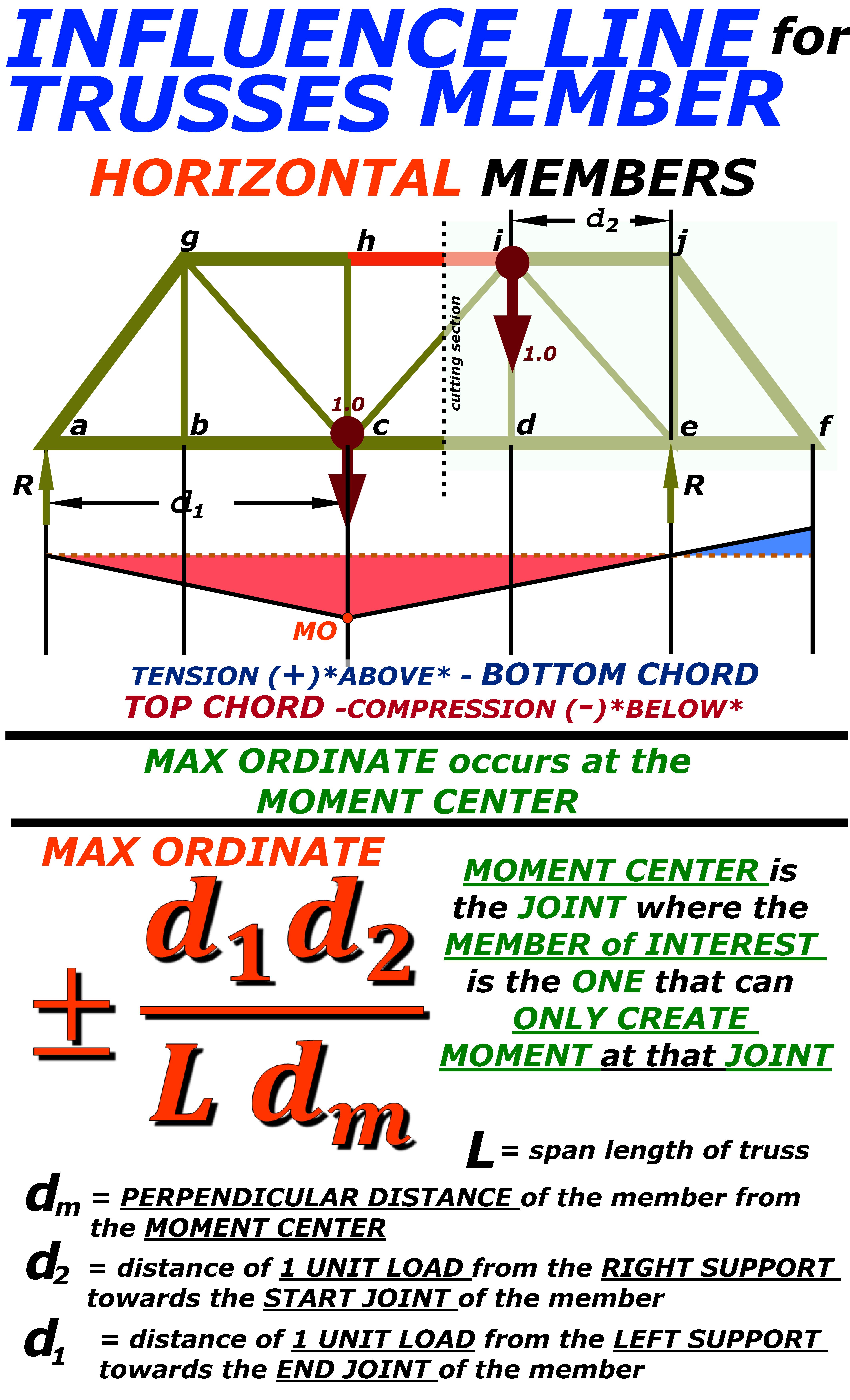

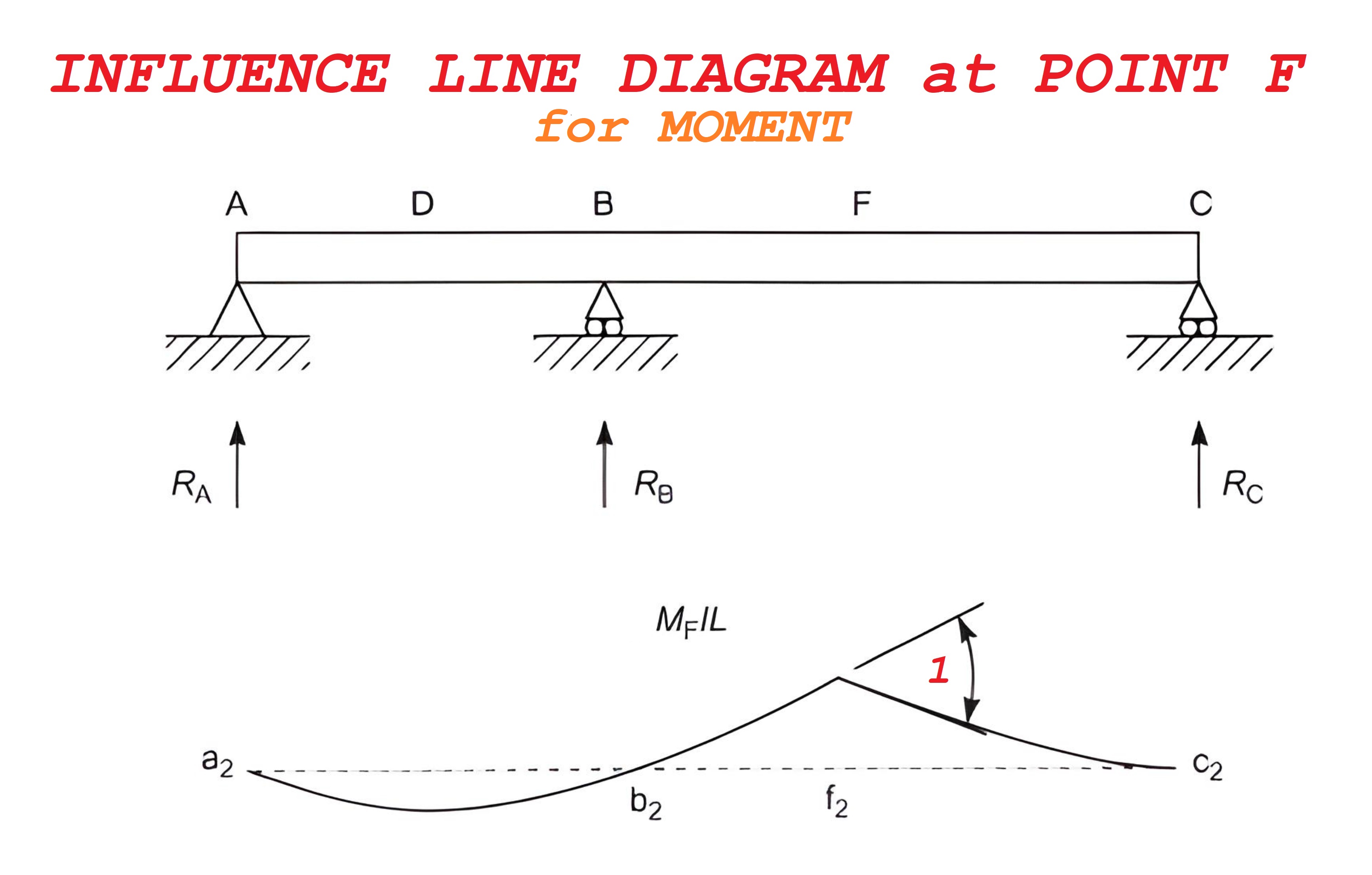

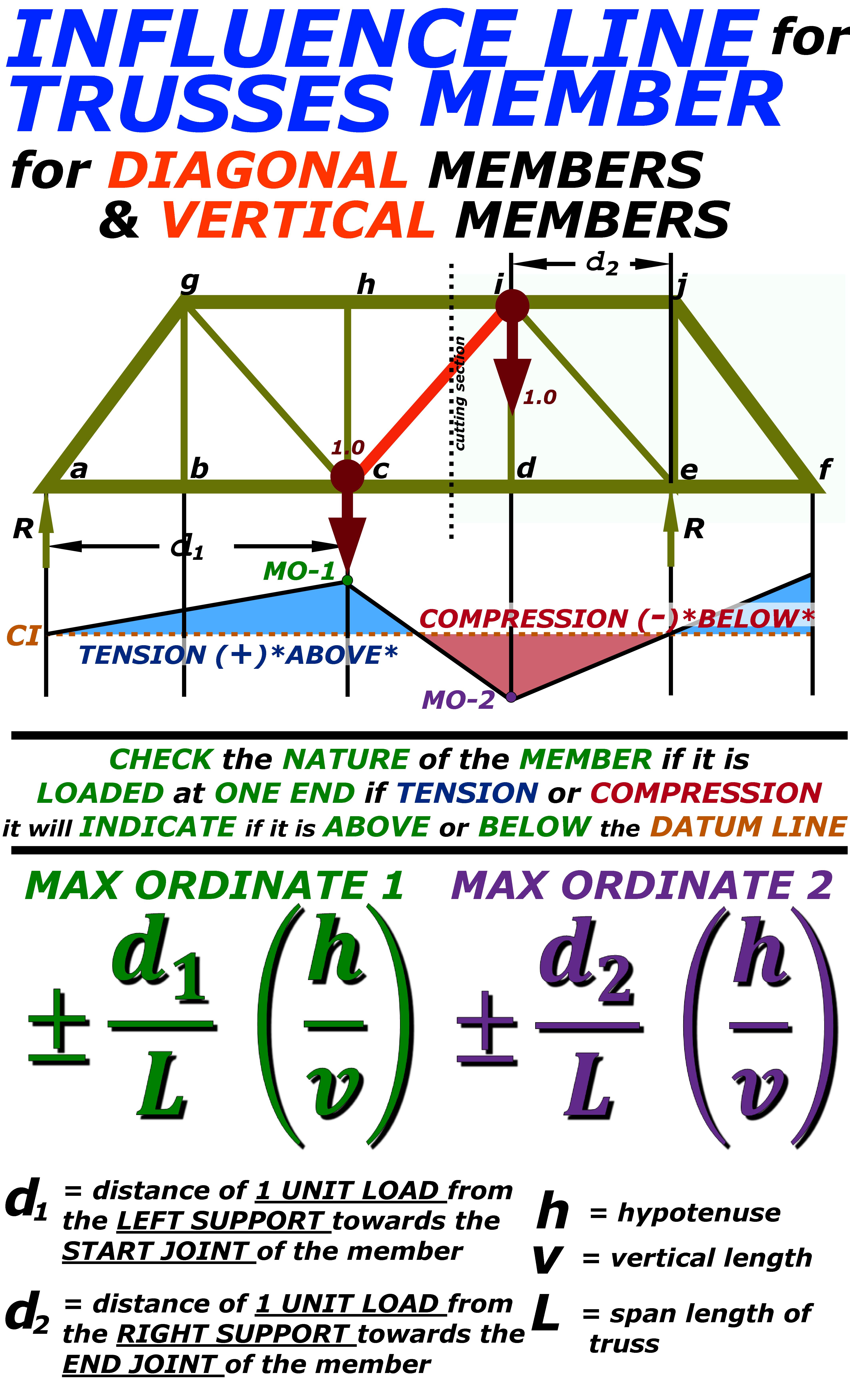

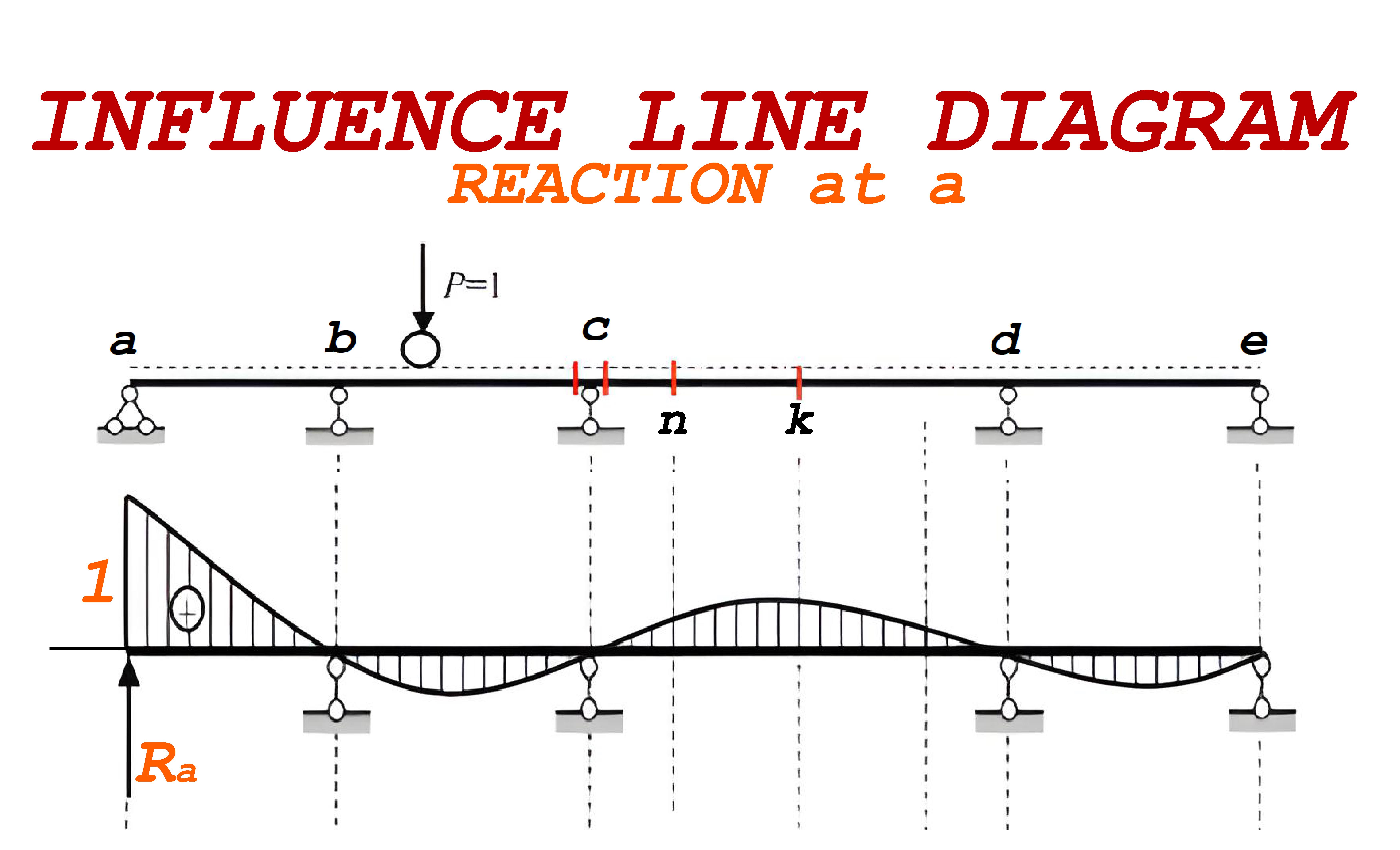

Muller Breslau

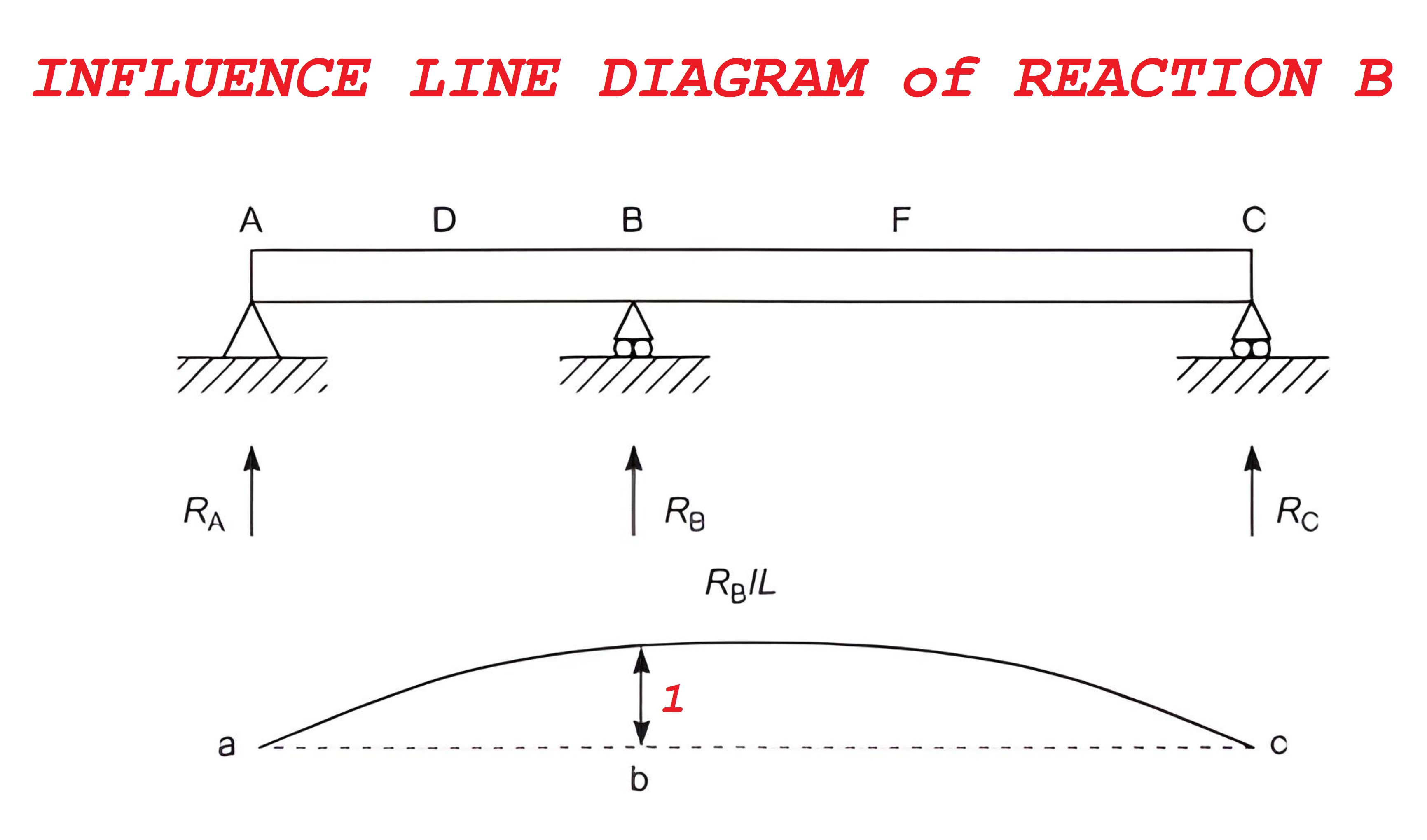

Create IL Diagram for Reaction B
Create IL Diagram for Reaction B
44

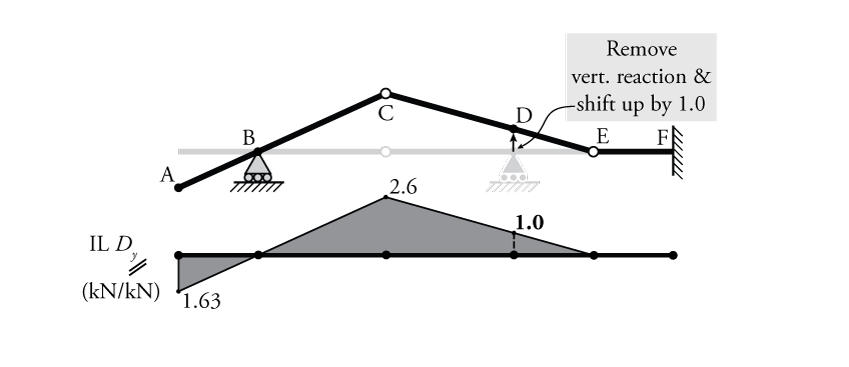

Muller Breslau
Create IL Diagram for Reaction D
Create IL Diagram for Reaction D
45

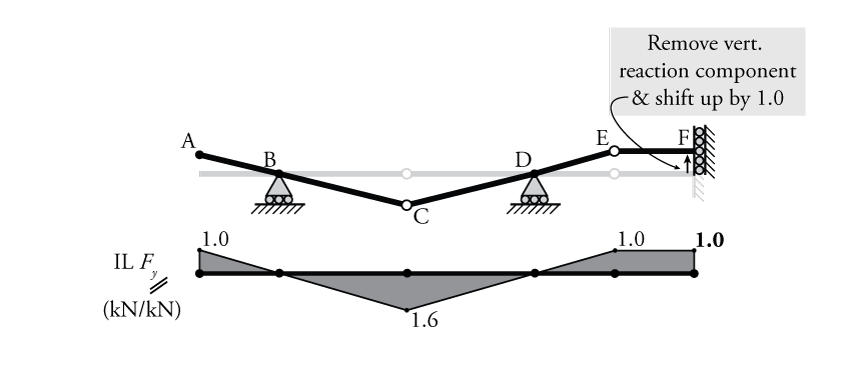

Muller Breslau
Create IL Diagram for Vertical Reaction F
Create IL Diagram for Vertical Reaction F
46

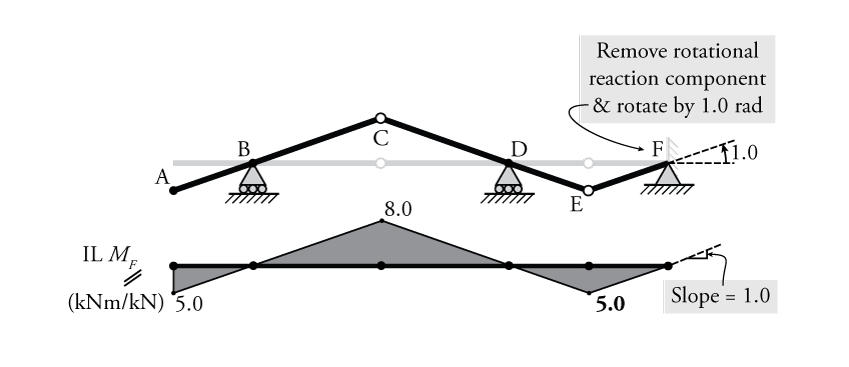

Muller Breslau
Create IL Diagram for Moment Reaction F
Create IL Diagram for Moment Reaction F
47

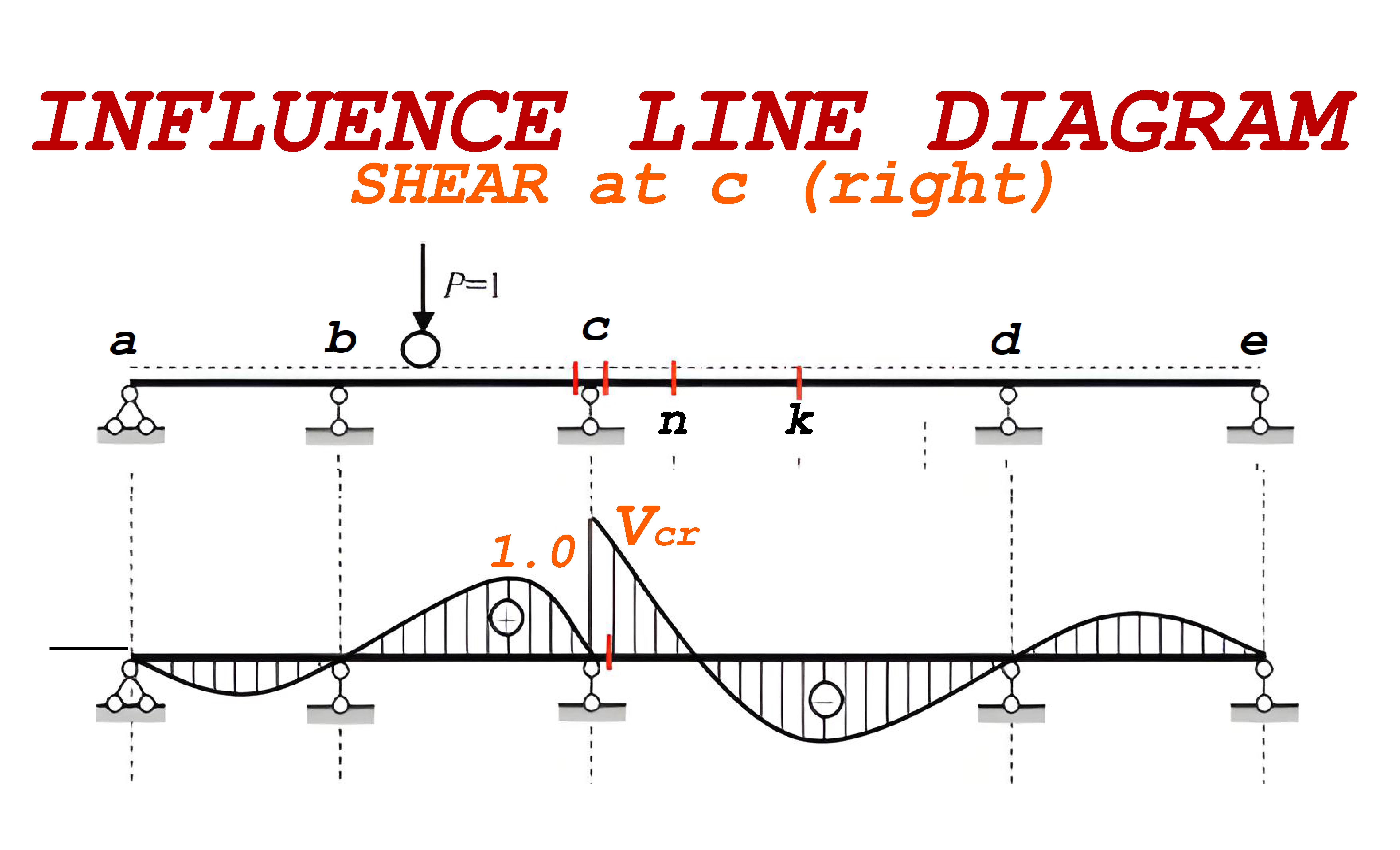

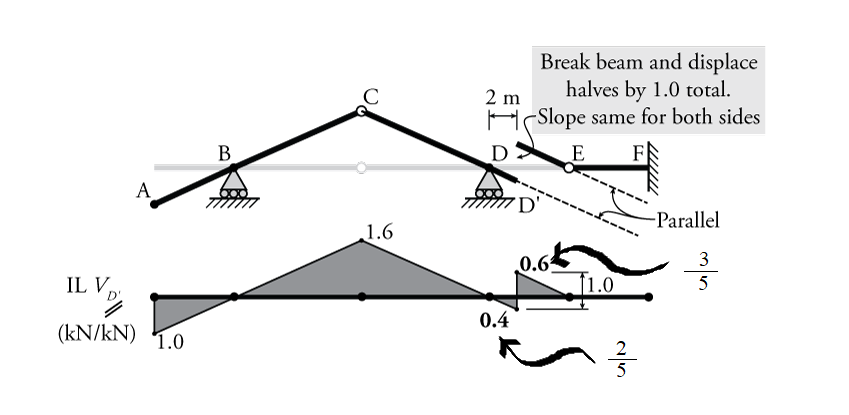

Muller Breslau

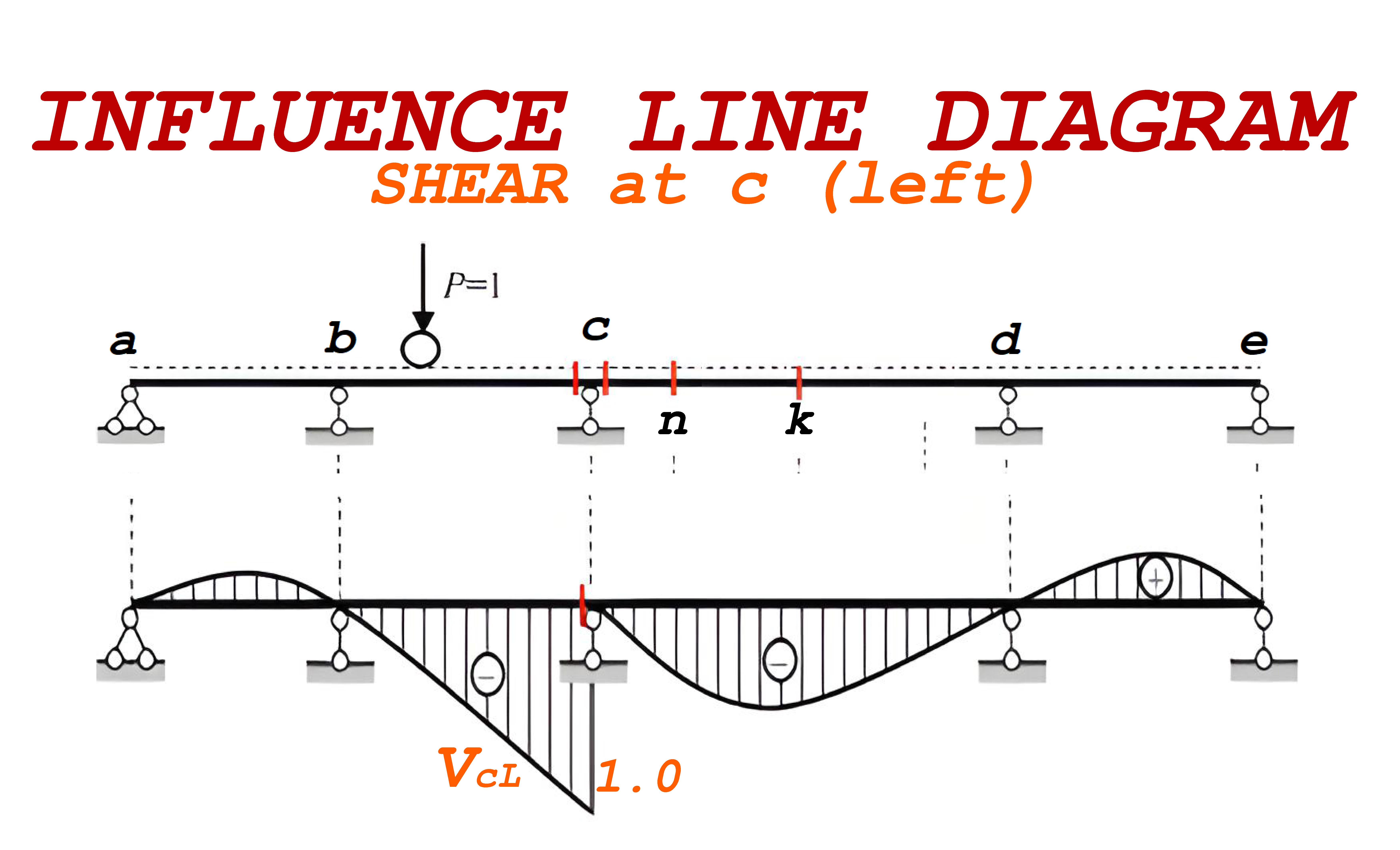

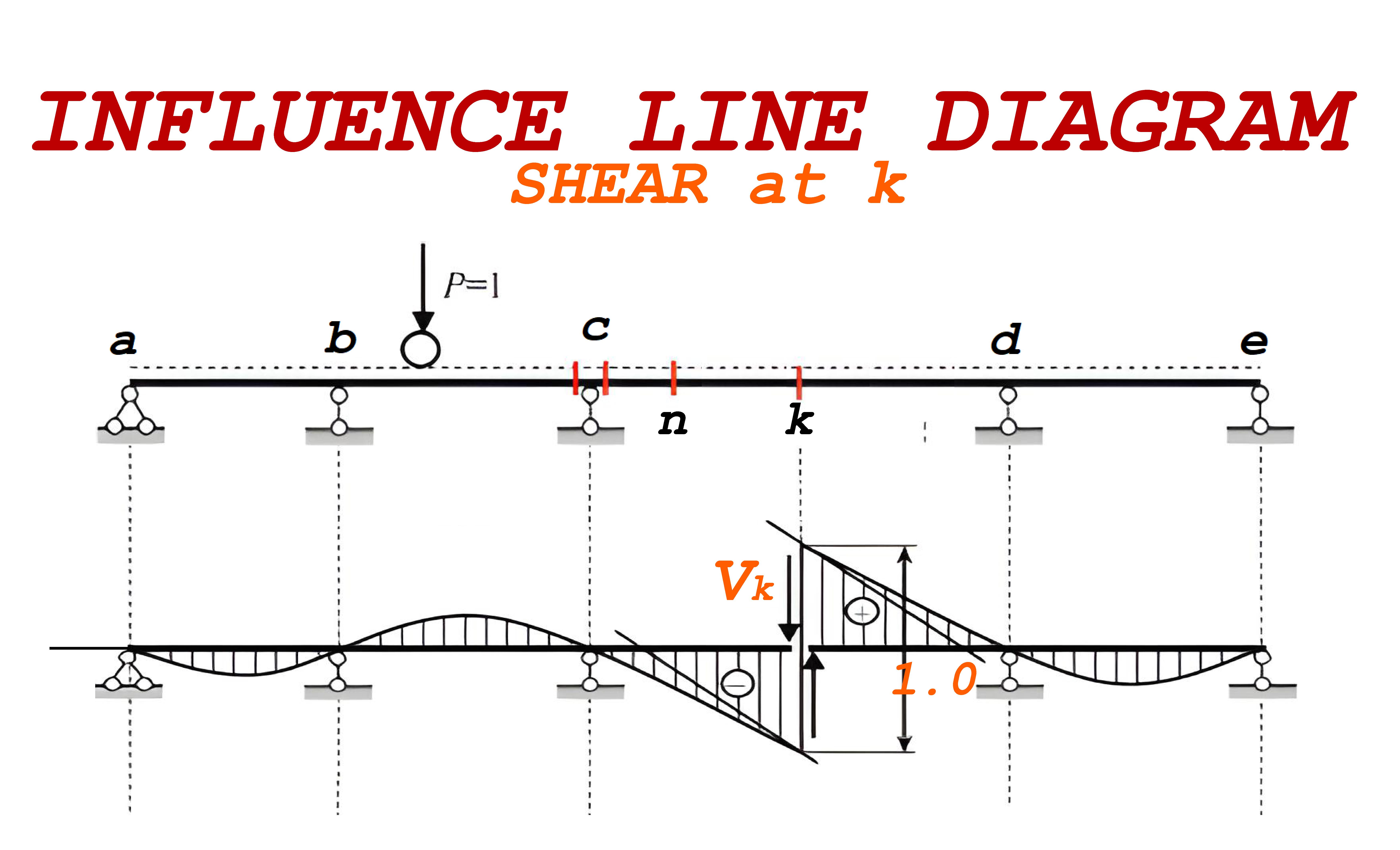

Create IL Diagram for internal shear in the
beam at a point 2m
to the right of point D (shown as point D')
Create IL Diagram for internal shear in the
beam at a point 2m
to the right of point D (shown as point D')
48

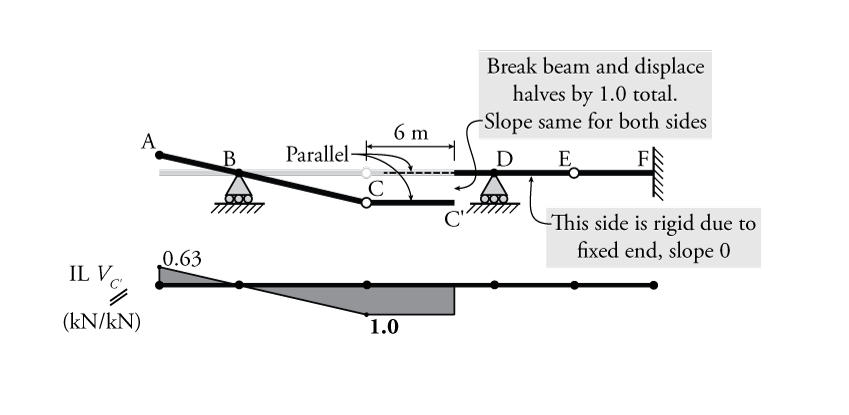

Muller Breslau
Create IL Diagram for internal shear in the
beam at a point 6m
to the right of point C (shown as point C')
Create IL Diagram for internal shear in the
beam at a point 6m
to the right of point C (shown as point C')
49

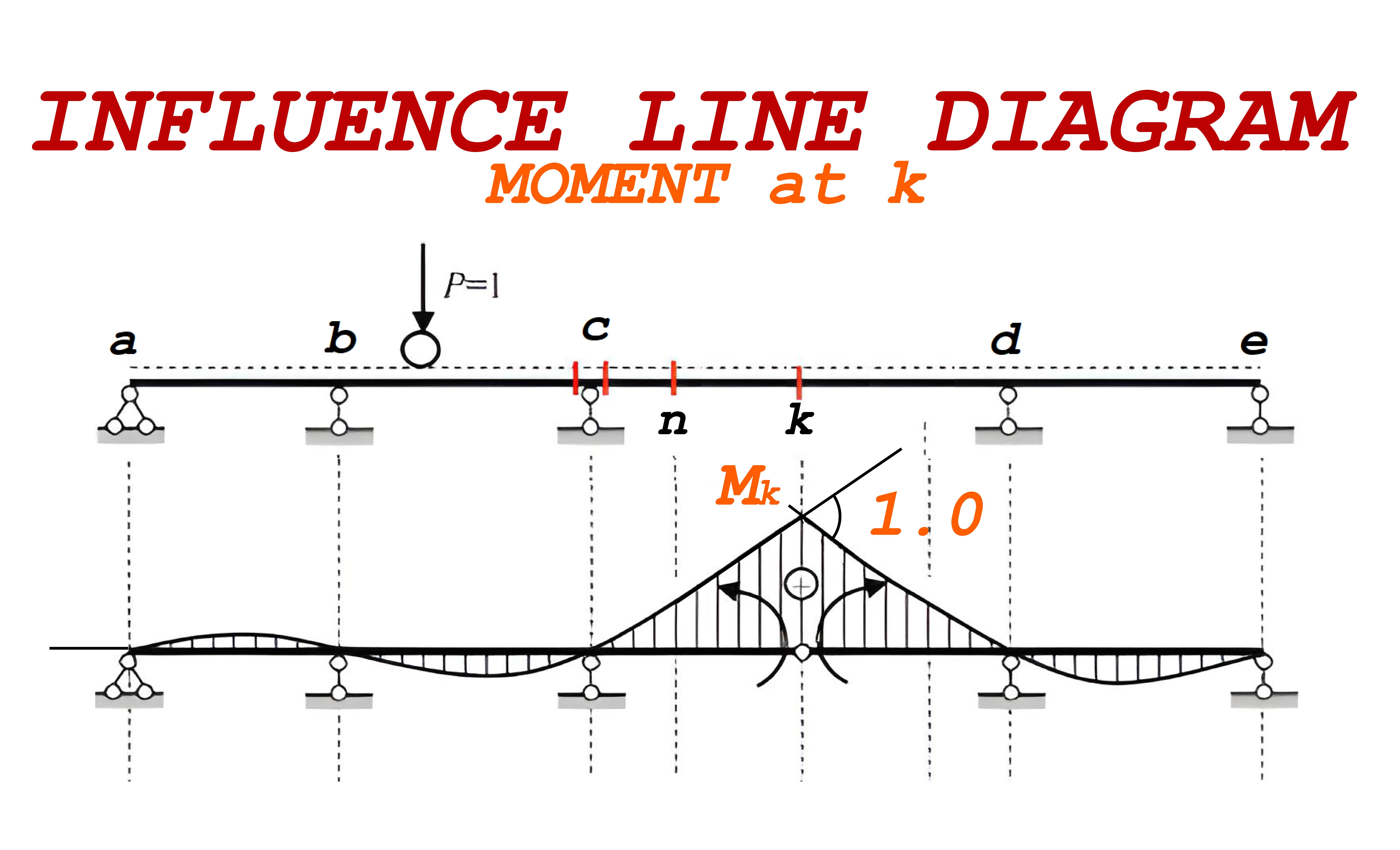

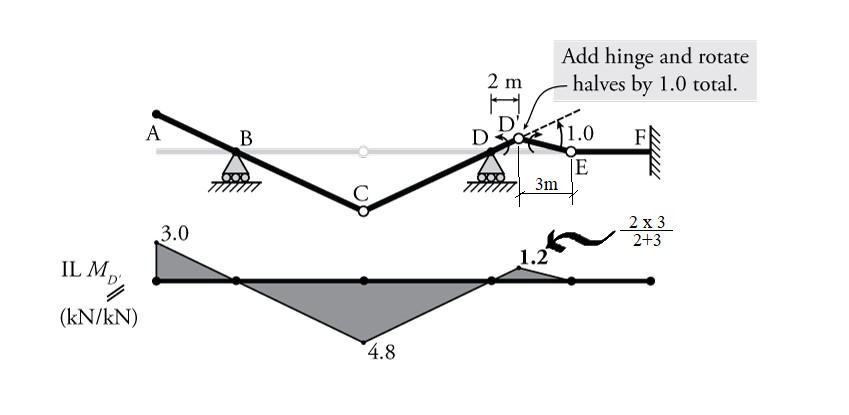

Muller Breslau

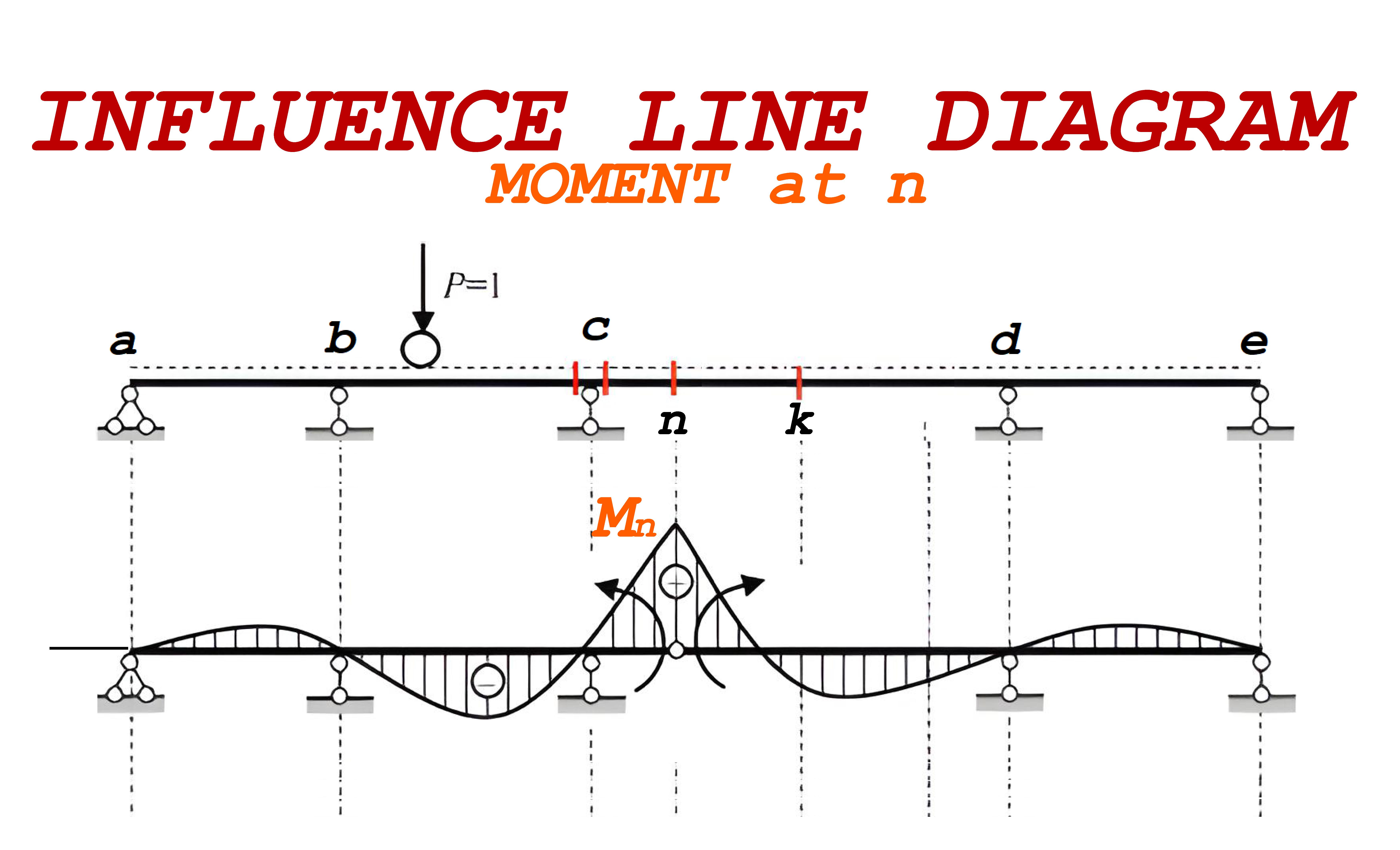

Create IL Diagram for internal moment in the beam at a point 2m to the right of
point D (shown as point D')
Create IL Diagram for internal moment in the beam at a point 2m to the right of
point D (shown as point D')
50

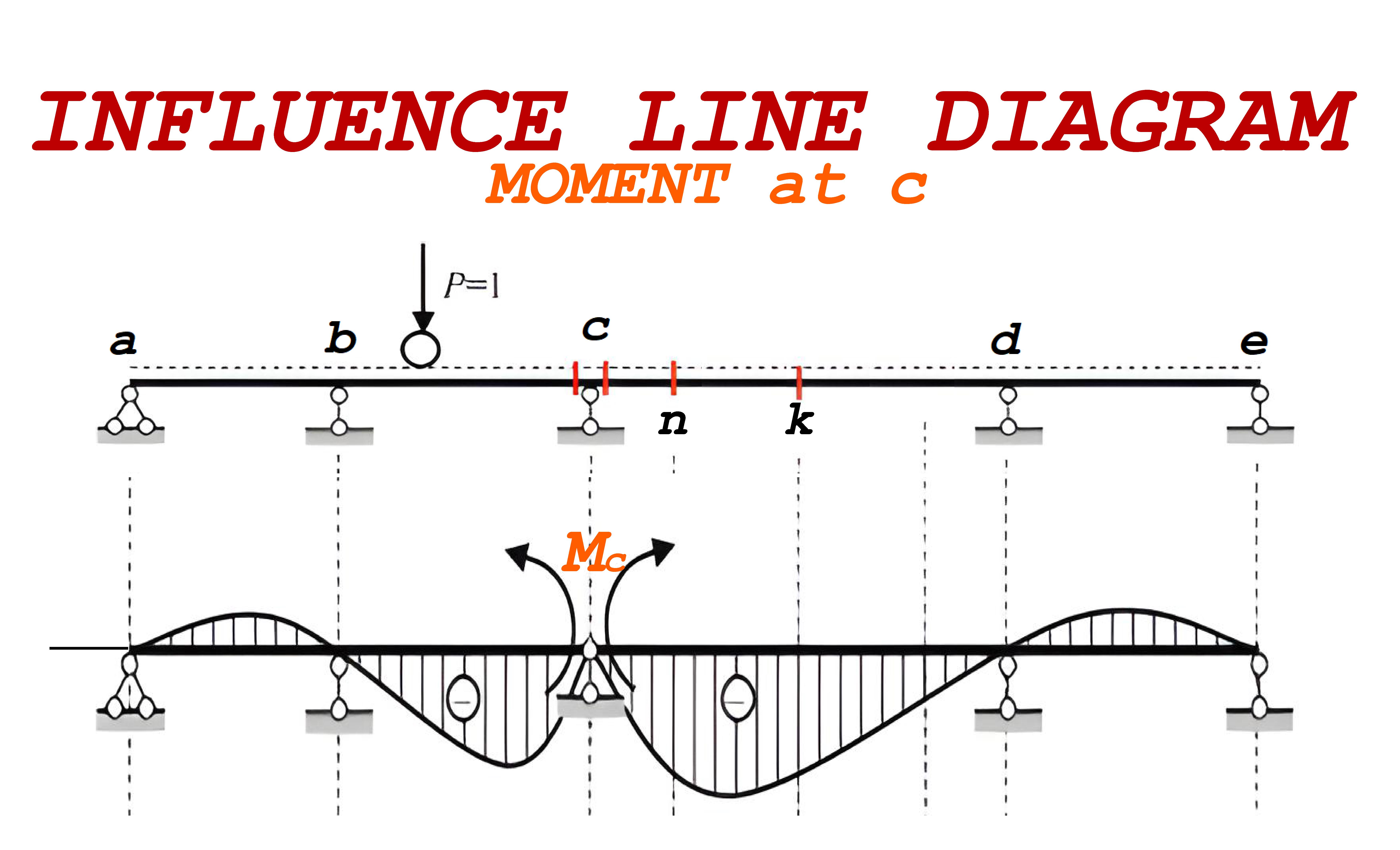

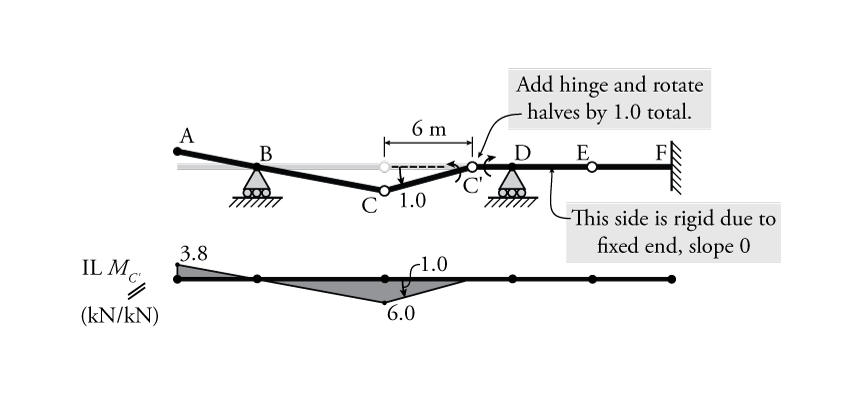

Muller Breslau
Create IL Diagram for internal moment in the beam at a point 6m to the right of
point C (shown as point C')
Create IL Diagram for internal moment in the beam at a point 6m to the right of
point C (shown as point C')
51
Image occlusion: name the hidden labels
52
Image occlusion: name the hidden labels
53
Image occlusion: name the hidden labels
54
Image occlusion: name the hidden labels
55
Image occlusion: name the hidden labels
56
Image occlusion: name the hidden labels
57
Image occlusion: name the hidden labels
58
Image occlusion: name the hidden labels
59
Image occlusion: name the hidden labels
60
Image occlusion: name the hidden labels
61
Image occlusion: name the hidden labels
62
Image occlusion: name the hidden labels
63
Image occlusion: name the hidden labels
64
Image occlusion: name the hidden labels
65
Image occlusion: name the hidden labels
66
Image occlusion: name the hidden labels
67
Image occlusion: name the hidden labels
68
Image occlusion: name the hidden labels
69
Image occlusion: name the hidden labels
70
Image occlusion: name the hidden labels
71
Image occlusion: name the hidden labels
72
Image occlusion: name the hidden labels
73

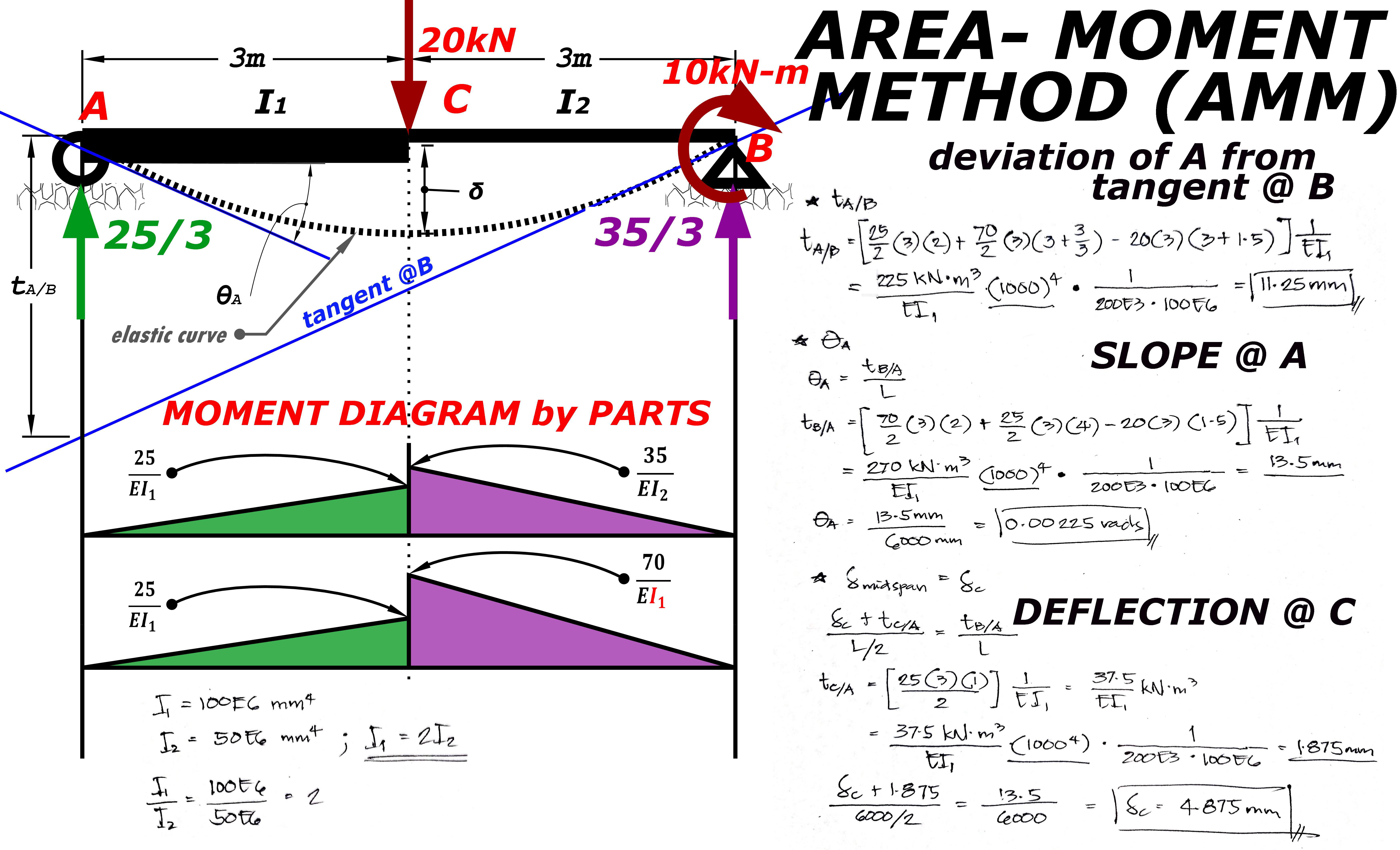

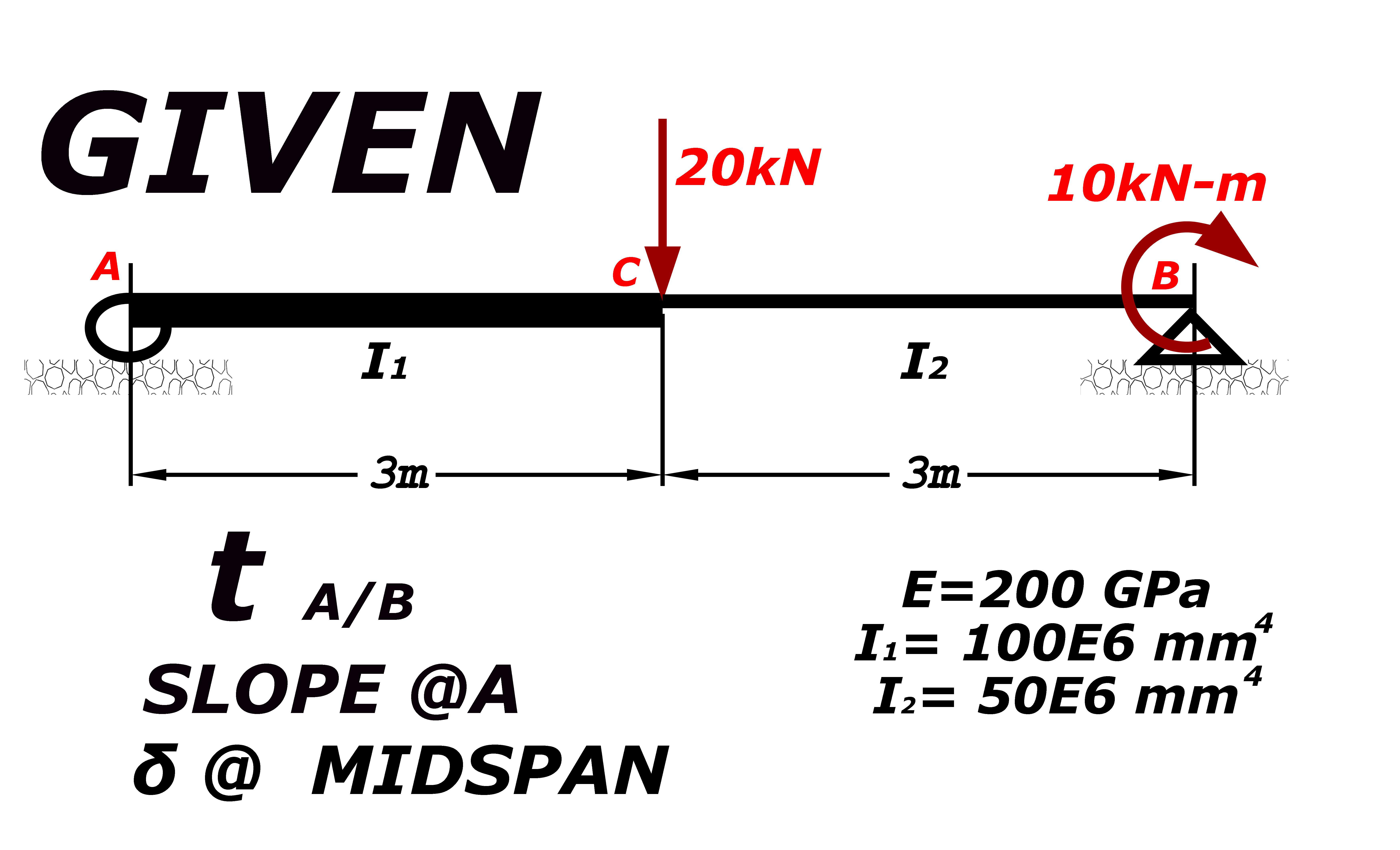

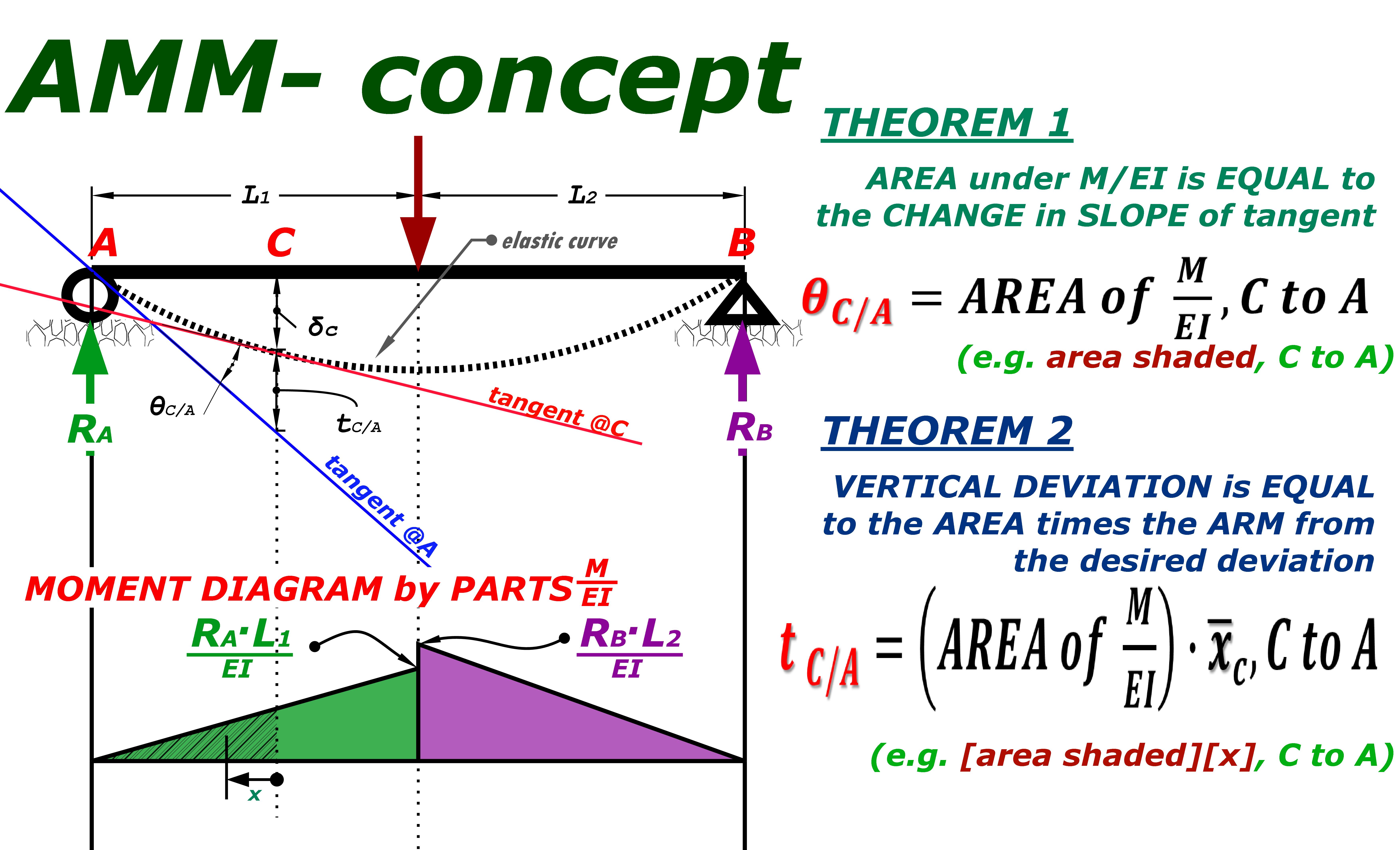

$MEANING$
in
$AREA-MOMENT\ METHOD$
$t_{B/A}$
in
$AREA-MOMENT\ METHOD$
$t_{B/A}$
the DEVIATION of B
with RESPECT to the
TANGENT EXTENDED/ DRAWN
at A
$sample\ unit\ \left(kN\ -\ m^3\right)$
with RESPECT to the
TANGENT EXTENDED/ DRAWN
at A
$sample\ unit\ \left(kN\ -\ m^3\right)$
74

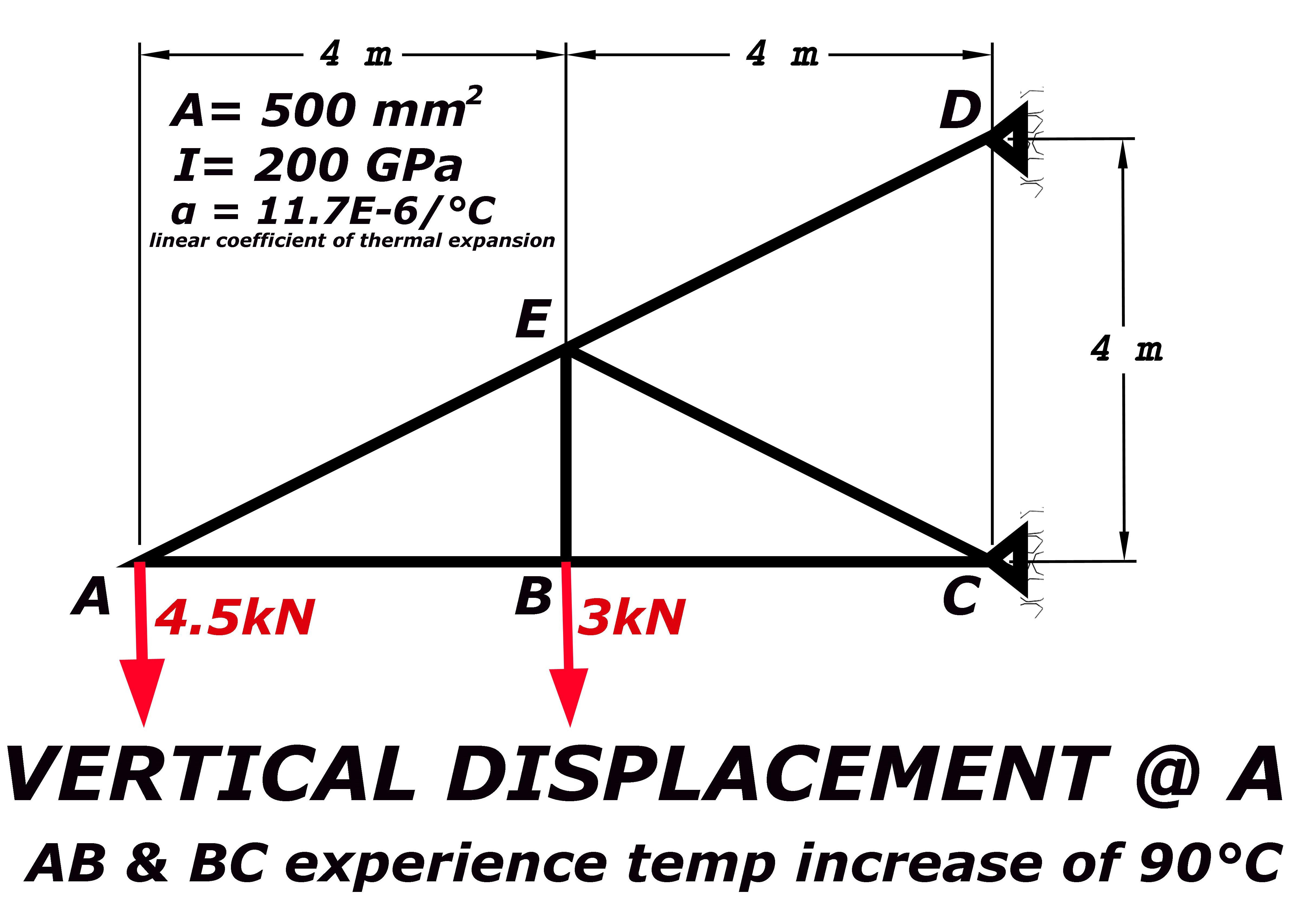

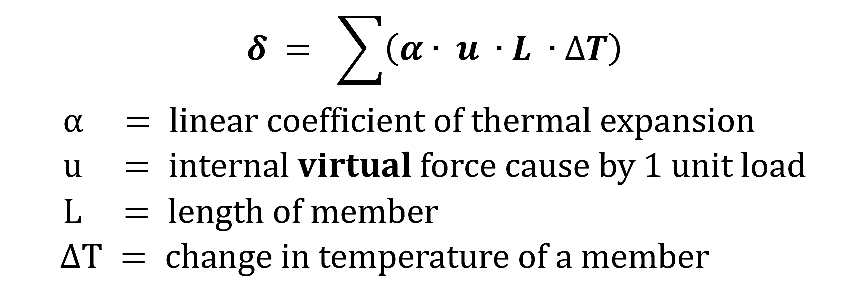

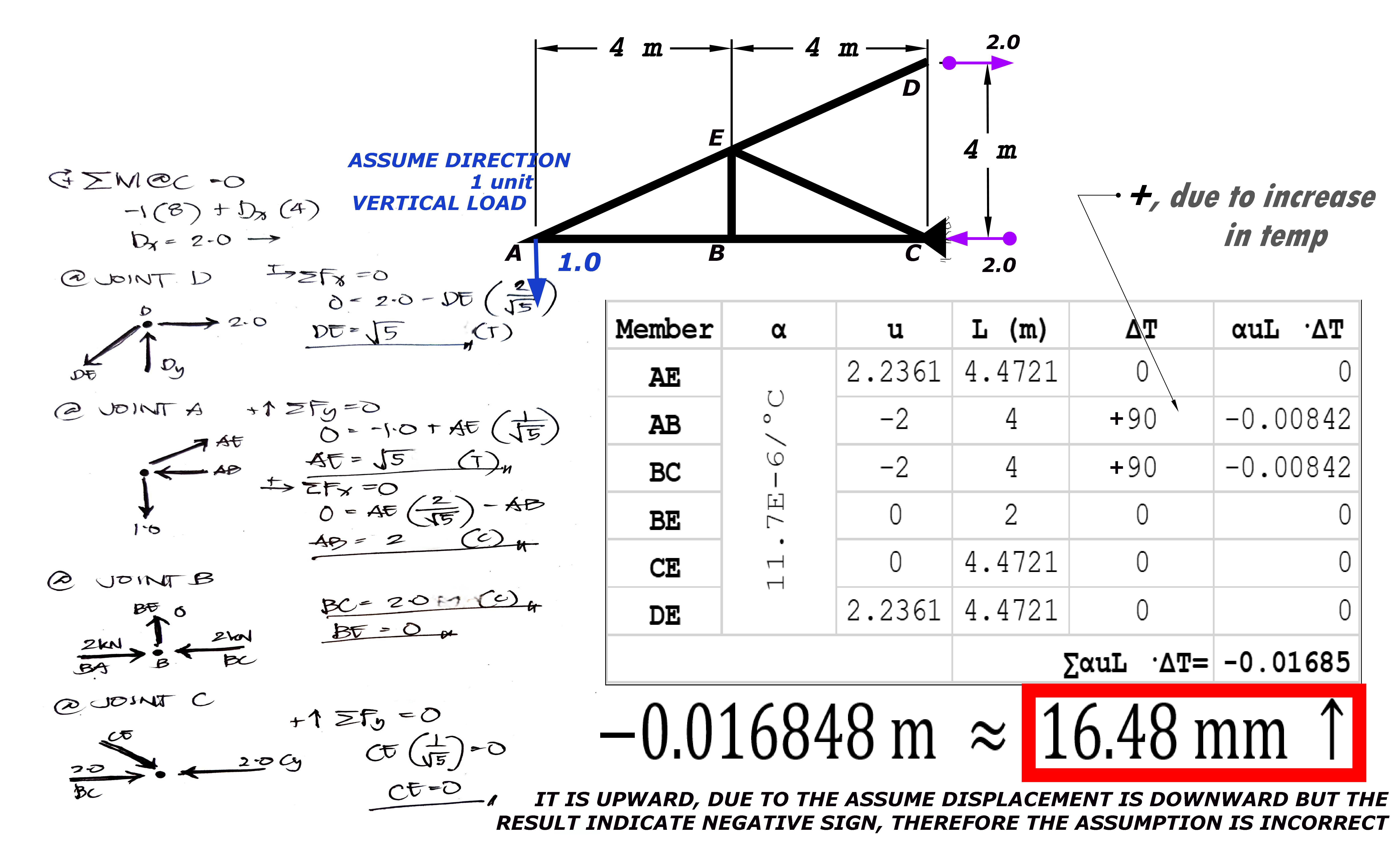

$Virtual\ Work\ Method$
Deflection of Trusses and Frames
due to TEMPERATURE
Deflection of Trusses and Frames
due to TEMPERATURE
$\sum\left( \alpha\bullet\ u\ \bullet L\ \bullet ∆T \right)$
75

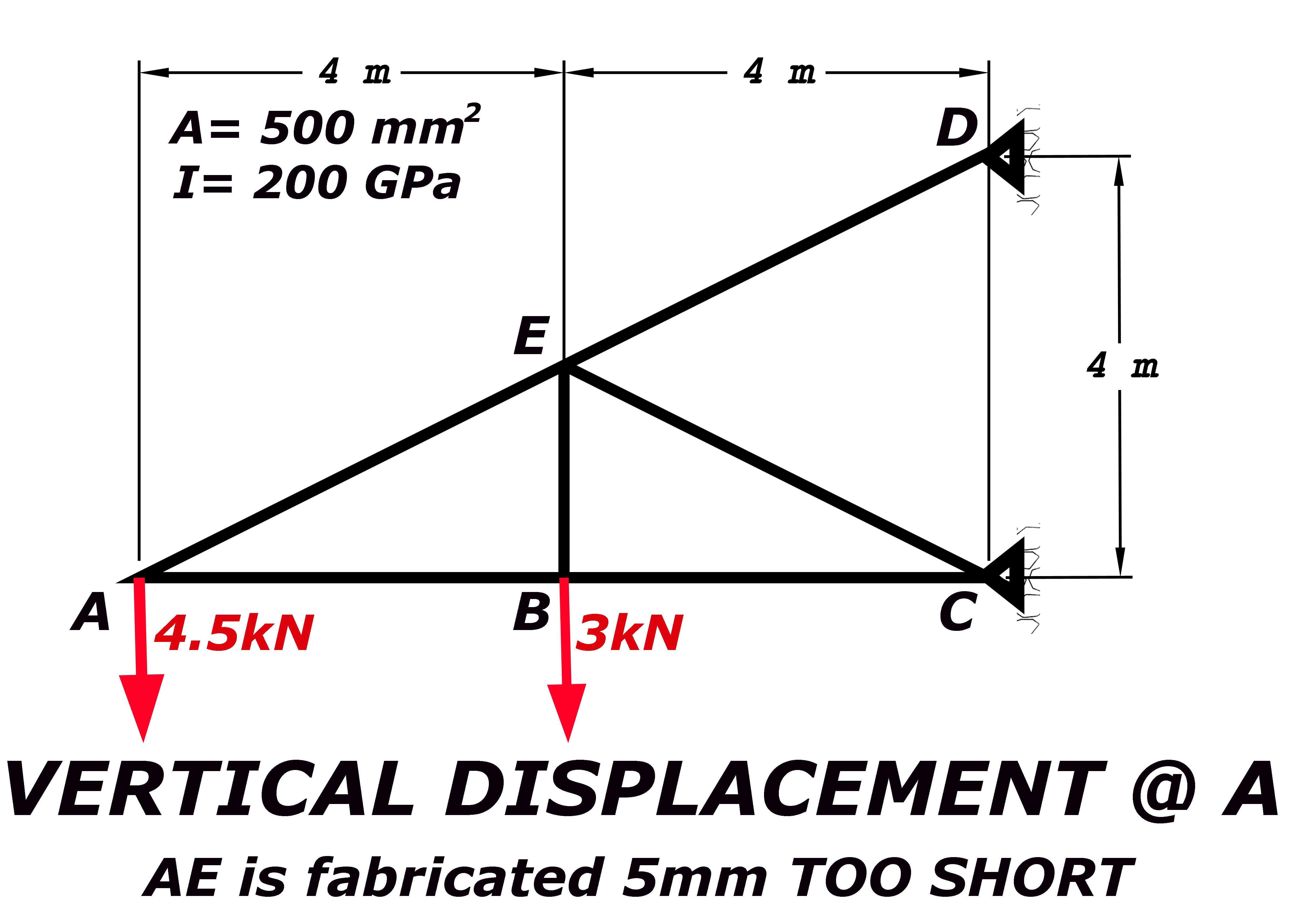

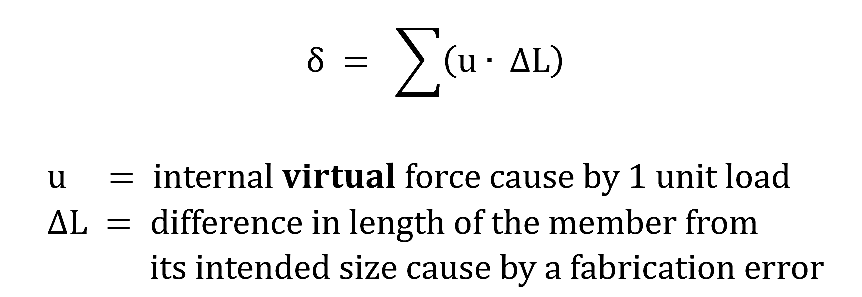

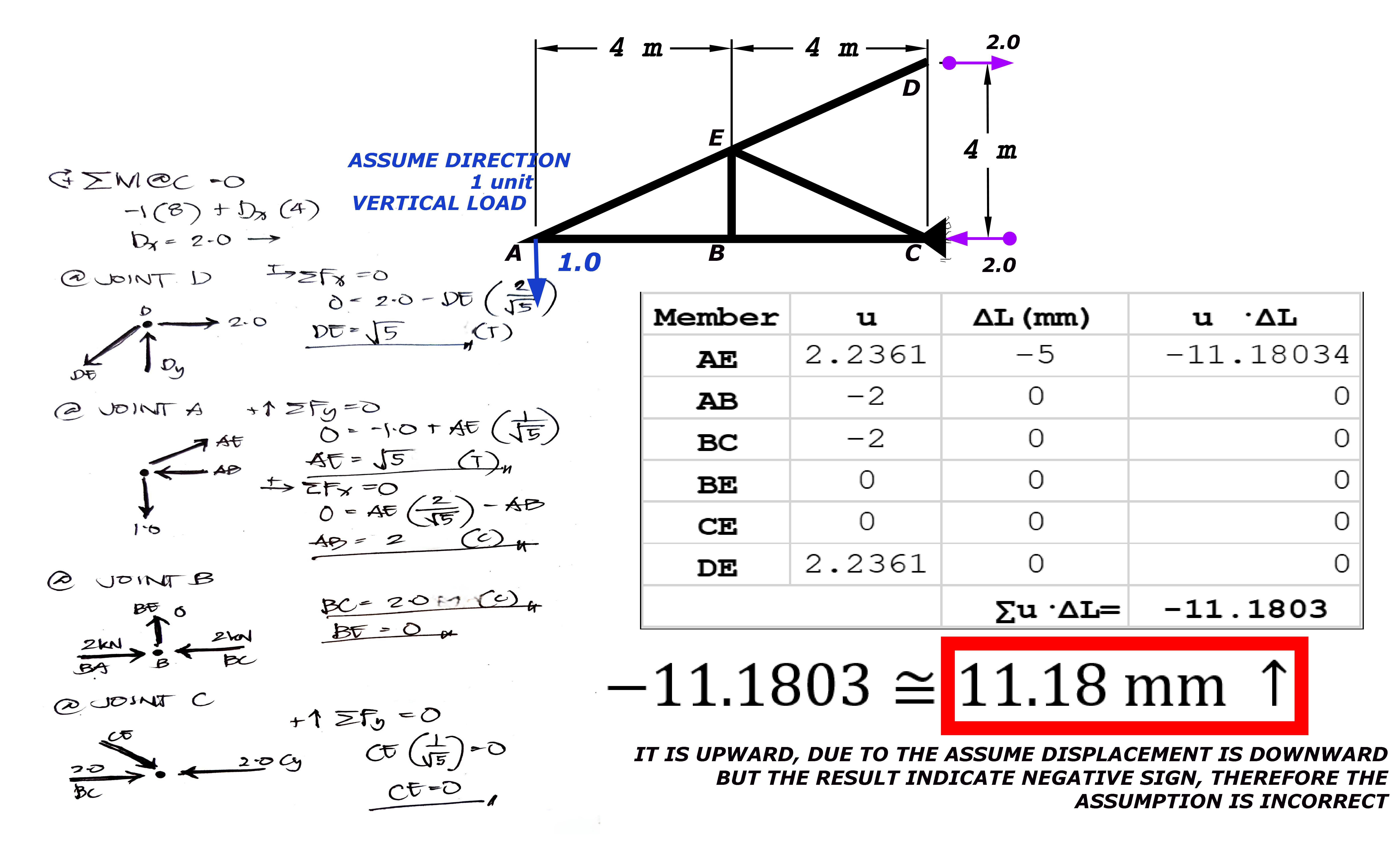

$Virtual\ Work\ Method$
Deflection of Trusses and Frames
due to FABRICATION ERRORS
Deflection of Trusses and Frames
due to FABRICATION ERRORS
$\delta\ =\ \ \sum\left(u\bullet\ \Delta L\right)$
76
Image occlusion: name the hidden labels
77
Image occlusion: name the hidden labels
78
Image occlusion: name the hidden labels
79
Image occlusion: name the hidden labels
80
Image occlusion: name the hidden labels
81
Image occlusion: name the hidden labels
82
Image occlusion: name the hidden labels
83
Image occlusion: name the hidden labels
84
Image occlusion: name the hidden labels
85
Image occlusion: name the hidden labels
86
Image occlusion: name the hidden labels
87
Image occlusion: name the hidden labels
88
89
Image occlusion: name the hidden labels
90
Image occlusion: name the hidden labels
91
92
Image occlusion: name the hidden labels
93
Image occlusion: name the hidden labels
94
Image occlusion: name the hidden labels
95
Image occlusion: name the hidden labels
96
Image occlusion: name the hidden labels
97
Image occlusion: name the hidden labels
98
Image occlusion: name the hidden labels
99
Image occlusion: name the hidden labels
100
Image occlusion: name the hidden labels
101
Image occlusion: name the hidden labels
102
Image occlusion: name the hidden labels
103
Image occlusion: name the hidden labels
104
Image occlusion: name the hidden labels
105
Image occlusion: name the hidden labels
106
Image occlusion: name the hidden labels
107
Image occlusion: name the hidden labels
108
Image occlusion: name the hidden labels
109
Image occlusion: name the hidden labels
110
Image occlusion: name the hidden labels
111
Image occlusion: name the hidden labels
112
Image occlusion: name the hidden labels
113
Image occlusion: name the hidden labels
114
Image occlusion: name the hidden labels
115
Image occlusion: name the hidden labels
116
Image occlusion: name the hidden labels
117
Image occlusion: name the hidden labels
118
Image occlusion: name the hidden labels
119
Image occlusion: name the hidden labels
120
REVISED
121
122
123
124
125
126
127
Image occlusion: name the hidden labels
128
Image occlusion: name the hidden labels
129
Image occlusion: name the hidden labels
130
Image occlusion: name the hidden labels
131
Image occlusion: name the hidden labels
132
Image occlusion: name the hidden labels
133
Image occlusion: name the hidden labels
134
Image occlusion: name the hidden labels
135
Image occlusion: name the hidden labels
136
Image occlusion: name the hidden labels
137
Image occlusion: name the hidden labels
138
Image occlusion: name the hidden labels
139
Image occlusion: name the hidden labels
140
Image occlusion: name the hidden labels
141
CONCEPT
DETERMINACY and STABILITY
in FRAMES
DON'T CUT on JOINTS, CUT on MEMBERS
SEPERATE all the SUPPORT REACTIONS,
using VERTICAL CUTTING SECTION ONLY,
TRAVERSING ALL HORIZONTAL MEMBERS
DETERMINACY and STABILITY
in FRAMES
DON'T CUT on JOINTS, CUT on MEMBERS
SEPERATE all the SUPPORT REACTIONS,
using VERTICAL CUTTING SECTION ONLY,
TRAVERSING ALL HORIZONTAL MEMBERS
CONCEPT
DETERMINACY and STABILITY
in FRAMES
DON'T CUT on JOINTS, CUT on MEMBERS
SEPERATE all the SUPPORT REACTIONS,
using VERTICAL CUTTING SECTION ONLY,
TRAVERSING ALL HORIZONTAL MEMBERS
DETERMINACY and STABILITY
in FRAMES
DON'T CUT on JOINTS, CUT on MEMBERS
SEPERATE all the SUPPORT REACTIONS,
using VERTICAL CUTTING SECTION ONLY,
TRAVERSING ALL HORIZONTAL MEMBERS
142
DEGREE of INDETERMINACY
3D FRAMES
3D FRAMES
$DI\ =\ 6\ \left( \# \ of\ LOOPS \right)$
143
Image occlusion: name the hidden labels
144
Image occlusion: name the hidden labels
145
Image occlusion: name the hidden labels
146
Image occlusion: name the hidden labels
147
Image occlusion: name the hidden labels
148
Image occlusion: name the hidden labels
149
Image occlusion: name the hidden labels
150
Image occlusion: name the hidden labels
151
Image occlusion: name the hidden labels
152
Image occlusion: name the hidden labels
153
Image occlusion: name the hidden labels
154
Image occlusion: name the hidden labels
155
Image occlusion: name the hidden labels
