TRANSPO ENGG
Study these flashcardsFree · spaced repetition · iPhone, Android, Mac & web
All cards
1
Traffic Analysis
Spot Speed
Spot Speed
refers to Instantaneous Speed
2
Traffic Analysis
Running Speed
Running Speed
refers to Average Speed
$running\ speed\ =\ \frac{distance\ covered}{time\ elapsed}$
$running\ speed\ =\ \frac{distance\ covered}{time\ elapsed}$
3

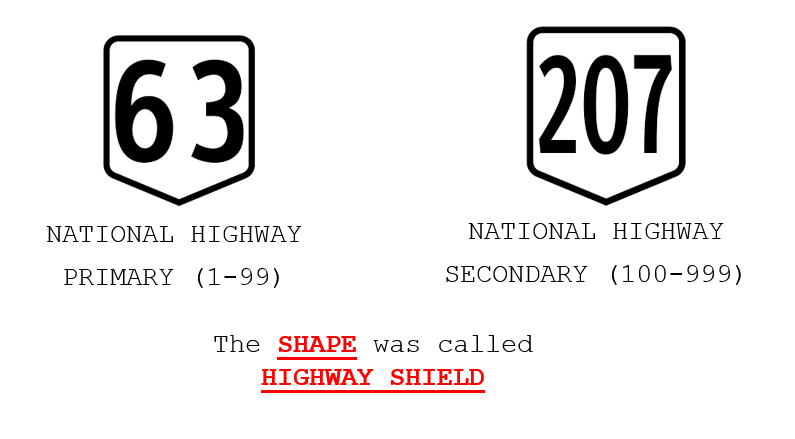

National Highway Signage
4
Traffic Analysis

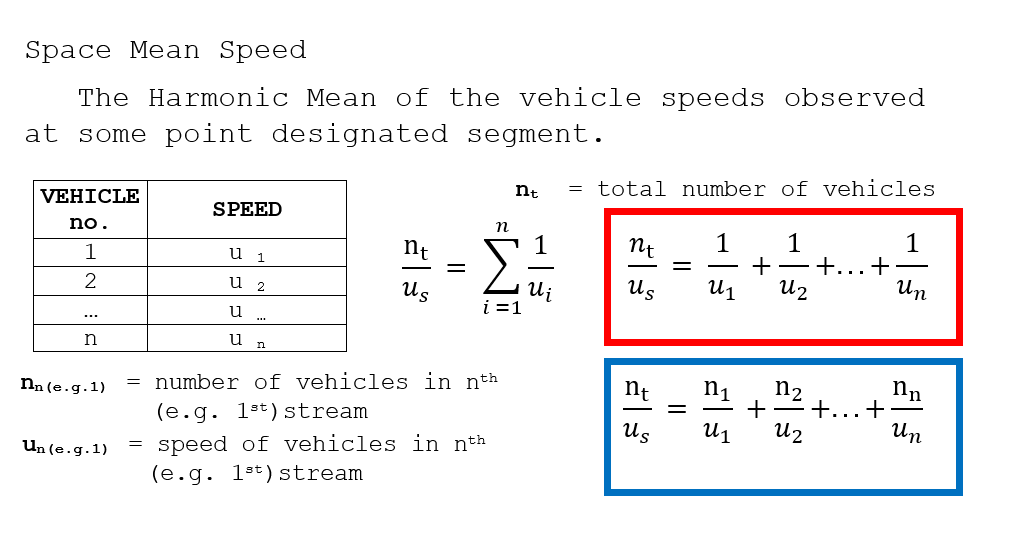

Space Mean Speed
Space Mean Speed
$\frac{n_t}{u_s}\ =\ \frac{1}{u_1}\ +\frac{1}{u_2}+...+\frac{1}{u_n}$
5
Traffic Analysis

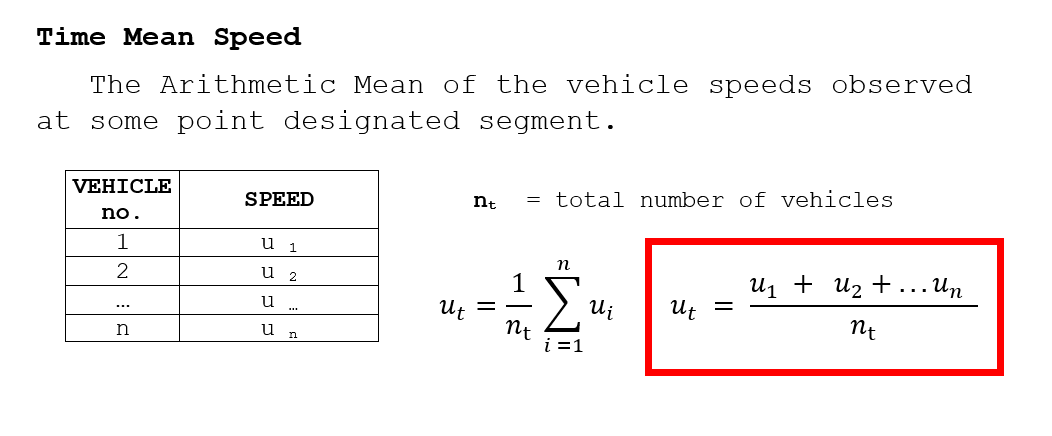

Time Mean Speed
Time Mean Speed
$u_t\ =\ \frac{u_1\ +\ \ u_2\ +\ ...u_n\ \ }{n_t}\ $
6
Traffic Analysis

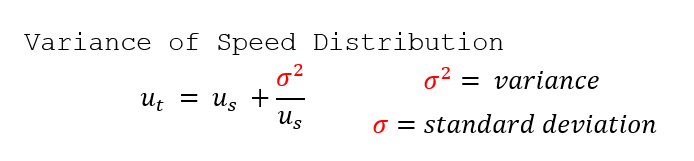

Variance of Speed Distribution
Variance of Speed Distribution
$u_t\ =\ u_s\ +\frac{\sigma^2}{u_s}$
7
Traffic Analysis
Space Headway
(S.H.)
Space Headway
(S.H.)
$S.H.\ =\ \frac{L_1}{2}+\ clearance\ +\ \frac{L_2}{2}$
$S.H.\ =\ \frac{Length\ of\ Road\ Section}{No.\ of\ Vehicles\ Passing}$
$S.H.\ =\ \frac{Length\ of\ Road\ Section}{No.\ of\ Vehicles\ Passing}$
8
Stream of Vehicles in any designated segment
- Queue
- Traffic
- Traffic Density
- Arrival Traffic
9
Traffic Analysis
Density
(K)
Density
(K)
(veh/ km or miles) – The number of units or vehicles passing per unit distance.
$Density\ (K)=\ \frac{No.\ of\ Vehicles\ Passing}{Length\ of\ Road\ Section}$
$ (K)=\frac{1}{S.H.\ }$
$Density\ (K)=\ \frac{No.\ of\ Vehicles\ Passing}{Length\ of\ Road\ Section}$
$ (K)=\frac{1}{S.H.\ }$
10
Traffic Analysis
Flow Rate or Volume
(q)
Flow Rate or Volume
(q)
(veh/ hr)-the number of vehicles passing per unit time.
$Flow\ (q)=\ \frac{No.\ of\ Vehicles\ Passing}{Time\ Elapsed}\ $
$q=\ \frac{No.\ of\ Vehicles\ Passing}{Headway}$
$q=\ \frac{1}{Time\ Headway}$
$Flow\ (q)=\ \frac{No.\ of\ Vehicles\ Passing}{Time\ Elapsed}\ $
$q=\ \frac{No.\ of\ Vehicles\ Passing}{Headway}$
$q=\ \frac{1}{Time\ Headway}$
11
Traffic Analysis

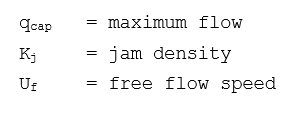

GREENSHIELD'S MODEL
FLOW CAPACITY
GREENSHIELD'S MODEL
FLOW CAPACITY
$q_{cap}=\ \left(\frac{K_j}{2}\right)\left(\frac{u_f}{2}\right)=\frac{{K_j\ u}_f}{4}\ $
12
CONCEPT

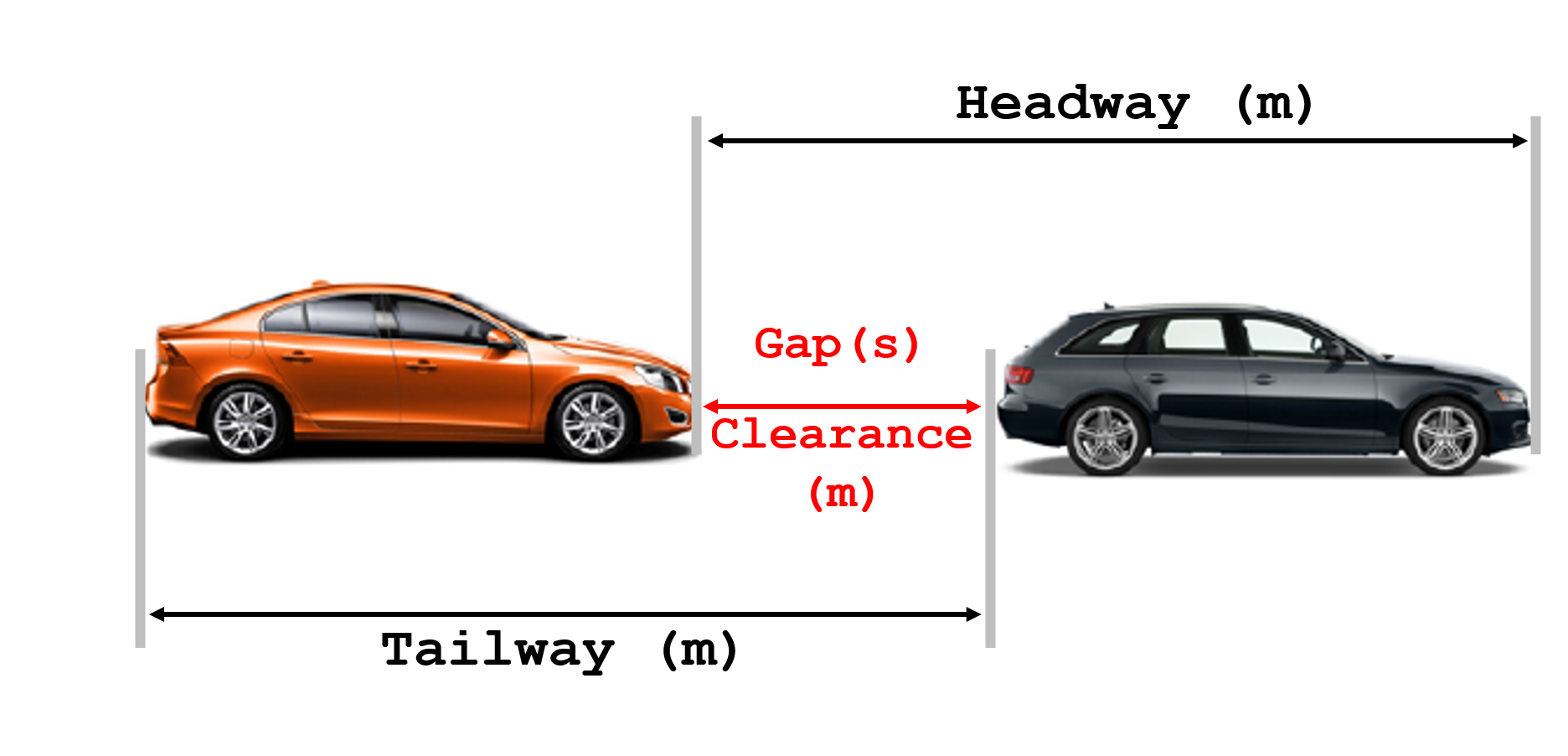

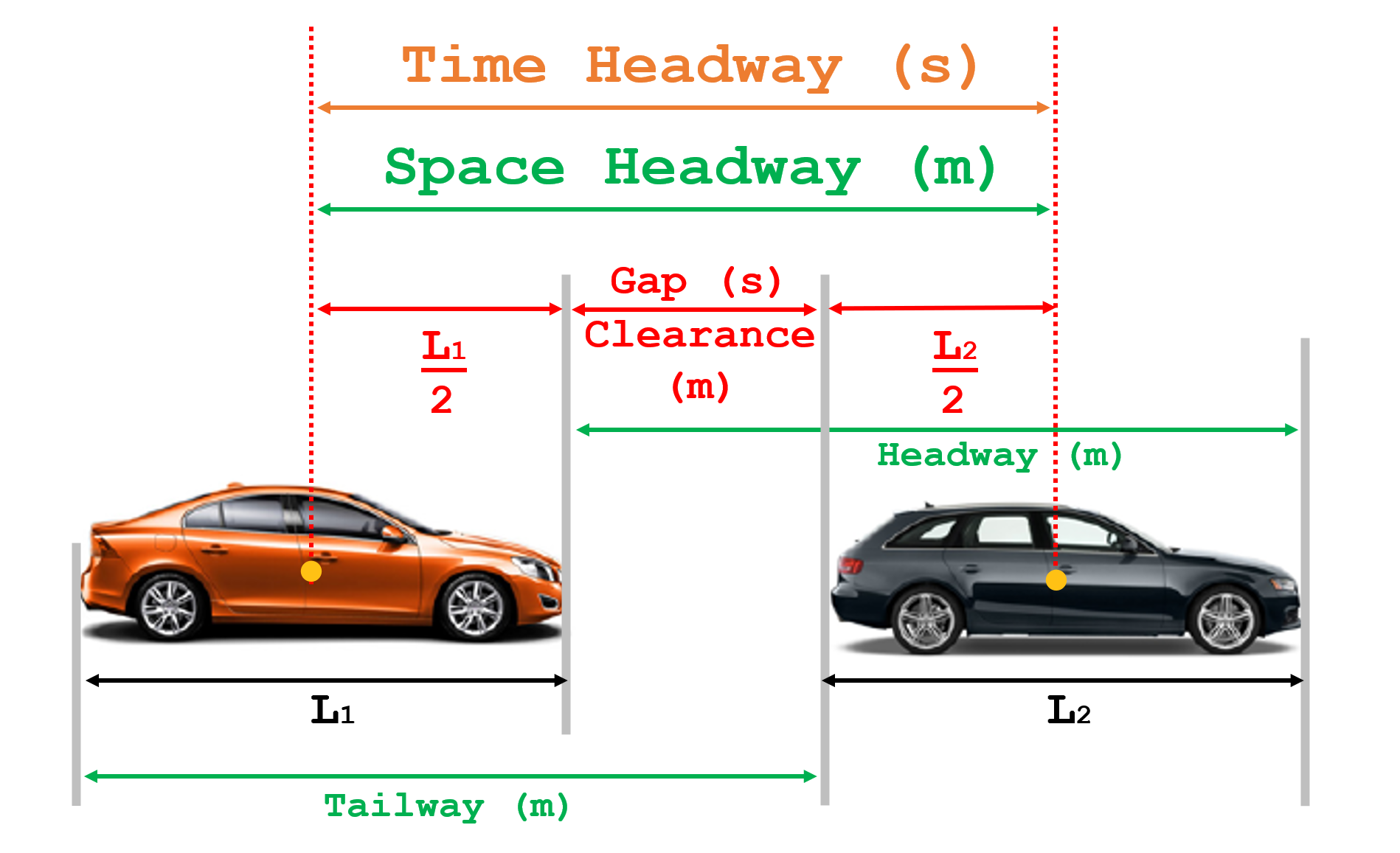

HEADWAY and TAILWAY
HEADWAY and TAILWAY
13
CONCEPT
SPACE HEADWAY
SPACE HEADWAY
14
RELATIONSHIP of SPACE MEAN SPEED,
FLOW, and DENSITY
FLOW, and DENSITY
$q\ =\ {K\ u}_s\ $
15
Traffic Analysis
Perception-Reaction Time
PEIV
Perception-Emotion-Identification-Volition
Perception-Reaction Time
PEIV
Perception-Emotion-Identification-Volition
as per AASHTO
2.5 s
2.5 s
16
Traffic Analysis
GREENSHIELD'S MODEL
MAXIMUM FLOW CAPACITY
GREENSHIELD'S MODEL
MAXIMUM FLOW CAPACITY
$q_{cap}=\ \left(\frac{K_j}{2}\right)\left(\frac{u_f}{2}\right)=\frac{{K_j\ u}_f}{4}$
17
Traffic Analysis
MINIMUM TIME HEADWAY
MINIMUM TIME HEADWAY
the elapsed time between the collision of the two consecutive vehicle.
Must be greater than PRT (2.5s)
$time\ headway\ \left(s/veh\right)\ =\ \frac{3600\ \left(s/hr\right)}{capacity\ \left(v/hr\right)}$
Must be greater than PRT (2.5s)
$time\ headway\ \left(s/veh\right)\ =\ \frac{3600\ \left(s/hr\right)}{capacity\ \left(v/hr\right)}$
18
Traffic Analysis

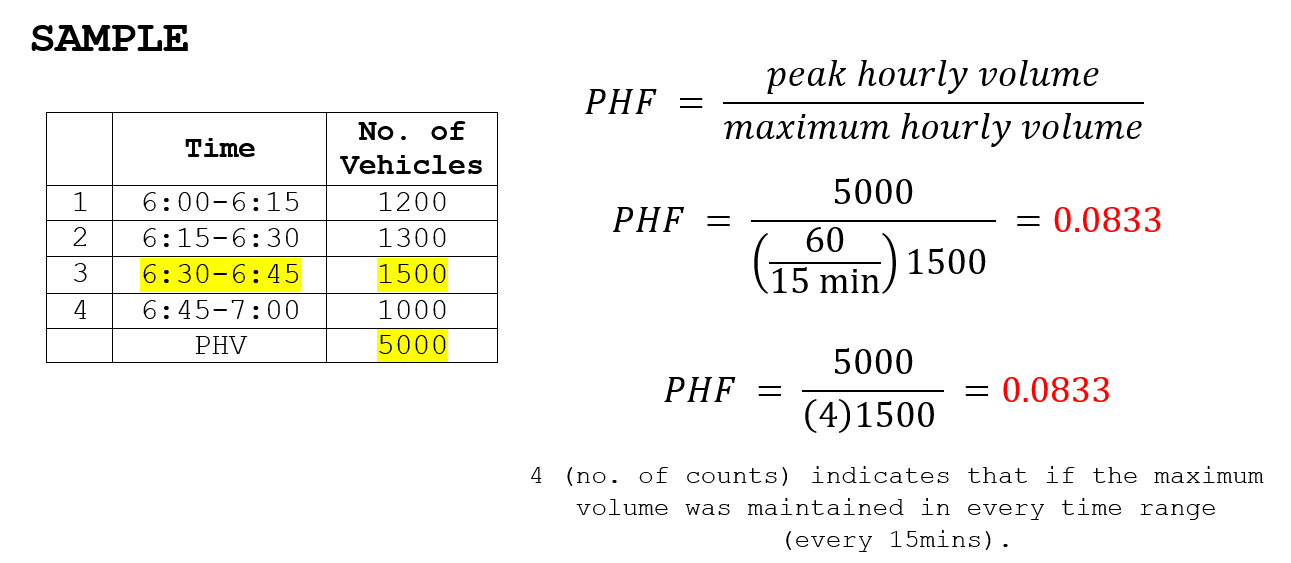

PEAK HOUR FACTOR
(PHF)
PEAK HOUR FACTOR
(PHF)
It indicates how consistent traffic volume is during the peak hour.
$PHF\ =\ \frac{PHV}{\left(\frac{60}{time\ range}\right)\ V_{(max\ vol.)}}$
$PHF\ =\ \frac{PHV}{DHV}$
$PHF\ =\ \frac{PHV}{\left(\frac{60}{time\ range}\right)\ V_{(max\ vol.)}}$
$PHF\ =\ \frac{PHV}{DHV}$
19
Traffic Analysis

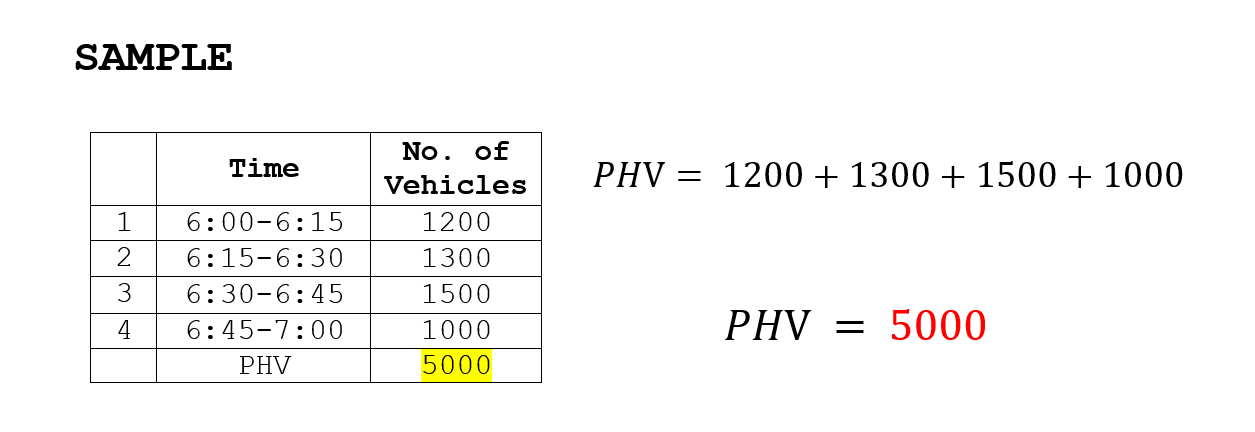

PEAK HOUR VOLUME
(PHV)
PEAK HOUR VOLUME
(PHV)
the total volume of vehicles per hour
20
Traffic Analysis

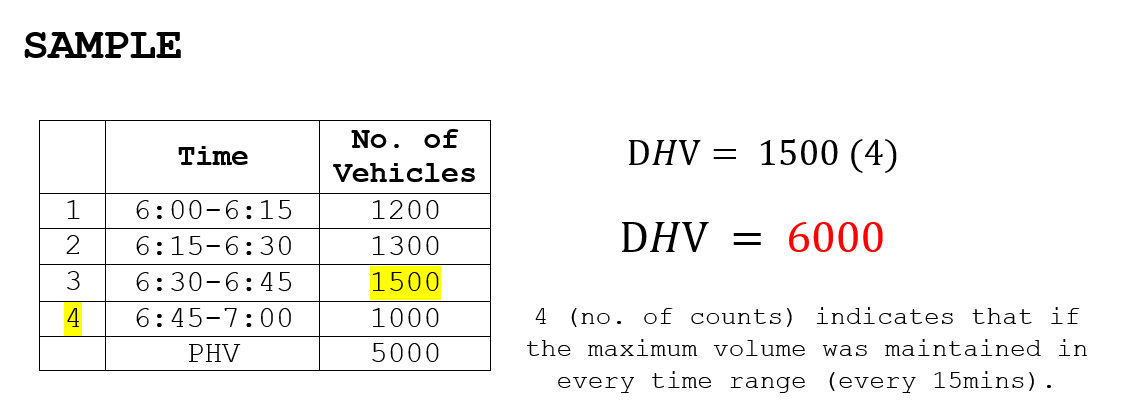

DESIGN HOURLY VOLUME
(DHV)
DESIGN HOURLY VOLUME
(DHV)
$DHV= \dfrac{60}{t} \left(V_{max.\ vol.}\right)$
the maximum volume of vehicles per hour
the maximum volume of vehicles per hour
21
CONCEPT
COMPARISON
of
SPACE MEAN SPEED
and
TIME MEAN SPEED
COMPARISON
of
SPACE MEAN SPEED
and
TIME MEAN SPEED
${\ u}_s\ <\ {\ u}_t\ $
22
CONCEPT

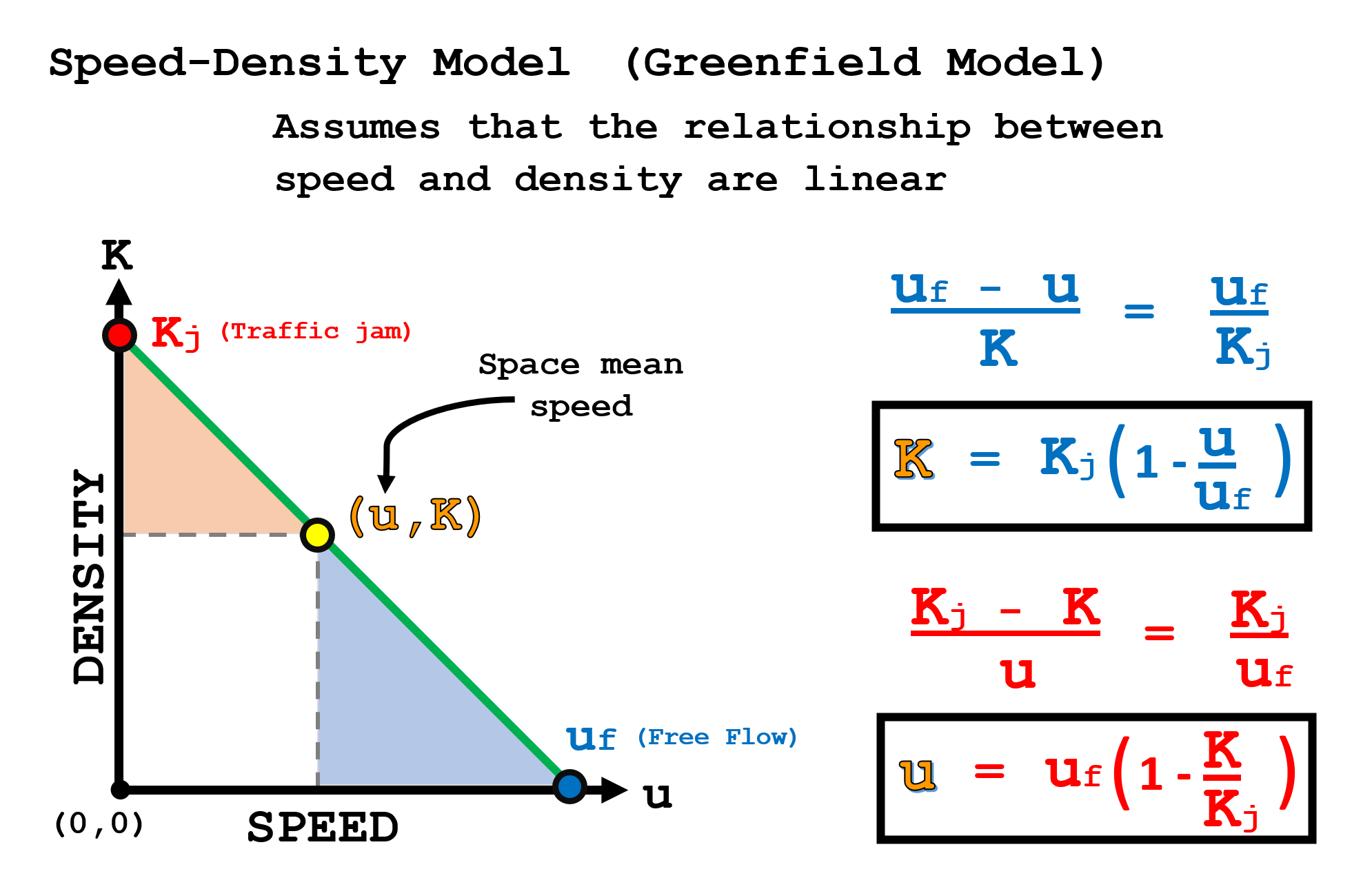

SPEED-DENSITY MODEL
SPEED-DENSITY MODEL
23
CONCEPT

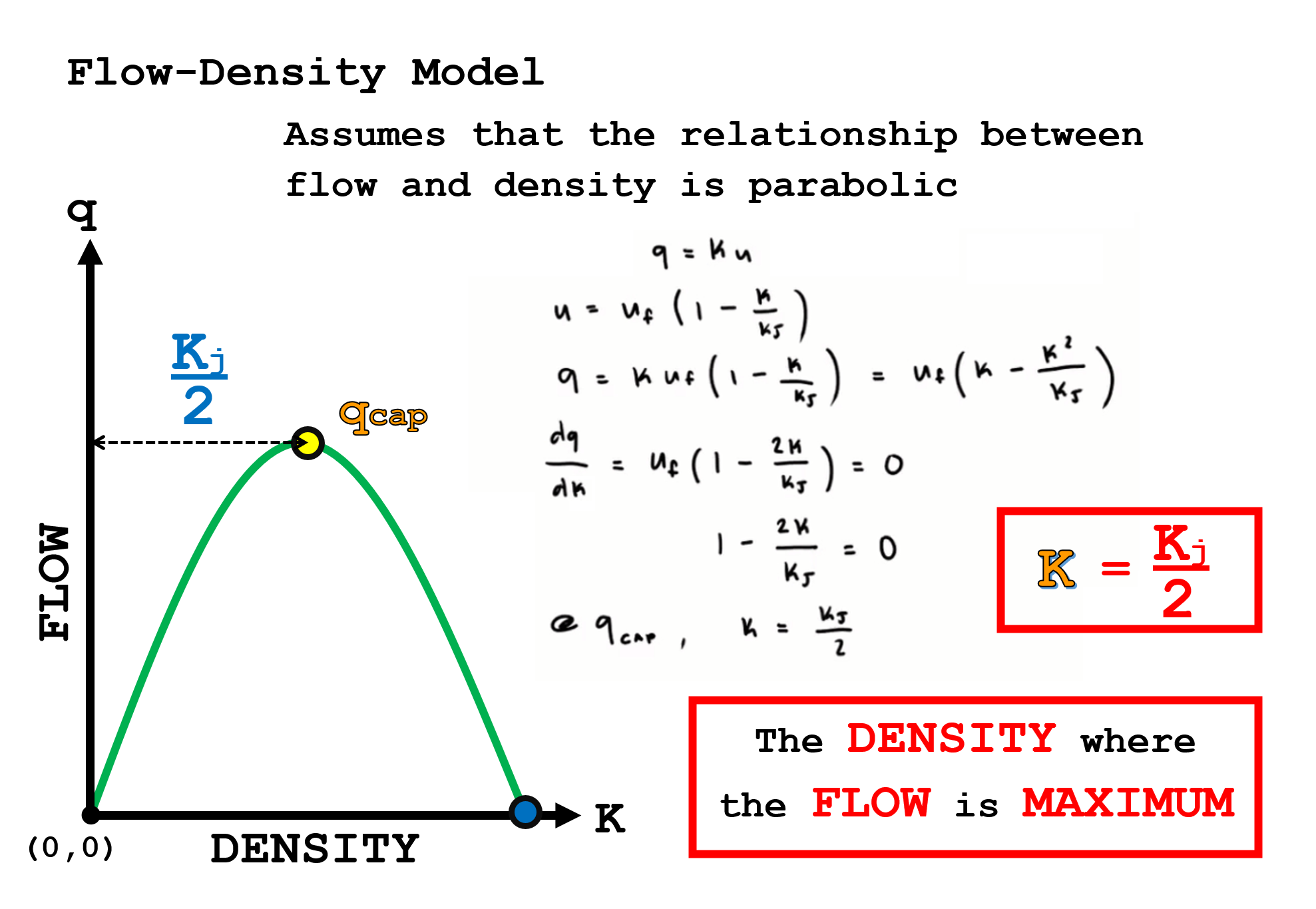

FLOW-DENSITY MODEL
FLOW-DENSITY MODEL
24
CONCEPT

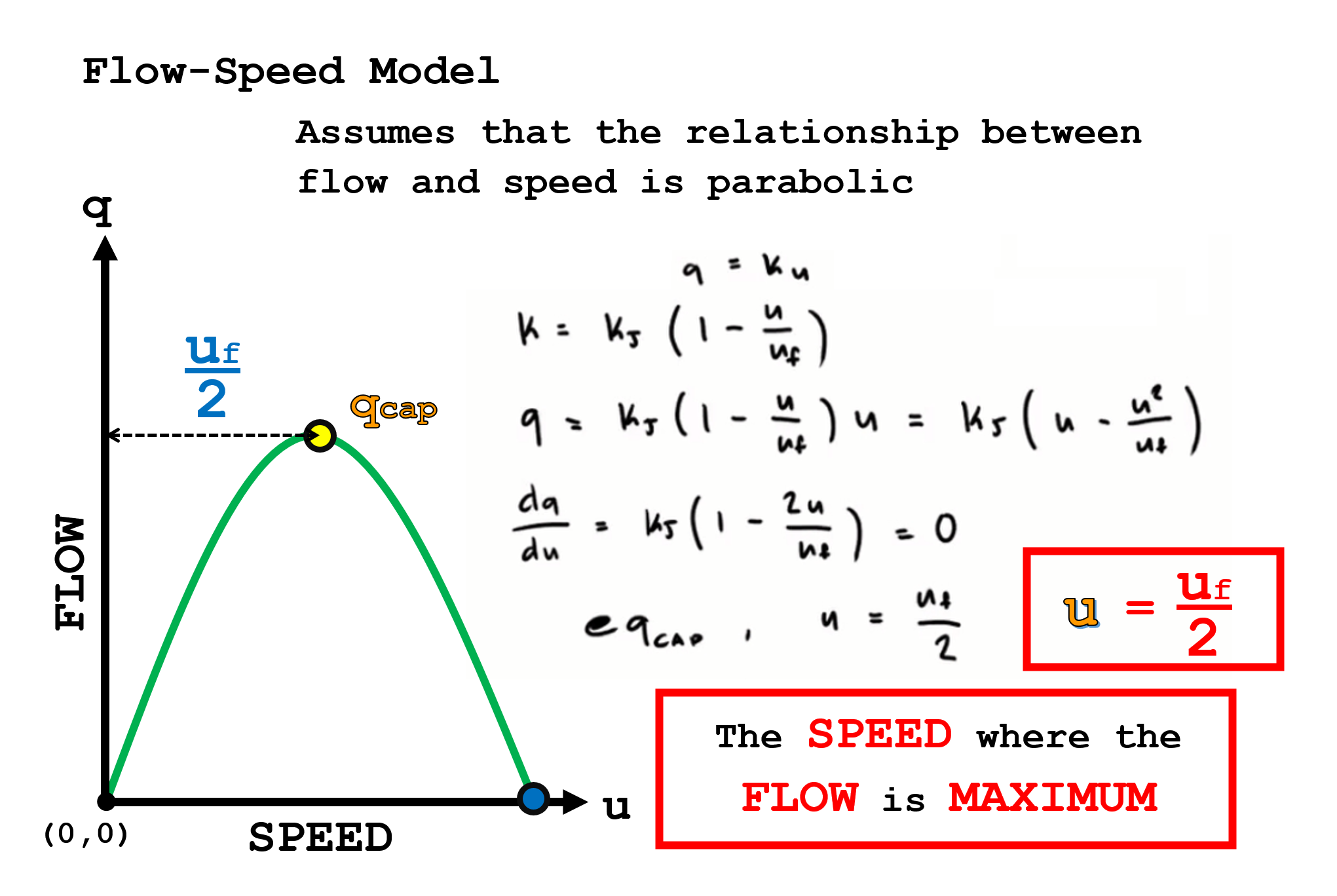

FLOW-SPEED MODEL
FLOW-SPEED MODEL
25
Accident Analysis

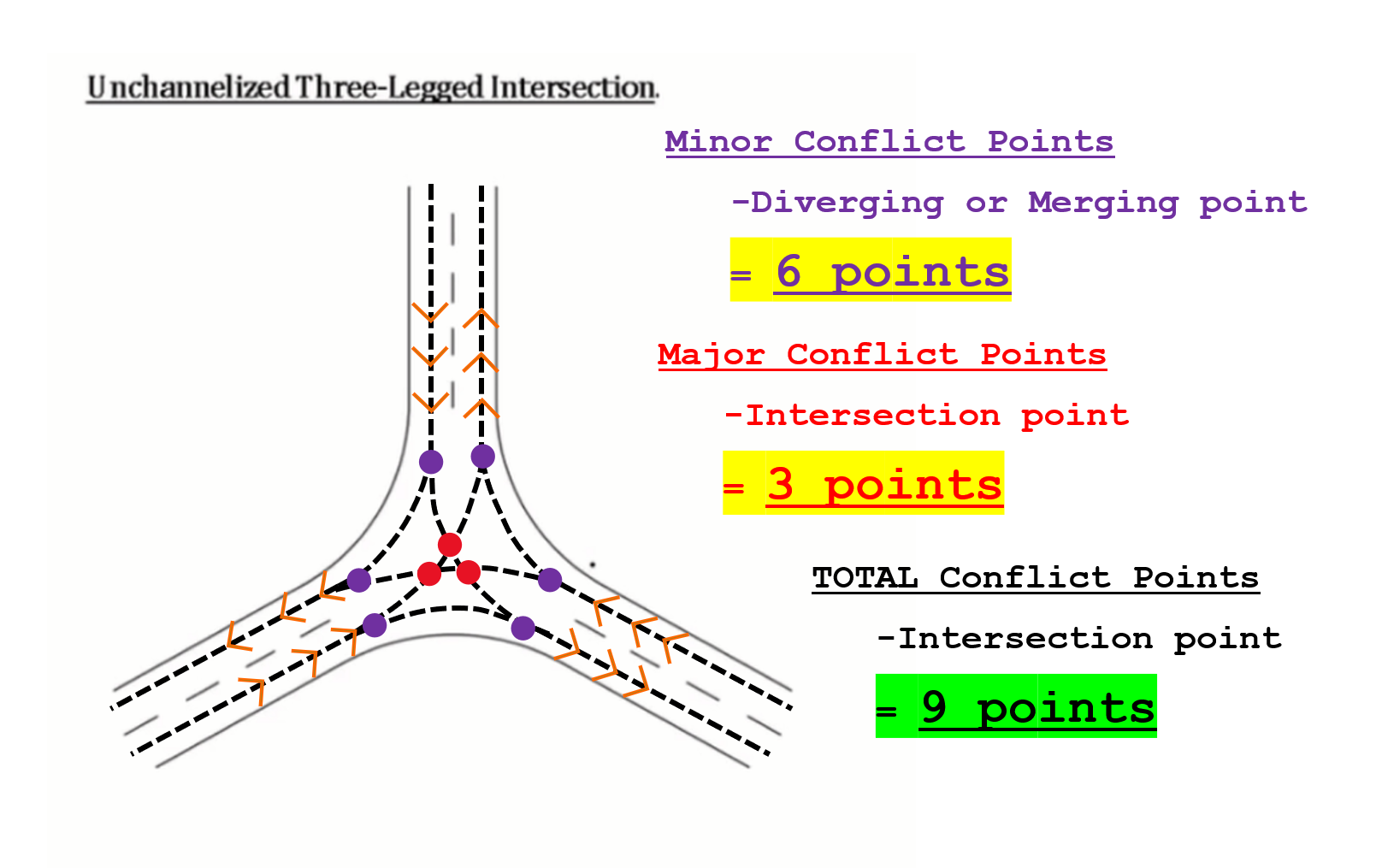

Determine
Conflict Points
Determine
Conflict Points
Conflict Points- The points in an intersection where crashes can happen.
The conflicts may happen as any kind of the maneuvers.
The conflicts may happen as any kind of the maneuvers.
26
Accident Analysis

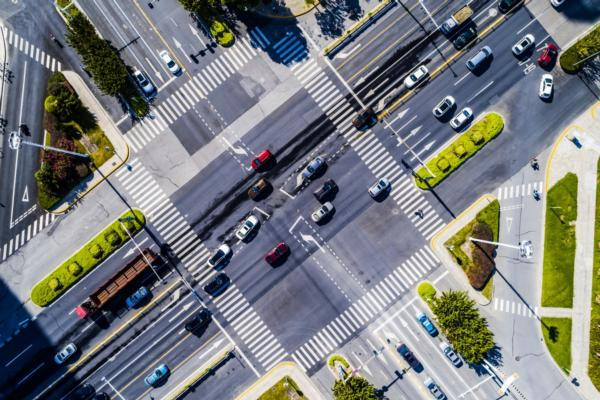

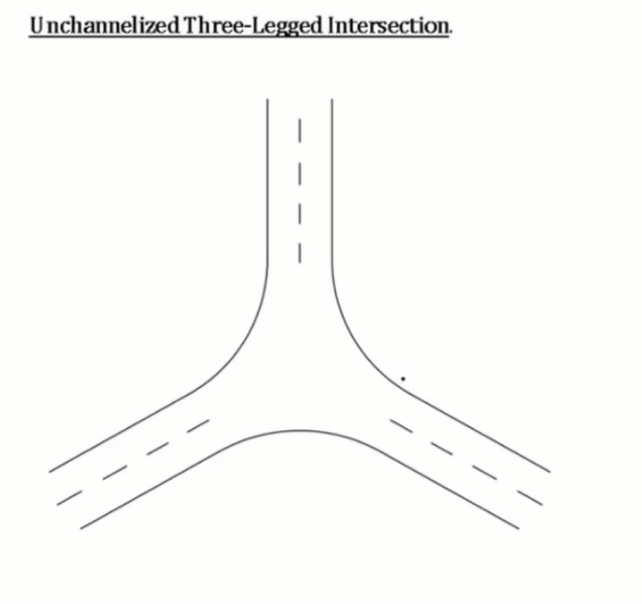

Sample
Intersections
Sample
Intersections
27

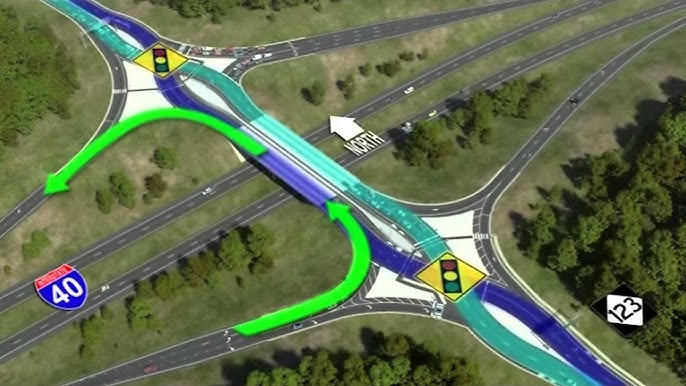

Accident Analysis
Sample
Interchange
Sample
Interchange
28
Accident Analysis
CONCEPT

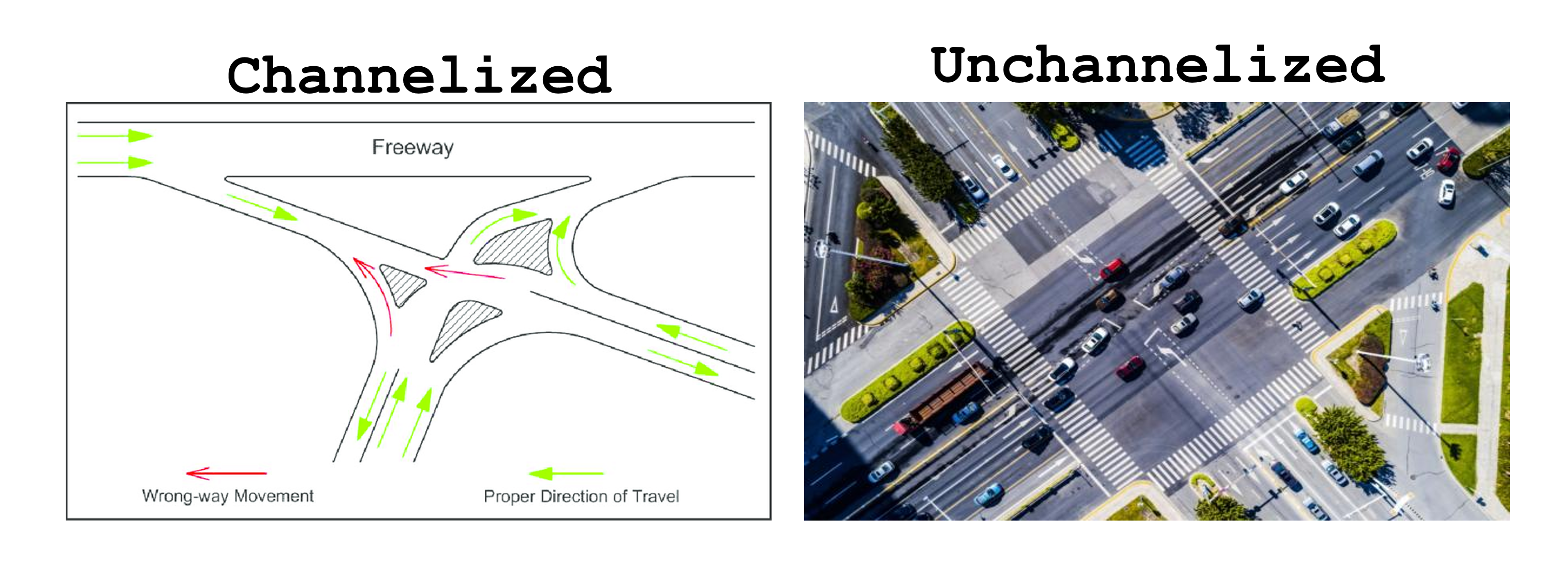

Channelization
CONCEPT
Channelization
29
The use of secondary roads or definite paths of travel in intersection
to facilitate orderly movements traffic from main traffic streams
to facilitate orderly movements traffic from main traffic streams
- Flyover
- Intersection
- Channelization
- Interchange
30

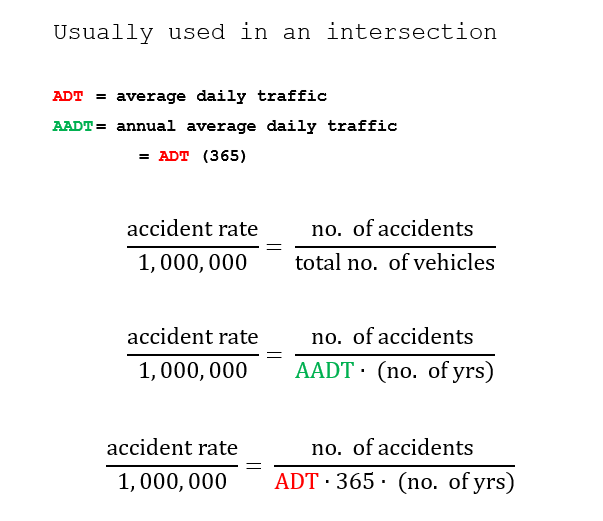

Accident Analysis
ACCIDENT RATE per
MILLION ENTERING VEHICLES
(MEV)
ACCIDENT RATE per
MILLION ENTERING VEHICLES
(MEV)
$\frac{accident\ rate}{1,\ 000,\ 000}=\ \frac{no.\ \ of\ accidents\ }{ADT\bullet365\bullet\ (no.\ \ of\ yrs)}$
31

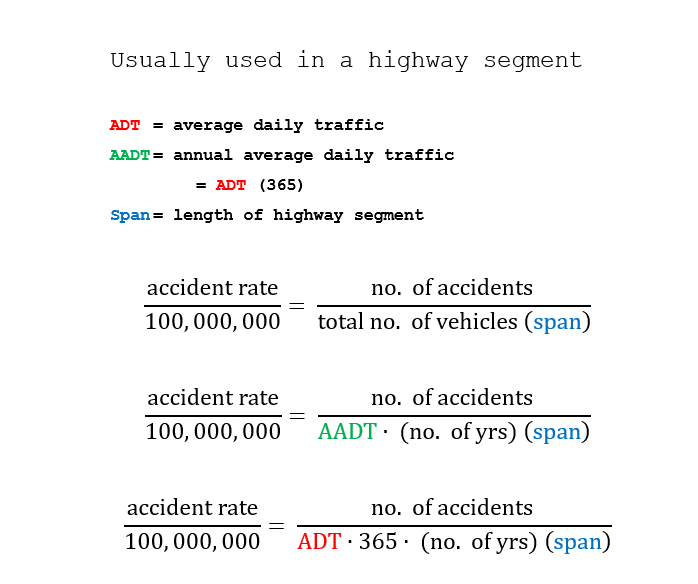

Accident Analysis
ACCIDENT RATE per
HUNDRED MILLION VEHICLES MILES
(HMVM)
ACCIDENT RATE per
HUNDRED MILLION VEHICLES MILES
(HMVM)
$\frac{accident\ rate}{100,\ 000,\ 000}=\ \frac{no.\ \ of\ accidents\ }{ADT\bullet365\bullet\ (no.\ \ of\ yrs)\ \left(span\right)}$
32
Accident Analysis

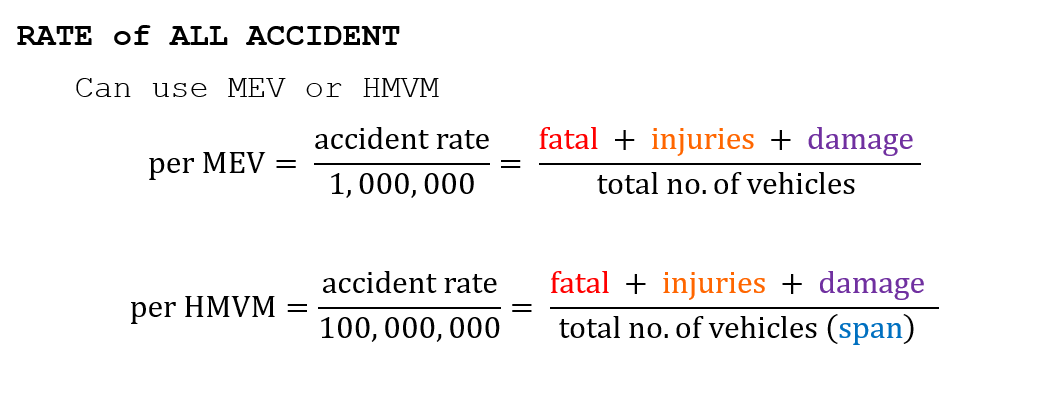

RATE of ALL ACCIDENTS
RATE of ALL ACCIDENTS
33
Accident Analysis

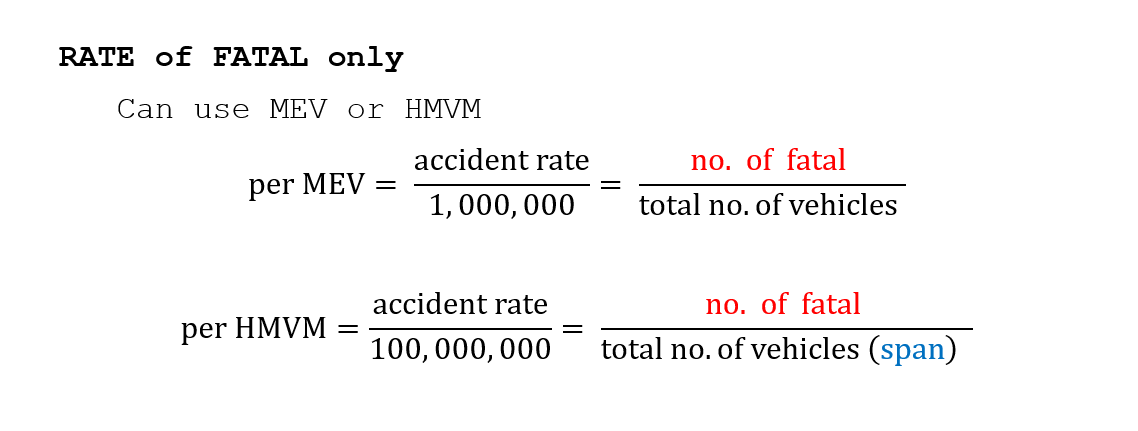

RATE of FATAL ONLY
RATE of FATAL ONLY
34

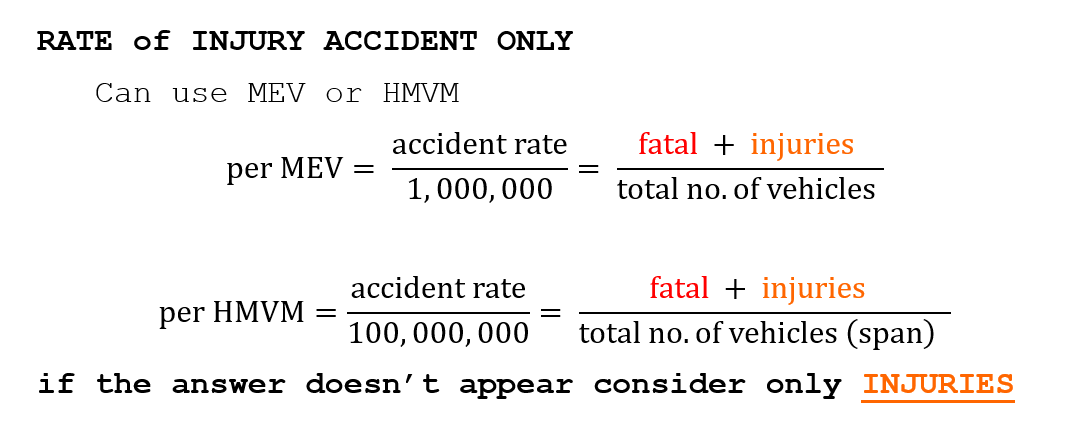

Accident Analysis
RATE of INJURY ONLY
RATE of INJURY ONLY
35
Accident Analysis

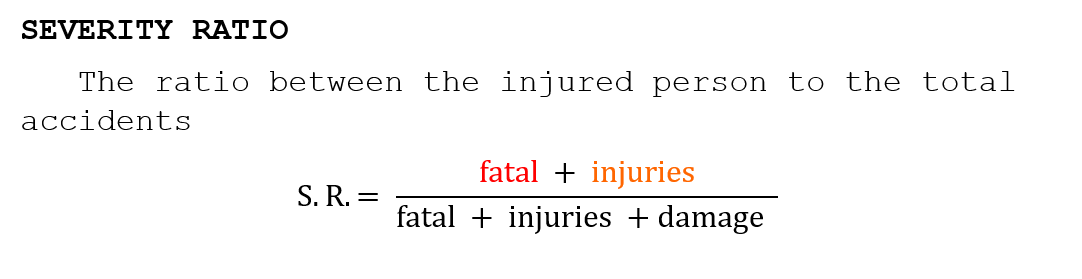

SEVERITY RATIO
SEVERITY RATIO
$S.R.=\ \frac{fatal\ +\ injuries}{fatal\ +\ injuries\ +damage\ \ }$
36

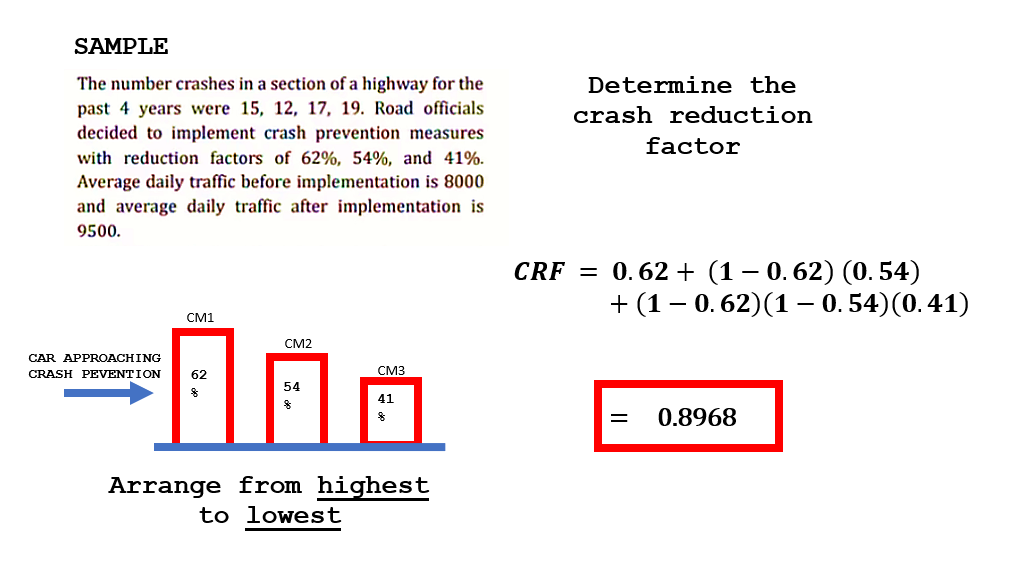

Crash Prevention Measure
Crash Reduction Factor
(CRF)
Crash Reduction Factor
(CRF)
37
The cumulation of units that will be going through some sort of service
- Queue
- Traffic Intensity
- Service Rate
- Arrival Rate
38
The inflow of traffic in a highway service,
such as toll booths or checkpoints.
such as toll booths or checkpoints.
$Arrival\ Rate\ (\lambda)$
39
The outflow of traffic in a highway service,
such as toll booths or checkpoints.
such as toll booths or checkpoints.
$Departure\ $
or
$Service\ Rate\ (\mu)$
or
$Service\ Rate\ (\mu)$
40
The ratio between the arrival and departure rate. This is also the probability that the service is occupied at any moment.
$Traffic\ Intensity\ (I)$
$I=\ \frac{\lambda}{\mu}$
$I=\ \frac{\lambda}{\mu}$
41
Queues where the intensity is greater than 1.0
$I\ >\ 1.0$
$I\ >\ 1.0$
Oversaturated Queues
42
Queues where the intensity is equal to 1.0
$I\ =\ 1.0$
$I\ =\ 1.0$
Saturated Queues
43
Queues where the intensity is less than 1.0
$I\ <\ 1.0$
$I\ <\ 1.0$
Undersaturated Queues
44
Traffic Flow Models
Poisson's Distribution
Poisson's Distribution
models the flow of vehicles in a segment (observed uniformity of units)
$P\left(x=n\right)\ =\ \frac{e^{-\lambda} \bullet \lambda^n}{n!}$
$P\left(x=n\right)\ =\ \frac{e^{-\lambda} \bullet \lambda^n}{n!}$
45
Traffic Flow Models

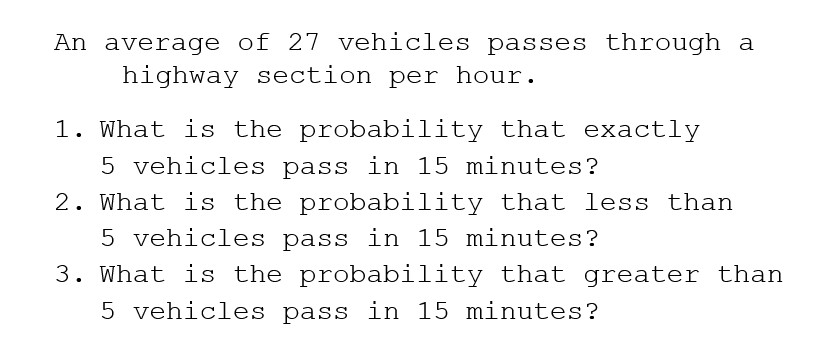

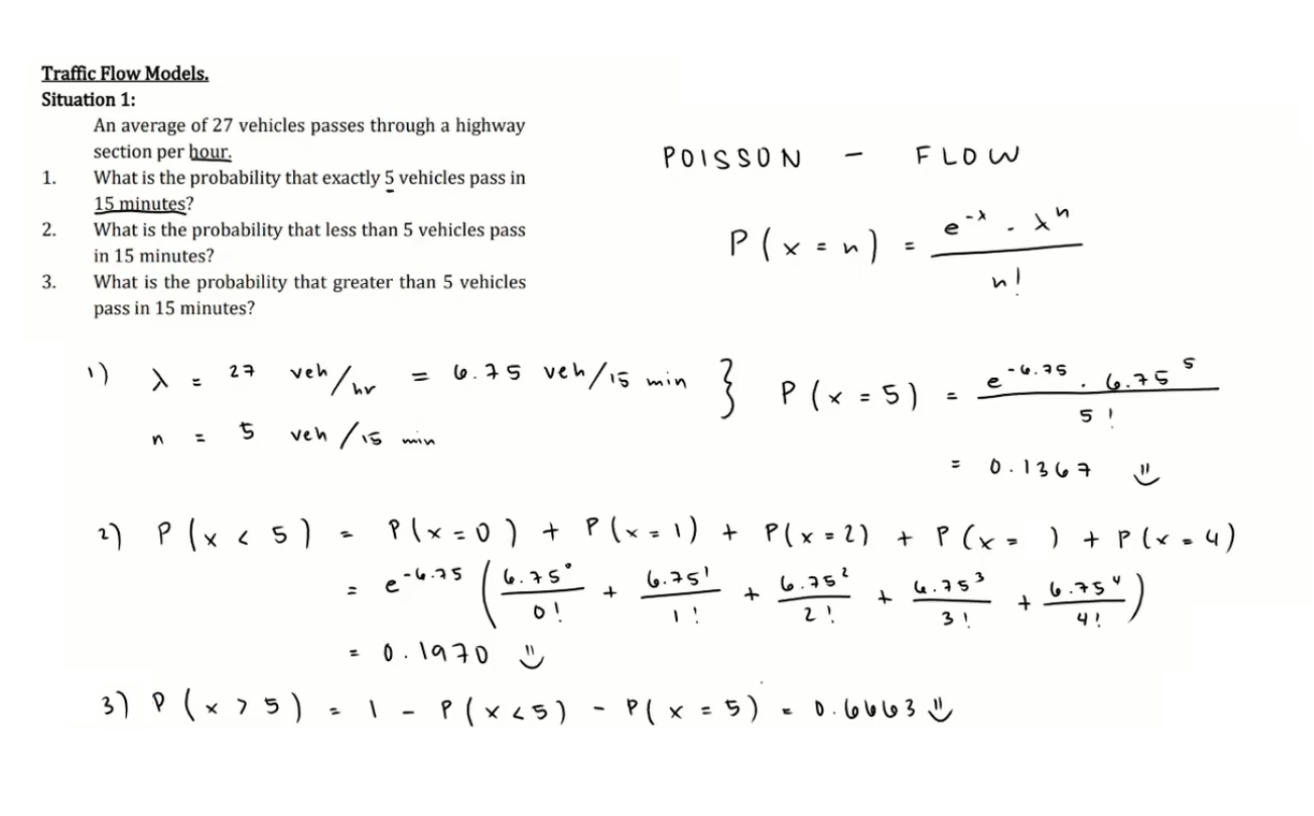

Poisson's Distribution Sample
Poisson's Distribution Sample
46
Traffic Flow Models
Exponential Distribution
Exponential Distribution
models the time headway of vehicles in a segment (observed uniformity of units).
$P\left(T>\ t\right)\ =\ e^{-\lambda\ t}$
$P\left(T>\ t\right)\ =\ e^{-\lambda\ t}$
47
Traffic Flow Models

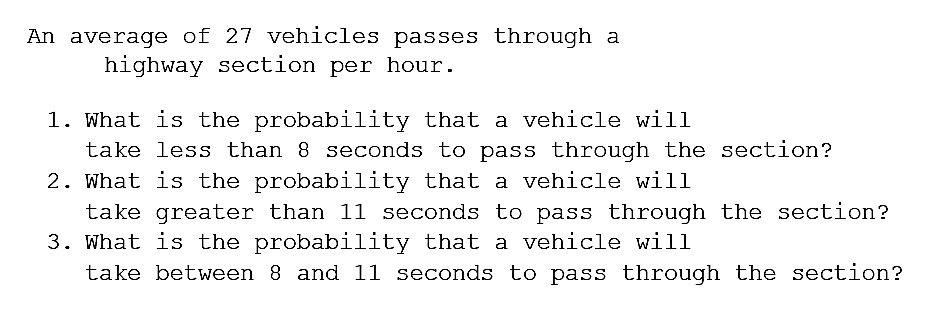

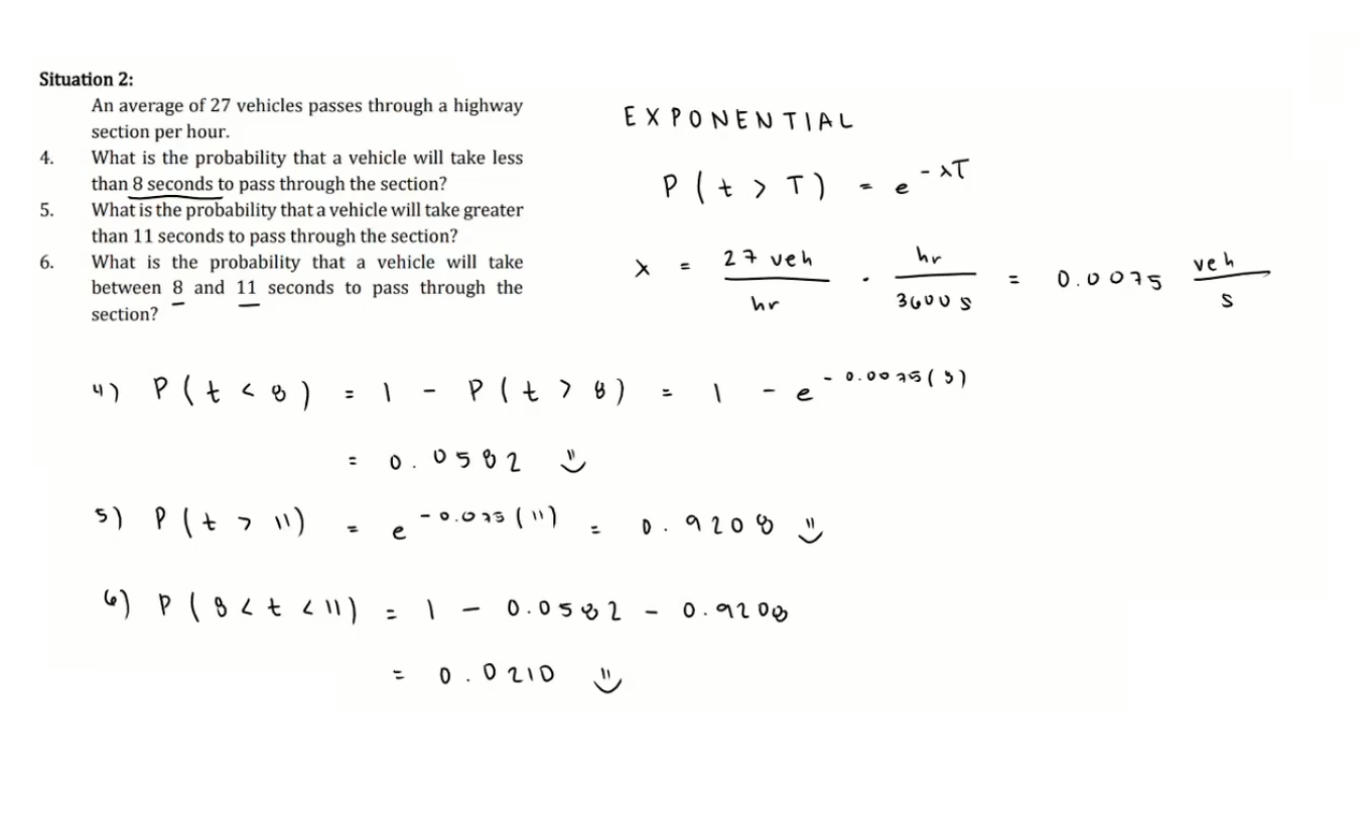

Exponential Distribution Sample
Exponential Distribution Sample
48
Traffic Flow Models

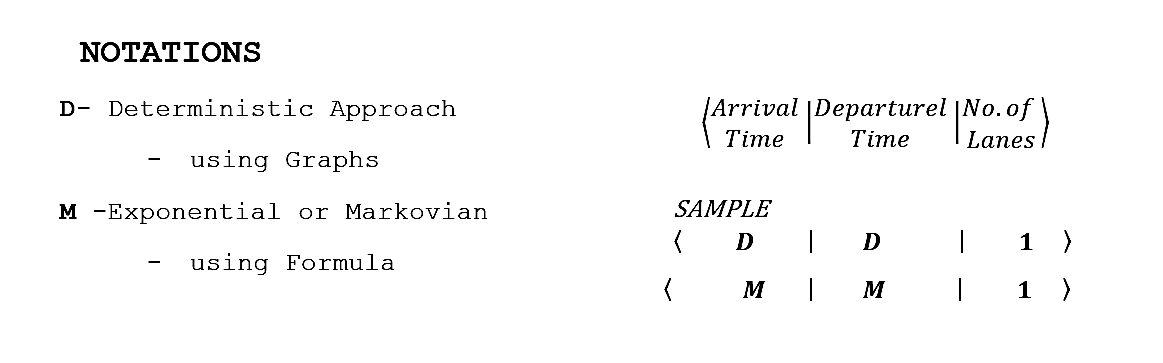

Queue Modeling Notations
Queue Modeling Notations
$\left\langle\begin{matrix}Arrival\ \\Time\ \\\end{matrix}\middle|\begin{matrix}Departure\ \\Time\ \\\end{matrix}\middle|\begin{matrix}No.\ of\ \\Lanes\\\end{matrix}\right\rangle$
49
Traffic Flow Models

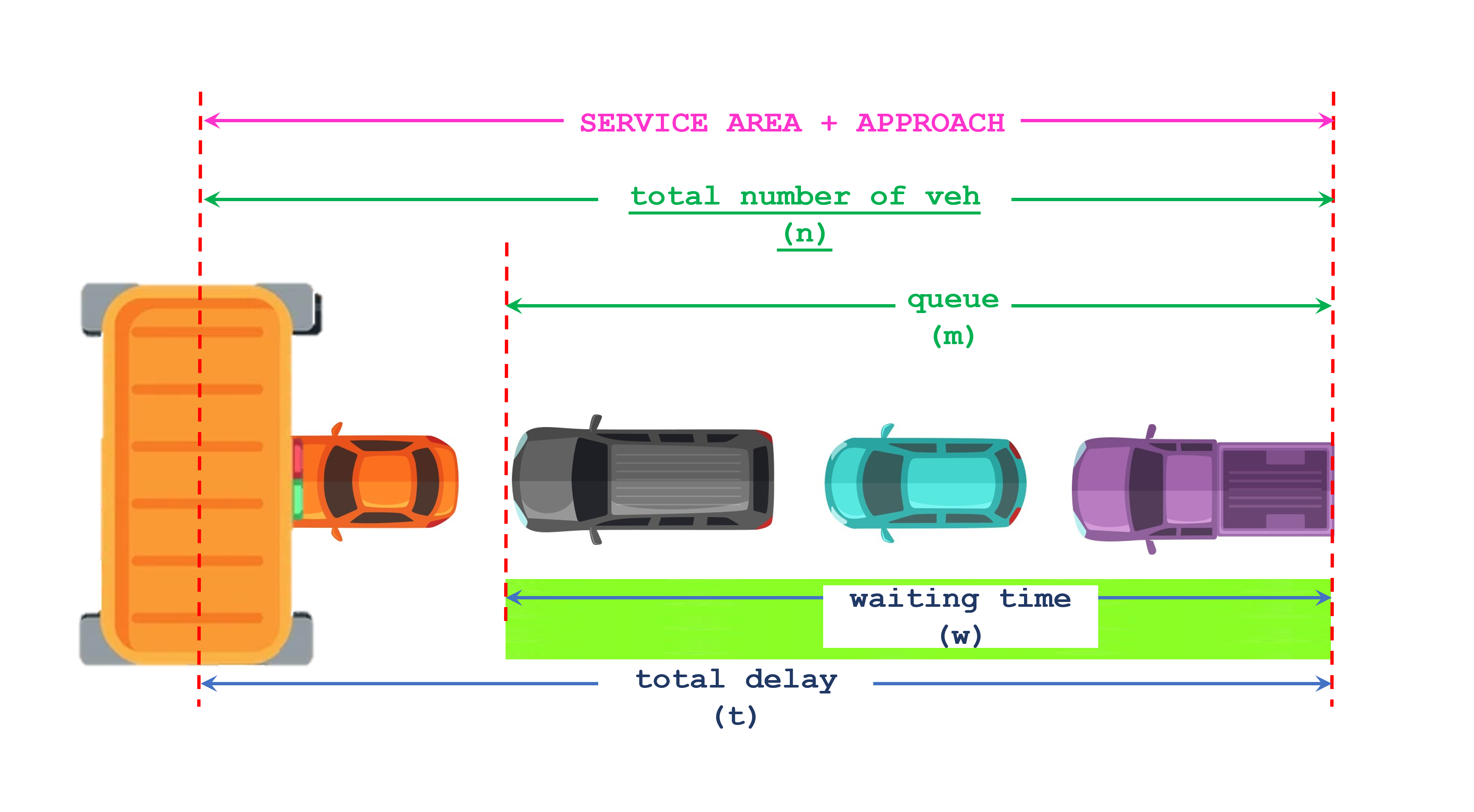

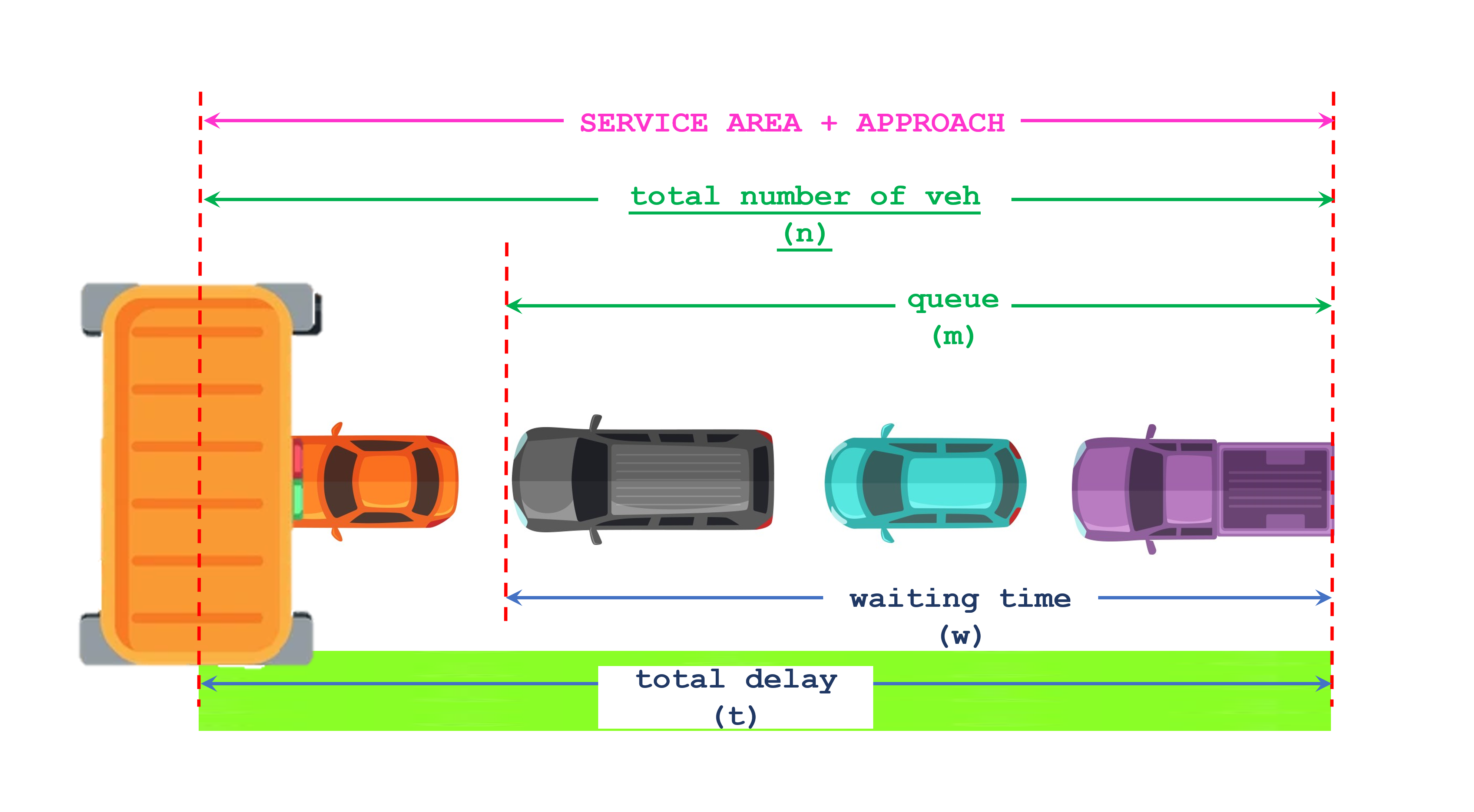

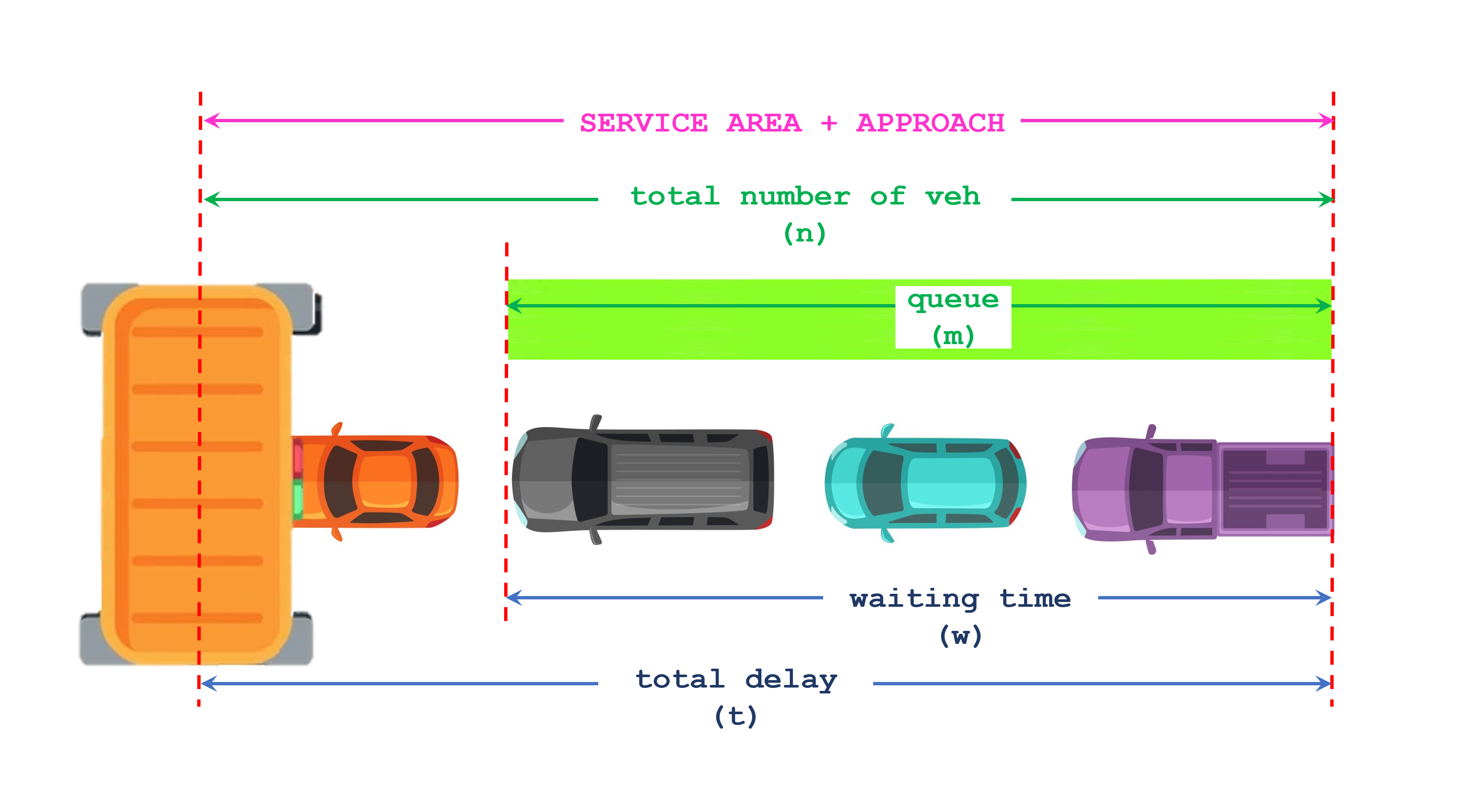

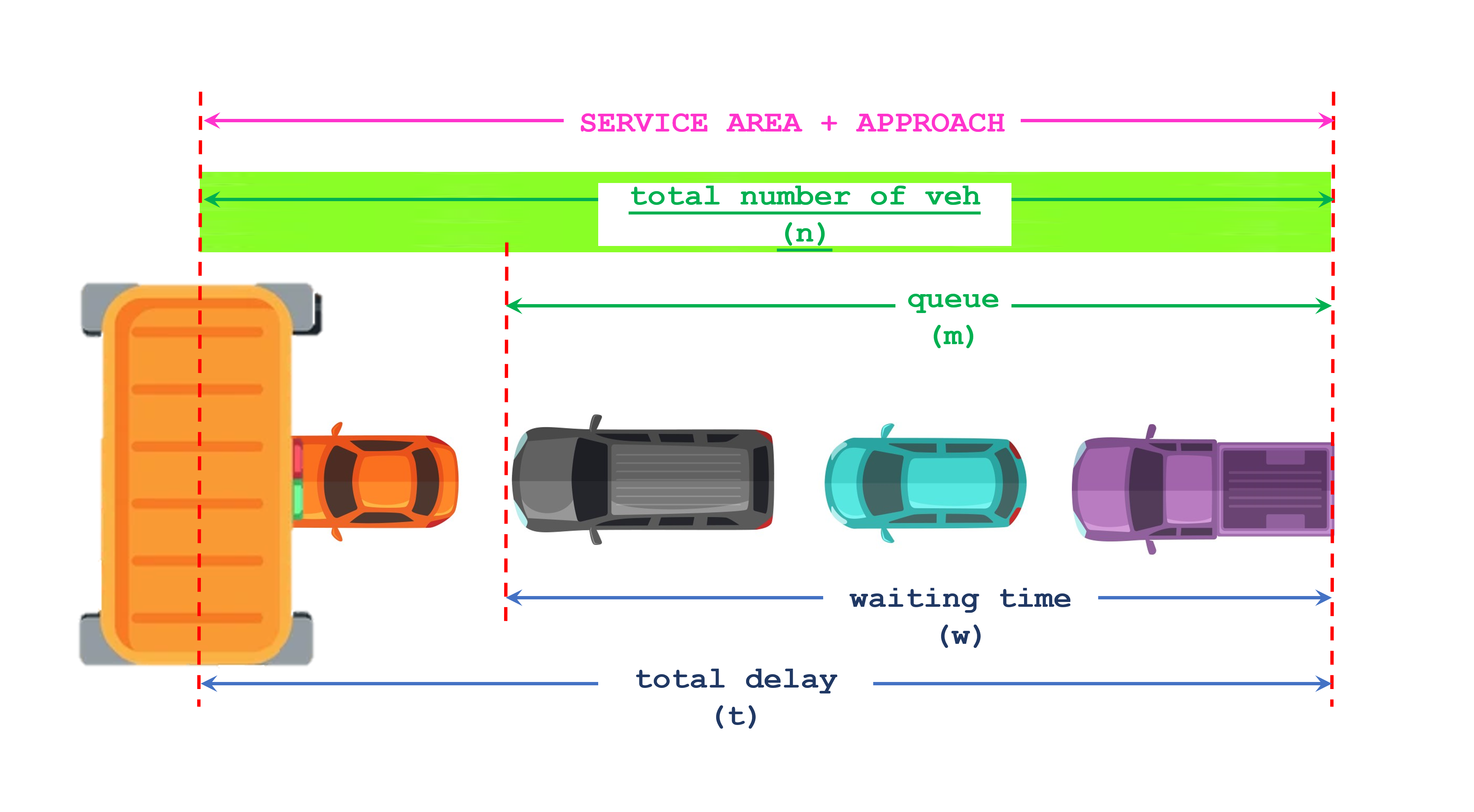

Queue Modeling Concept
Queue Modeling Concept
50
Traffic Flow Models

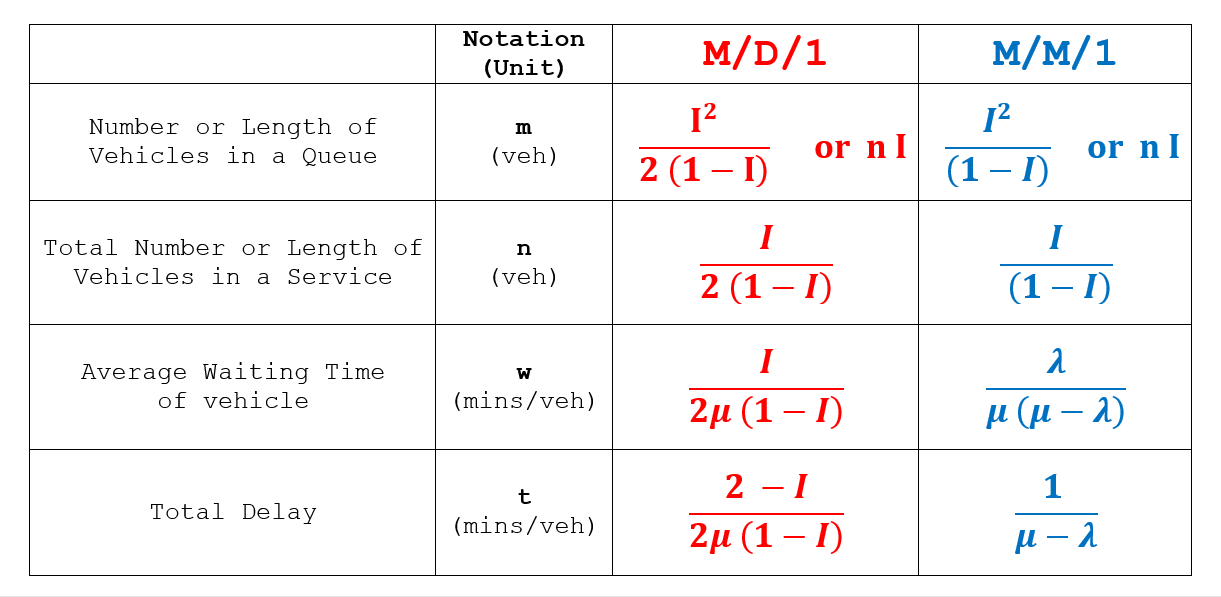

M/D/1 MODELING
Number or Length of Vehicles
in a Queue
M/D/1 MODELING
Number or Length of Vehicles
in a Queue
common unit is veh
$m\ =\ \frac{I^2}{2\ \left(1-I\right)}$
$m=\ n\ I$
$m\ =\ \frac{I^2}{2\ \left(1-I\right)}$
$m=\ n\ I$
51
Traffic Flow Models
M/D/1 MODELING
Total Number or Length of
Vehicles in a Service
M/D/1 MODELING
Total Number or Length of
Vehicles in a Service
common unit is veh
$n\ =\ \frac{I}{2\ \left(1-I\right)}$
$n\ =\ \frac{I}{2\ \left(1-I\right)}$
52
Traffic Flow Models
M/D/1 MODELING
Average Waiting Time
of vehicle
M/D/1 MODELING
Average Waiting Time
of vehicle
common unit is min/ veh
$w\ =\ \frac{I}{2\mu\ \left(1-I\right)}$
$w\ =\ \frac{I}{2\mu\ \left(1-I\right)}$
53
Traffic Flow Models
M/D/1 MODELING
Total Delay
M/D/1 MODELING
Total Delay
common unit is min/ veh
$t\ =w\ +\ \frac{1}{\mu}\ $
$t\ =\frac{2\ -I}{2\mu\ \left(1-I\right)}$
$t\ =w\ +\ \frac{1}{\mu}\ $
$t\ =\frac{2\ -I}{2\mu\ \left(1-I\right)}$
54
Traffic Flow Models
M/M/1 MODELING
Number or Length of Vehicles
in a Queue
M/M/1 MODELING
Number or Length of Vehicles
in a Queue
common unit is veh
$m\ =\ \frac{I^2}{\left(1-I\right)}$
$m=\ n\ I$
$m\ =\ \frac{I^2}{\left(1-I\right)}$
$m=\ n\ I$
55
Traffic Flow Models
M/M/1 MODELING
Total Number or Length of
Vehicles in a Service
M/M/1 MODELING
Total Number or Length of
Vehicles in a Service
common unit is veh
$n\ =\ \frac{I}{\ \left(1-I\right)}$
$n\ =\ \frac{I}{\ \left(1-I\right)}$
56
Traffic Flow Models
M/M/1 MODELING
Average Waiting Time
of vehicle
M/M/1 MODELING
Average Waiting Time
of vehicle
common unit is min/ veh
$w\ =\ \frac{\lambda}{\mu\ \left(\mu-\lambda\right)}$
$w\ =\ \frac{\lambda}{\mu\ \left(\mu-\lambda\right)}$
57
Traffic Flow Models
M/M/1 MODELING
Total Delay
M/M/1 MODELING
Total Delay
common unit is min/ veh
$t\ =\frac{1\ }{\mu-\lambda}$
$t\ =\frac{1\ }{\mu-\lambda}$
58
Image occlusion: name the hidden labels
59

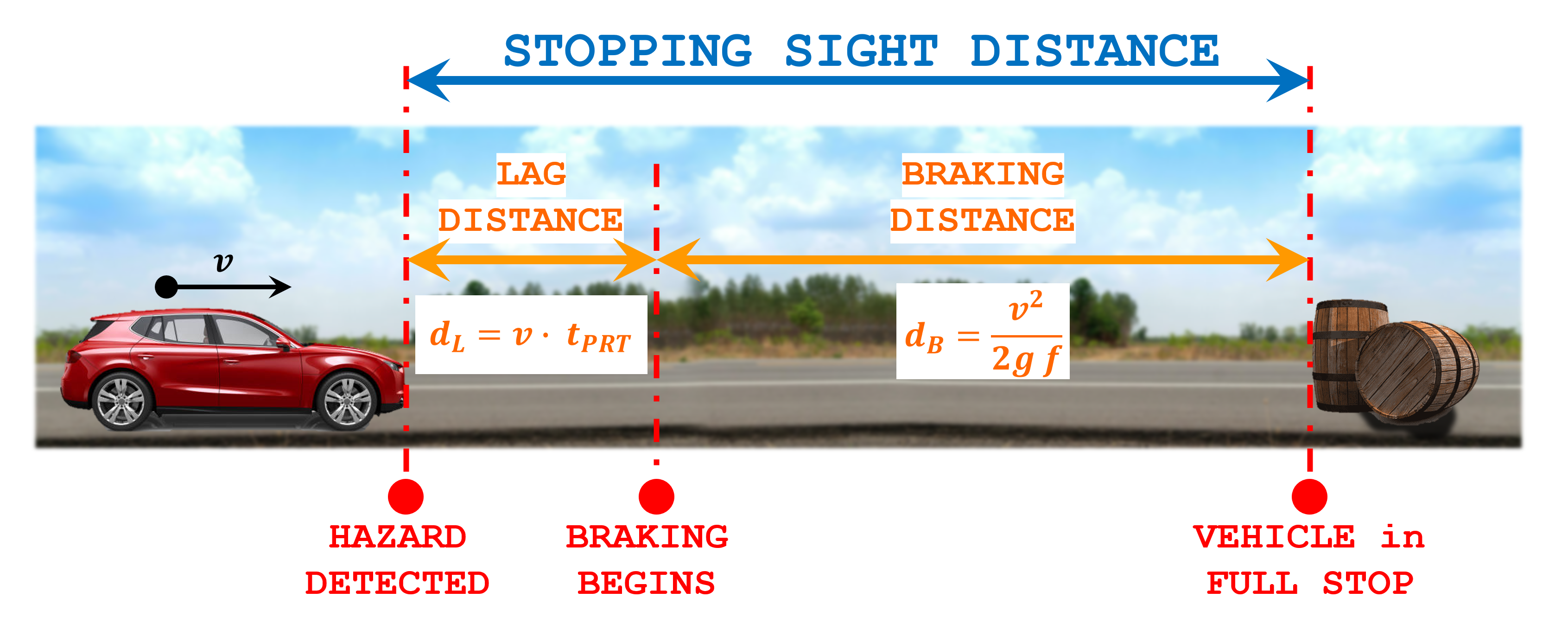

The distance required for a driver to stop a vehicle after seeing an object in the vehicle's path without hitting
the object. This distance is the sum of the distance travelled during perception reaction-time (lag distance) and during braking (braking distance).
the object. This distance is the sum of the distance travelled during perception reaction-time (lag distance) and during braking (braking distance).
- Stopping Sight Distance
- Braking Distance
- Horizontal Sight Distance
- Full Braking Distance
60

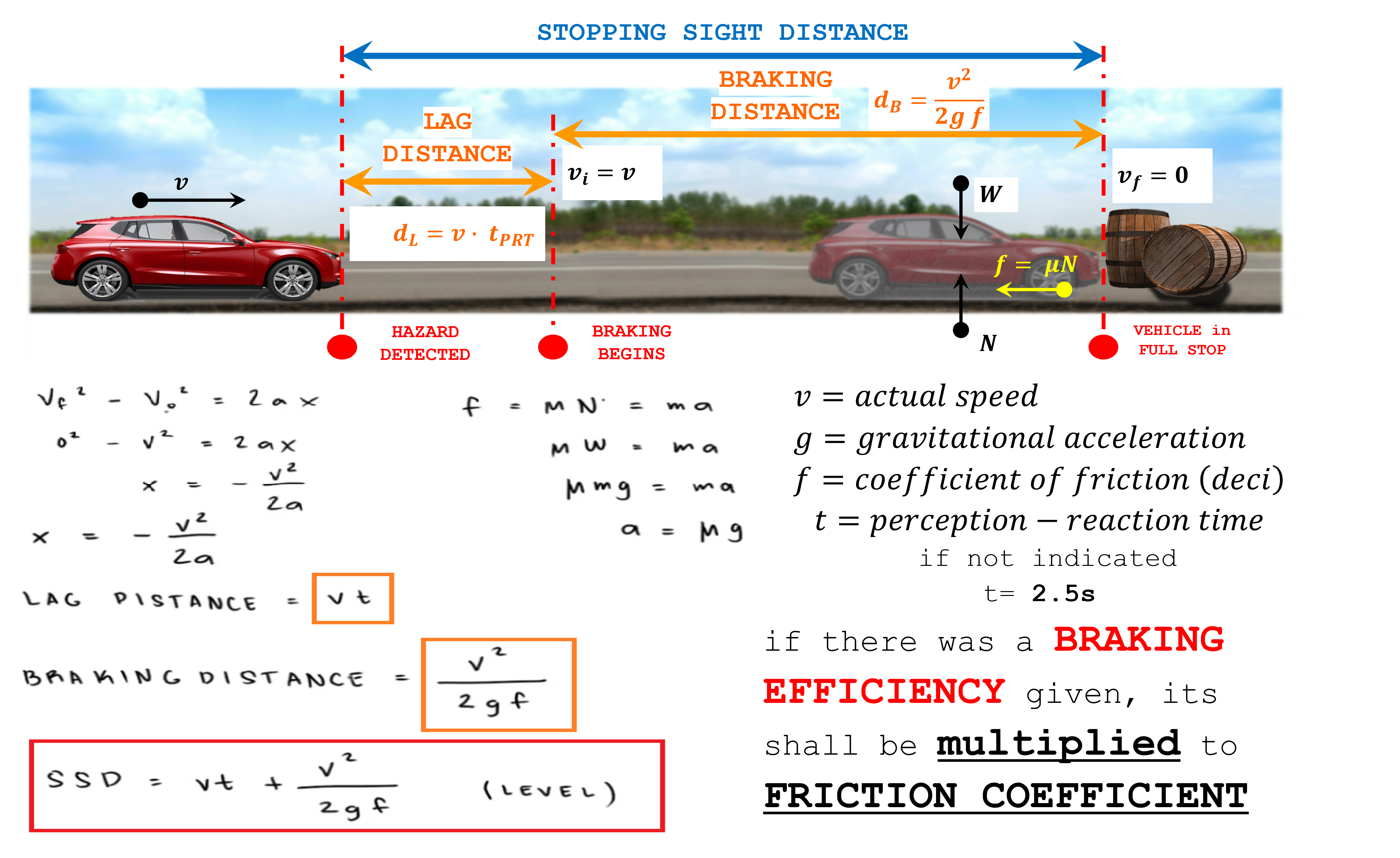

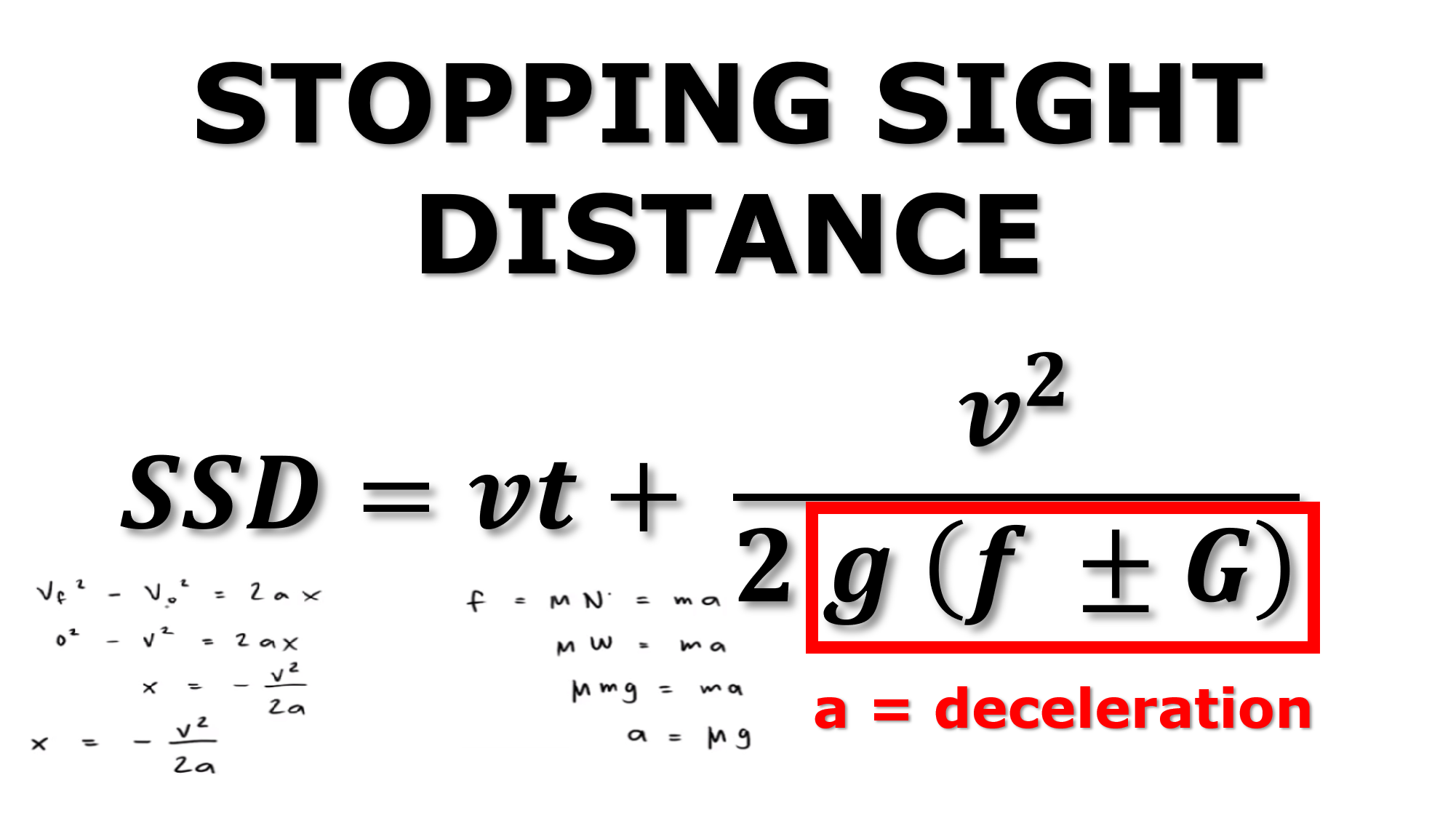

STOPPING SIGHT DISTANCE
(SSD)
Concept
Level Terrain
(SSD)
Concept
Level Terrain
$SSD=vt+\ \frac{v^2}{2gf}$
61
STOPPING SIGHT DISTANCE
(SSD)
Concept
Level Terrain
(SSD)
Concept
Level Terrain
$SSD=vt+\ \frac{v^2}{2gf }$
62

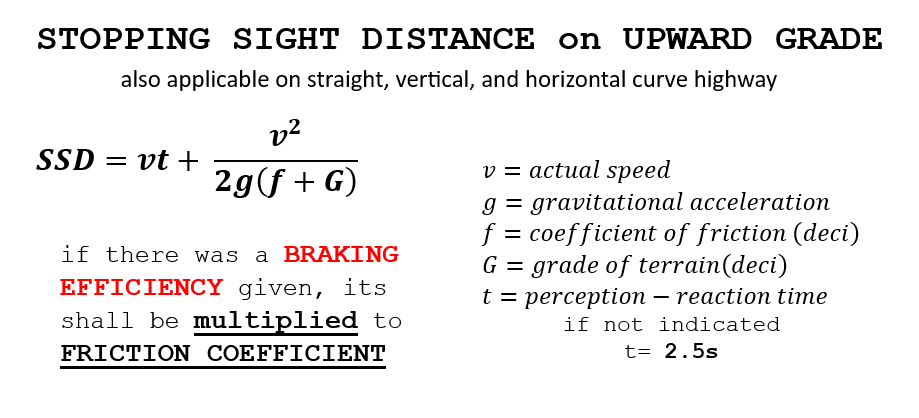

STOPPING SIGHT DISTANCE
(SSD)
Concept
Uphill Terrain
(SSD)
Concept
Uphill Terrain
$SSD=vt+\ \frac{v^2}{2g\left(f+G\right)}$
63

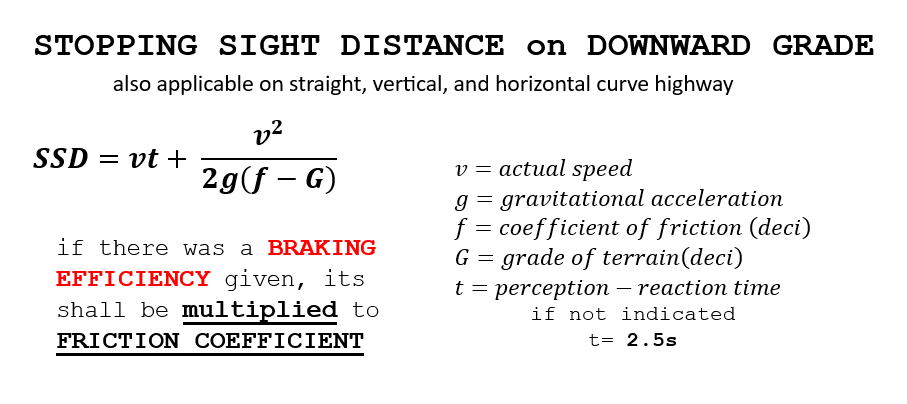

STOPPING SIGHT DISTANCE
(SSD)
Concept
Downhill Terrain
(SSD)
Concept
Downhill Terrain
$SSD=vt+\ \frac{v^2}{2g\left(f-G\right)}$
64
INTERMEDIATE SIGHT DISTANCE
(ISD)
(ISD)
$ISD=2\ (SSD)$
65
The distance required for a driver to complete a passing maneuver
without colliding an opposing vehicle and cutting off the passed vehicle
without colliding an opposing vehicle and cutting off the passed vehicle
- Stopping Sight Distance
- Braking Distance
- Overtaking Sight Distance
- Passing Sight Distance
66
Image occlusion: name the hidden labels
67
Image occlusion: name the hidden labels
68
Image occlusion: name the hidden labels
69
Image occlusion: name the hidden labels
70
Image occlusion: name the hidden labels
71
Image occlusion: name the hidden labels
72
Image occlusion: name the hidden labels
73
Image occlusion: name the hidden labels
74
Image occlusion: name the hidden labels
75
Image occlusion: name the hidden labels
76
Image occlusion: name the hidden labels
77
Image occlusion: name the hidden labels
78
Image occlusion: name the hidden labels
79
Image occlusion: name the hidden labels
80
Image occlusion: name the hidden labels
81
Image occlusion: name the hidden labels
82
Image occlusion: name the hidden labels
83
Image occlusion: name the hidden labels
84
Image occlusion: name the hidden labels
85
Image occlusion: name the hidden labels
86

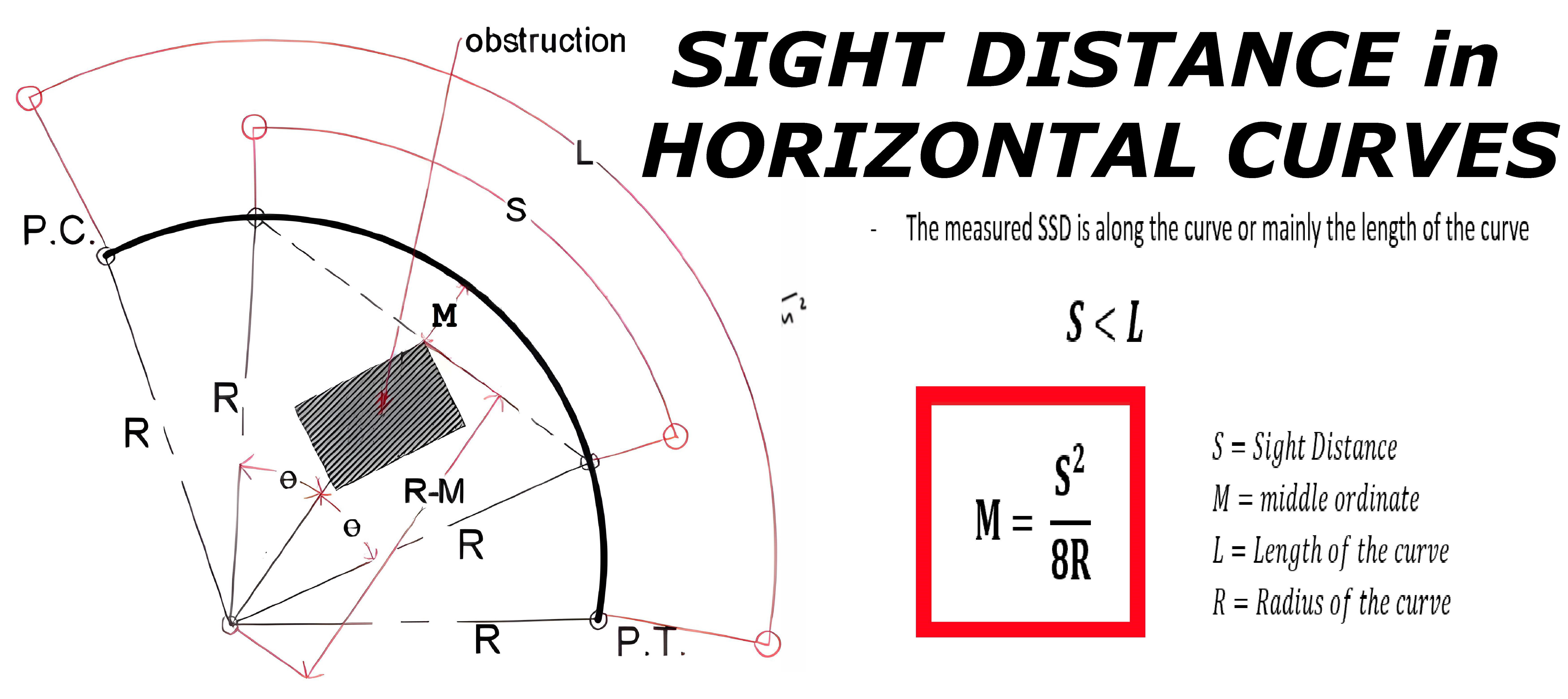

Sight Distance in
HORIZONTAL Curves
$S<L\ $
HORIZONTAL Curves
$S<L\ $
$M=\ \frac{S^2}{8R}$
87

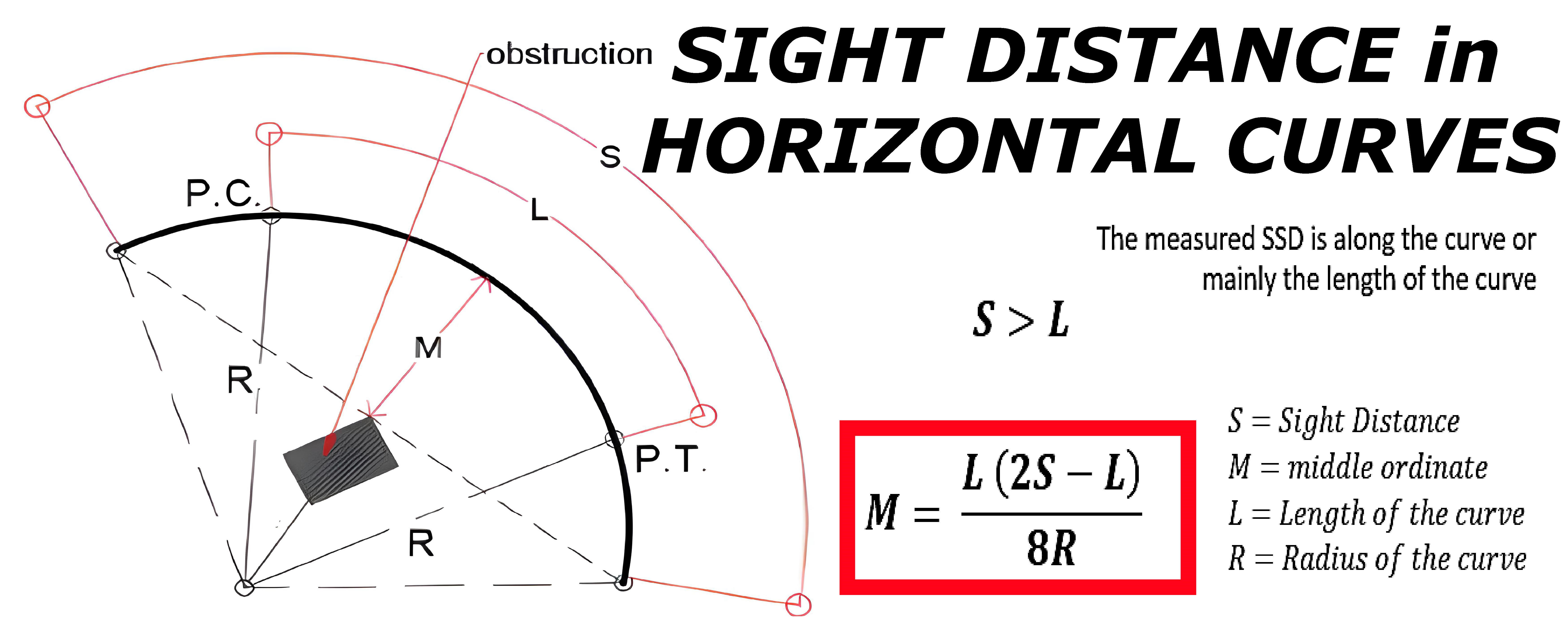

Sight Distance in
HORIZONTAL Curves
$S>L\ $
HORIZONTAL Curves
$S>L\ $
$M=\ \frac{L\ \left(2S-L\right)}{8R}$
88

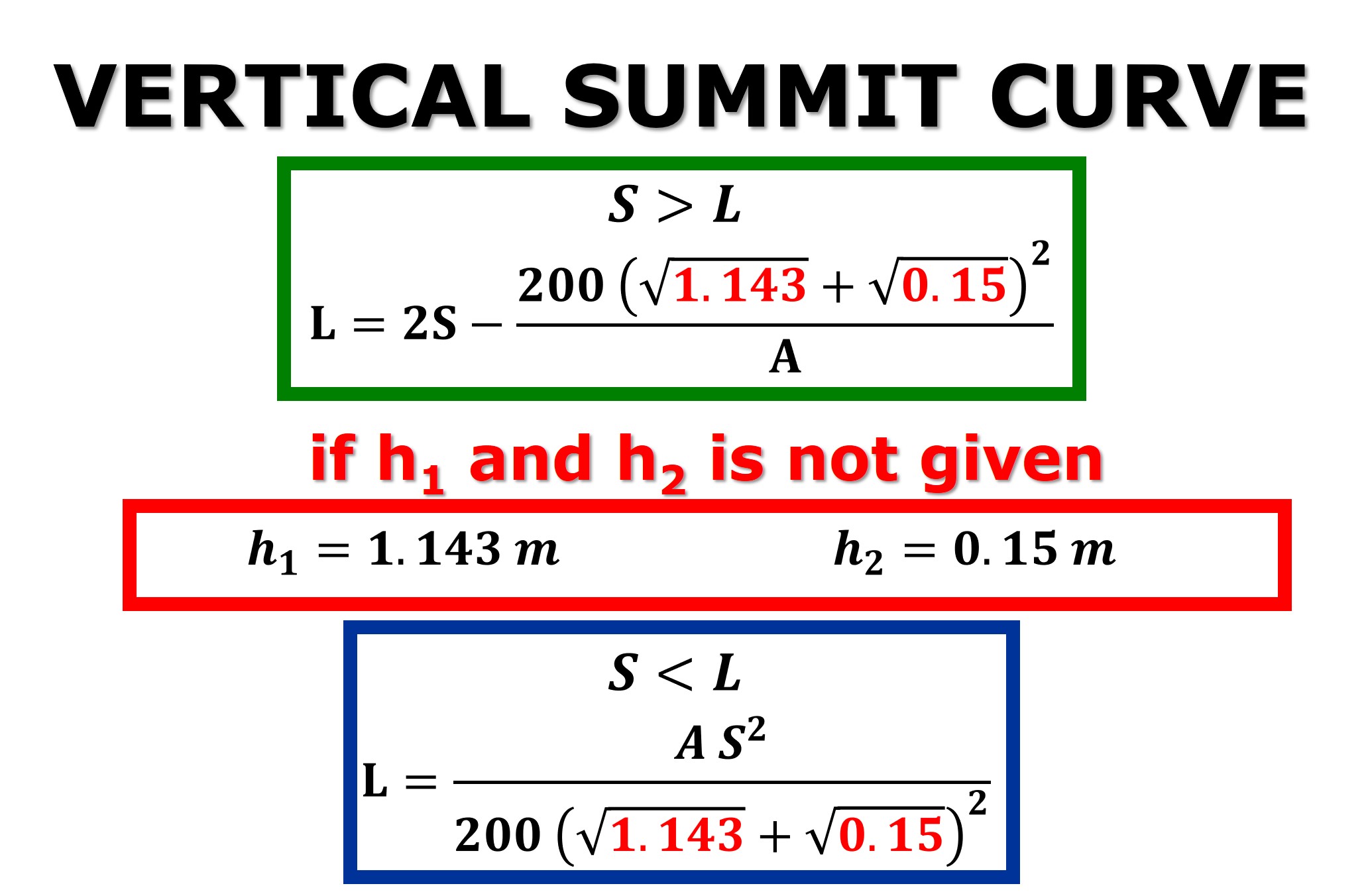

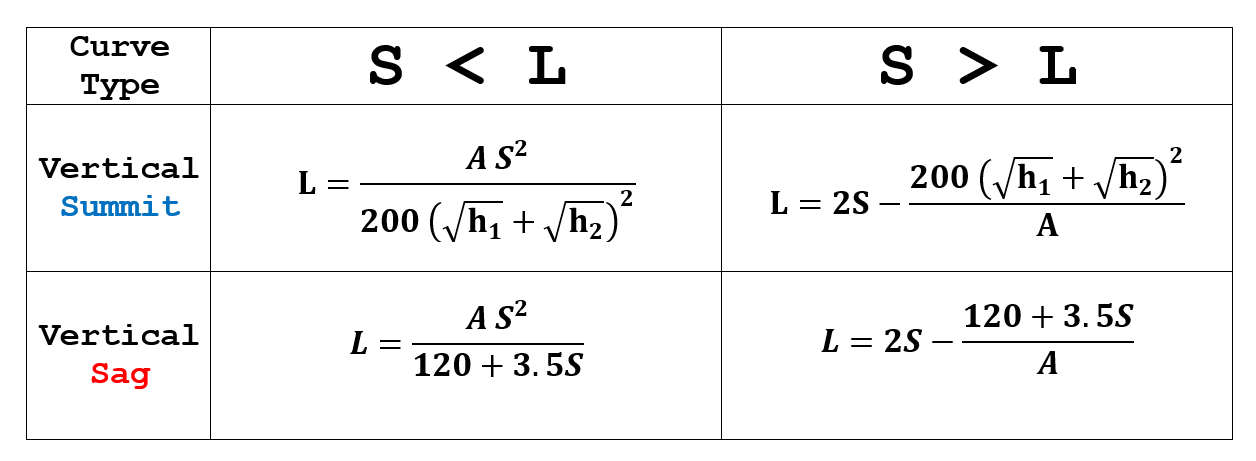

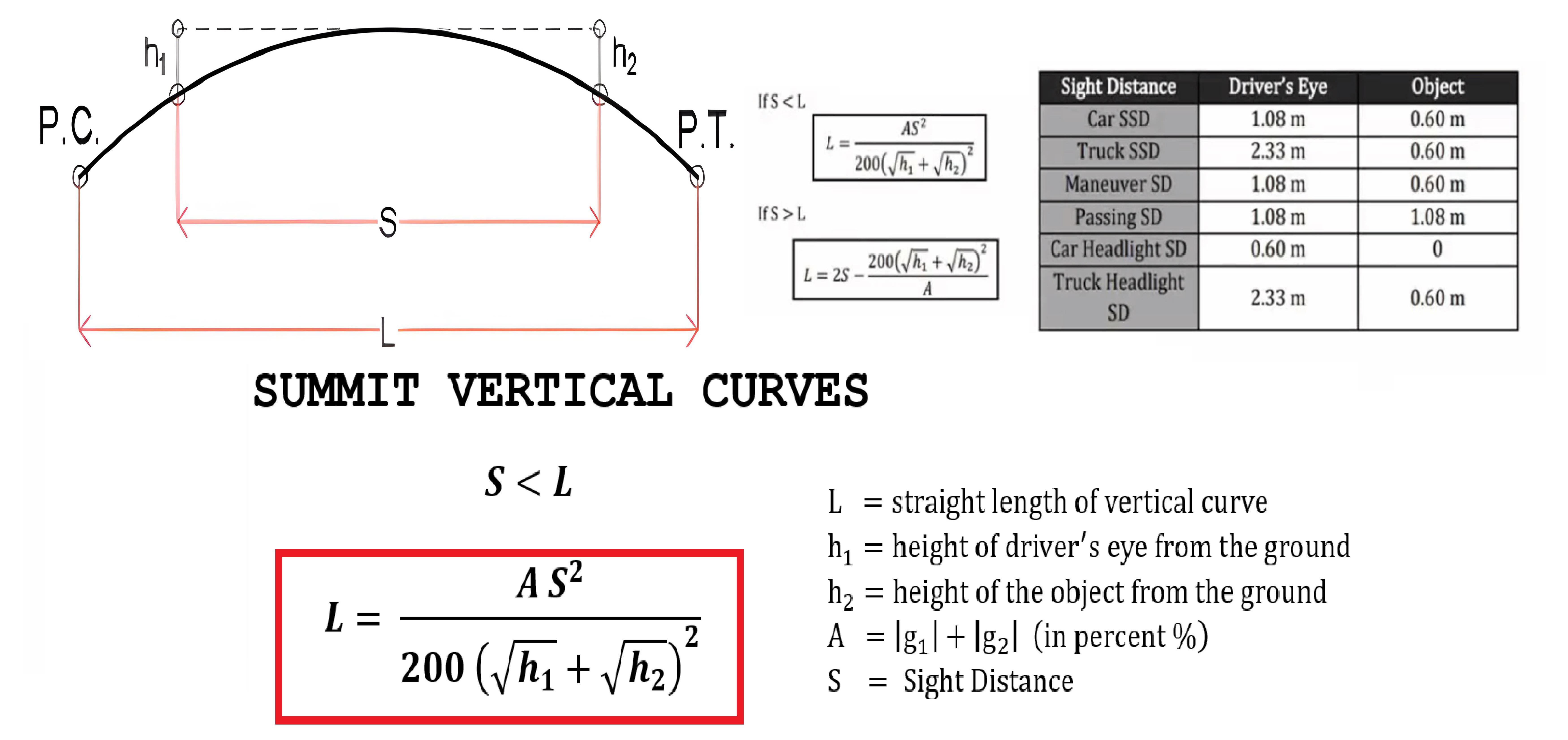

Sight Distance in
VERTICAL SUMMIT Curves
$S<L\ $
VERTICAL SUMMIT Curves
$S<L\ $
$L=\ \frac{{AS}^2}{200\ \left(\sqrt{h_1}+\sqrt{h_2}\right)^2}$
89

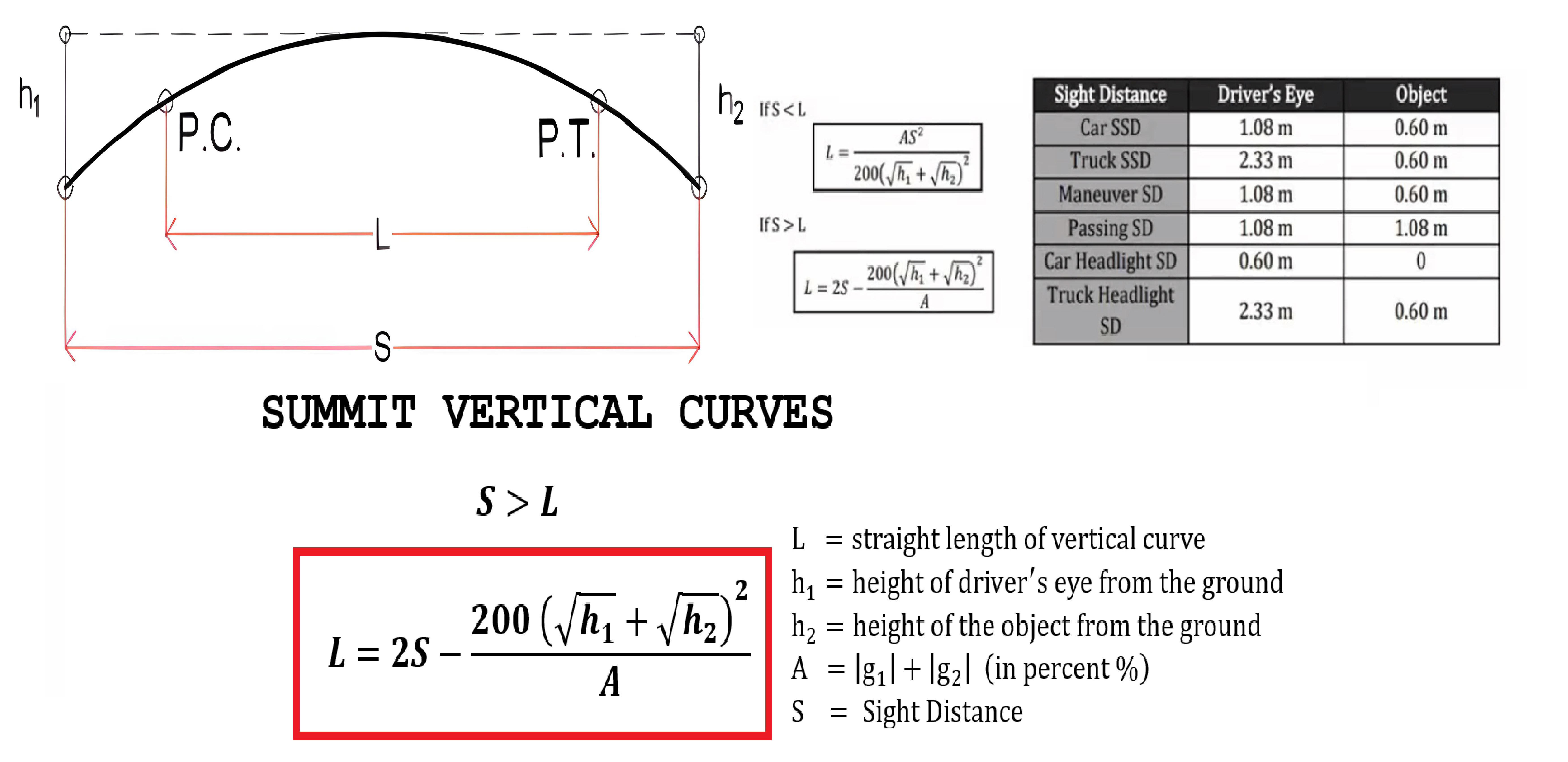

Sight Distance in
VERTICAL SUMMIT Curves
$S>L\ $
VERTICAL SUMMIT Curves
$S>L\ $
$\ \ L=2S-\frac{200\ \left(\sqrt{h_1}+\sqrt{h_2}\right)^2}{A}$
90

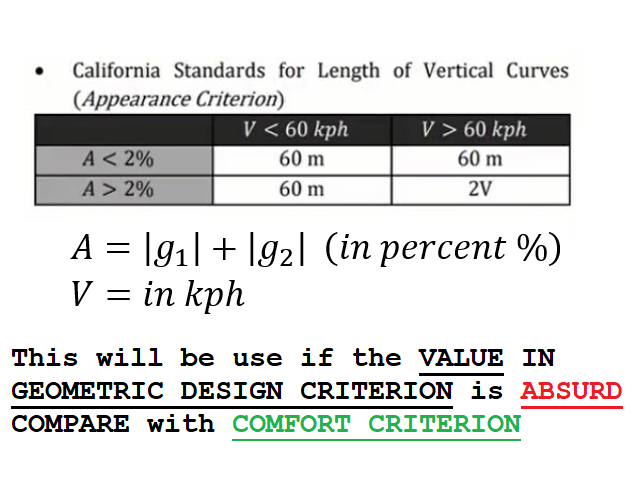

Sight Distance in
VERTICAL SUMMIT Curves
California Standard
Appearance Criterion
VERTICAL SUMMIT Curves
California Standard
Appearance Criterion
91

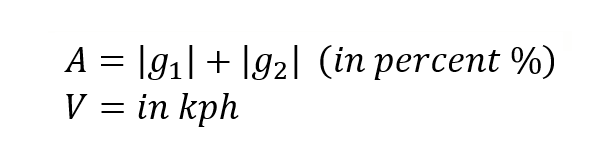

Length of Curve in
VERTICAL SAG Curves
Design Velocity of Vertical
Curves for Comfort
VERTICAL SAG Curves
Design Velocity of Vertical
Curves for Comfort
$L=\frac{A\ v_{(kph)}^2}{395}$
92

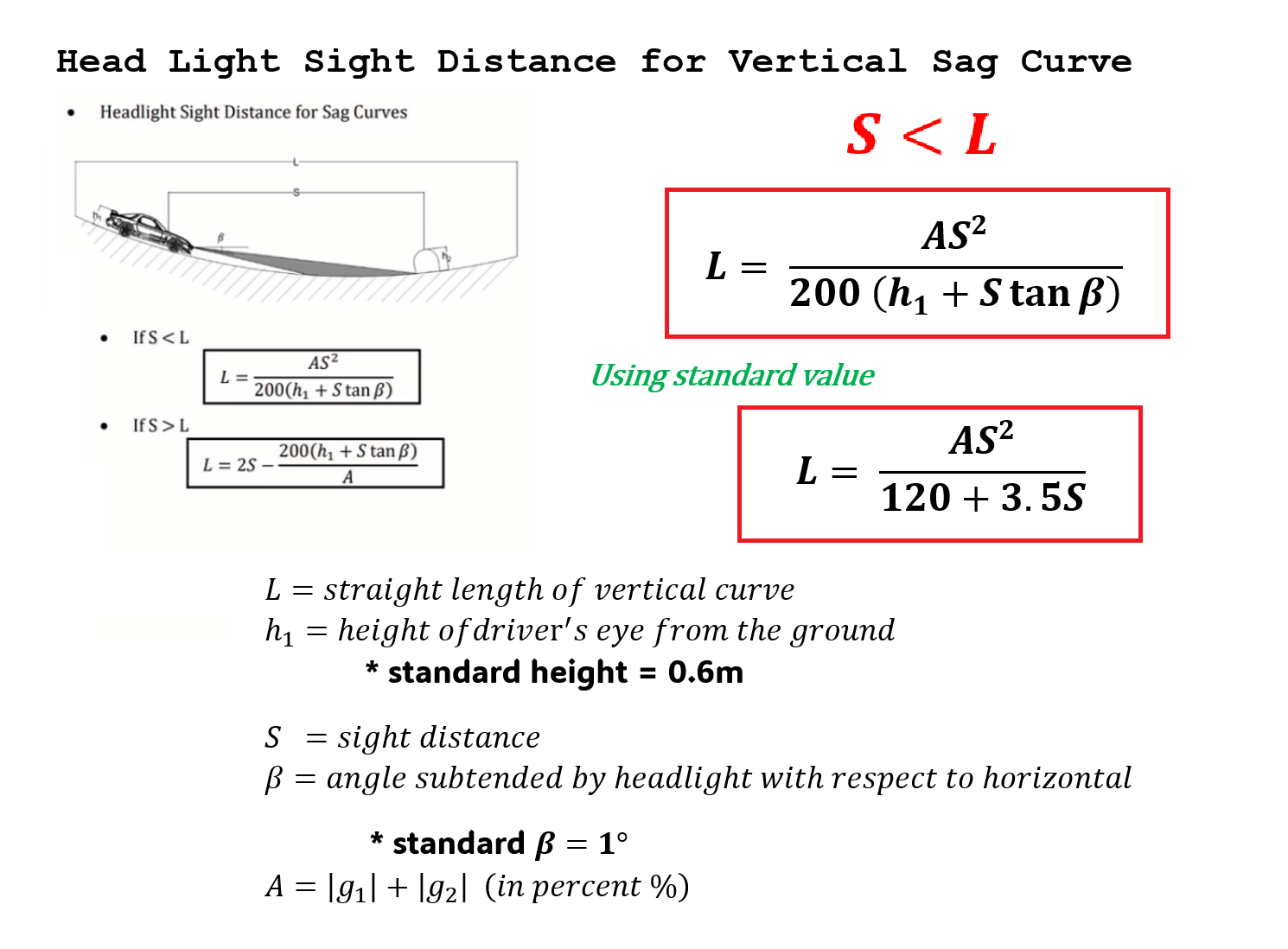

HeadLight Sight Distance in
VERTICAL SAG Curves
$S<L\ $
VERTICAL SAG Curves
$S<L\ $
$L=\ \frac{{\rm AS}^2}{120+3.5S}$
$L=\ \frac{{\rm AS}^2}{200\ \left(h_1+S\tan{\beta}\right)}$
$L=\ \frac{{\rm AS}^2}{200\ \left(h_1+S\tan{\beta}\right)}$
93

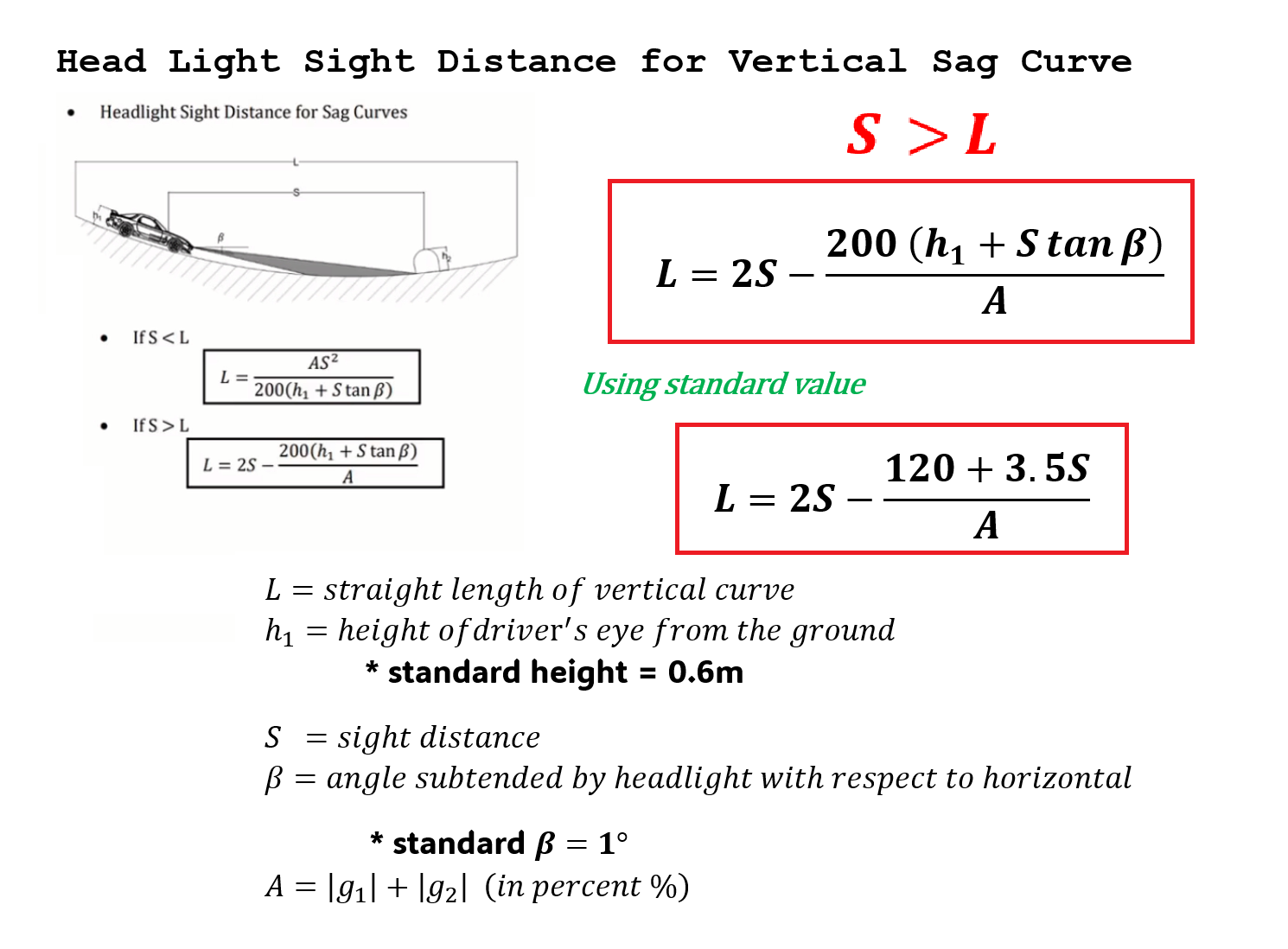

HeadLight Sight Distance in
VERTICAL SAG Curves
$S>L\ $
VERTICAL SAG Curves
$S>L\ $
$L=2S-\frac{120+3.5S}{A}$
$L=2S-\frac{200\ \left(h_1+S\tan{\beta}\right)}{A}$
$L=2S-\frac{200\ \left(h_1+S\tan{\beta}\right)}{A}$
94

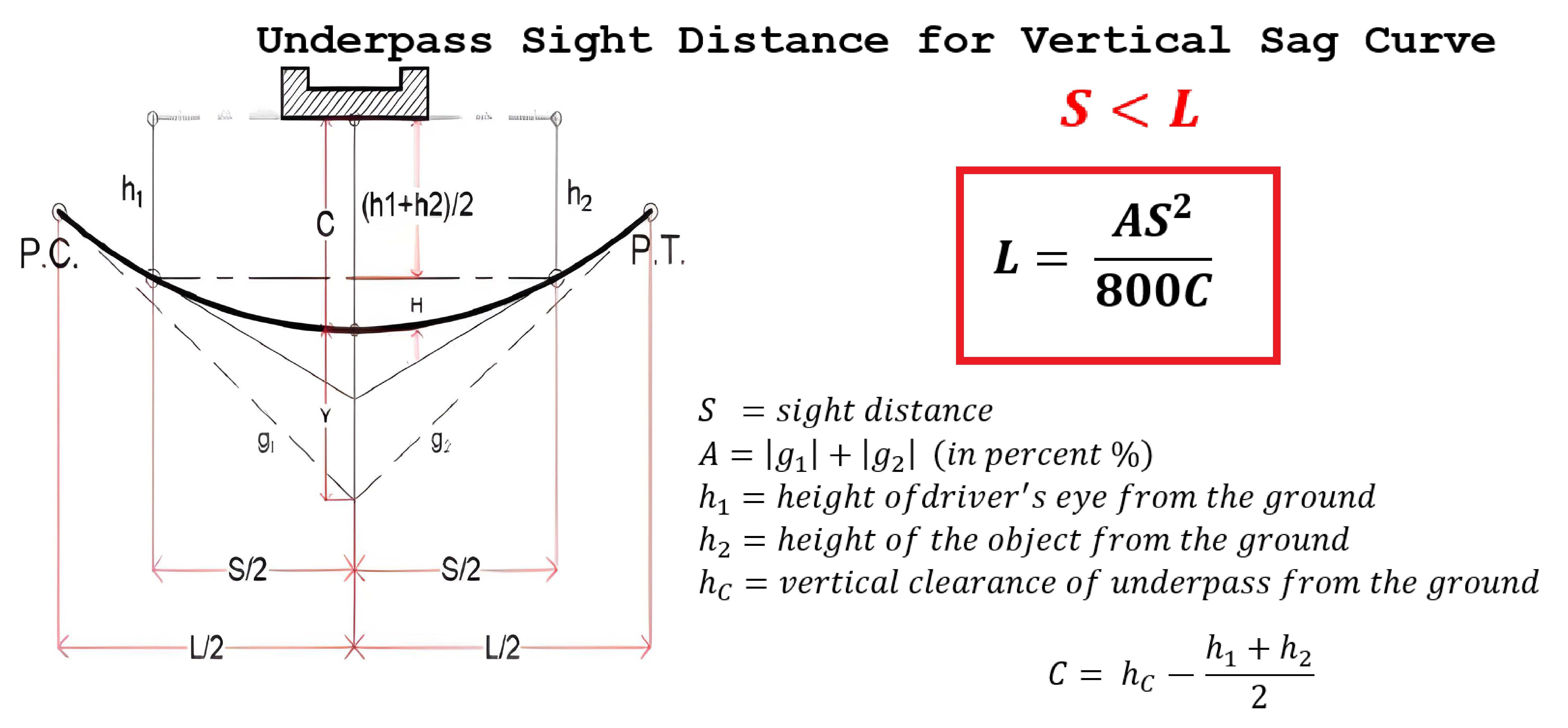

Underpass Sight Distance in
VERTICAL SAG Curves
$S<L\ $
VERTICAL SAG Curves
$S<L\ $
$L=\ \frac{{AS}^2}{800C}$
95

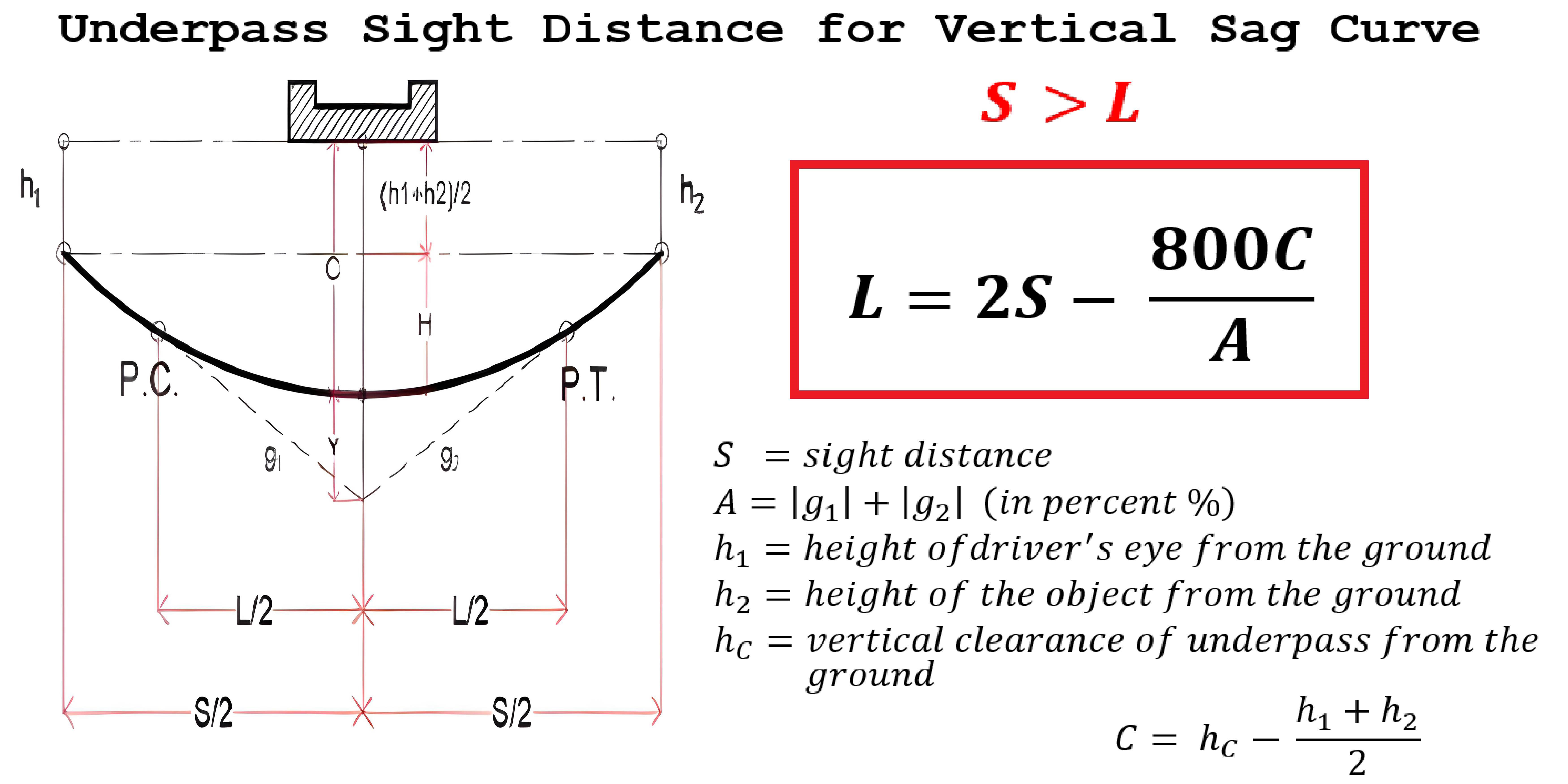

Underpass Sight Distance in
VERTICAL SAG Curves
$S>L\ $
VERTICAL SAG Curves
$S>L\ $
$L=2S-\ \frac{800C}{A}$
96

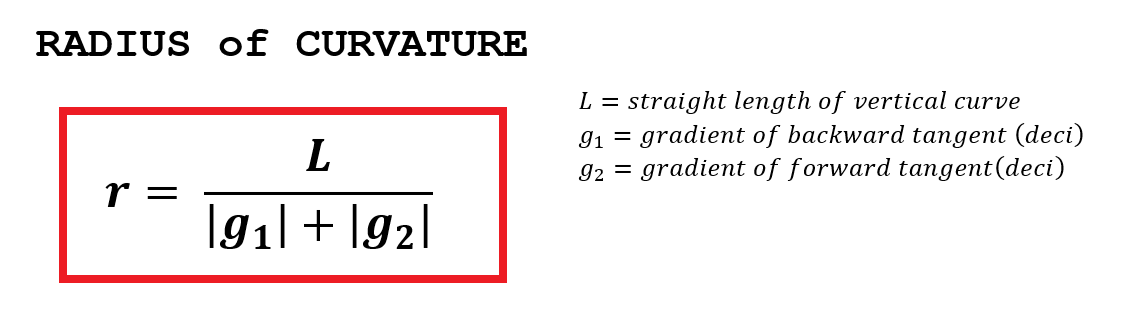

Vertical Curve
RADIUS of CURVATURE
RADIUS of CURVATURE
$r=\ \frac{L}{\left|g_1\right|+\left|g_2\right|}$
97

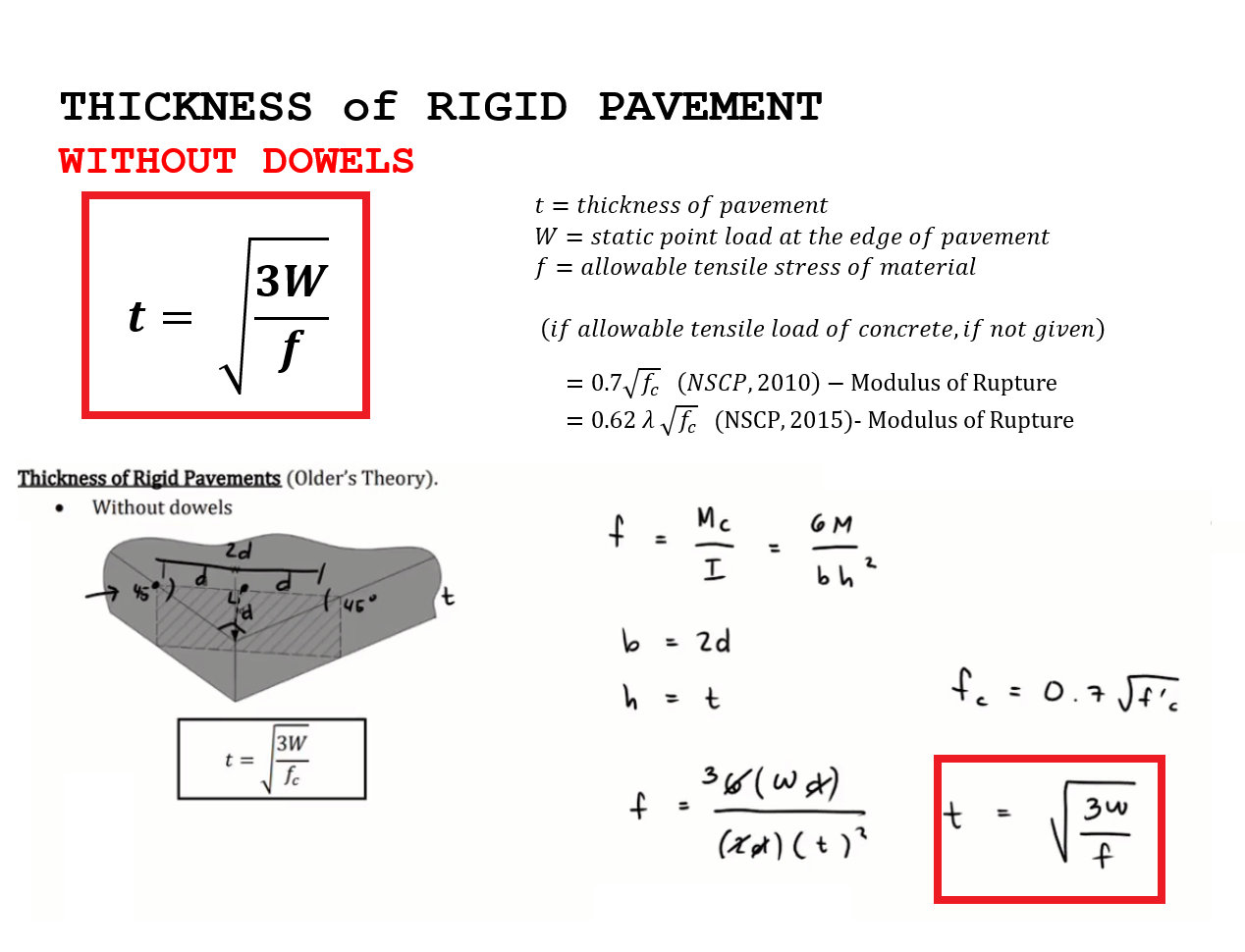

PAVEMENT DESIGN
RIGID PAVEMENT
WITHOUT DOWELS
RIGID PAVEMENT
WITHOUT DOWELS
$t=\ \sqrt{\frac{3W}{f}}$
98

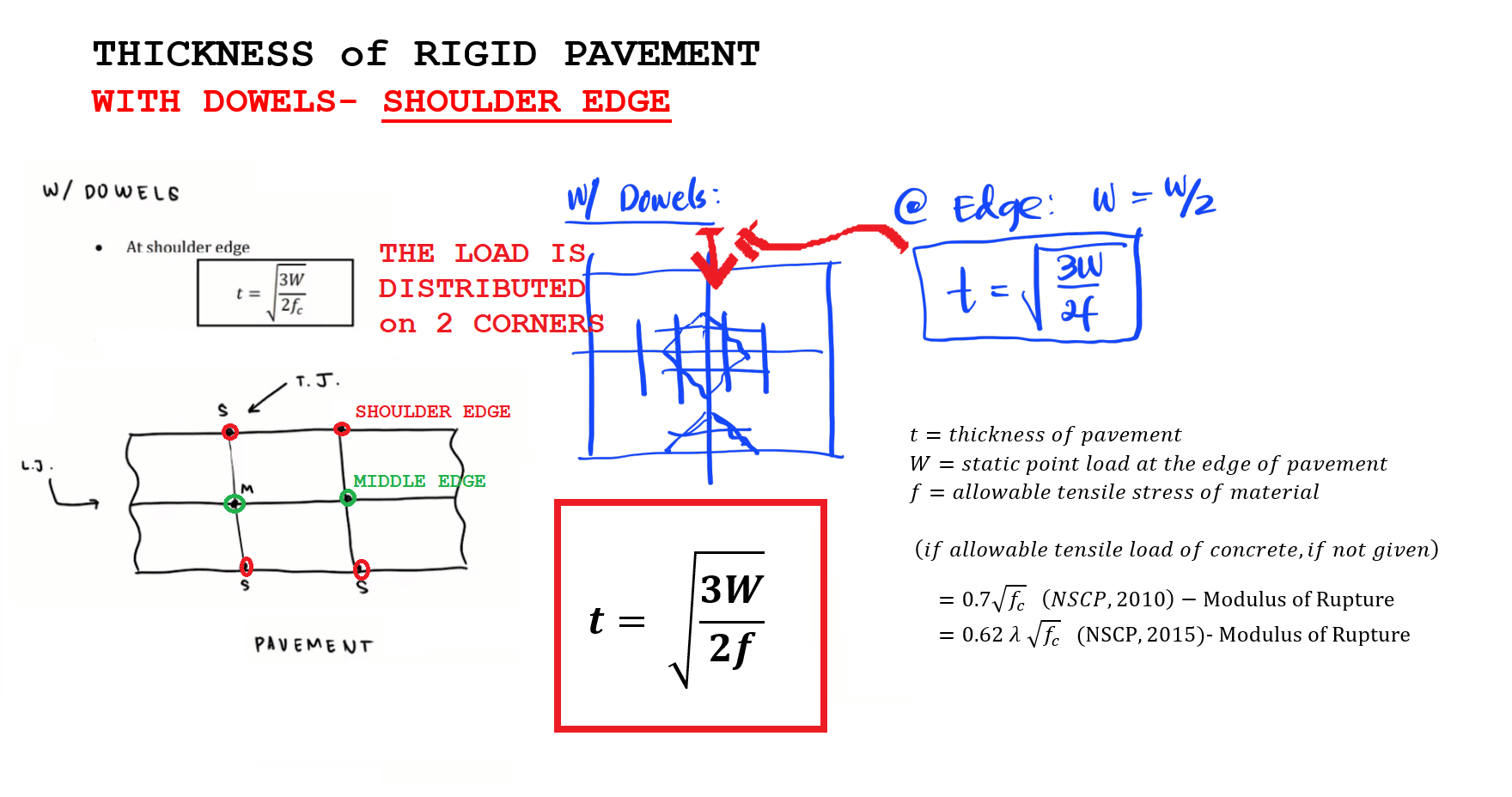

PAVEMENT DESIGN
RIGID PAVEMENT
WITH DOWELS @
SHOULDER EDGE
RIGID PAVEMENT
WITH DOWELS @
SHOULDER EDGE
$t=\ \sqrt{\frac{3W}{2f}}$
99

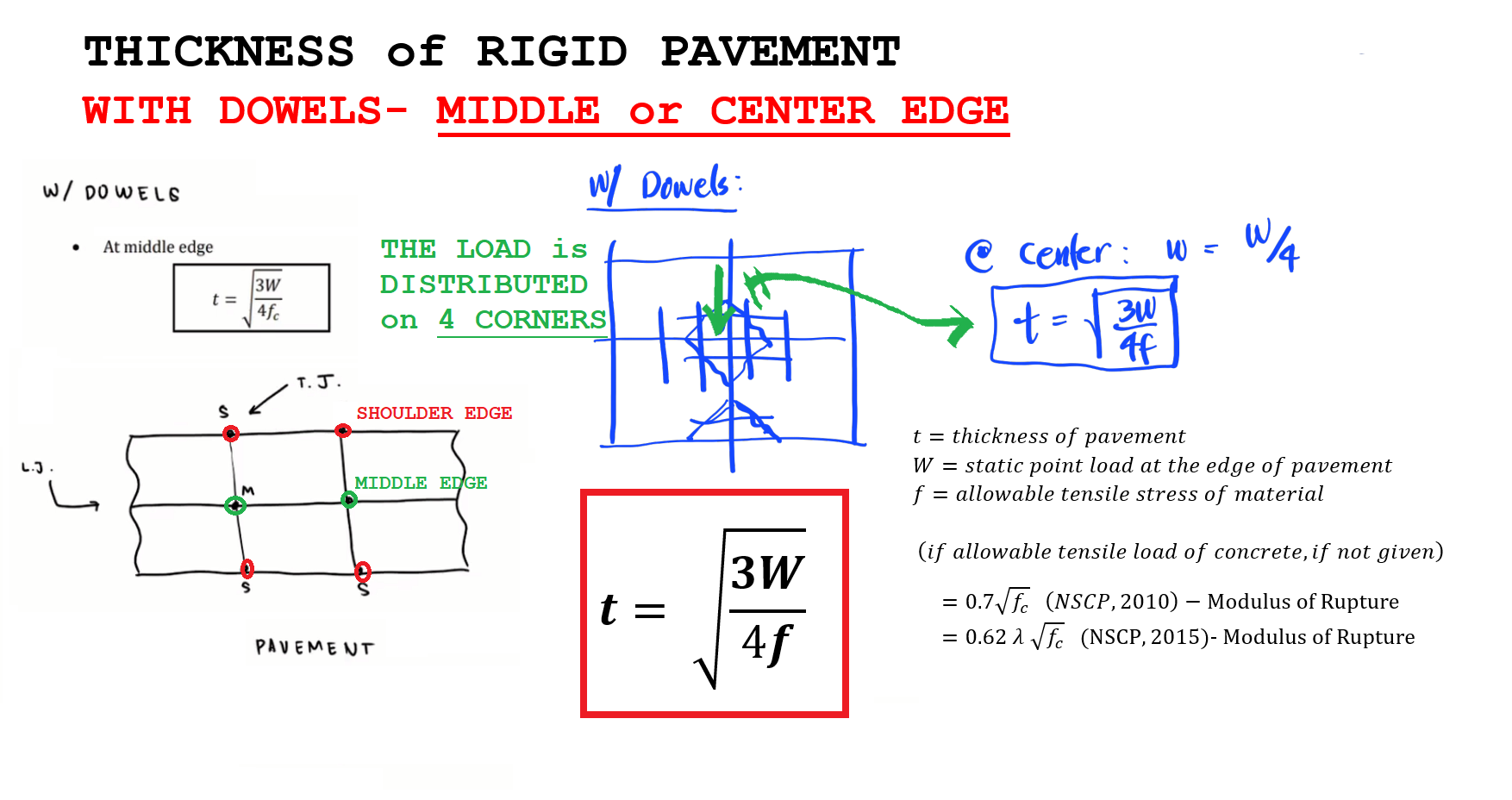

PAVEMENT DESIGN
RIGID PAVEMENT
WITH DOWELS @
MIDDLE/CENTER EDGE
RIGID PAVEMENT
WITH DOWELS @
MIDDLE/CENTER EDGE
$t=\ \sqrt{\frac{3W}{4f}}$
100

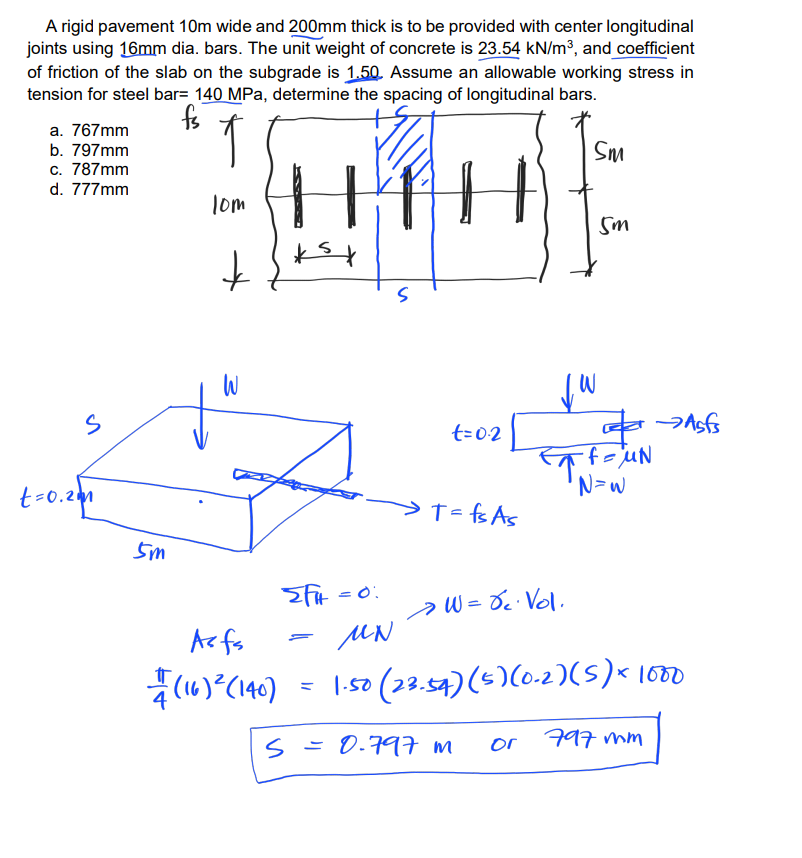

PAVEMENT DESIGN
RIGID PAVEMENT
SPACING of DOWELS
SAMPLE
RIGID PAVEMENT
SPACING of DOWELS
SAMPLE
101

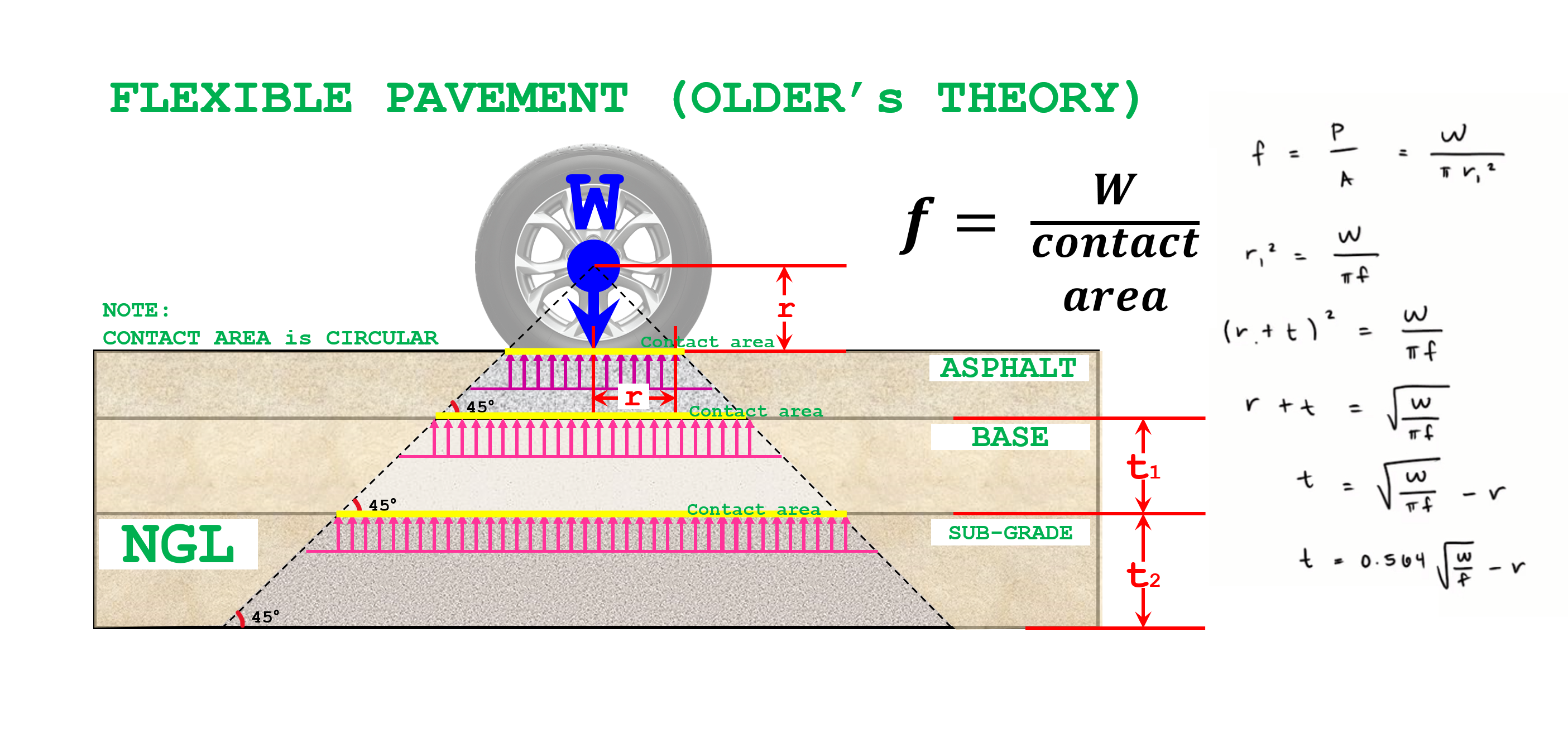

PAVEMENT DESIGN
FLEXIBLE PAVEMENT
FINDING THE THICKNESS
FLEXIBLE PAVEMENT
FINDING THE THICKNESS
102

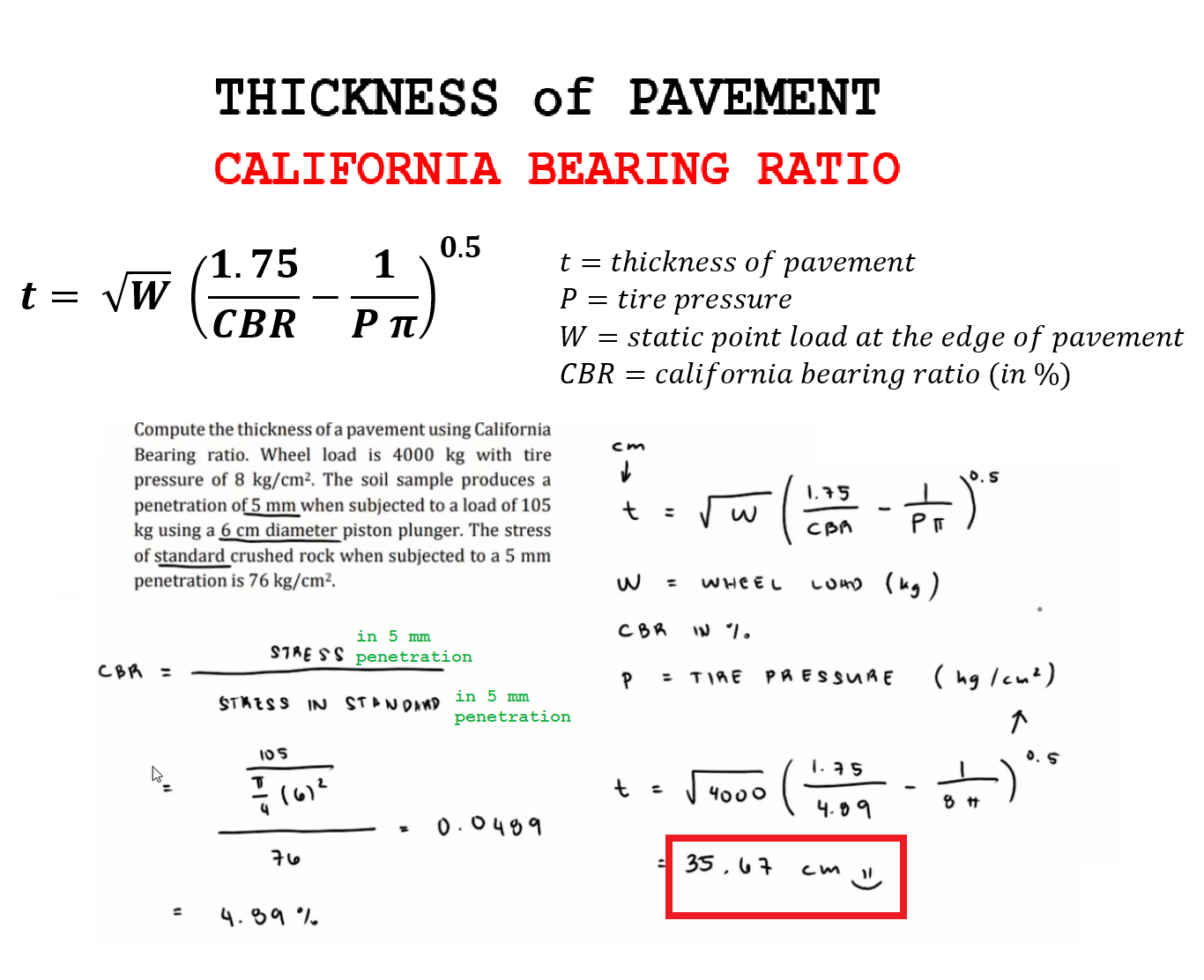

PAVEMENT DESIGN
FINDING THE THICKNESS
using
CALIFORNIA BEARING RATIO
FINDING THE THICKNESS
using
CALIFORNIA BEARING RATIO
$t=\ \sqrt W\ \left(\frac{1.75}{CBR}-\frac{1}{P\ \pi}\right)^{0.5}$
103

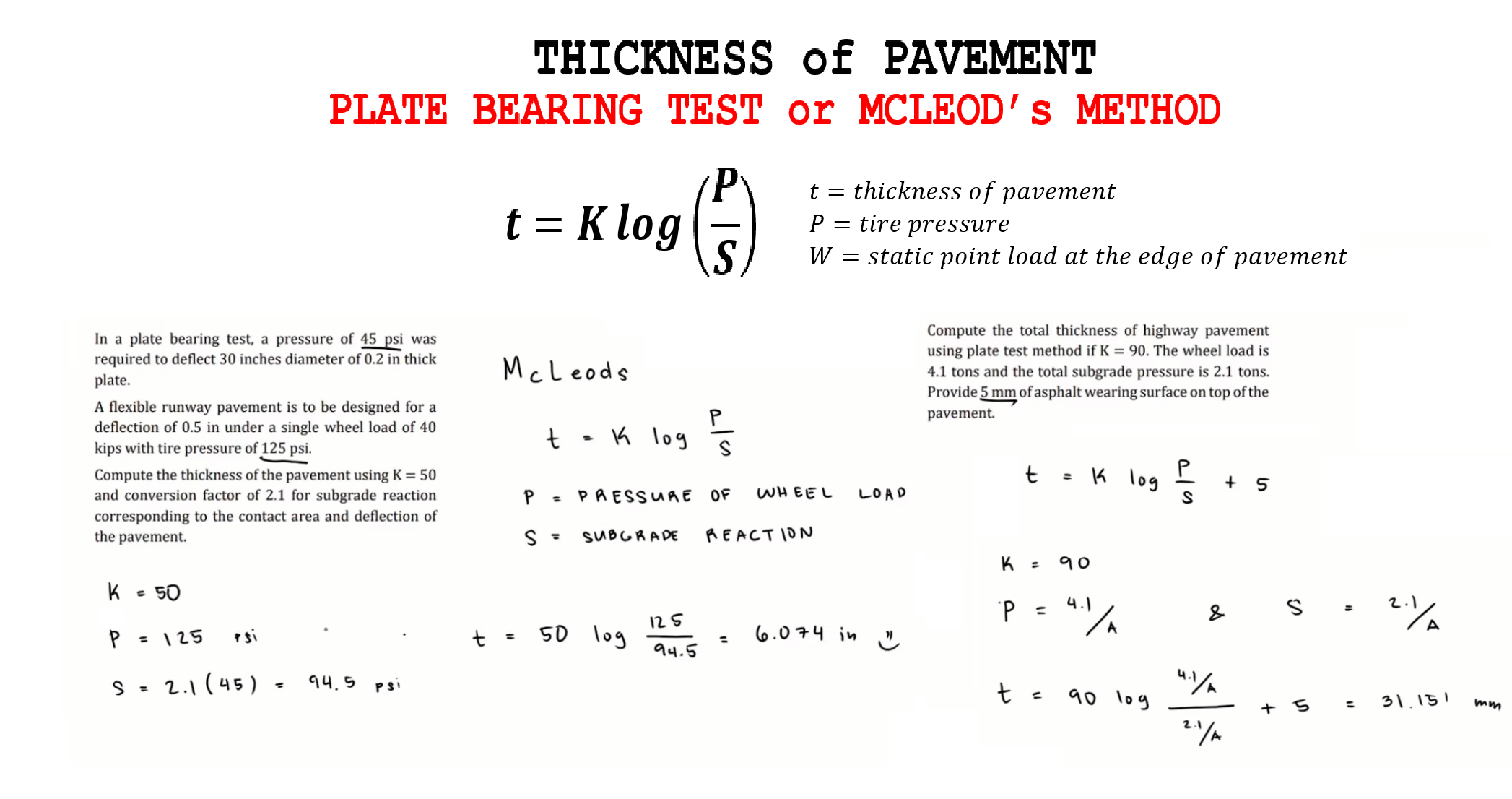

PAVEMENT DESIGN
FINDING THE THICKNESS
using
PLATE BEARING TEST
FINDING THE THICKNESS
using
PLATE BEARING TEST
$t=K\log{\left(\frac{P}{S}\right)}$
104

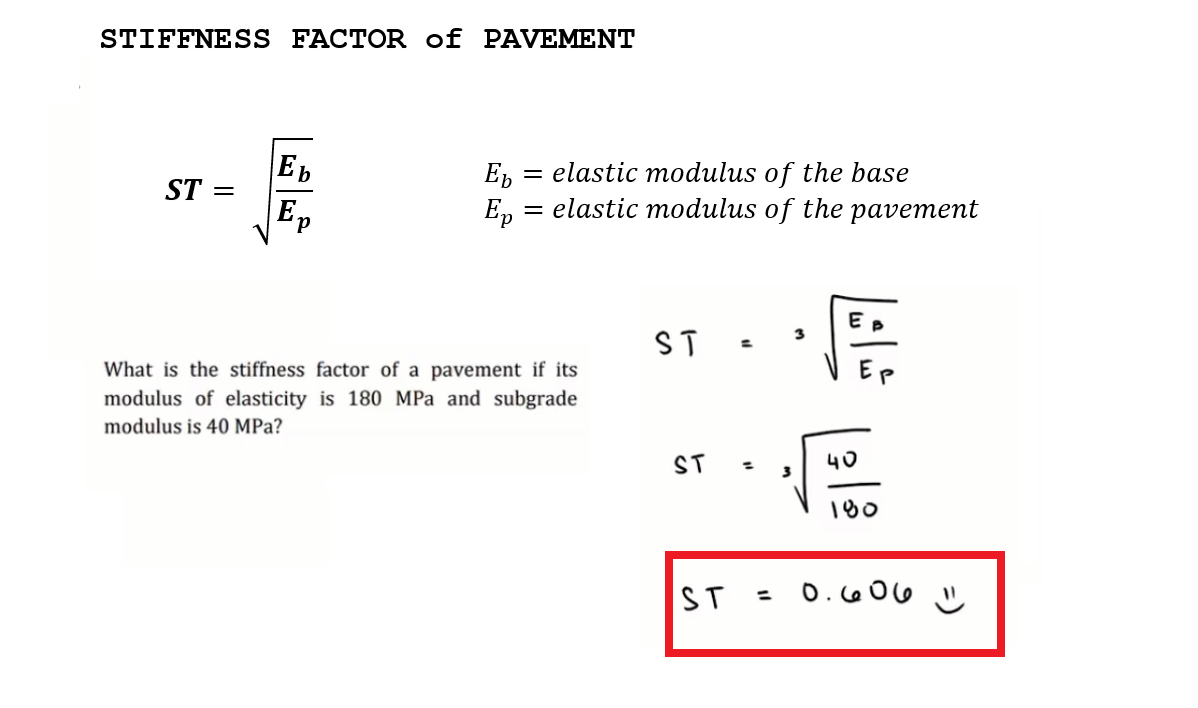

STIFFNESS FACTOR of PAVEMENT
$ST=\ \sqrt{\frac{E_b}{E_p}}$
105

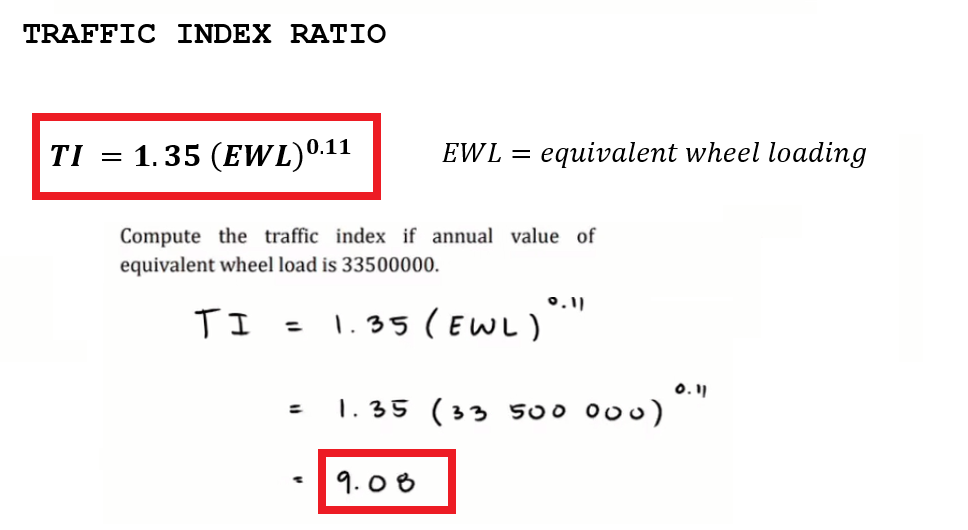

TRAFFIC INDEX RATIO
$TI\ =1.35\ \left(EWL\right)^{0.11}$
106
SHRINKAGE FACTOR
$S.F. =\dfrac{∆H}{H_0}=\dfrac{∆e}{1+e_0}$
107
MODULUS of SUBGRADE REACTION
$S.R.\ =\ \frac{stress}{deflection}$
108

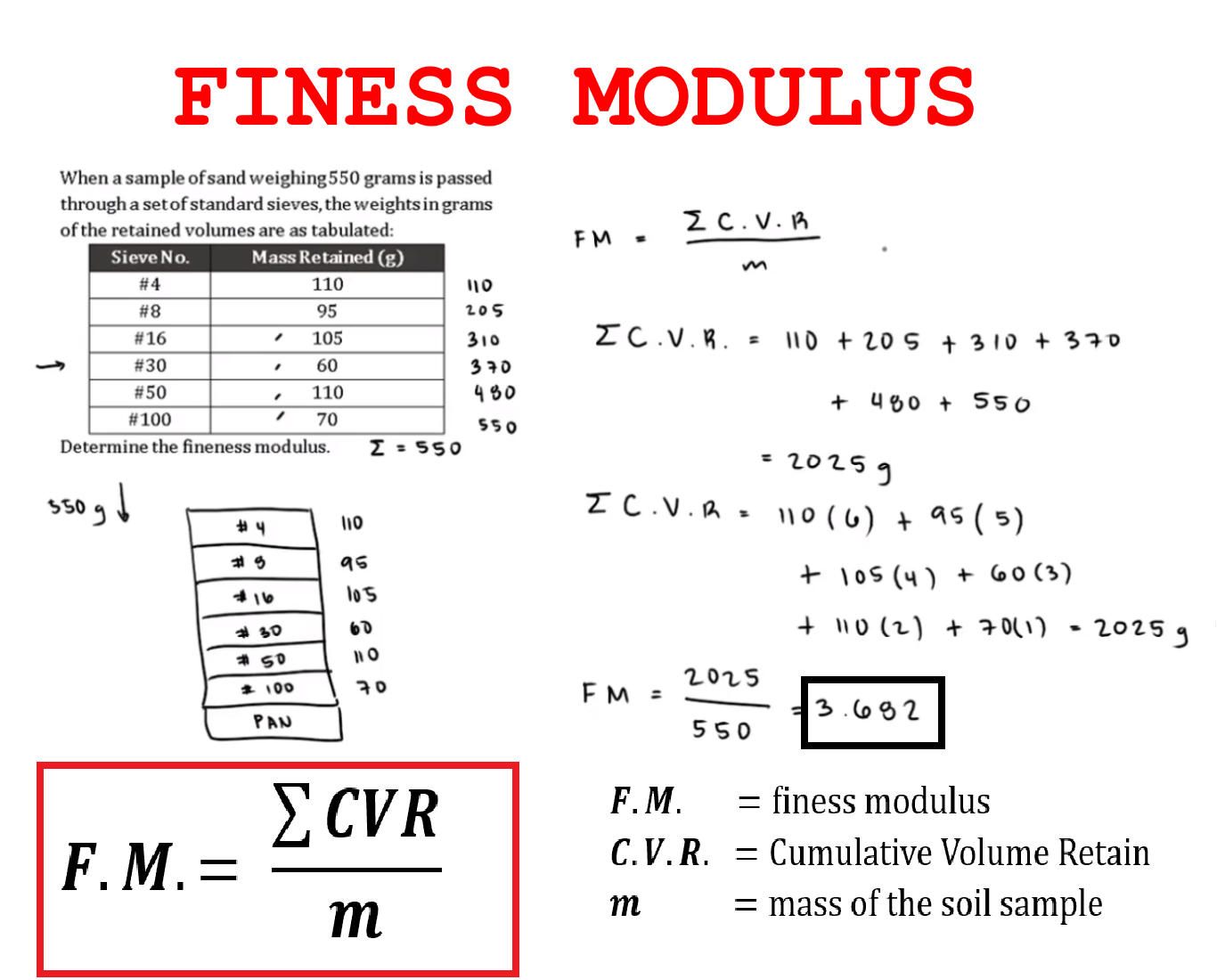

FINESS MODULUS
$F.M.\ =\ \frac{\sum CVR}{m_T}$
109
CENTRIFUGAL RATIO
or
IMPACT FACTOR
or
IMPACT FACTOR
$CR\ =\ \frac{CF}{W}\ =\ \frac{v^2}{g\ R}$
110
CENTRIFUGAL FORCE
$CF\ =\ \frac{{W\ v}^2}{g\ R}$
111
BRAKING TIME
$t_b\ =\ \frac{v}{g\ \left(f\ \pm\ G\right)}$
112
Image occlusion: name the hidden labels
113
Image occlusion: name the hidden labels
114
Image occlusion: name the hidden labels
115
Image occlusion: name the hidden labels
116
Image occlusion: name the hidden labels
117
Image occlusion: name the hidden labels
118
ASPHALT MIX
Absolute Specific Gravity of Mix
Absolute Specific Gravity of Mix
$\frac{100}{G_{b-mix}}=\ \sum\frac{P_{materials}}{G_{materials}}$
___________________________________
$G_{b-mix}=\ \frac{P_1+P_2+P_3}{\frac{P_1+P_2+P_3}{G_1+G_2+G_3}}$
___________________________________
$G_{b-mix}=\ \frac{P_1+P_2+P_3}{\frac{P_1+P_2+P_3}{G_1+G_2+G_3}}$
119
ASPHALT MIX
Percent air voids in aggregates
/ mineral aggregates
Percent air voids in aggregates
/ mineral aggregates
$V_{MA}=\ 1-\frac{G_c}{G_b}\ P_{agg}$
